Risers Risers
are reservoirs of molten metal to supply the solidifying sections of the casting with
make-up metal. The molten metal in the risers accomodates liquid-to-solid shrinkage and
prevents internal or external voids.
- Risers are placed and sized to provide sufficient metal flow into the mold during
cooling to compensate for shrinkage.
- Steel castings have a short metal flow range and a high shrinkage factor. This
requires large risers that feed uniformly into the casting.
The riser design for the cope pattern should provide the shortest, most direct metal
feed into the hottest sections during cooling. It should be large enough to retain
heat and be the last section to cool, so that the final solidification shrinkage is in the
riser, not in the casting. |

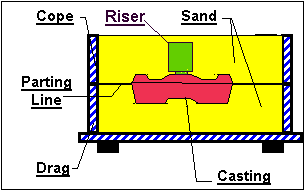

Schematic of Riser Position

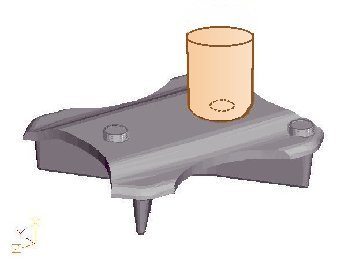

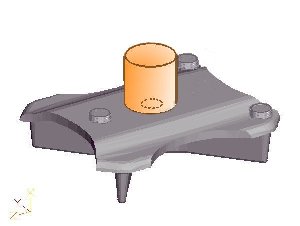

Two riser options are
shown. Choose the one that bests meets the design criteria |
