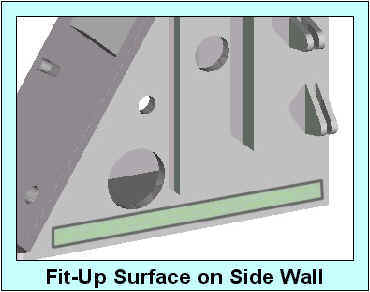

In Feature C, there is a 2.75” wide
flat on the long horizontal edge of the side wall. This edge is a fit-up surface that has
a flatness requirement of +/- 10 mils.
The fit-up surface is milled to the
desired tolerance and requires machine stock.
100 mils of machine stock are added to
the thickness of the fit-up surface
|
