Machining Allowances

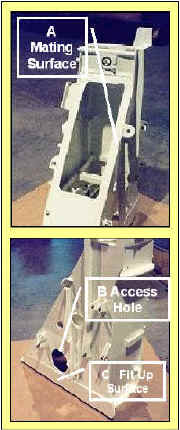

The drawing to the right highlights three features on the
uplock with different machining and tolerance requirements.
Feature A -- Mating
Surface for Cover Plate on Angle Face
Feature B --
Access Hole on Side Wall
Feature C --
Fit-up Surface on Lower Horizontal Edge of Side Wall.
The casting engineer should consider which
features need additional machine stock.
Which Feature
(A, B, or C) should have added machine stock? |
|
