A Design Study in Aluminum Castings -Uplock Support

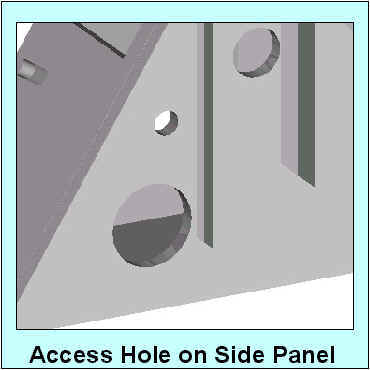

Feature B - Access Hole on the Side Wall

In Feature B, the access hole on the side wall is used for cable routing.

  • It is not a precision feature. The location tolerance is +/- 60 mils, which is within the as-cast tolerances.

No additional stock is needed around the hole, because no machining is required.

Feature B does not require added machine stock
