A Design Study in Steel - Crossbleed Valve for the F-5

Crossbleed Valve  -- Description

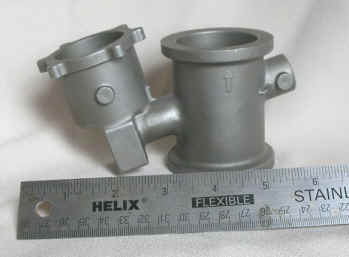

The crossbleed valve body is a complex near-net shape body, consisting of a flanged thin wall (1/8”) main cylinder attached to a flanged actuator cup by a cylindrical connecting shaft angled off the main cylinder.

  • Bleed air flow is through the main cylinder, controlled by the butterfly valve.

  • The valve actuator is inserted in the cup.

  • The two ends of the main cylinder and the top of the cup are flanged for connections.

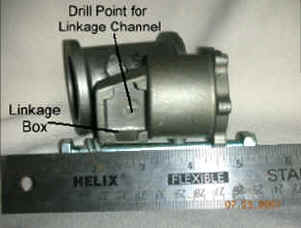

  • The connecting shaft is drilled out for the linkage between the actuator and the butterfly valve.

The production requirement for the valve body is 100 pieces per annum.
