Option B - Chills over the Center Sections
|
|

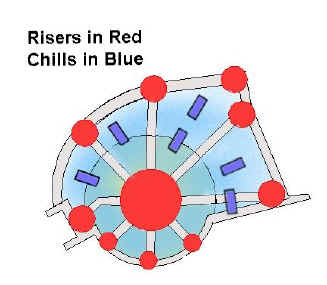

In Option B, the
chills are positioned over the flat plate sections between the risers and the ribs. These chill locations are well designed.
- The solidification will be quickly initiated in the
thinner center sections of the top plate.
- The risers will feed easily and effectively into the top
plate sections.
- Solidification shrinkage will be captured in the risers
producing a sound top plate.
|
