The foundry engineer uses chills
to produce sound castings by controlling thermal gradients and the location and direction
of solidification in the casting.
A chill is a block of material (sand or metal) which
has a high heat capacity and/or thermal conductivity, which accelerates the rate of heat
extraction in a critical area of the casting.

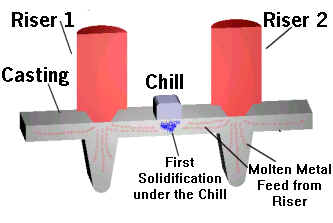

Chills Induce Solidification Between Risers
Chills placed on a wall or
plate sections will improve the effectiveness of the riser in feeding molten metal to the
casting.
The chill produces an “end-effect” (a
portion of the casting that solidifies first) that insures that directional solidification
occurs between risers.
This insures that the risers feed into the casting and
don’t feed into each other.
