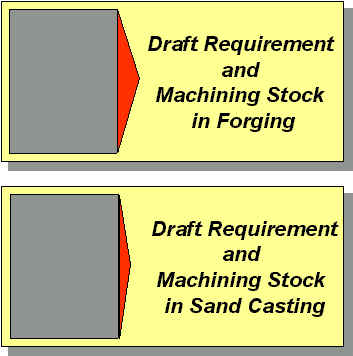

Ring Cross Sections, Showing
Draft and Machining Stock Requirements

|
|
The circumference of
the ring is a good candidate for reduced machining.
- In the original design extra stock was required on the
circumference because of the draft requirements of the forging dies.
- Using metal casting in sand molds, less draft is
required on the circumference, so there is less stock to remove in the machining
operation.
