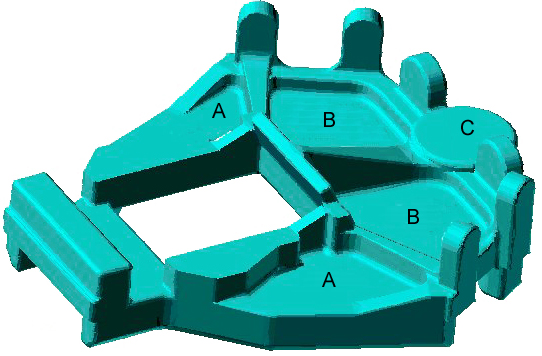

There are FIVE large flat sections (A, B, C) in the hitch plate. Choose appropriate sections for lightener holes.
| Section A | Section B | Section C |
Design Options --
| LIGHTENER HOLES There are FIVE large flat sections (A, B, C) in the hitch plate. Choose appropriate sections for lightener holes.
|
|
TAPERS FOR DIRECTIONAL SOLIDIFICATION
| There is one long thin rib that extends from the flat
boss on the periphery to the center rib. Add a suitable taper to promote directional
solidification on that rib.
|
||||
 |
 |
 |
||
| Original Design | Option A | Option B | ||
 |
