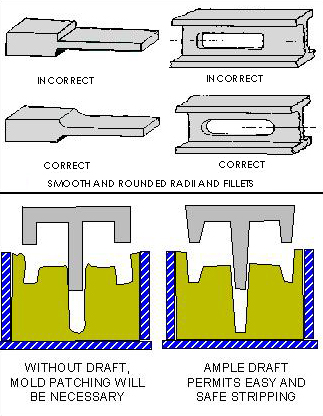

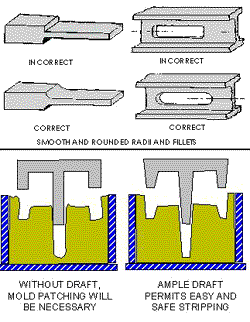

Draft Angles, Radii, and Fillets Design Criteria -- The component has to be designed so that
--
- Vertical surfaces have the proper draft angle so the mold can be
drawn from the pattern. A draft angle of 1° is common.
- Sharp radii and fillets are smoothed and rounded to avoid turbulent
metal flow and to eliminate stress concentrations.
|
 |
