A Design Study in Steel - Cast Connex Steel Construction Connector

Steel Connector -- Application

 Concentrically braced frames are widely used in steel structures because of the increased stiffness, low cost, and ease of construction, compared to other lateral reinforcement systems.

  • The diagonal bracing members of braced frames are often hollow structural sections (HSS) because of their compression load efficiency and their aesthetic appearance.

  • These HSS connectors are either field-welded or field-bolted.

  • HSS members come in a wide range of section sizes and geometries.

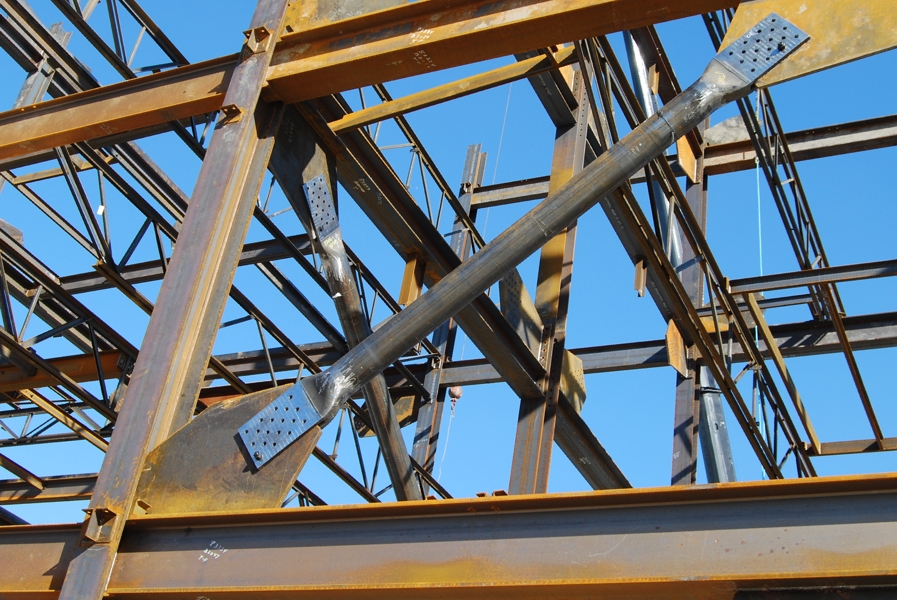

Diagonal Steel  HSS Bracing
