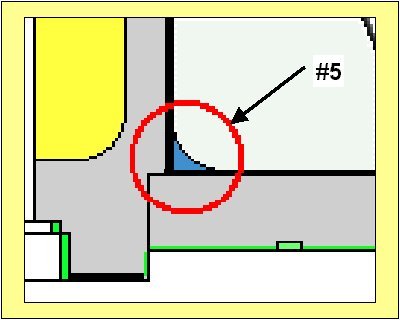

Feature #5 -- The junction of the cylinder to the support base is a highly stressed region and should be rounded (0.5" radius)

A generous fillet between the cylinder and the base will markedly reduce the stress concentration at this critical juncture.
