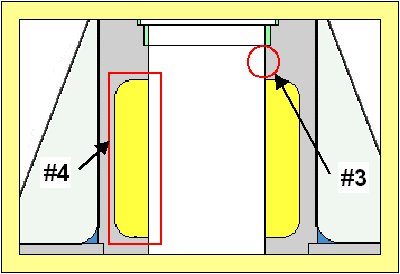

Feature
#3 -- The axle shaft hole does not require a machining operation; so casting does not
provide a near-net shape advantage here.
Feature #4 -- With a casting, the wall thickness of the lower
cylinder section can be contoured, saving weight and metal costs.
The inner diameter
geometry is produced by using a sand core in the mold to form the interior cavity of the
cylinder.
|
