WARNER SWASEY Later No. 3, 4, 5 Turret Lathes Service Instructions Manual 1336

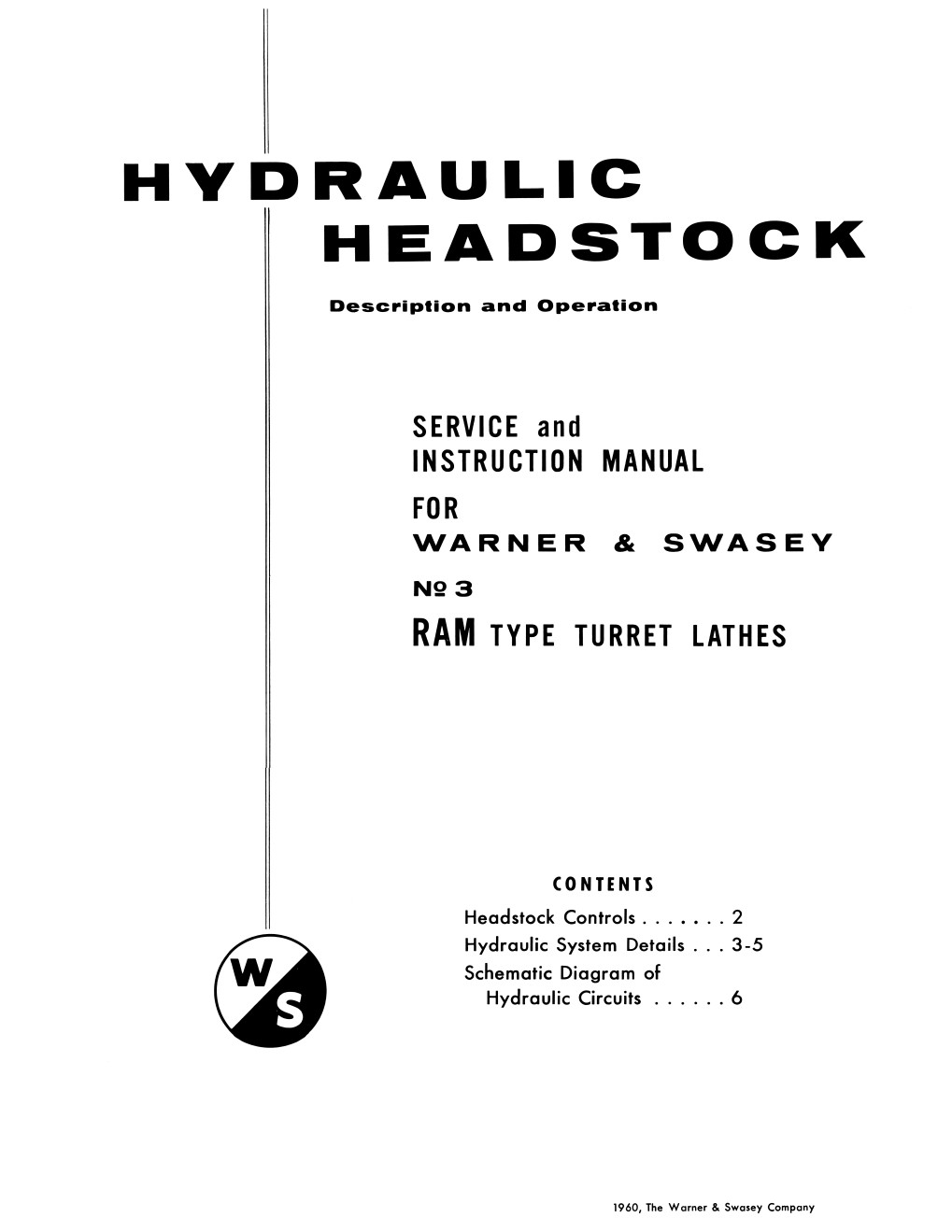

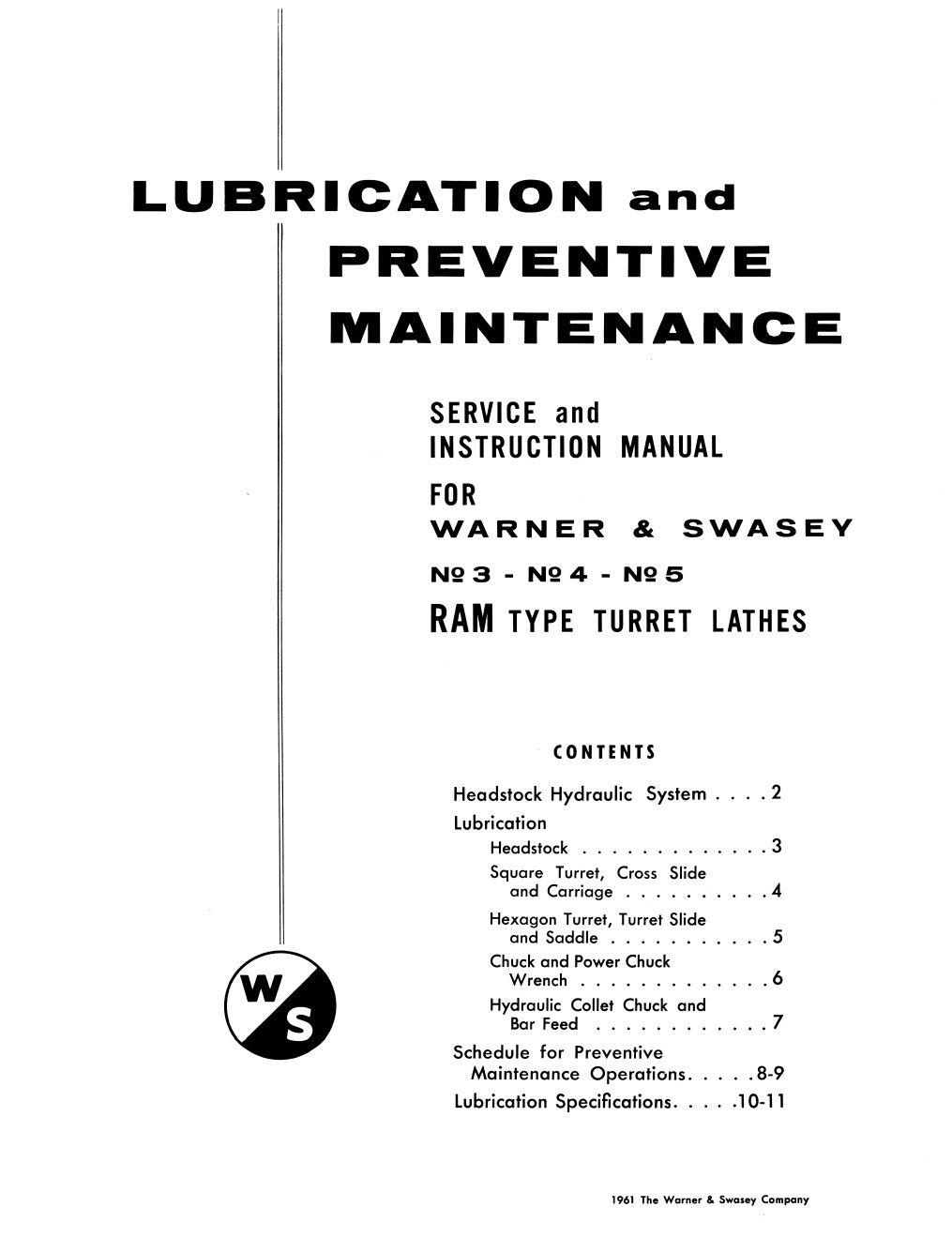

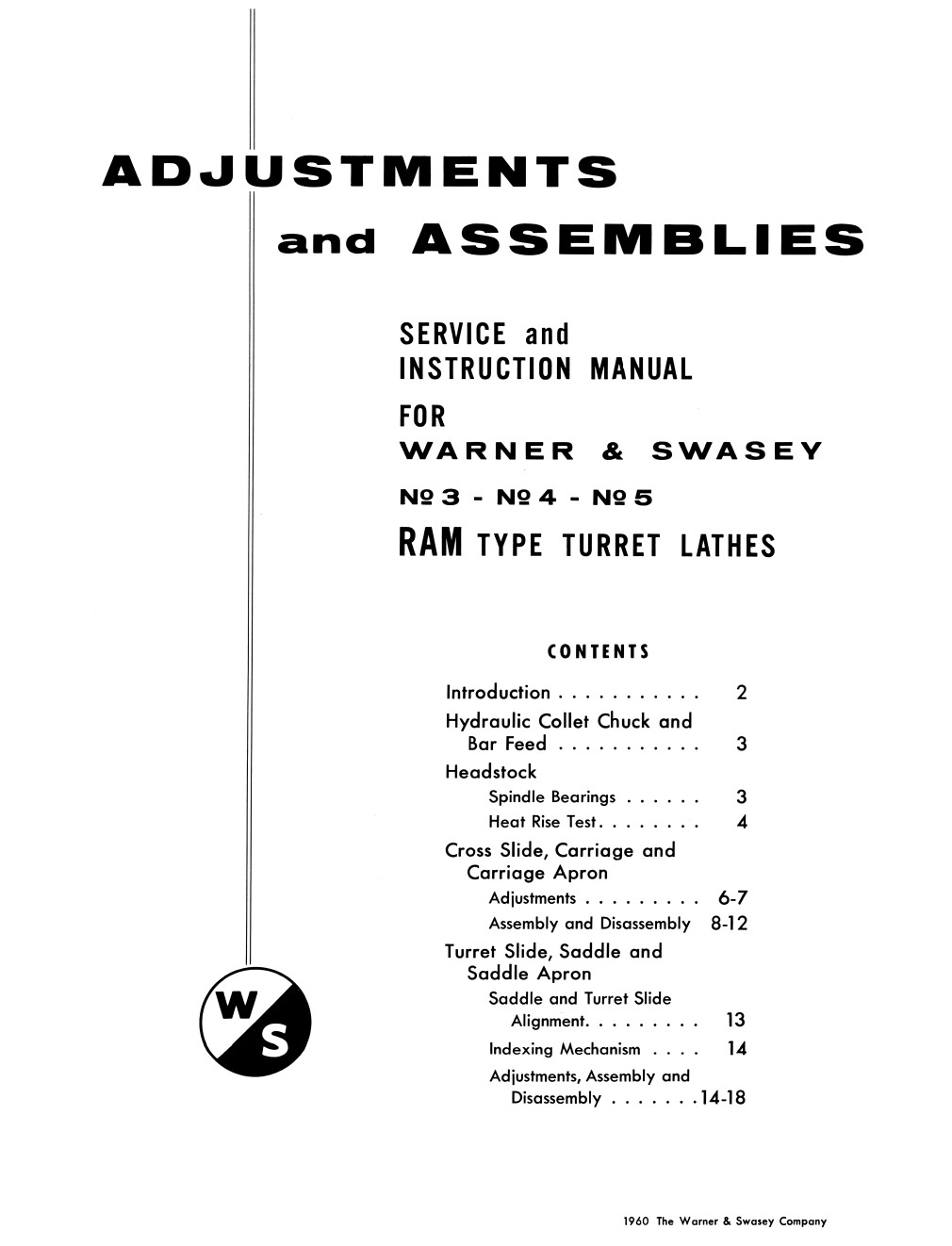

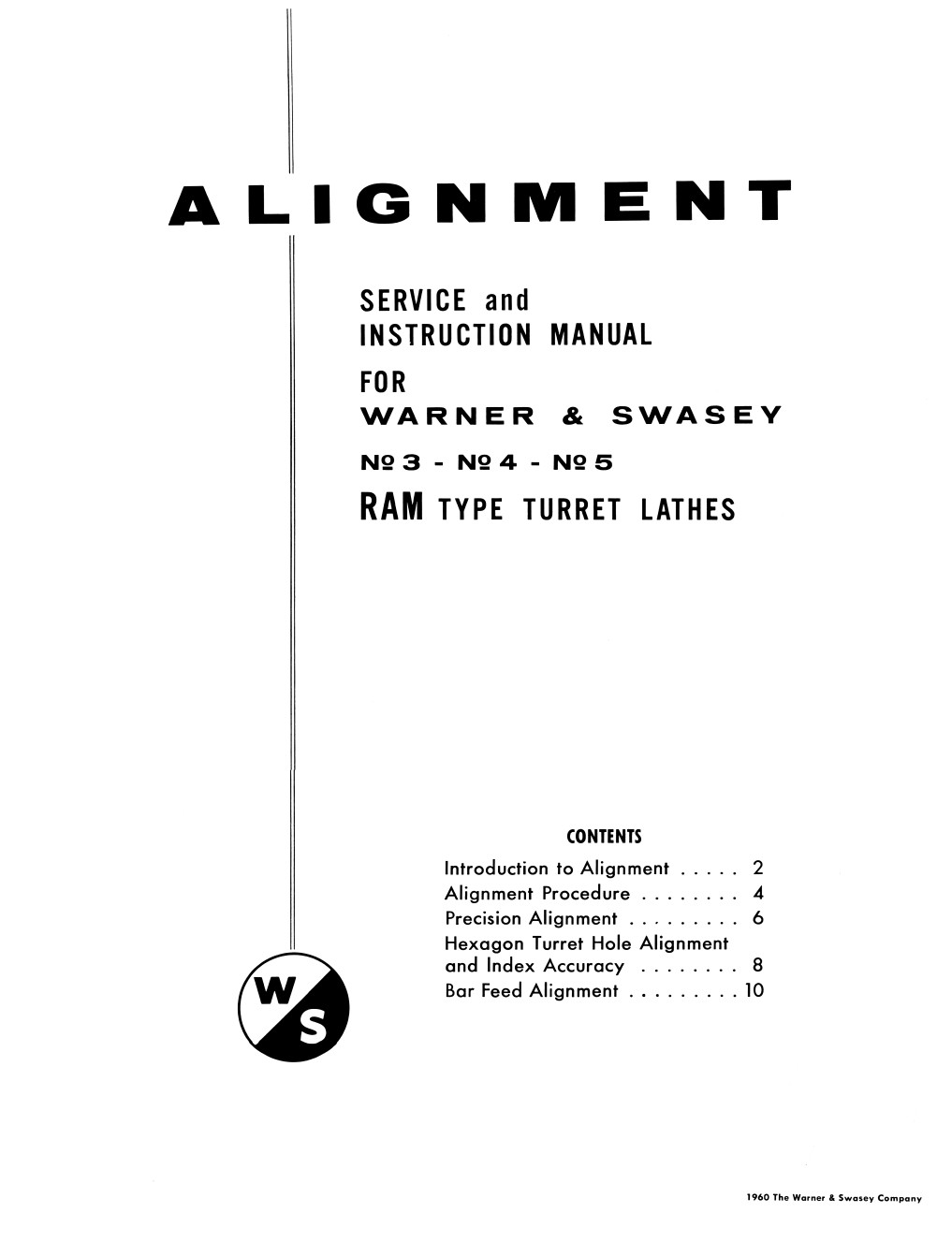

Manual Description: Number of Pages: 68 This is a reproduction, not a photocopy, of an original Warner Swasey No. 3, No. 4, No. 5, Geared Head Ram Type Turret Metal Lathe Service and Instructions Manual. This manual covers the newer models which include M-2200, M2240, M-2250, and M-2770. The manual for the Warner Swasey No. 3, No. 4, No. 5 turret metal lathes covers information about loading and installing the lathe, proper lubricating instructions, and how to align the different parts of the lathe correctly. It also covers how to adjust the clutches, and how to remove the brake lining, pulley shaft, idler shaft, and gear shaft. The manual contains information about adjusting the turret slide and saddle, plus the indexing mechanism. The manual covers the feed train, and the collet and bar feed systems as well. The back has the feeds and speed charts as well as a complete set up explosive/cross sectional view diagrams of all the parts with descriptions. Please read the contents pictured above for more details. This is the best manual you can buy for the Warner Swasey No. 3, No. 4, No. 5 Turret Metal Lathes. Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
