VAN NORMAN 22L, 22LU, 22P, 22PU Ram Type Universal Milling Machine Manual 0732

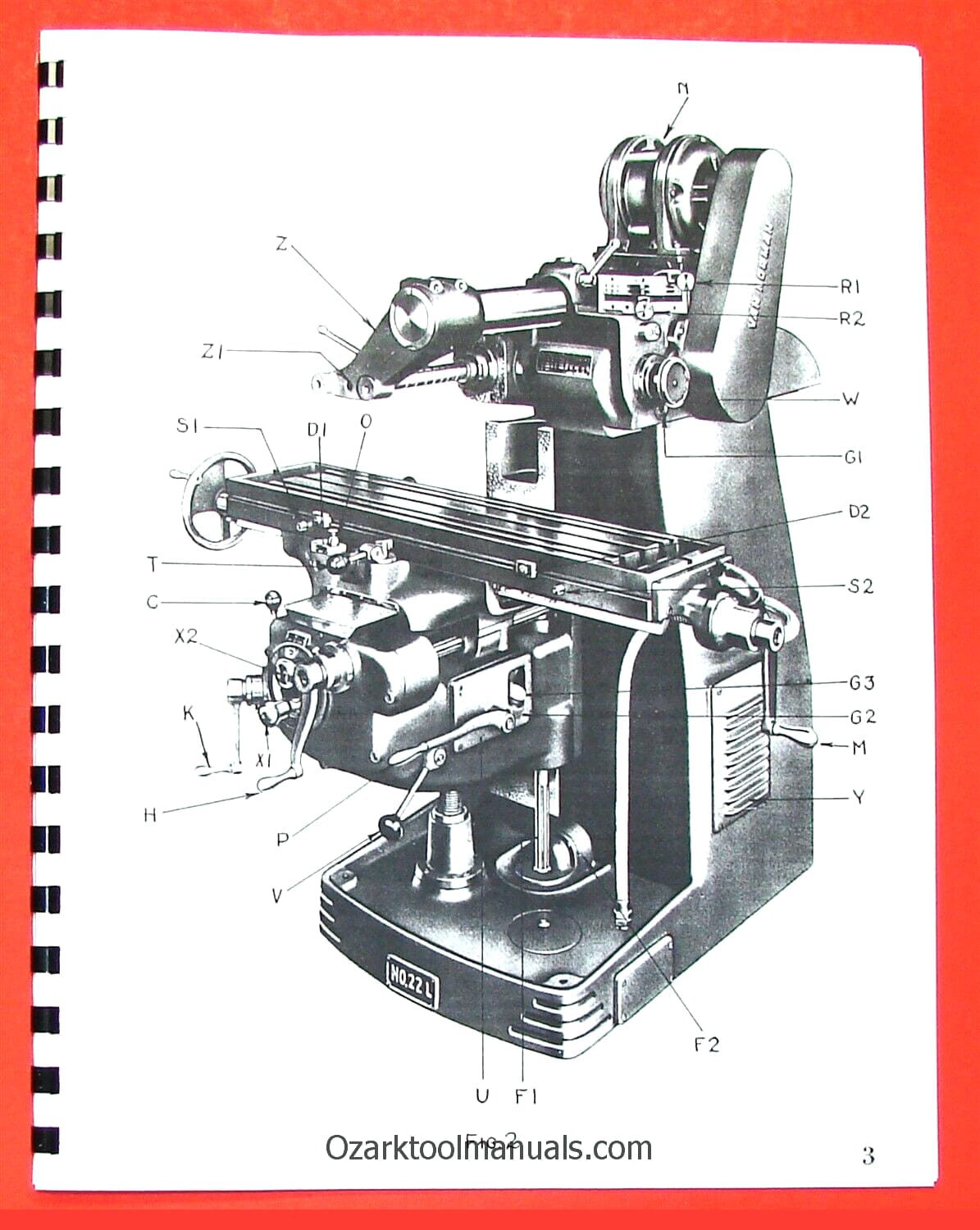

Manual Description: Number of Pages: 20 This is a reproduction, not a photocopy, of a Van Norman Models 22L, 22LU, 22P & 22PU Ram Type Universal Milling Machine Instructions and Parts Manual. This manual contains information on set up, lubrication, maintenance, adjustments, and controls as well as a complete parts list and exploded view diagrams. Please read contents below. Contents: PRELIMINARY INSTRUCTIONSHandling………………………………….5Installation………………………………5Leveling………………………………….5Wiring and Electric Controls………………..5OPERATIONFeed Changes………………………………7Feed Locks………………………………..6Hand Feeds………………………………..6Power Feeds……………………………….5Power Feed Stops…………………………..6Power Rapid Traverse……………………….6Speed Changes……………………………..6SAFETY DEVICESPower Safety Stops…………………………6Safety Clutch……………………………..6GENERAL INFORMATIONMilling Operations…………………………8PERIODIC MACHINE ADJUSTMENTSGib………………………………………7Head……………………………………..7Overarm…………………………………..7Ram………………………………………7Rapid Traverse Clutch………………………6Spindle Bearing……………………………7Universal Saddle…………………………..7LUBRICATIONCutterhead………………………………..8Feed Drive Chain…………………………..8General Information………………………..8Knee Bearing Face………………………….8Knee……………………………………..8Miscellaneous……………………………..8Power Feed Drive…………………………..8Ram………………………………………8Table and Saddle…………………………..8Table Feed Screw…………………………..8Column Details……………………………10Head Details……………………………..11Ram Details and Shifter……………………12Ram Details………………………………13Table Details…………………………….14Saddle Details……………………………15Universal Saddle Detail……………………16Front of Knee…………………………….17Knee – Right Side…………………………18Knee – Left Side………………………….19Knee Gearing……………………………..20 Overview I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench. Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
