Thread Cutting on Sears Master Craftsman Lathe Instruction Manual- 64 pages #694

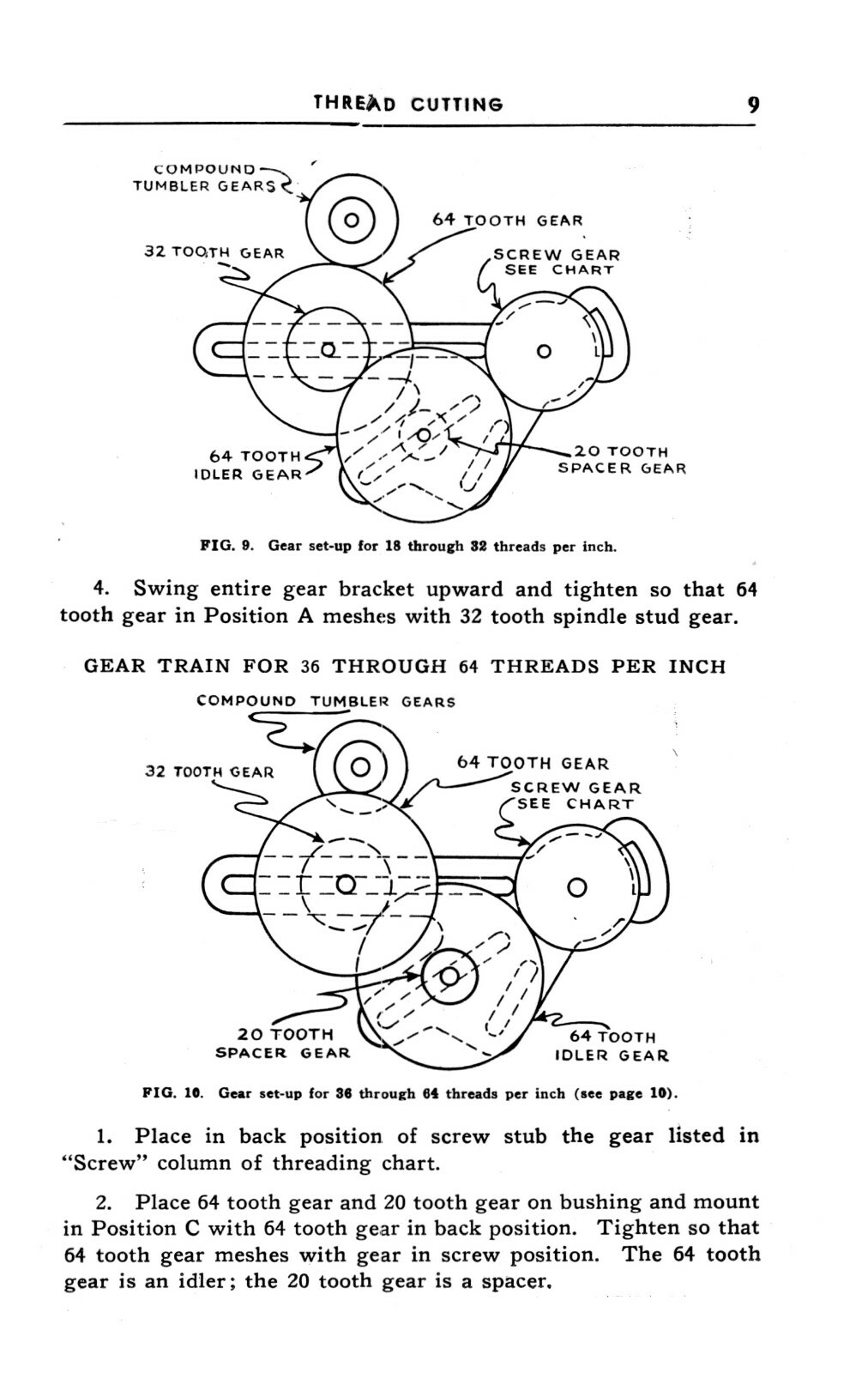

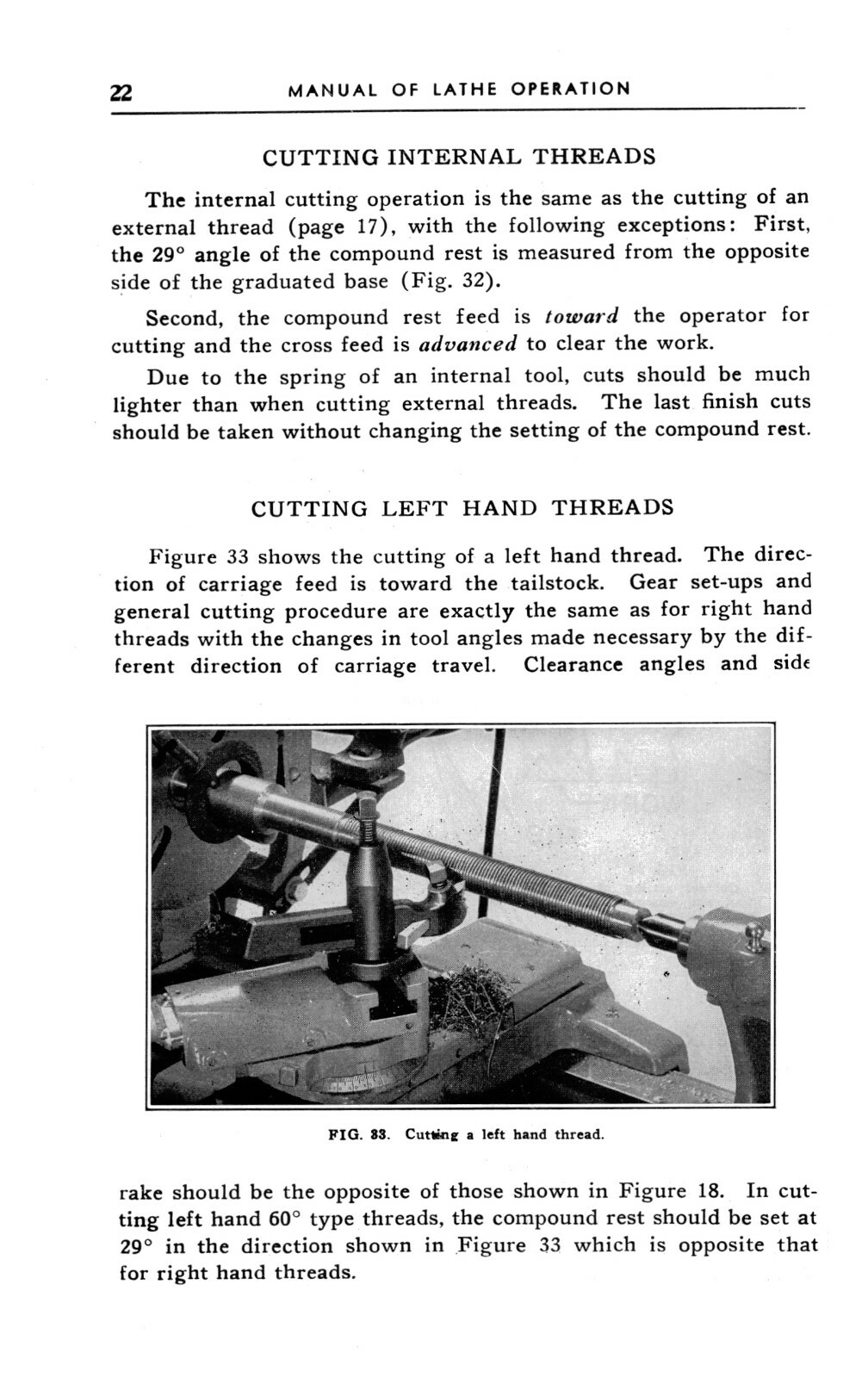

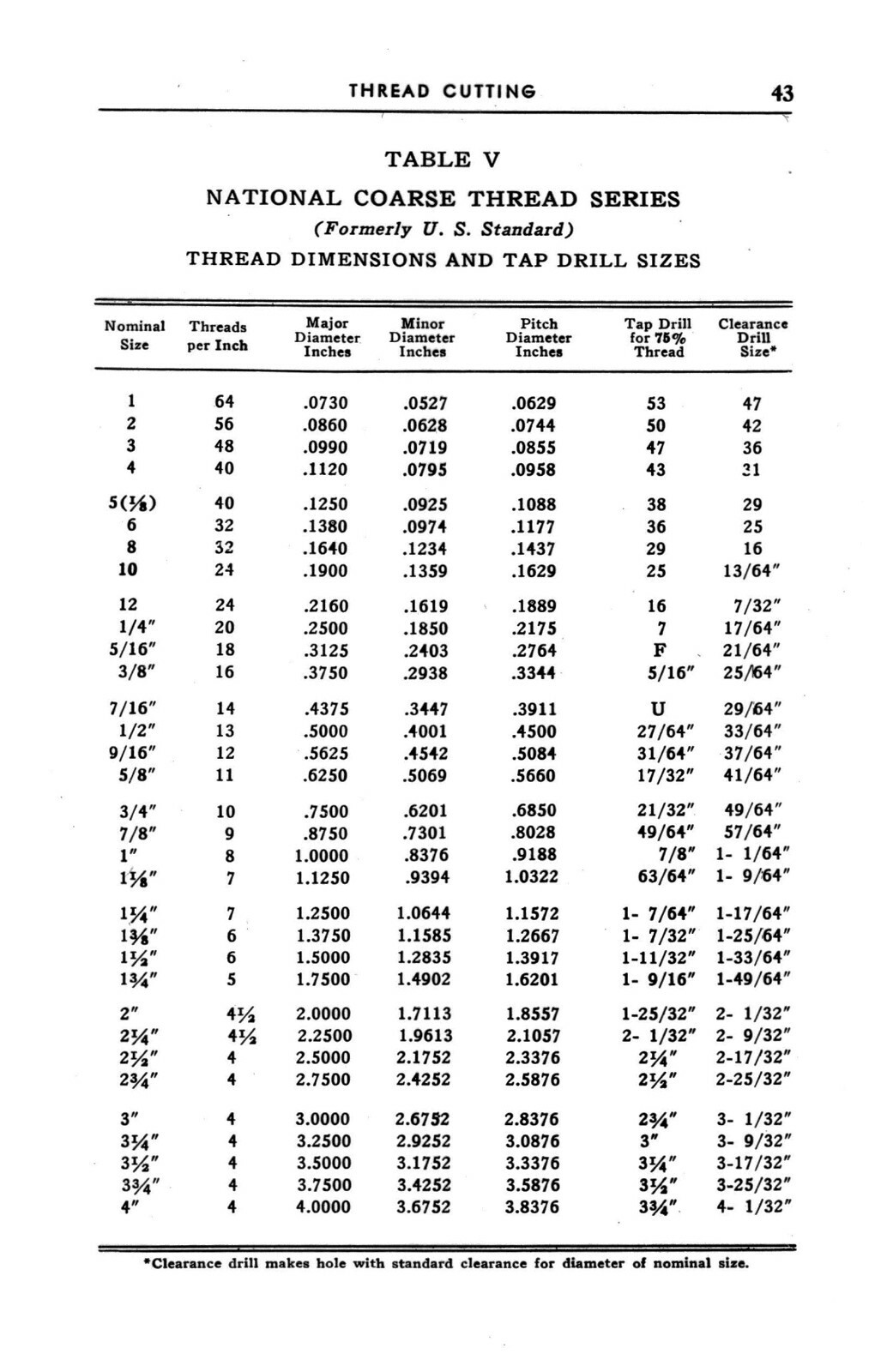

Thread Cutting on the Sears Master Craftsman Lathe Type of Manual: Instruction For Models: All Sears Master Craftsman Lathes Description: This manual covers Thread Cutting on the Sears Master Craftsman Lathe. This is the full manual produced by Sears and is not just a shortened chapter out of their lathe instruction manual. It has 64 pages, while chapter copies will have only about 33 pages. It is a detailed instruction manual for cutting threads using the Sears Master Craftsman Lathe. There are other manuals available for other Sears lathes. It explains how to set up the gears for cutting many types of threads. It explains the different Types of Threads, explains the Thread Cutting Terms, Cutting Operations, Lubricants, Cutting Speeds, Internal and External Threads, Using the Treading Dial, Precautions in Cutting Threads, Cutting Left Hand Threads, & Multiple Threads. It covers National Screw Threads, Square Threads, Whitworth Form Threads, Pipe Threads, Metric Threads, Special Fractional Threads. It covers setting up the Gear Trains for Carriage Feeds for different Threads Per Inch. It has Gear Set up Tables for: Odd Pitch Threads, Carriage Feeds, Metric Threads. It has Dimension Tables for: National Form Threads, National Coarse Threads, National Fine Threads, Fractional Size Threads, Machine Screw Threads, Whitworth Threads, British Association Threads, International Standard Threads, French Standard Threads, Acme Standard Threads, Square Threads, Straight Pipe Threads, & Stove Bolt Threads. It even has Gear Setups for Coil Winding. The manual has about 64 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on:Threading ChartGear ClearanceGear Trains for Various ThreadsThread Cutting TermsThread Cutting ToolsThe Cutting OperationThread Cutting SpeedsUsing the Threading DialCutting Internal ThreadsCutting Left Hand ThreadsCutting Acme ThreadsCutting Square ThreadsWhitworth Form ThreadsCutting Pipe ThreadsCutting Metric ThreadsCutting Multiple ThreadsGear Trains For Carriage FeedsElectrical Coil WindingTables For Thread Cutting Number of Pages: Approx. 64 Publication Date: N/A Publication No.: N/A Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
