SOUTH BEND How to Run a Metal Lathe Operator’s Manual 1906-1930s Item #0687

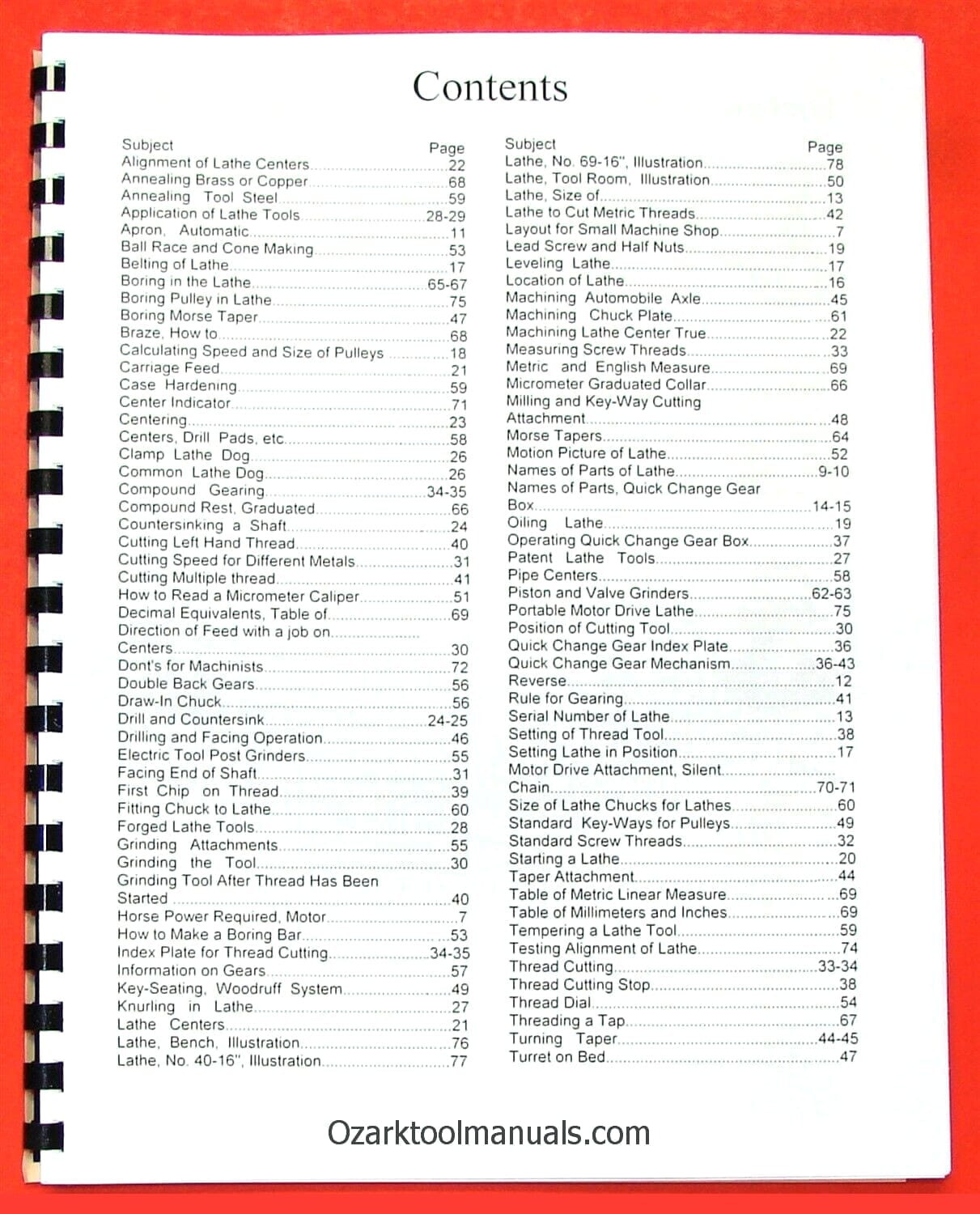

Manual Description: Number of Pages: 79 This is a reproduction, not a photocopy, of an original South Bend How to Run a Lathe 24th Edition. This manual covers South Bend lathes made in the early years circa 1906-1930s. This is the operators manual that South Bend made for their 9″-24″ lathes produced in that time frame. It covers everything shown in the contents section listed below and more. For your convenience, I have printed up three different version of this How to Run a Lathe manual to cover the large span of lathes that South Bend produced from 1906 to the late 1900s. The approximate date of the manuals I have are from 1906-1930s, 1930s-1950s, and 1950s-late 1900s. Some of the manuals overlap on certain machines and parts, because South Bend didn’t change every machine and part at precise times, but I can help you match the appropriate manual with your machine. I reproduced this manual, because of the many request from my customers that wanted a cleaner larger manual that is easier to view. This manual has been enlarged from 5.25″x7.5″ to 8.5″x11″ and is laser printed. It is comb bound so it lays flat on the work bench. Like all of my other manuals, I have digitally edited every page so it looks as good or better than the original. I am aware that there are original versions of this manual sold on eBay, but I am not trying to compete with those manuals. This manual was reproduced for my South Bend customers that have requested it. Contents: Gear Box: Most of the lathes made for the time frame covered by this manual were made without gear boxes for threading, but some did have a gear box. Below is a picture of the gear box that was used in this time frame. Other Pictures: Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. SaveVisit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
