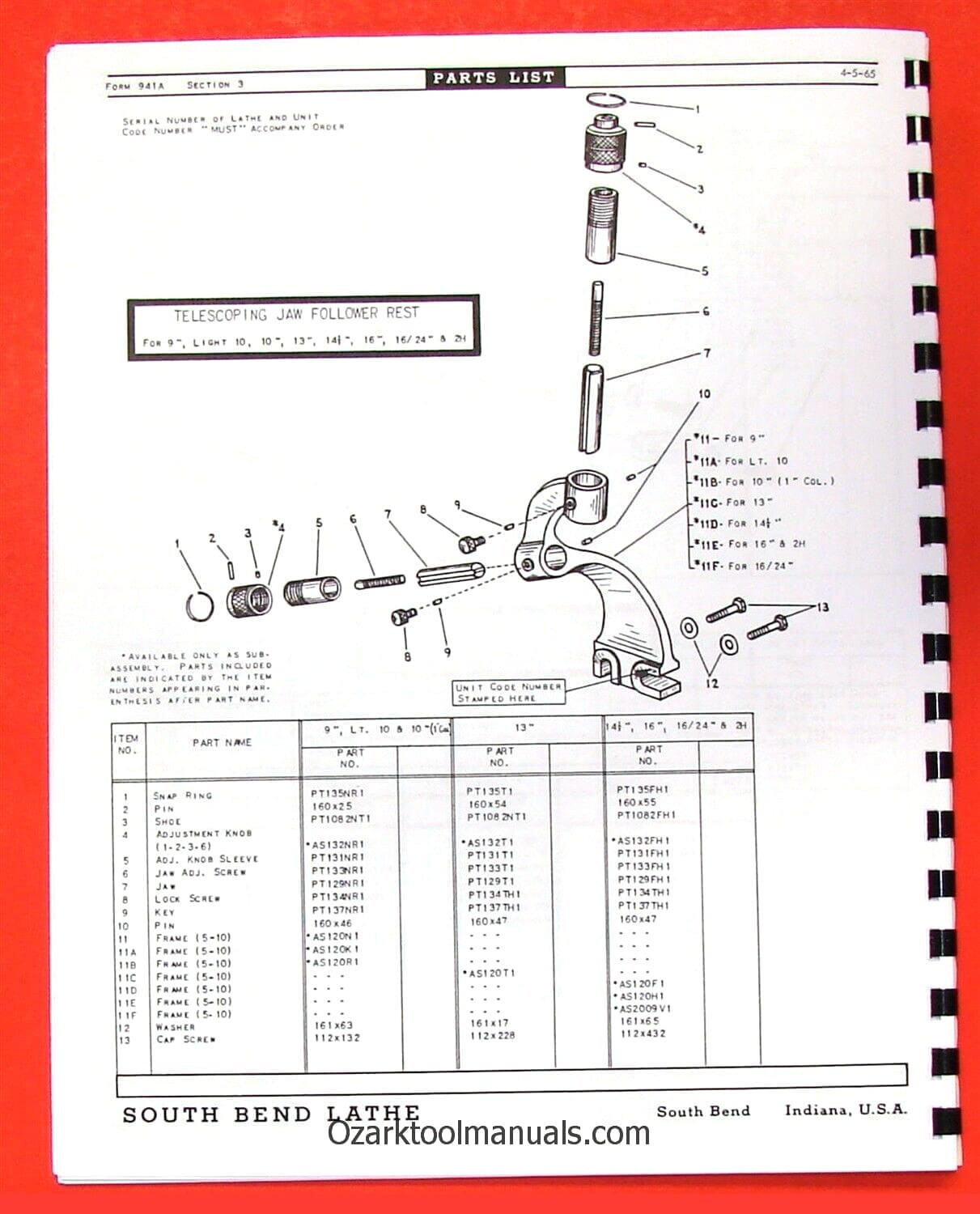

SOUTH BEND 10″ 13″ 14.5″ 16″ & 16/24″ Metal Lathe ACCESSORIES Parts Manual 0676
Manual Description: Number of Pages: 46 This is a reproduction, not a photocopy, of an original South Bend 10″-24″ Lathes Accessories Manual. What is great about this manual is that it contains information on most accessories for the South Bend 10″,13″,14 1/2″, 16″ and 16/24″, Plus the Turret Lathes. This manual would be excellent for identifying accessories bought at on Ebay or other auctions. Also, this manual would help you identify parts missing from accessories you may own, and can also be helpful in assembling all of the accessories back together. The manual has an in depth description on installing and adjusting sleeve bearings which would be valuable for maintaining high tolerances. See list below for contents. This manual will work with any heavy South Bend Lathe. Contents Machine Care……………………………………..1 Headstock Spindle Sleeve Bearings…………………3-6 Adjusting Apron Clutch…………………………….7 Remedy A Sticky Clutch…………………………….8 Identifying Serial Number………………………….9 Motor Pulleys……………………………………11 Belts…………………………………………..12 10-In-1 Tool Block…………………………….13&14 ATTACHMENTS Handwheel Collet…………………………………15 Collet Rack……………………………………..16 Handlever Collet…………………………………17 Tread Dial………………………………………18 Type L Taper Headstock Spindle…………………….19 Type D1 Cam Headstock Spindle……………………..20 Taper Attachment…………………………………21 Carriage Stop……………………………………22 Installation of Taper Attachment…………………..23 Taper Cross Feed Screw……………………………24 Tool And Reamer……………………………….25&26 Four Post Carriage Stop…………………………..27 Four Post Cross Slide Stop………………………..28 Milling Attachment…………………………….29&30 Mica Undercutting………………………………..31 Hand Lever Tailstock……………………………..32 Handlever Turret-Tailstock……………………..33&34 Handlever Turret………………………………35&36 H.L. Double Tool Cross Slide……………………37&38 Screw Feed Double Tool Cross Slide………………39&40 Regular Steady Rest……………………………41&42 Regular Follow Rest………………………………43 Telescoping Follow Rest…………………………..44 Telescoping Steady Rest………………………..45&46 Overview I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench. SaveVisit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
