Sheet Metal Working Series Measurement & Layout Instruction Manual #1322

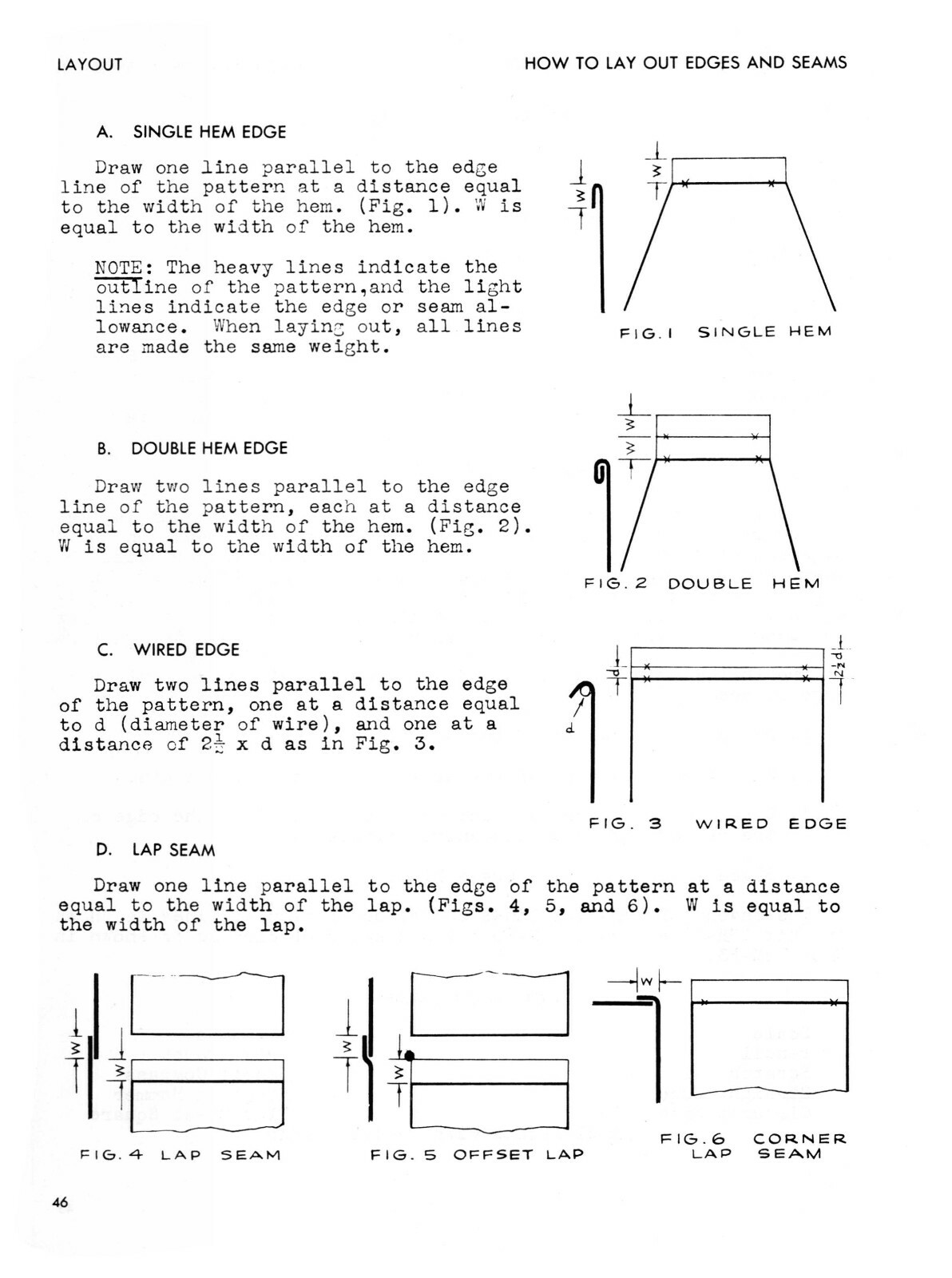

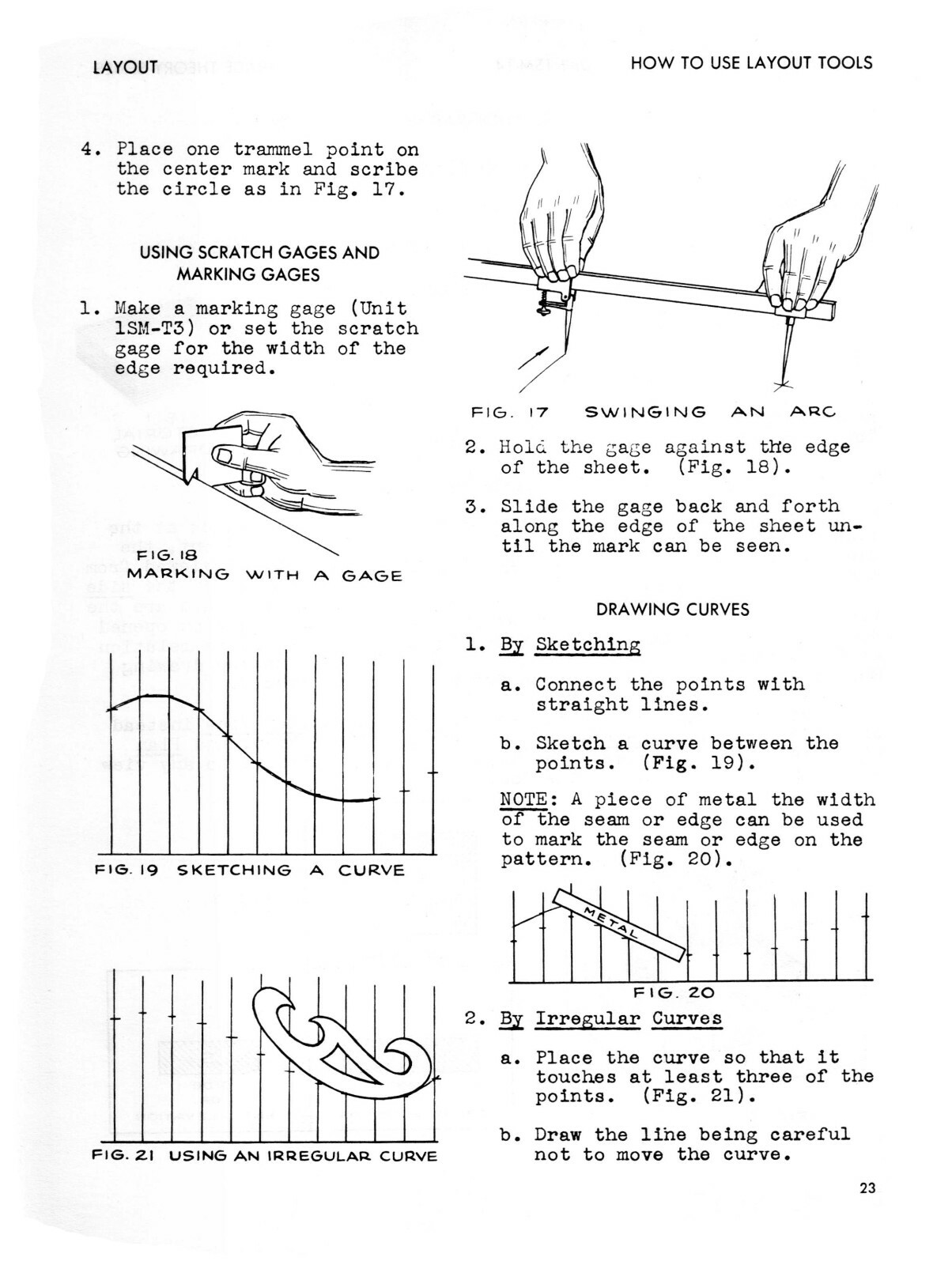

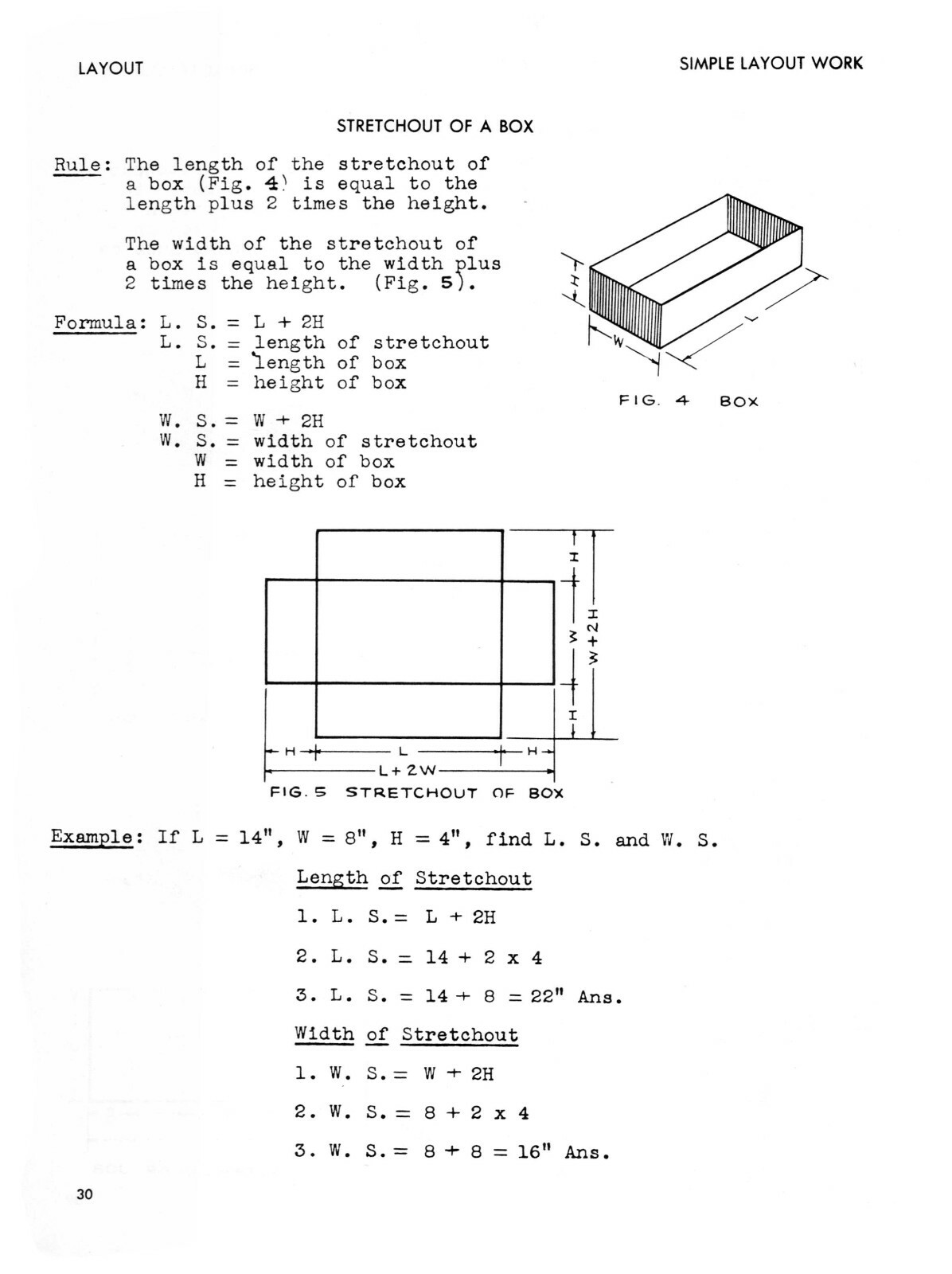

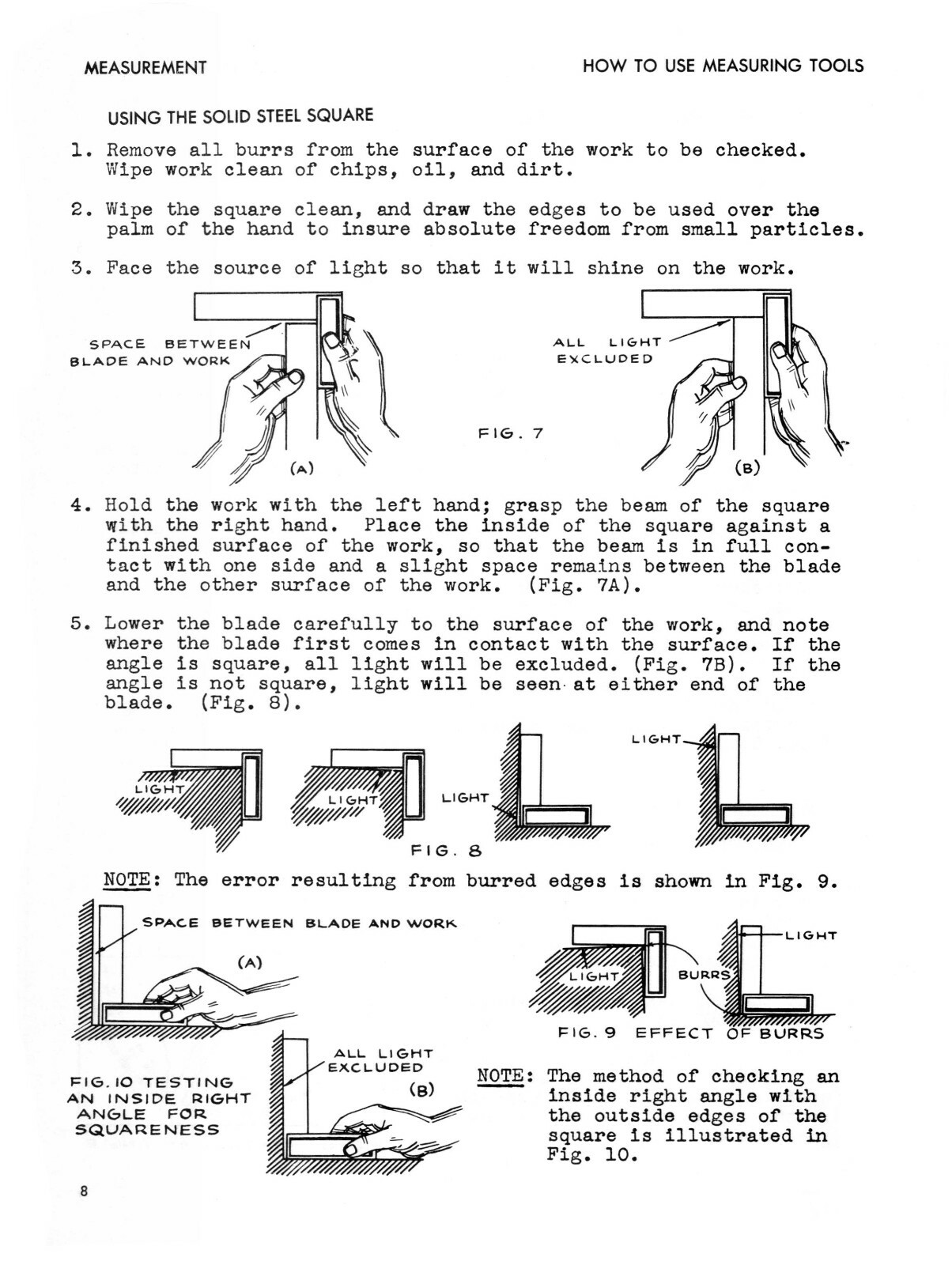

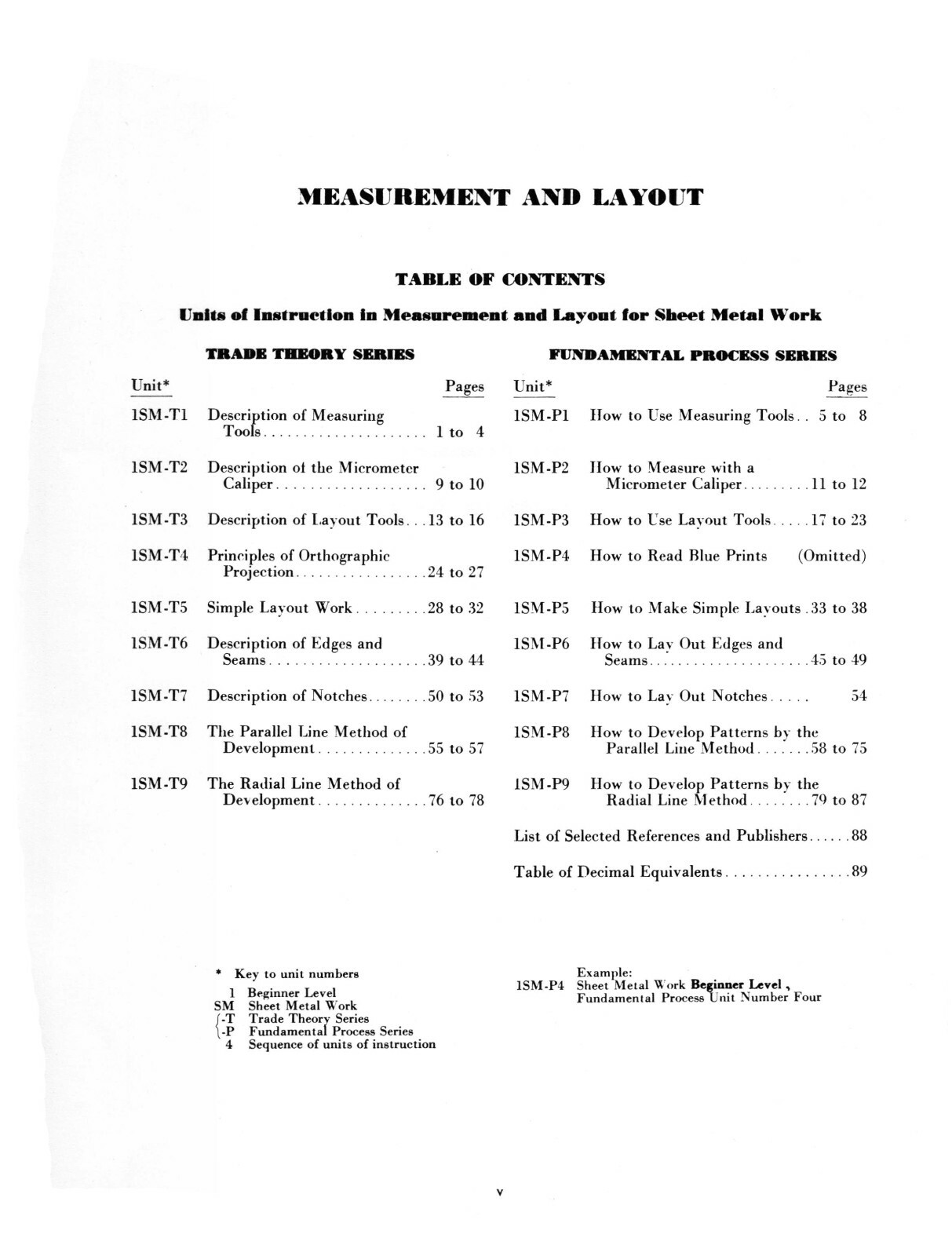

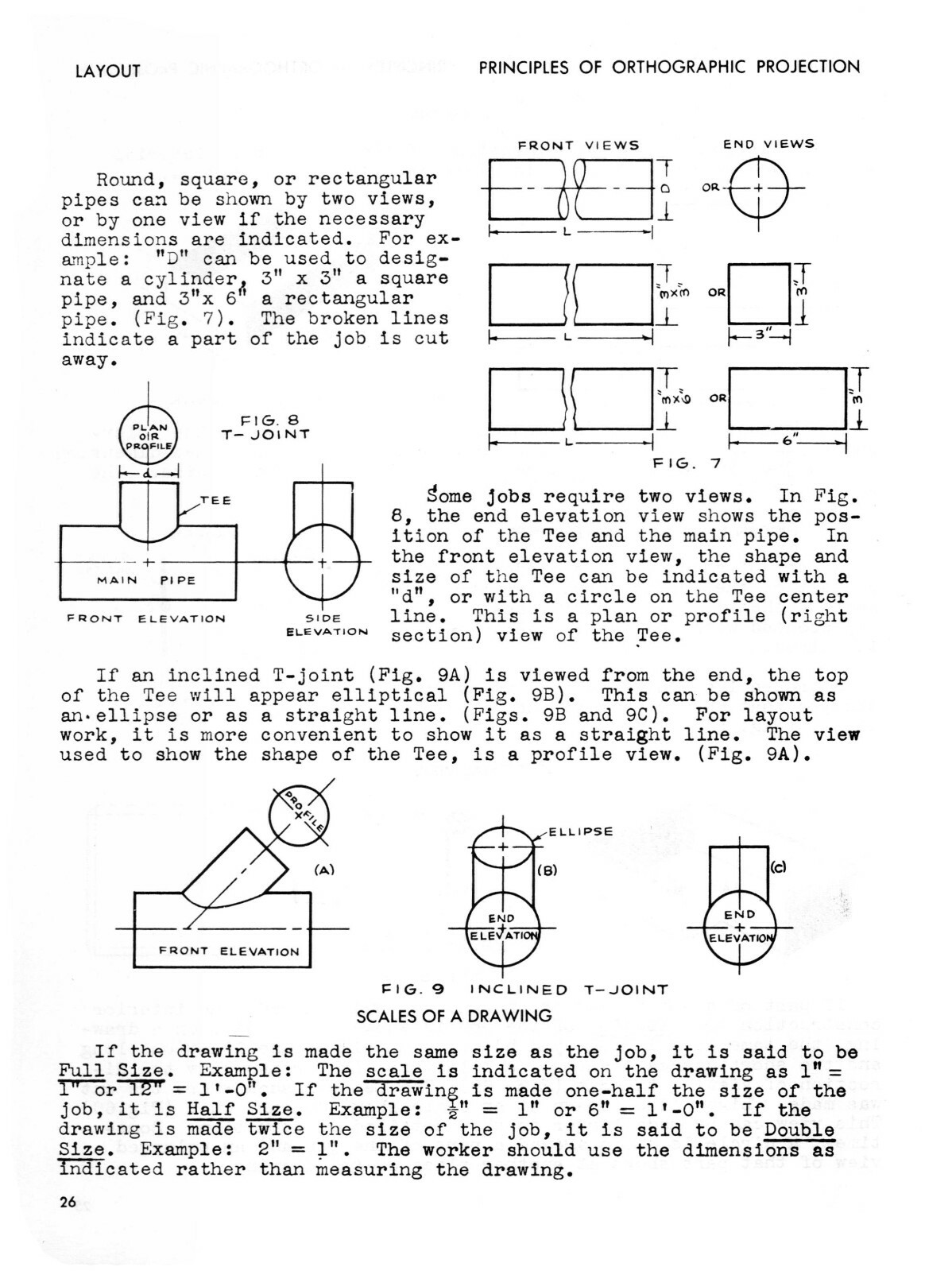

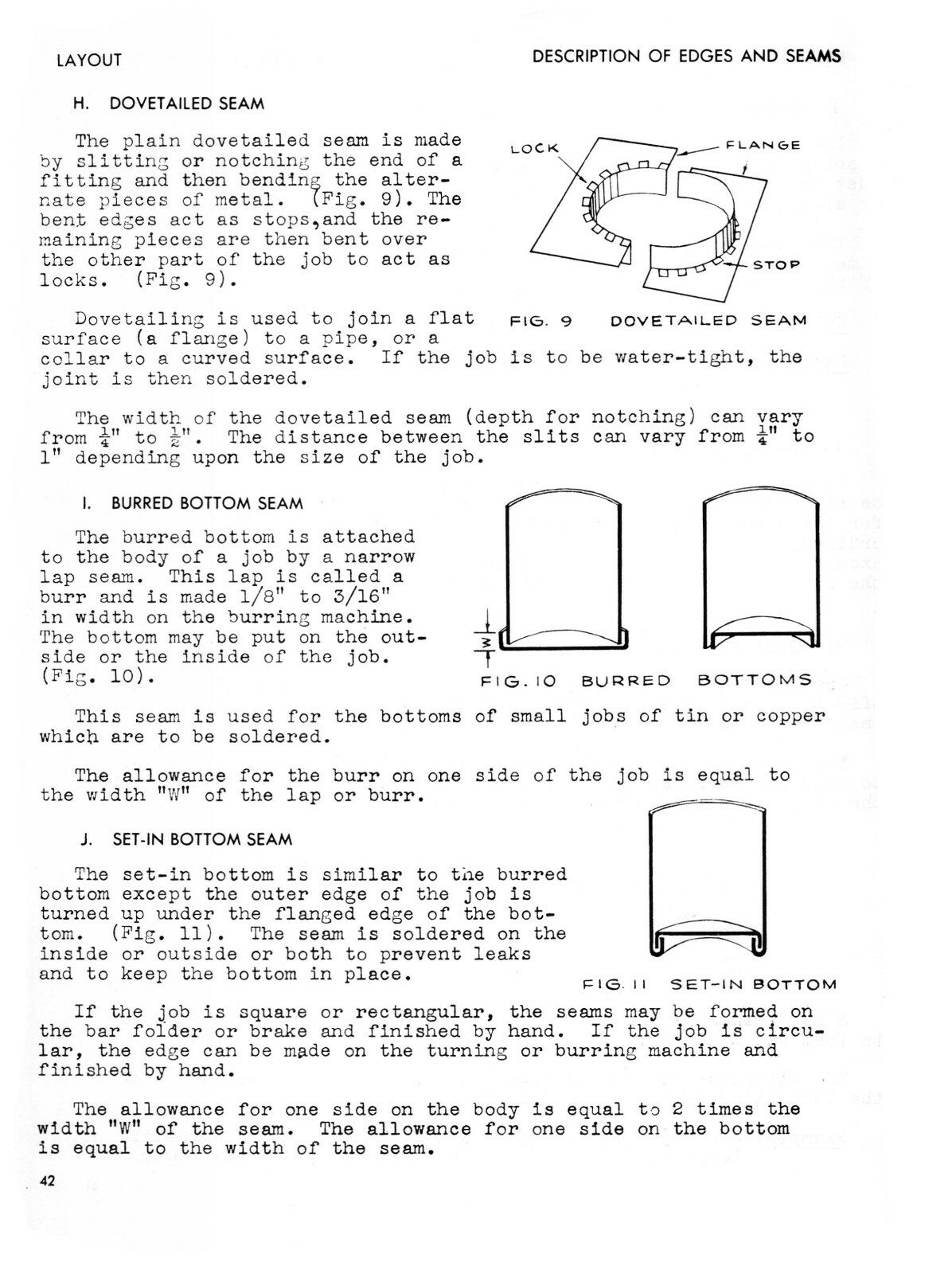

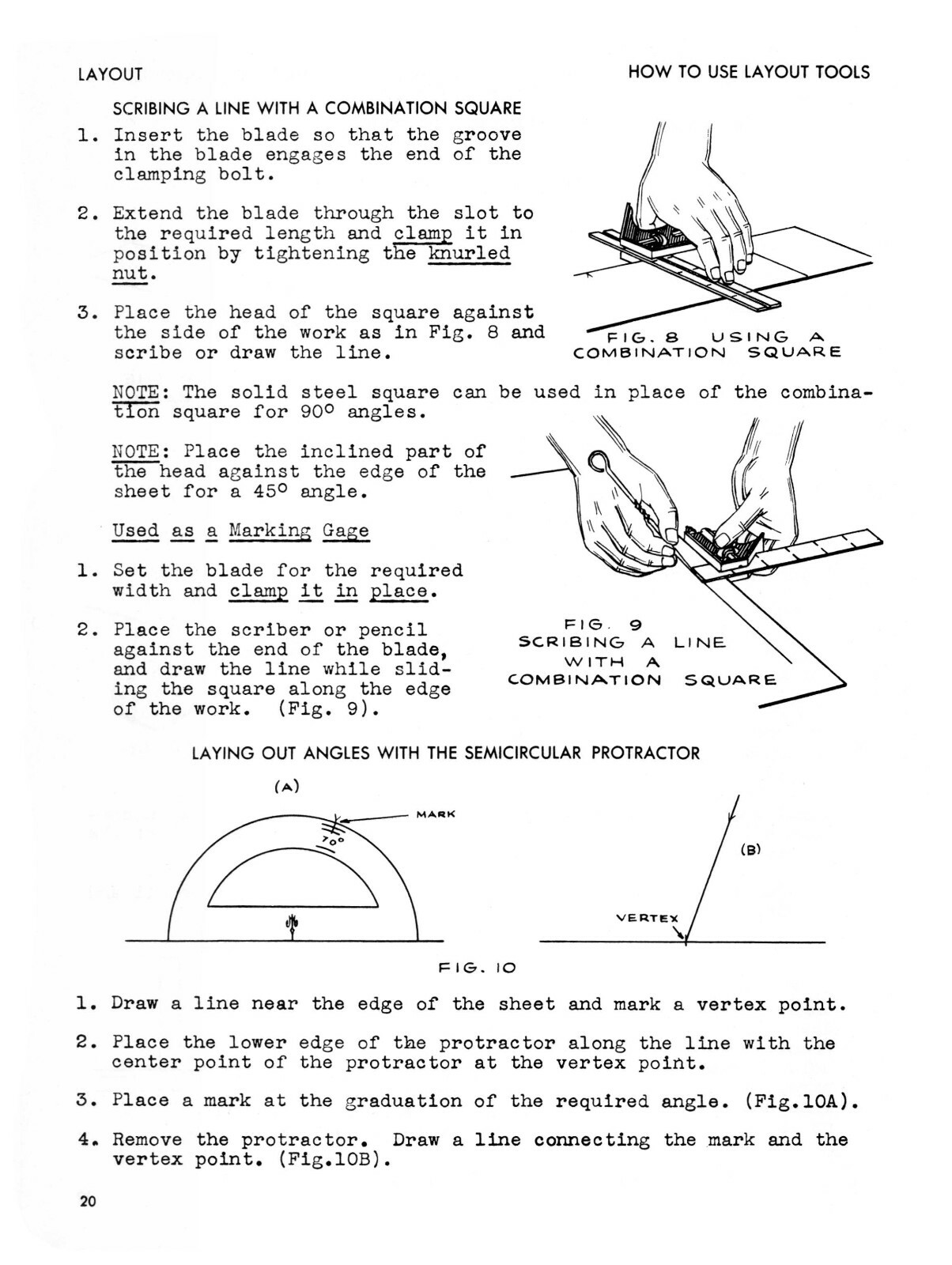

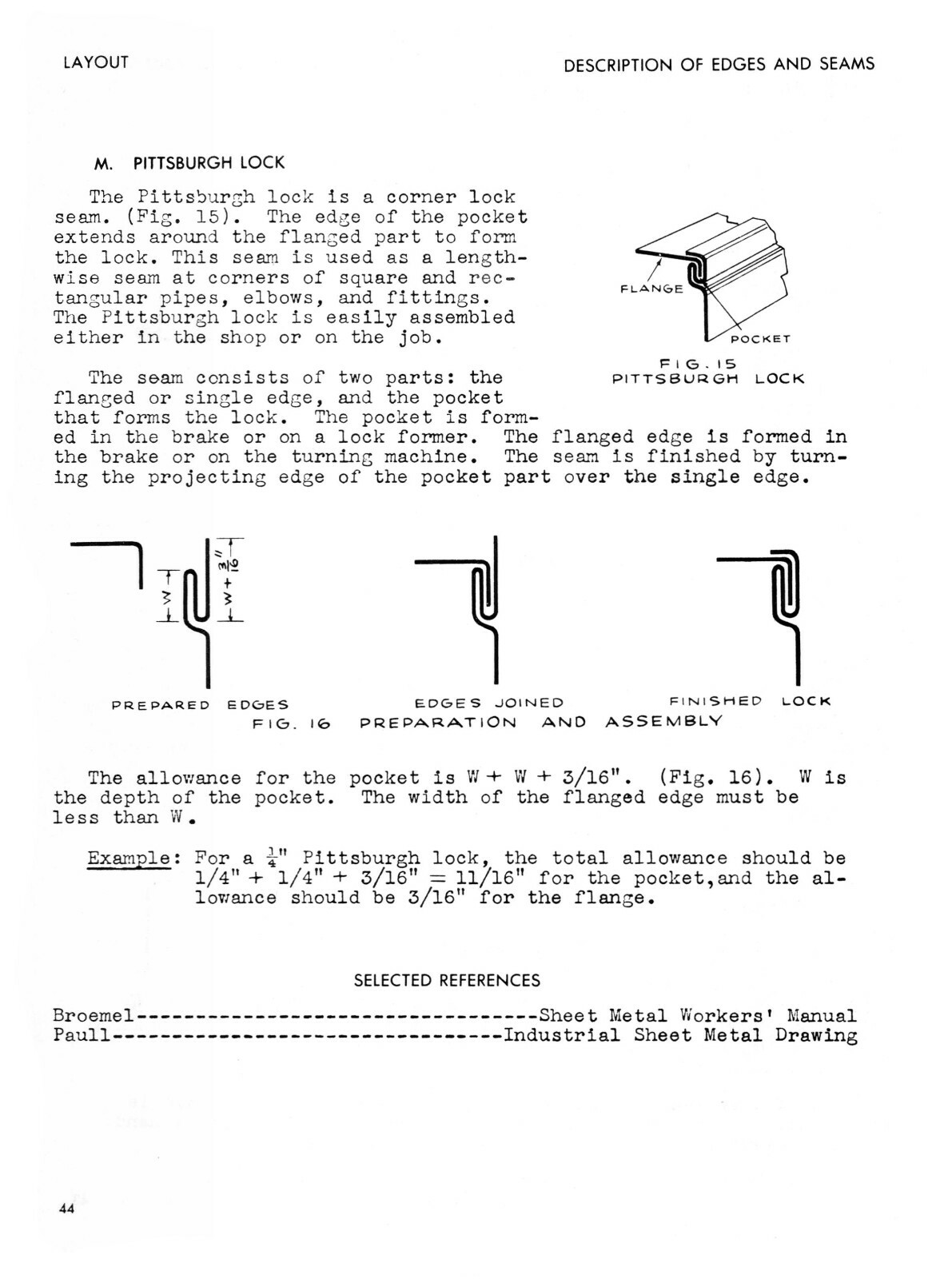

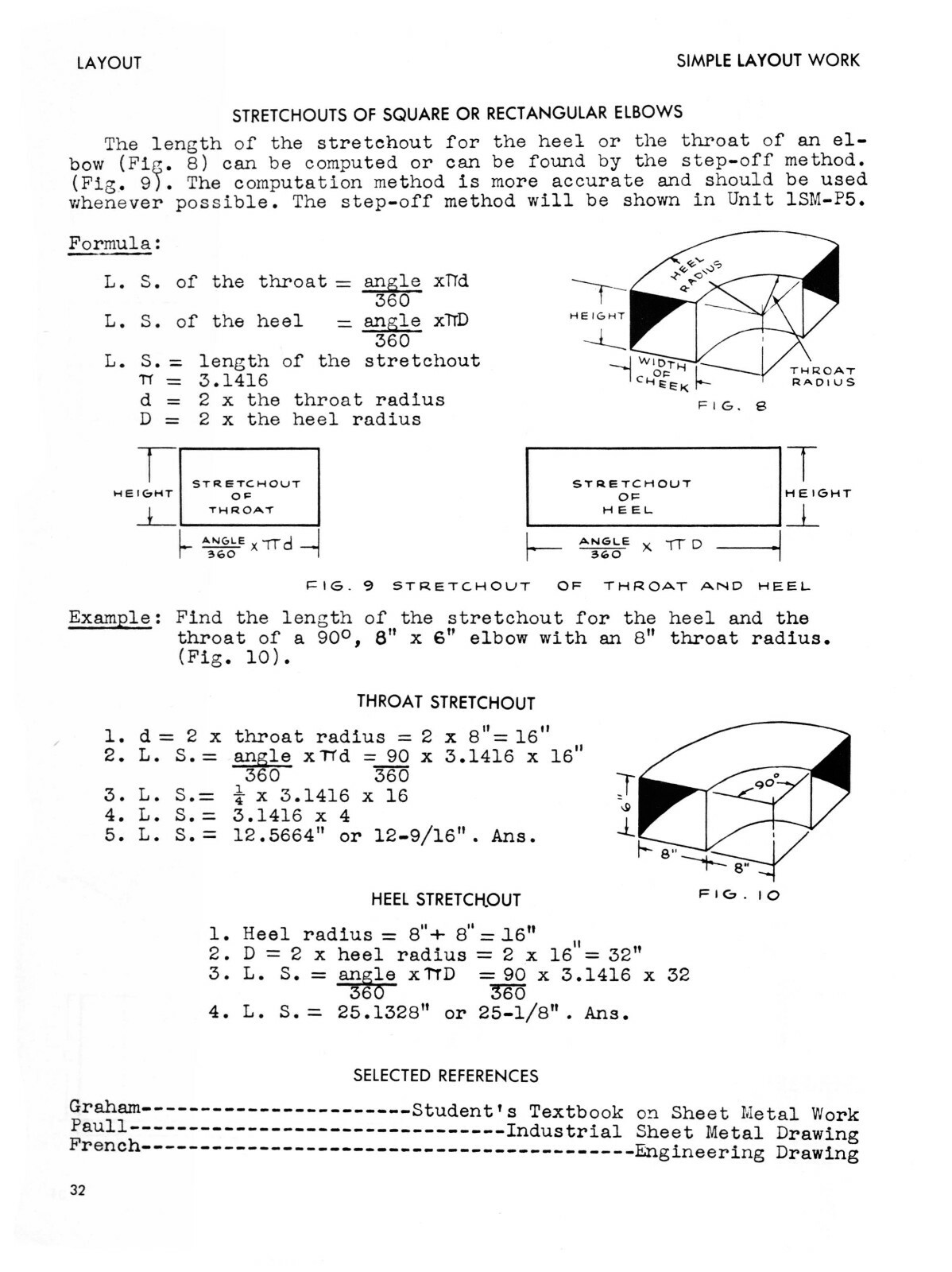

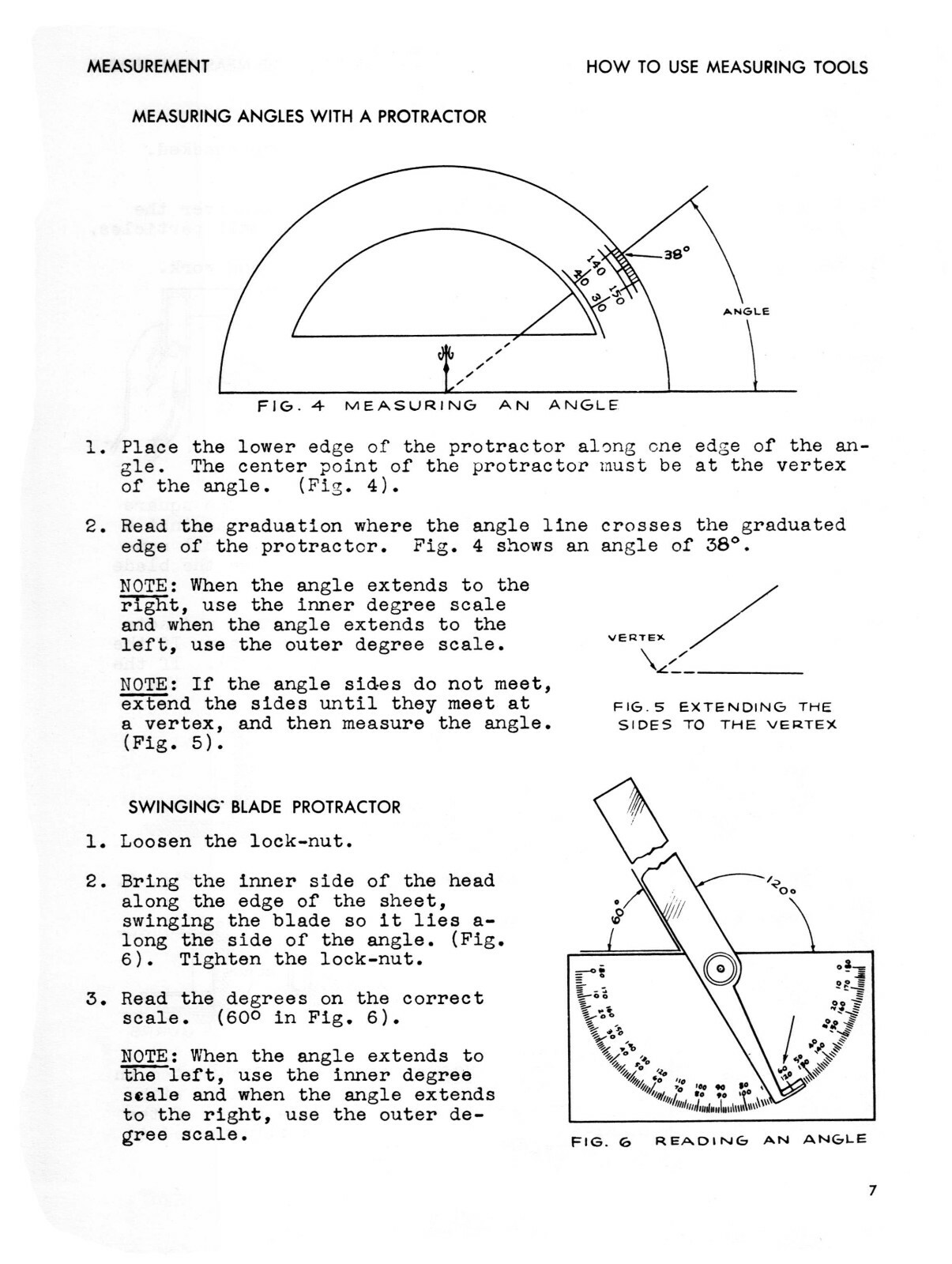

Sheet Metal Working: Measurement & Layout Instruction Manual Type of Manual: Instruction For Models: N/A Description: This manual covers the Measurement and Layout of working with Sheet Metal. This manual covers measuring and layout tools common to sheet metal work: principles of orthographic projection; parallel and radial methods of development and their application to layout work; and the measurement and layout of edges, seams and notches. This was one of the manuals used in the New York school system in the 1940’s in their Sheet Metal Course. It is an excellent manual for those who would like to learn about working with sheet metal. I have two other manuals in this series, Hand Processes, and Machine Processes. I have a package deal 60% off on all three manuals if purchased together. Just click on the Ebay Store Icon below and search for 2141. The manual has about 96 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on:Using Measuring ToolsUsing a Micrometer CaliperUsing Layout ToolsHow to Read BlueprintsHow to Make Simple LayoutsHow to Lay Out Edges and SeamsHow to Lay Out NotchesHow to Develop Patterns by the Radial Line Method Number of Pages: Approx. 96 Publication Date: 1946 Publication No.: N/A Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
