Rockwell Delta VS6 15″ Variable Speed Drill Press Operator & Parts Manual #1915

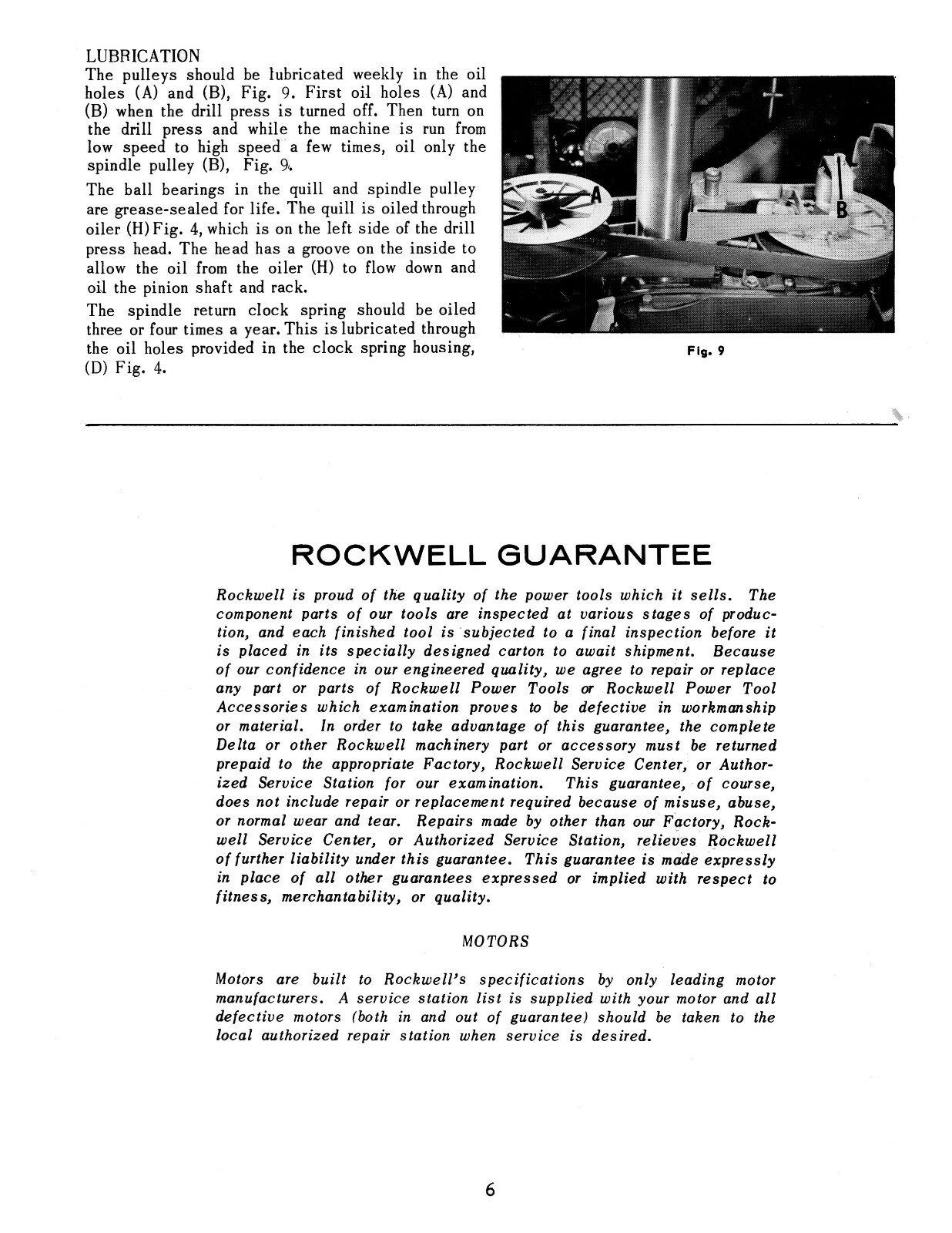

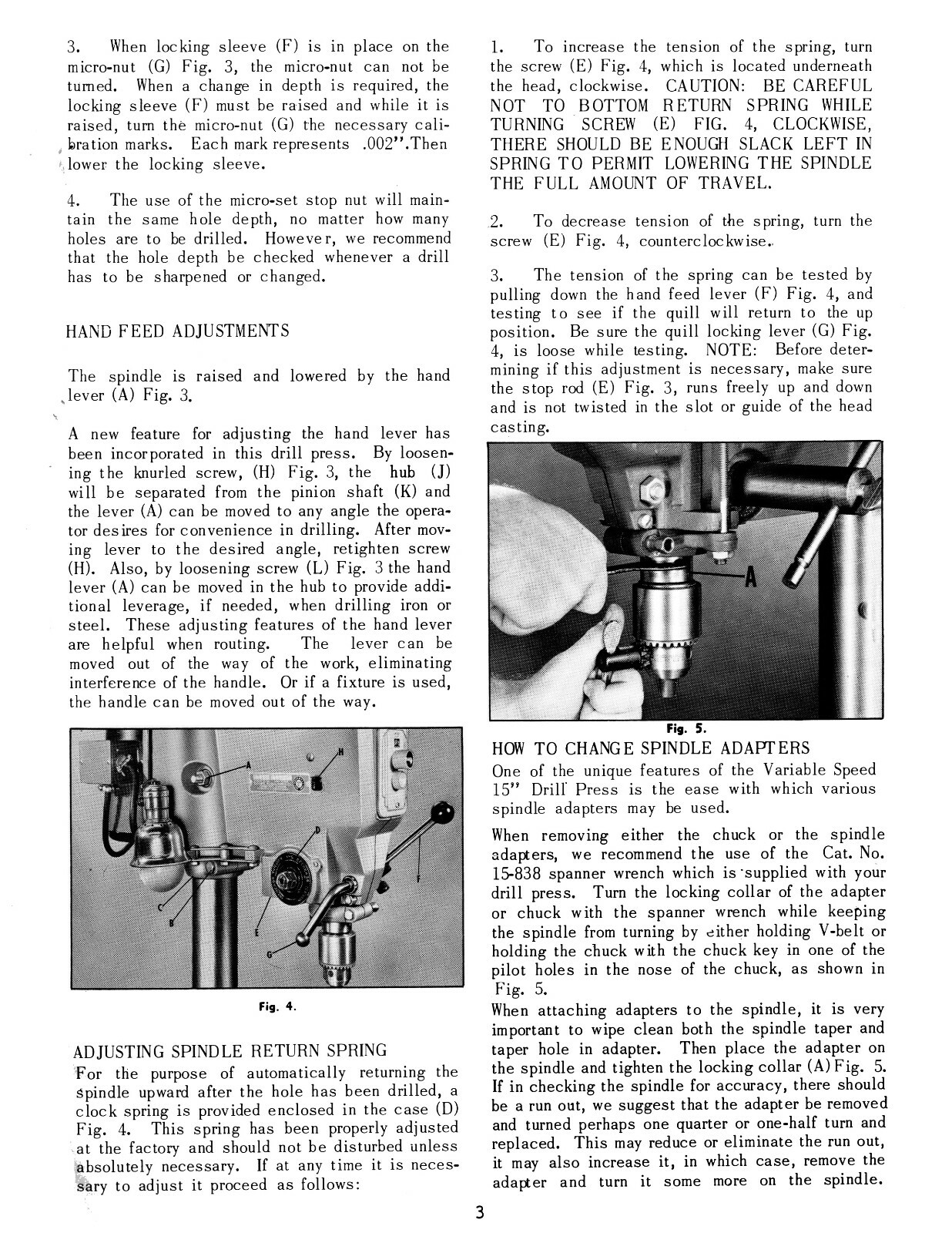

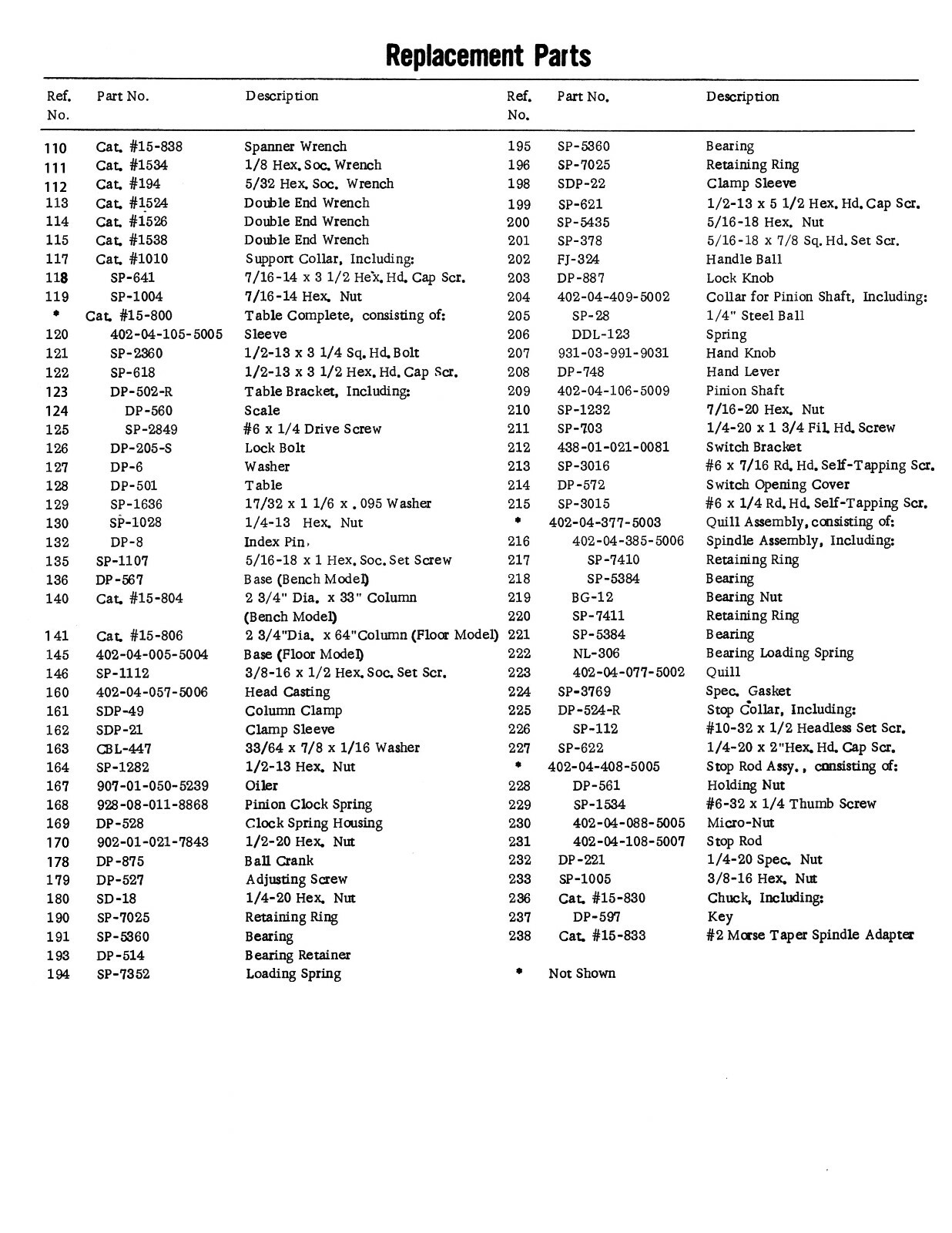

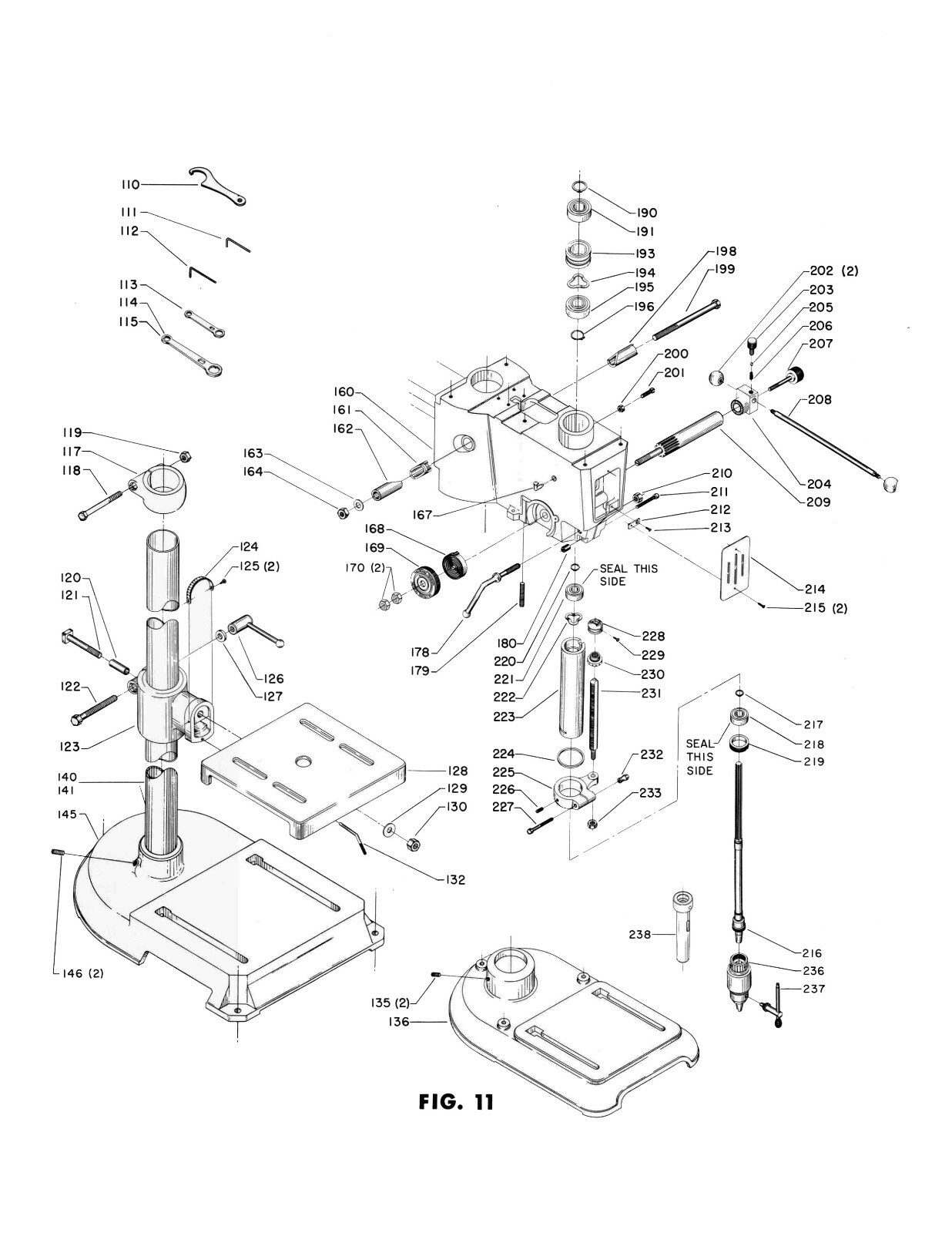

Rockwell Delta VS6 15″ Variable Speed Drill Press Type of Manual: Operator & Parts List For Models: 15-309, 15-310, 15-311, 15-312, 15-313, 15-314, 15-318, 15-320, 15-321, 15-322, 15-323, 15-324, 15-328, 15-330, 15-331, 15-332, 15-333, 15-334, 15-340, 15-341, 15-342, 15-343, 15-344, 15-350, 15-351, 15-352, 15-353, 15-354, 15-466, 15-467, 15-468, 15-469, 15-471, 15-474, 15-475, 15-484, 15-485, 15-486, 15-487, 15-655 Description: This manual covers the Rockwell Delta 15″ VS6 Variable Speed Drill Press. This manual is for the earlier versions of the drill. It covers Setting Up, Variable Speed Control, Adjustments, Maintenance, Lubrication, and it also includes an Updated Exploded Parts View and Parts List, which do not come with the original factory manual. The manual has about 22 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on:Setting UpOperation Motors & SpeedsReplacing Shear PinVariable Speed ControlAdjustmentsChanging Spindle AdaptersBelt TensionR&R of MotorR&R PulleysCalibrate SpeedLubricationExploded Parts ViewsUpdated Parts Lists Number of Pages: Approx. 22 Publication Date: 12-15-1964, Apr,1985, & Jul, 1994 Publication No.: PM-402-04-651-5006, DP-7A, & DP-7B Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
