Rockwell Delta 20″ Series 2000 Step Pulley Drill Press Op & Parts Manual *1656

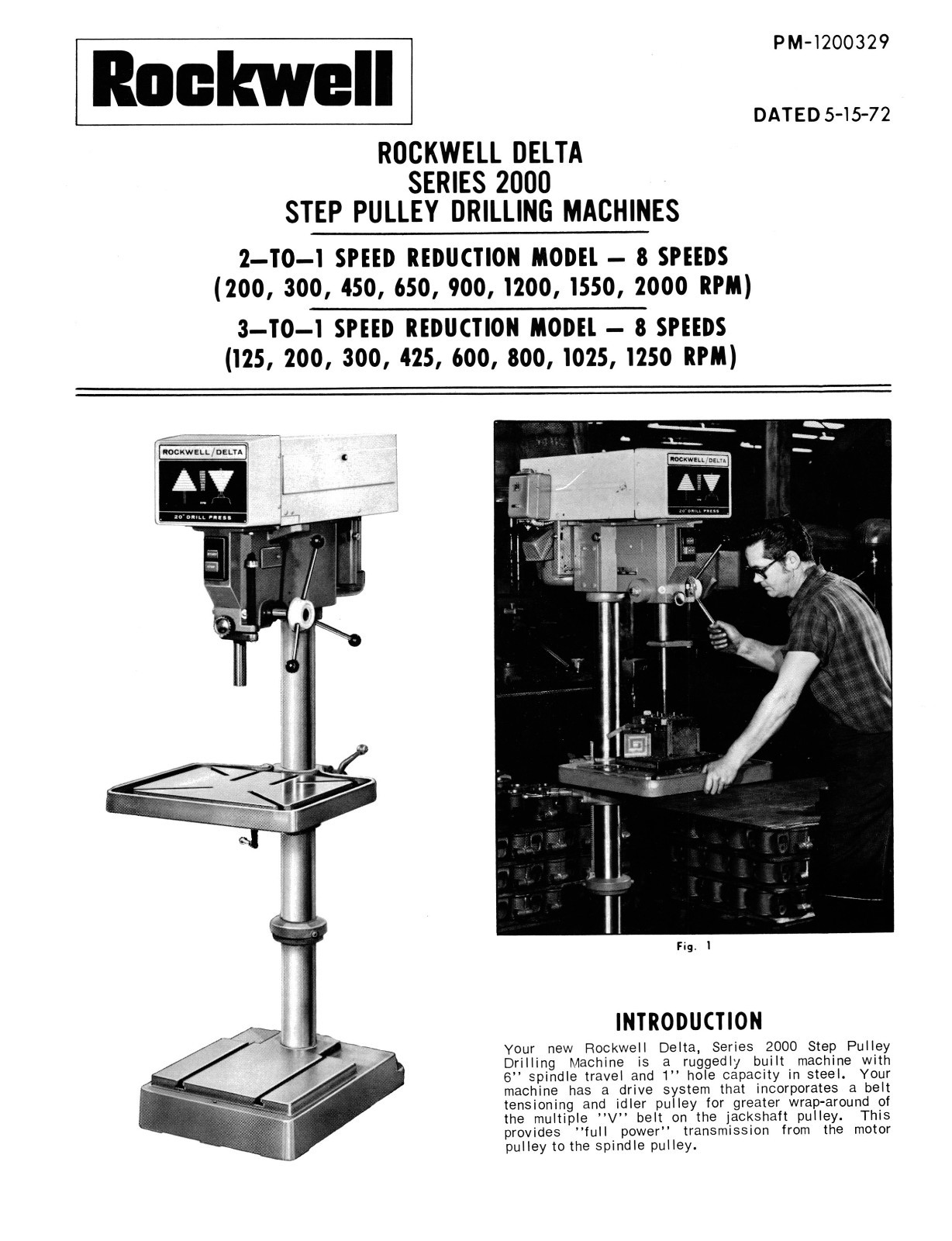

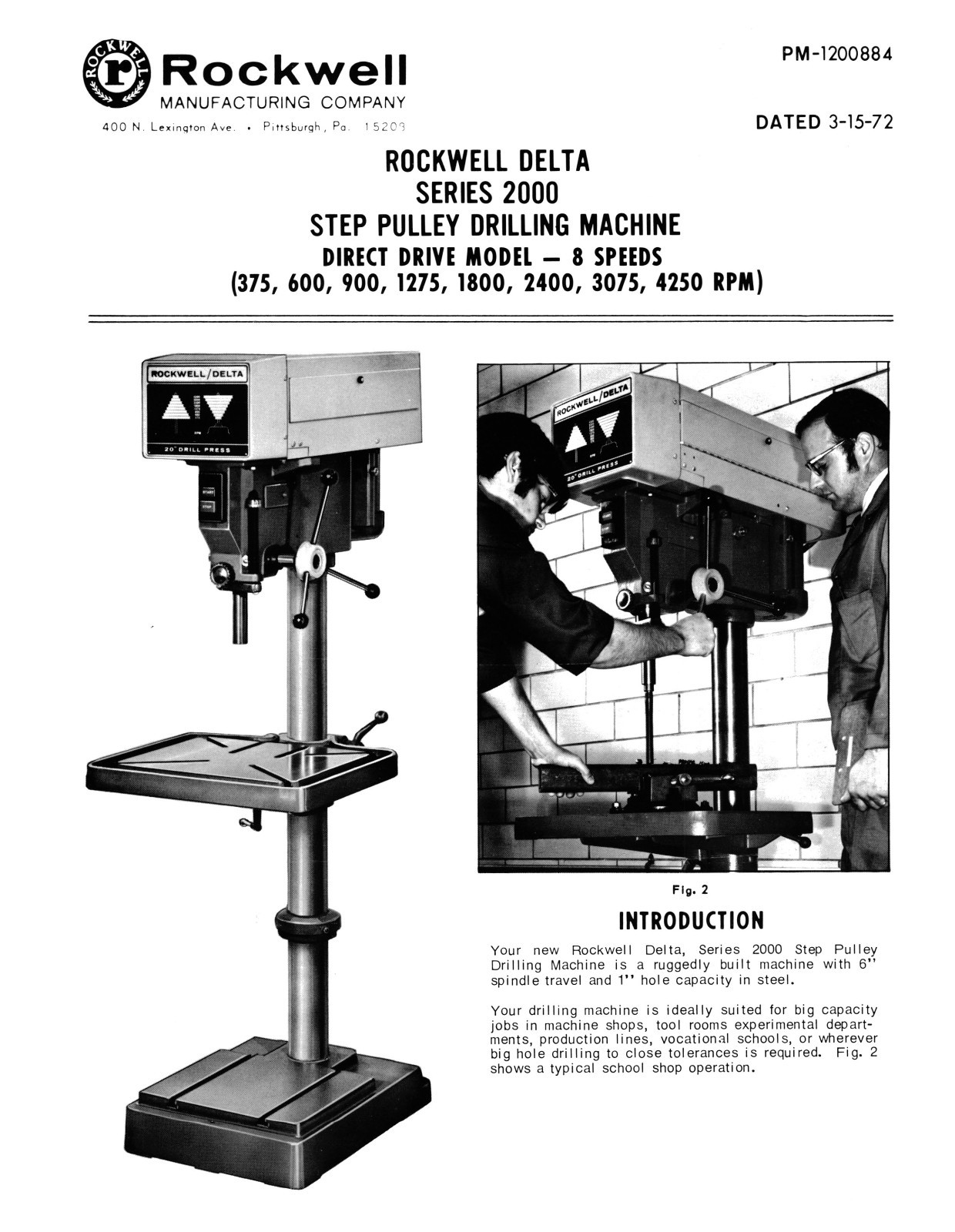

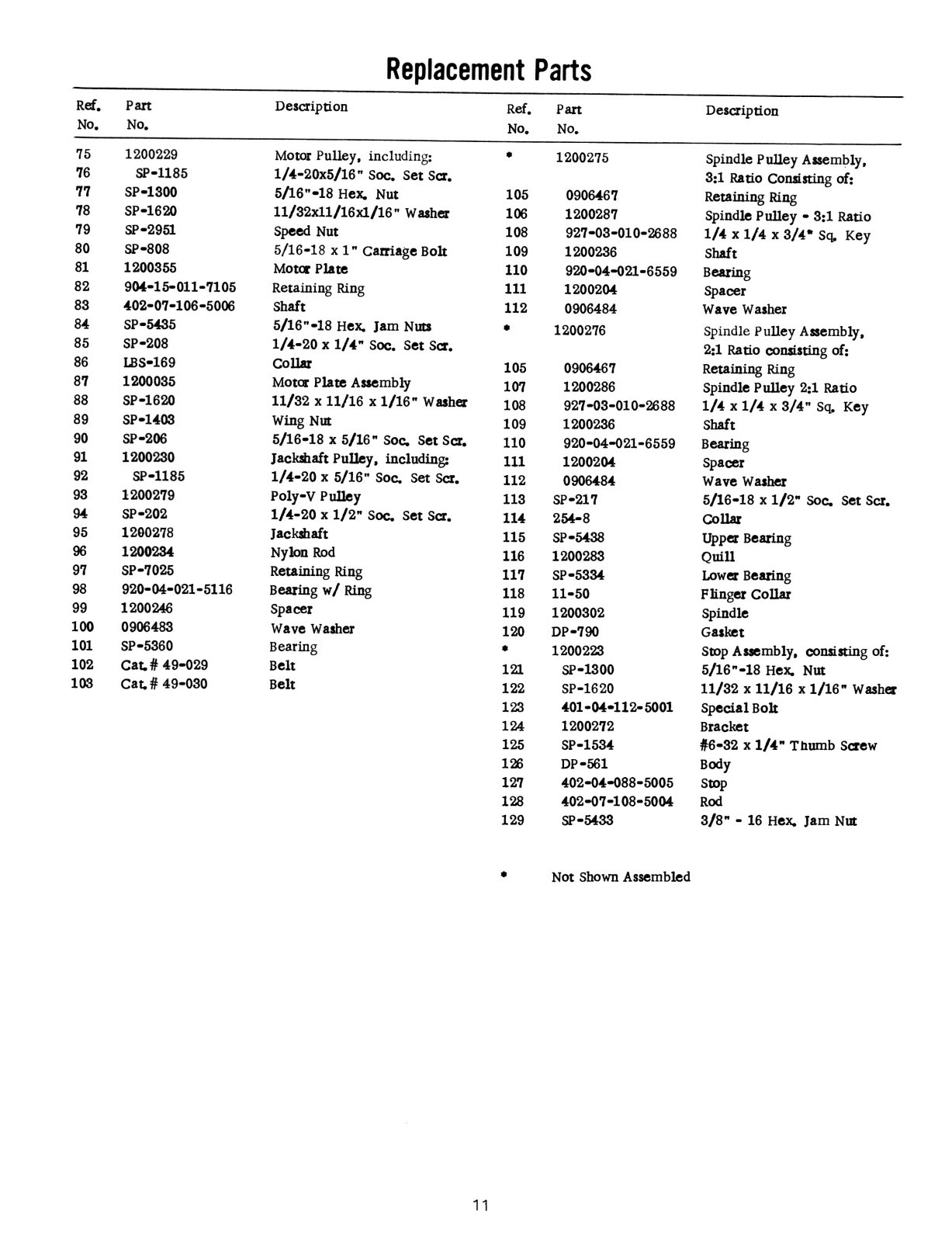

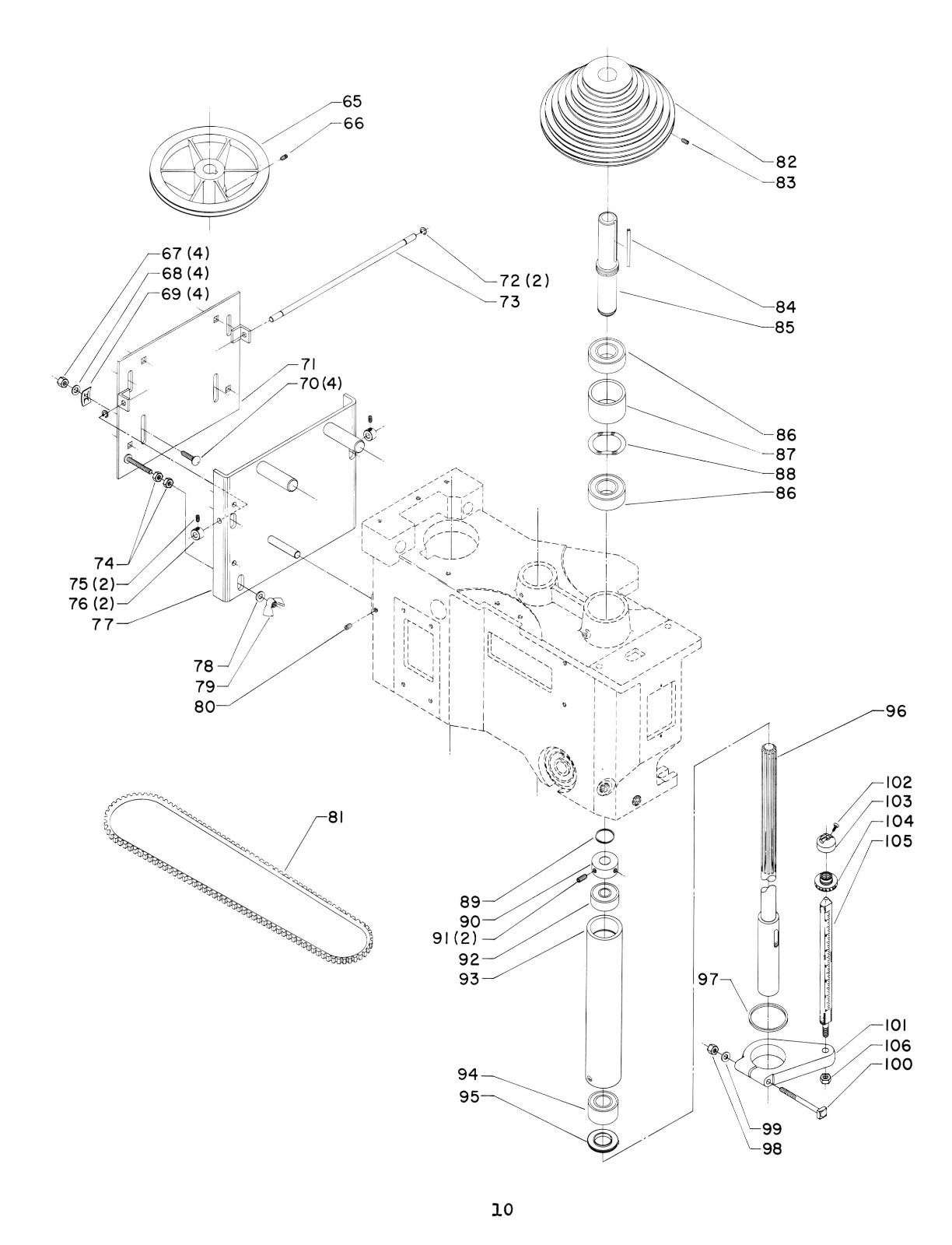

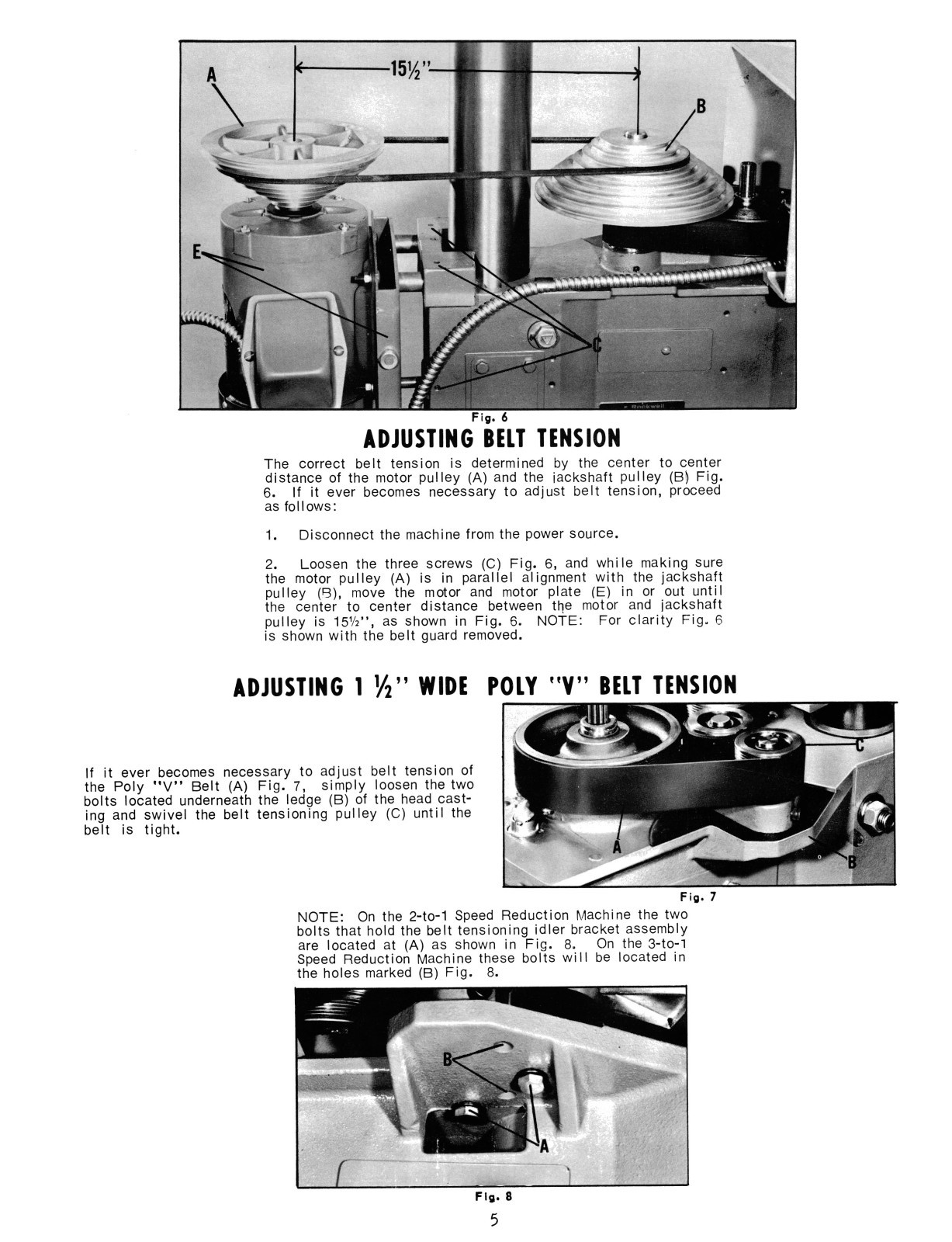

Rockwell Delta 20″ Series 2000 Step Pulley Drill Press Operating & Parts List Manual For models: All 20″ Series 2000 Step Pulley Model Numbers: 70-210 to 70-298, 70-583 to 70-609, & 70-660 Description: This is a Operators and Parts List manual for the Rockwell 20″ Series 2000 Step Pulley Drill Press. It has sections on: Operation, Adjustments, Maintenance, Exploded Parts Diagrams, & Parts List. It has 44 pages. There were three versions of this step pulley drill press, the direct drive model and the 2-1 and 3-1 speed reduction model which were covered in two separate manuals. Both manuals are included together so as to cover all models. This manual does not cover the variable speed models, which is a separate manual sold in my Ebay store. Also included is supplements which cover the 20-600 variable rate power feed, the 20-629 mechanical power feed, the 402-07-367-5003 mechanical power feed retrofit kit, and the table and head raising mechanisms. To inspect the quality of the manual, and to view select pages, please click on the gallery images above to enlarge. Includes sections on: Operation Changing Speeds Quill Adjustments Changing Spindles Changing Belts Variable Rate Power Feed Supplement Mechanical Power Feed Supplement Mechanical Power Feed Retrofit Supplement Table & Head Raising Mechanism Supplement Exploded Parts Views Parts ListsNumber of pages: Approx 44 Publication date: Mar-May 1972 Publication No.: P-1200329, PM-1200884 plus supplements Added Notes: Due to others making copies of these manuals for resale, I have lightly watermarked select pages to discourage this practice. About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop.Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. Sales tax charged for Kansas sales. See my for more manuals. Be sure to add me to your favorites list!
