Rockwell-Delta 17″ Vari Speed Drill Press s/n141-1800 up Op & Parts Manual #1922

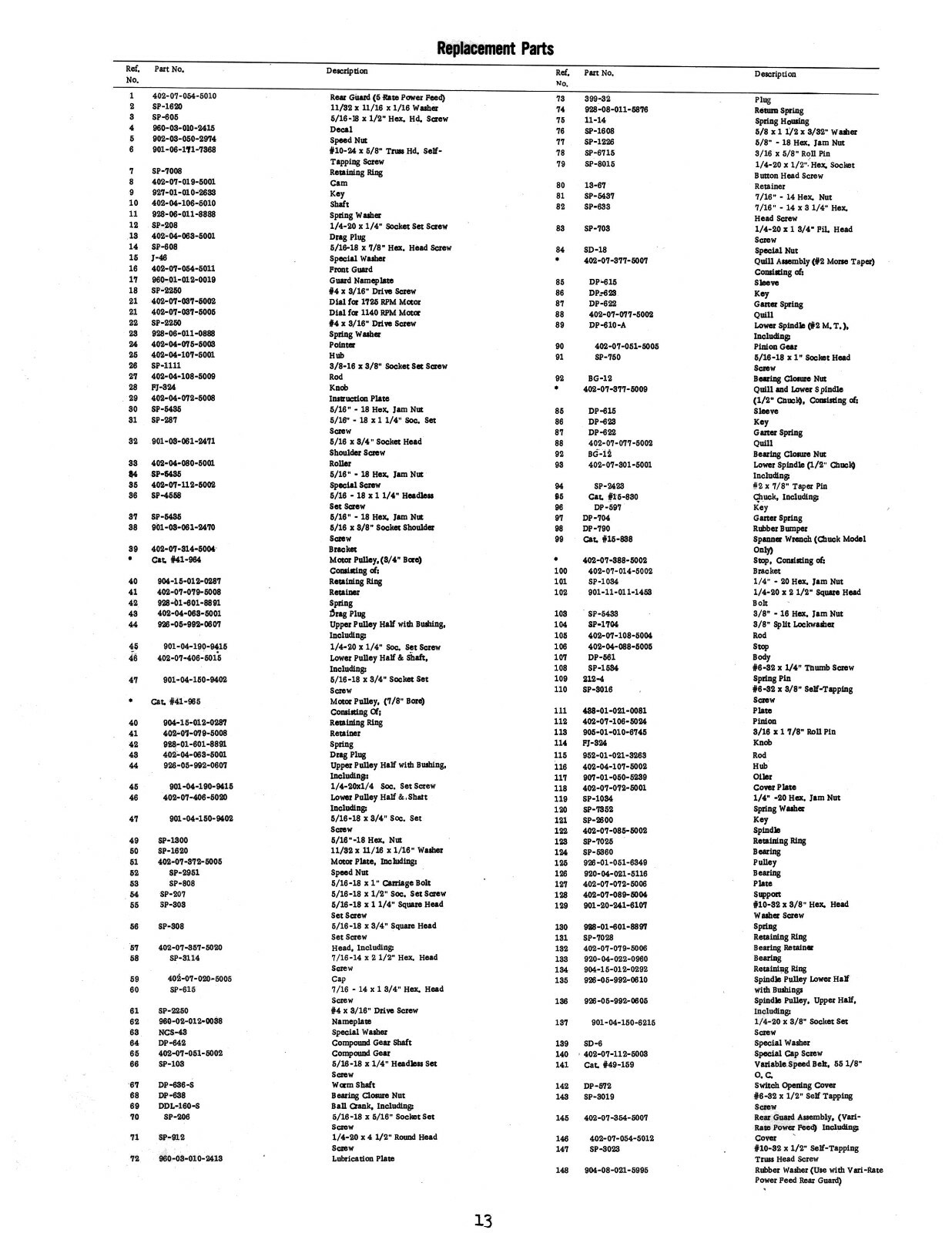

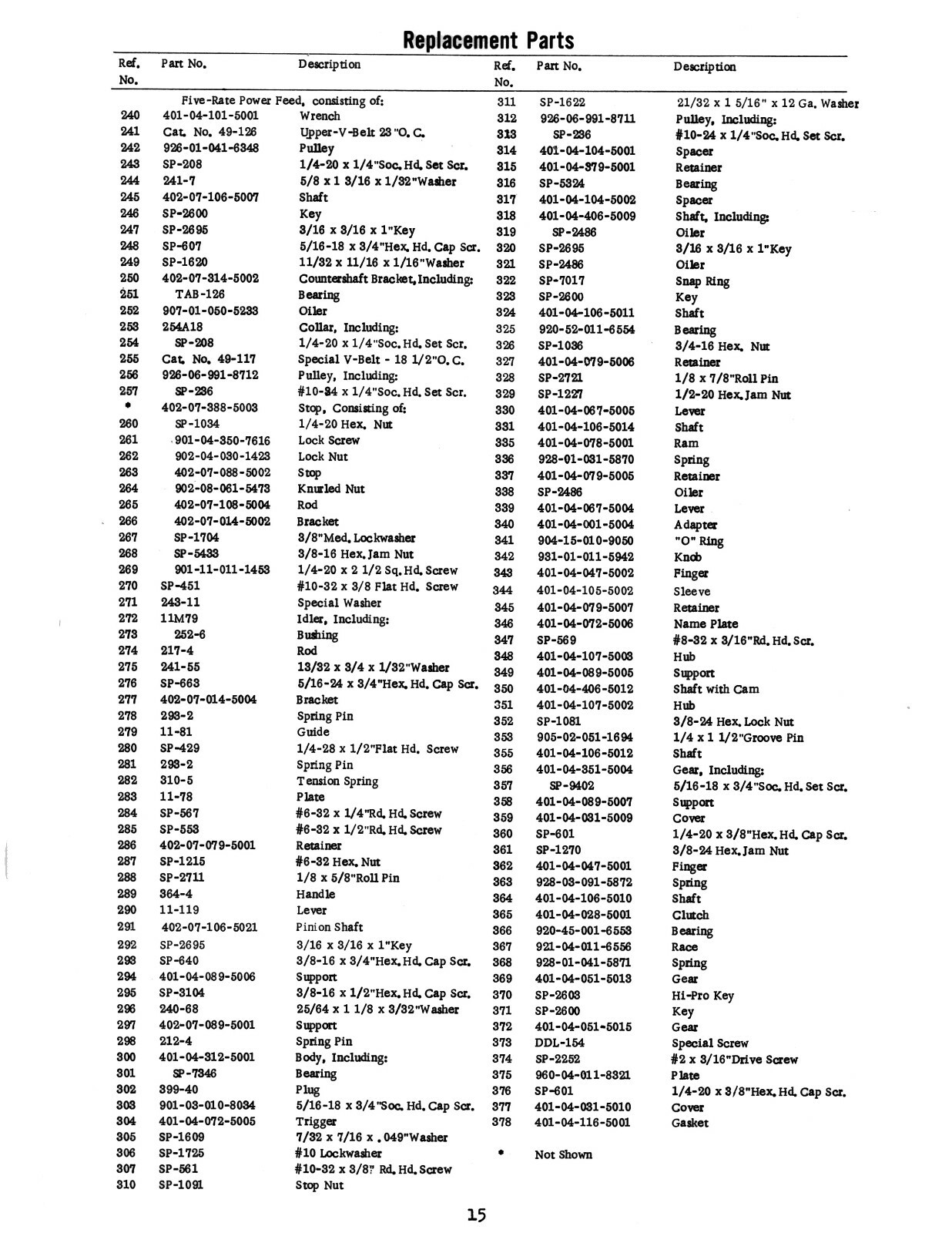

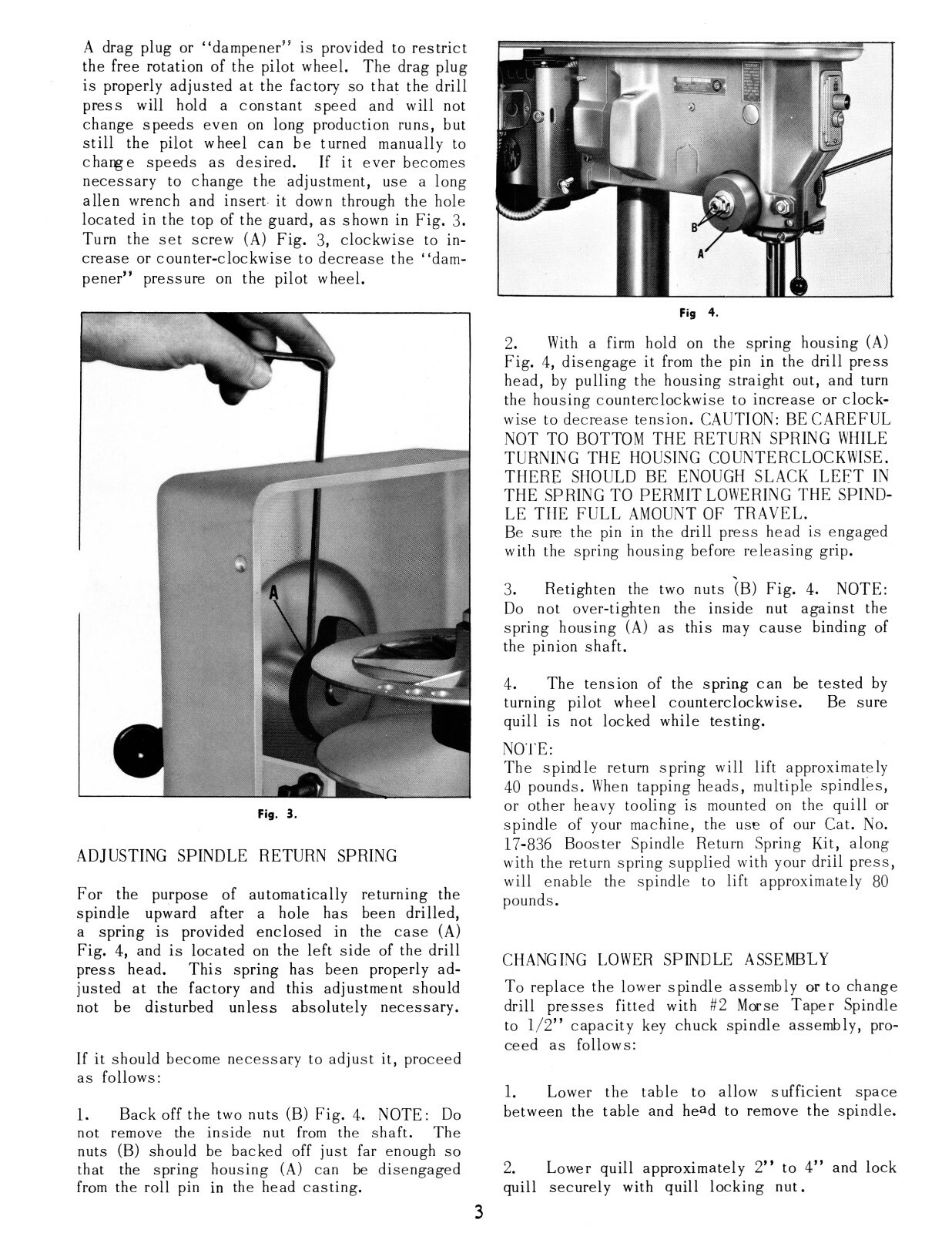

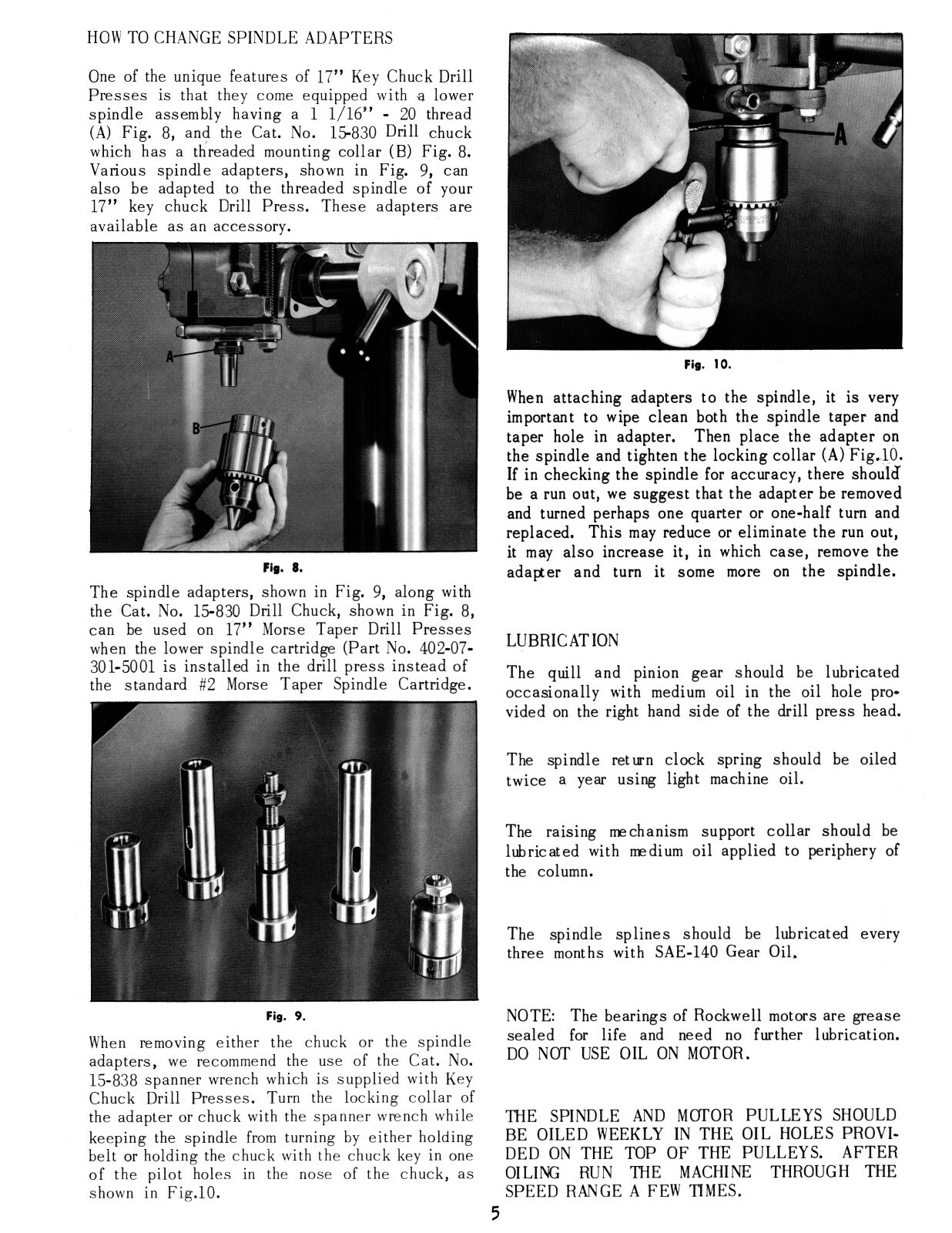

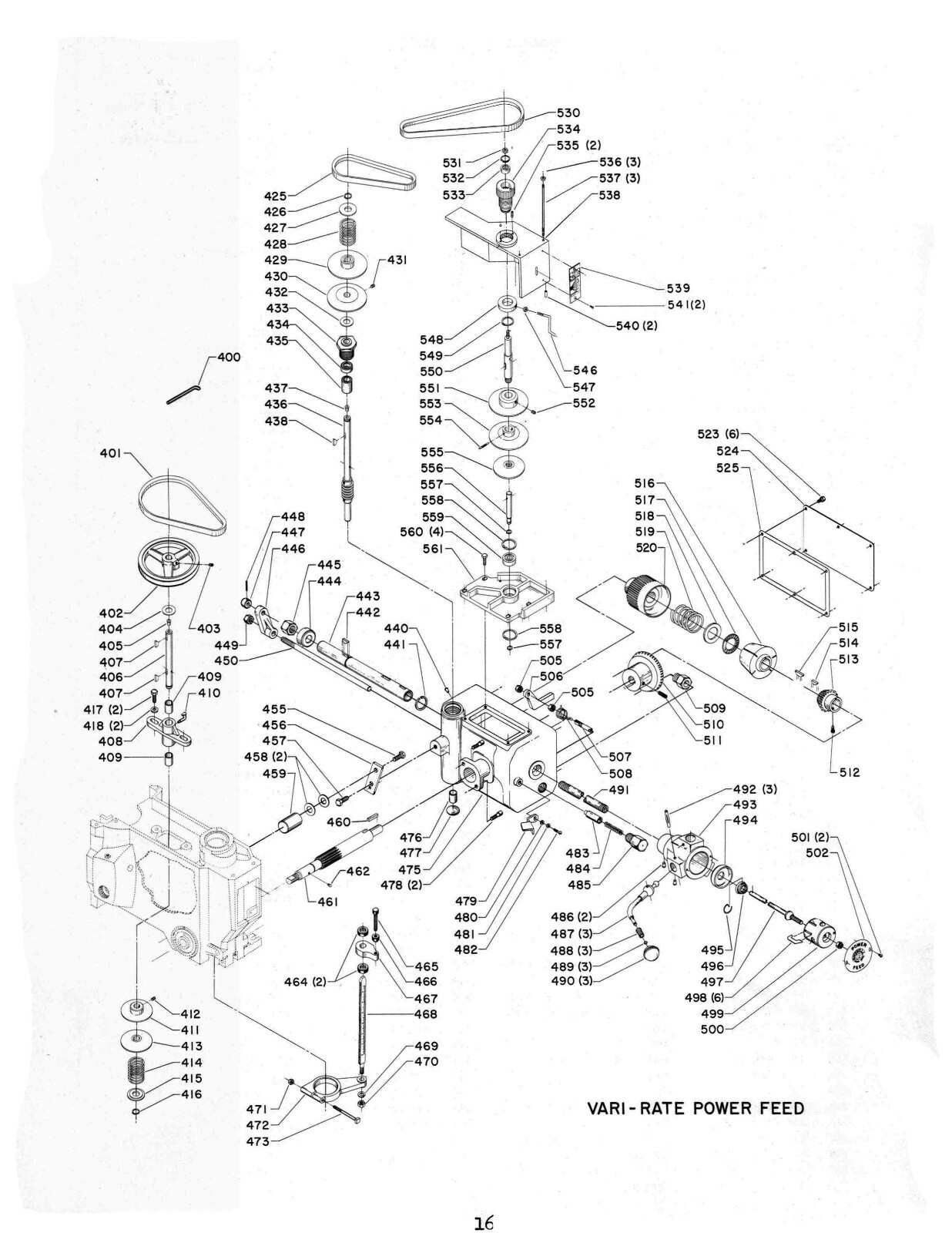

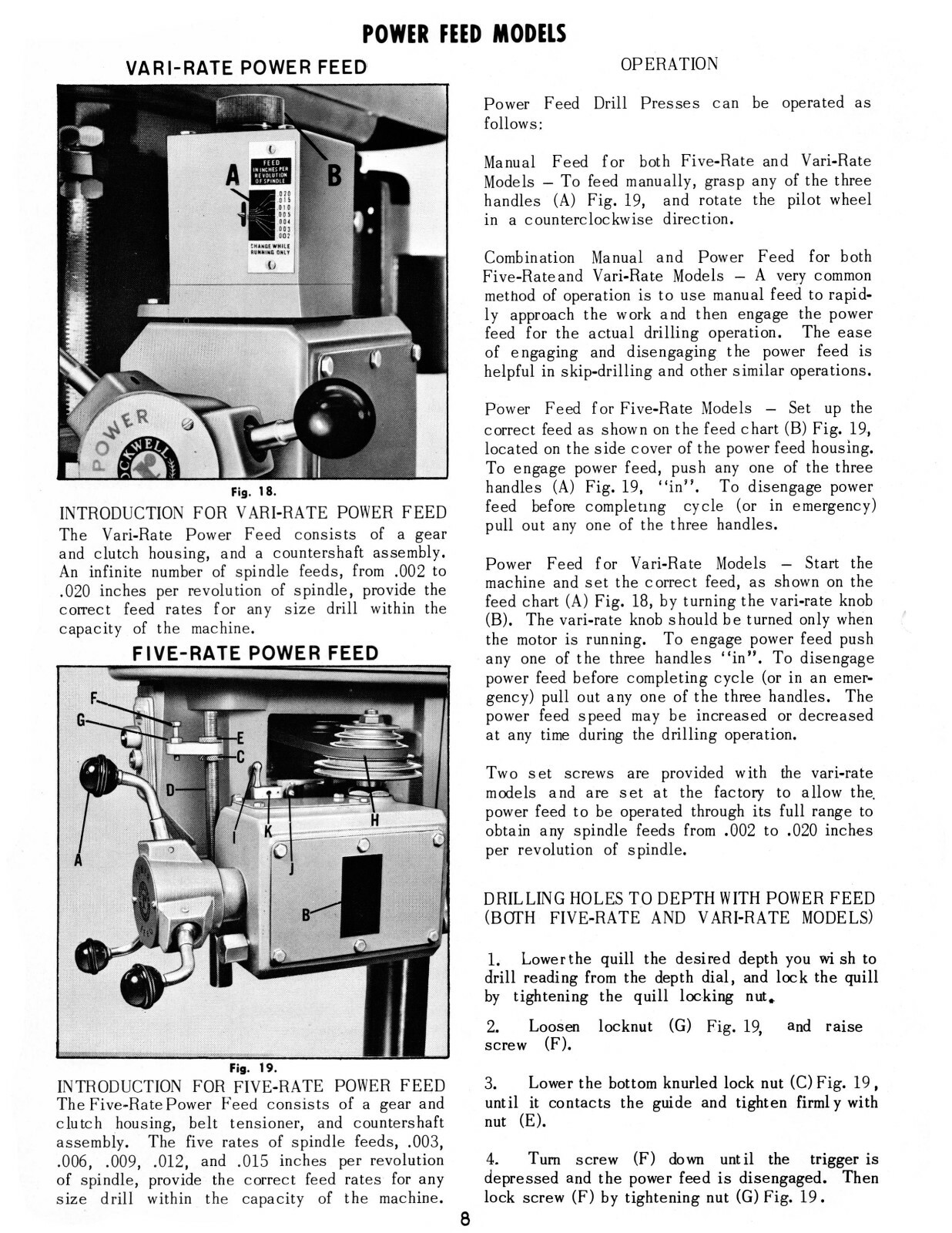

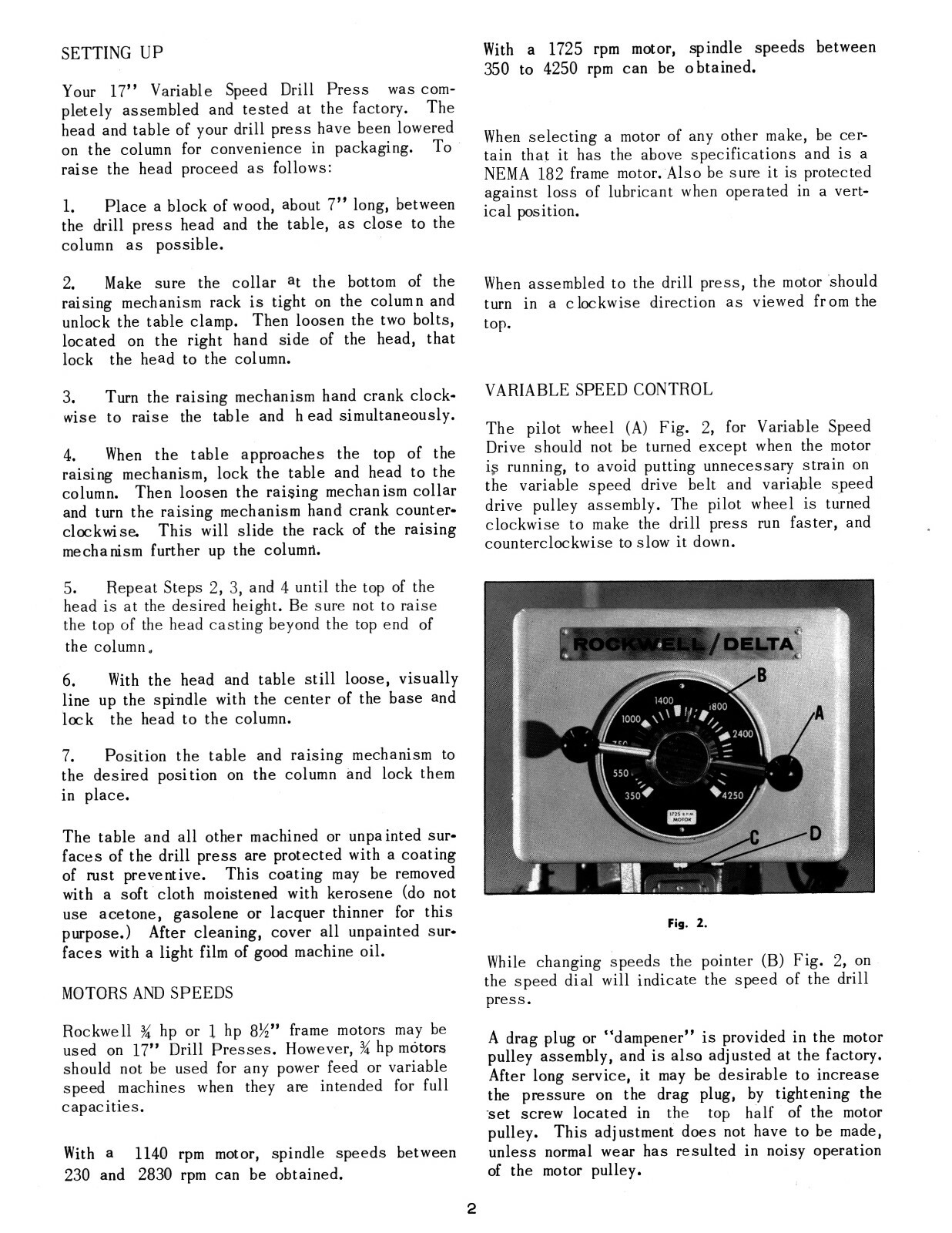

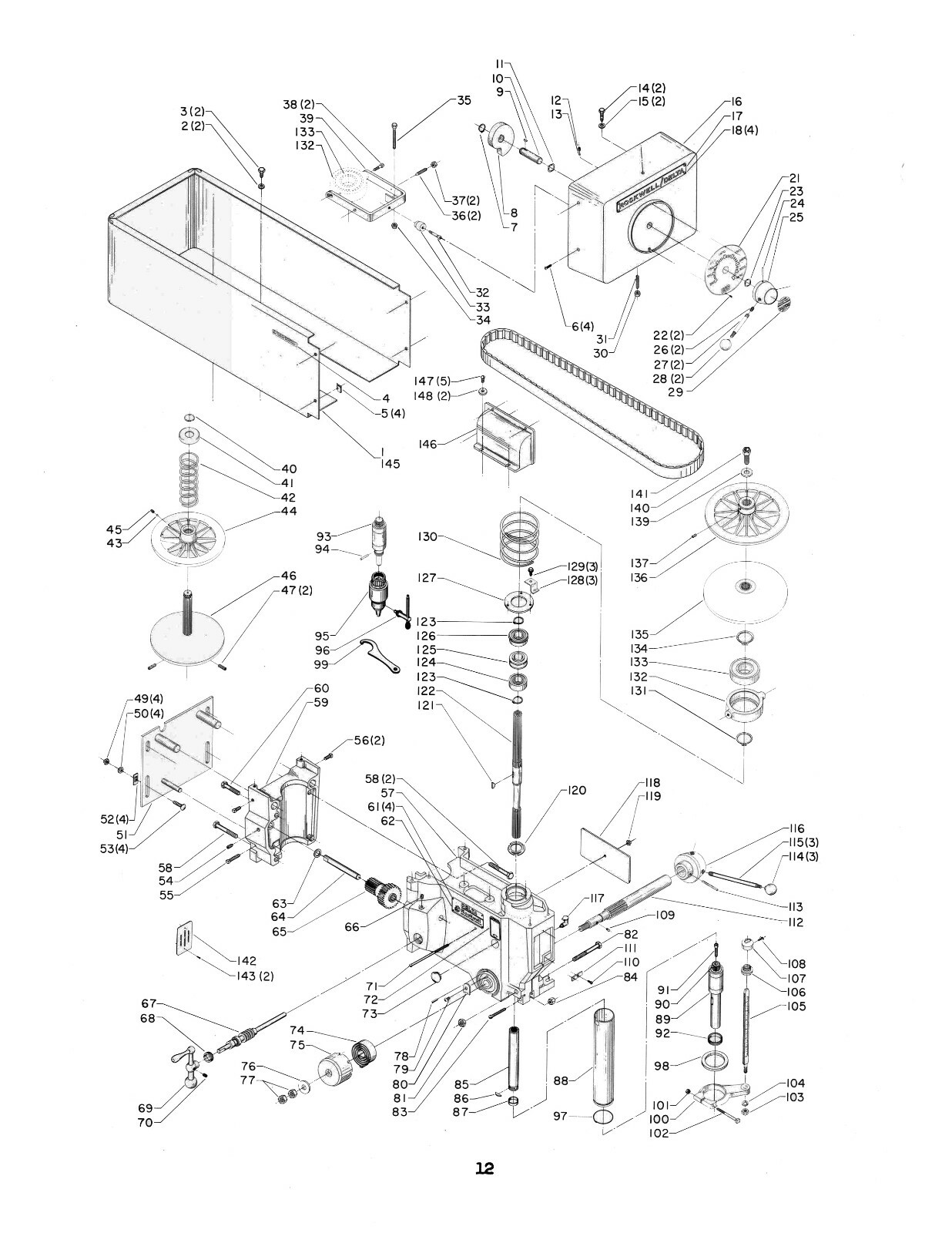

Rockwell Delta 17″ Variable Speed Drill Press Type of Manual: Operator and Parts List Power Feed Models IncludedFor Drills Without the Depth Stop Assy. Serial Numbers: 141-1800 and up. For models: 17-223, 17-225, 17-226, 17-227, 17-228, 17-229, 17-230, 17-231, 17-232, 17-233, 17-234, 17-235, 17-236, 17-237, 17-238, 17-239, 17-240, 17-241, 17-242, 17-243, 17-244, 17-520, 17-521, 17-522, 17-523, 17-524, 17-525, 17-526, 17-527, 17-528, 17-530, 17-531, 17-532, 17-533, 17-534, 17-535, 17-536, 17-537, 17-538, 17-540, 17-541, 17-542, 17-543, 17-544, 17-545, 17-546, 17-547, 17-548 Description: This is an Operation and Parts List manual for the Rockwell / Delta 17″ Variable Speed Drill Press for serial numbers from 141-1800 and up. It has sections on: Operation, Adjustments, Maintenance, Repairs, Exploded Parts Diagrams, & Parts List. It also includes an updated parts list dated July, 1994 that is not included in the original factory manual. It has 26 pages. and was printed in 1966 To inspect the quality of the manual, to view the Table of Contents, and to view select pages, please click on the gallery images above to enlarge. If your machine has a different serial number, please go to my Ebay Store and put in the correct manual number in the search bar to find the correct manual for your machine. Or, you can click on the “Ebay Store” link at the bottom. For 17″ Variable Speed Drill Presses S/N’s: below 137-5800, See Manual # 1923S/N’s: 137-5800 to 141-1799, See Manual # 1130 S/N’s: 141-1800 and above, See Manual # 1922 For 17″ Non-Variable Speed Drill Presses S/N’s: below 137-5800, See Manual # 1927S/N’s: 137-5800 to 141-1799, See Manual # 1926 S/N’s: 141-1800 and above, See Manual # 1925 Includes sections on: Operation Adjustments Repairs Setting Up Variable Speed Control Motors & Speeds Replacing Shear Pin Changing Lower Spindle Assembly Quill AdjustmentsAdjusting Spindle Return Spring Adjusting Belt Tension R & R Upper Spindle, Spindle Pulley & Related Parts Updated Parts List Exploded View Drawings Number of Pages: Approx. 26 Publication Date: July, 1966 & July, 1994 Publication No.: PM-402-07-651-5009 & DP-11B Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
