Rockwell 70-150 Geared Head Drilling Machine Operator & Parts List Manual #1901

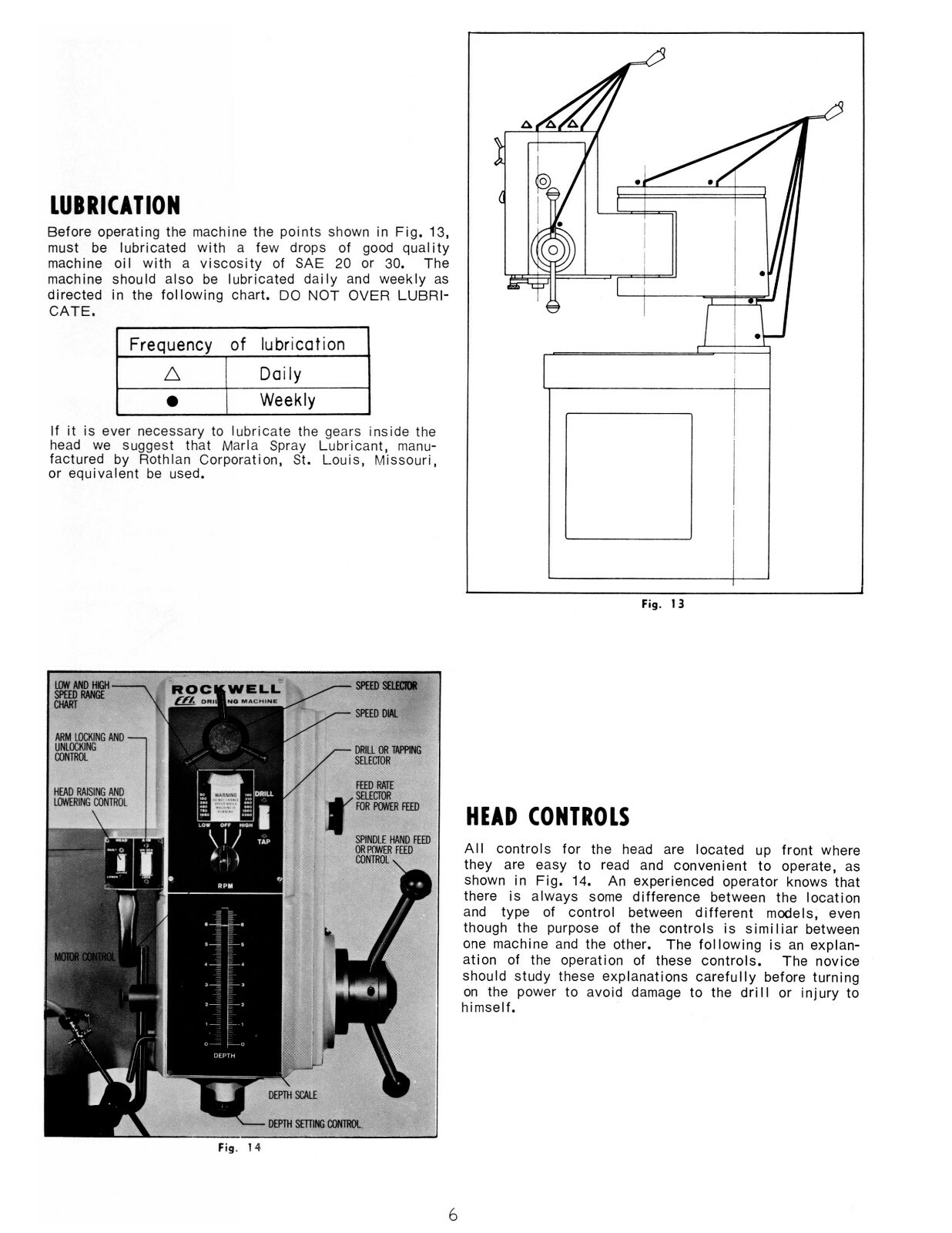

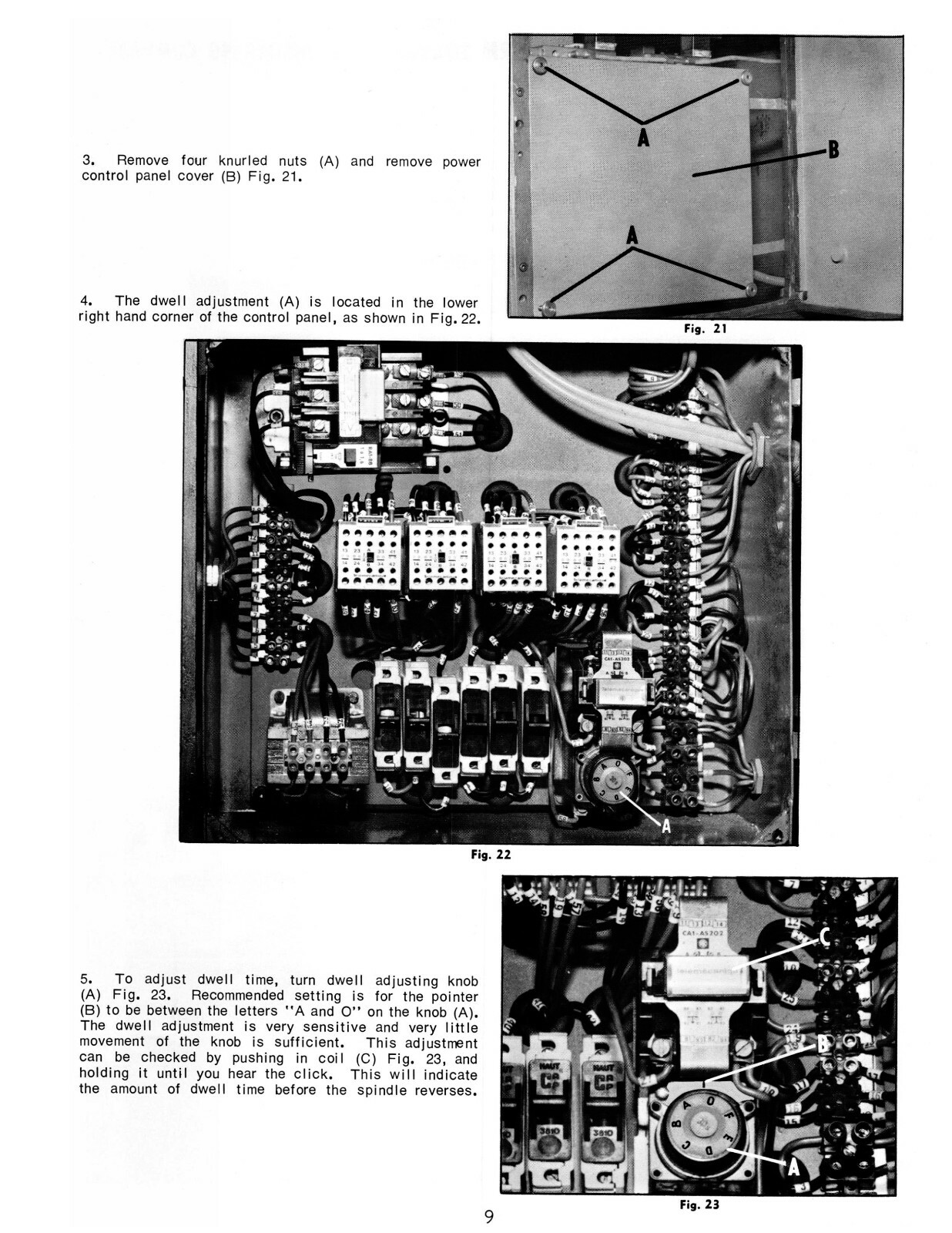

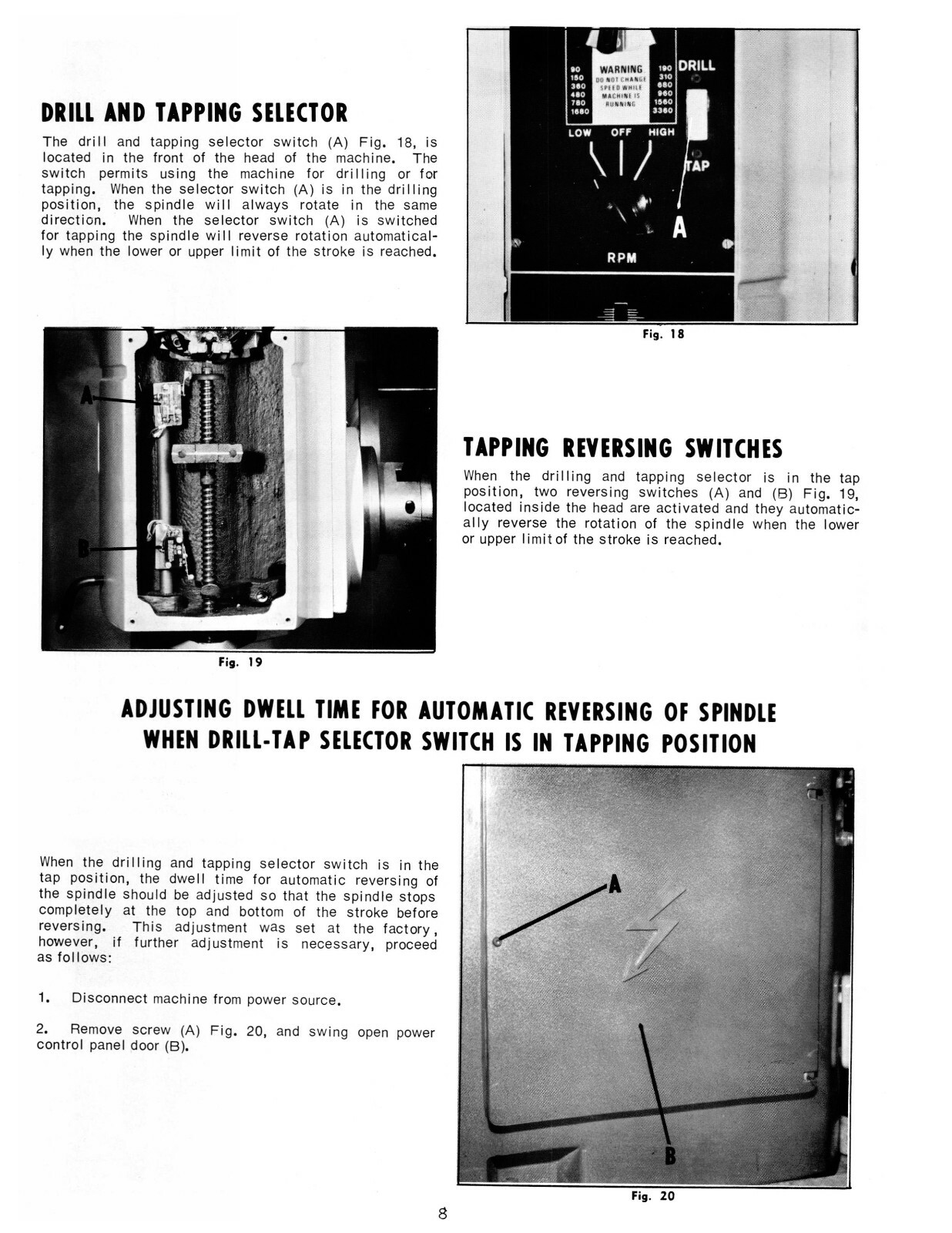

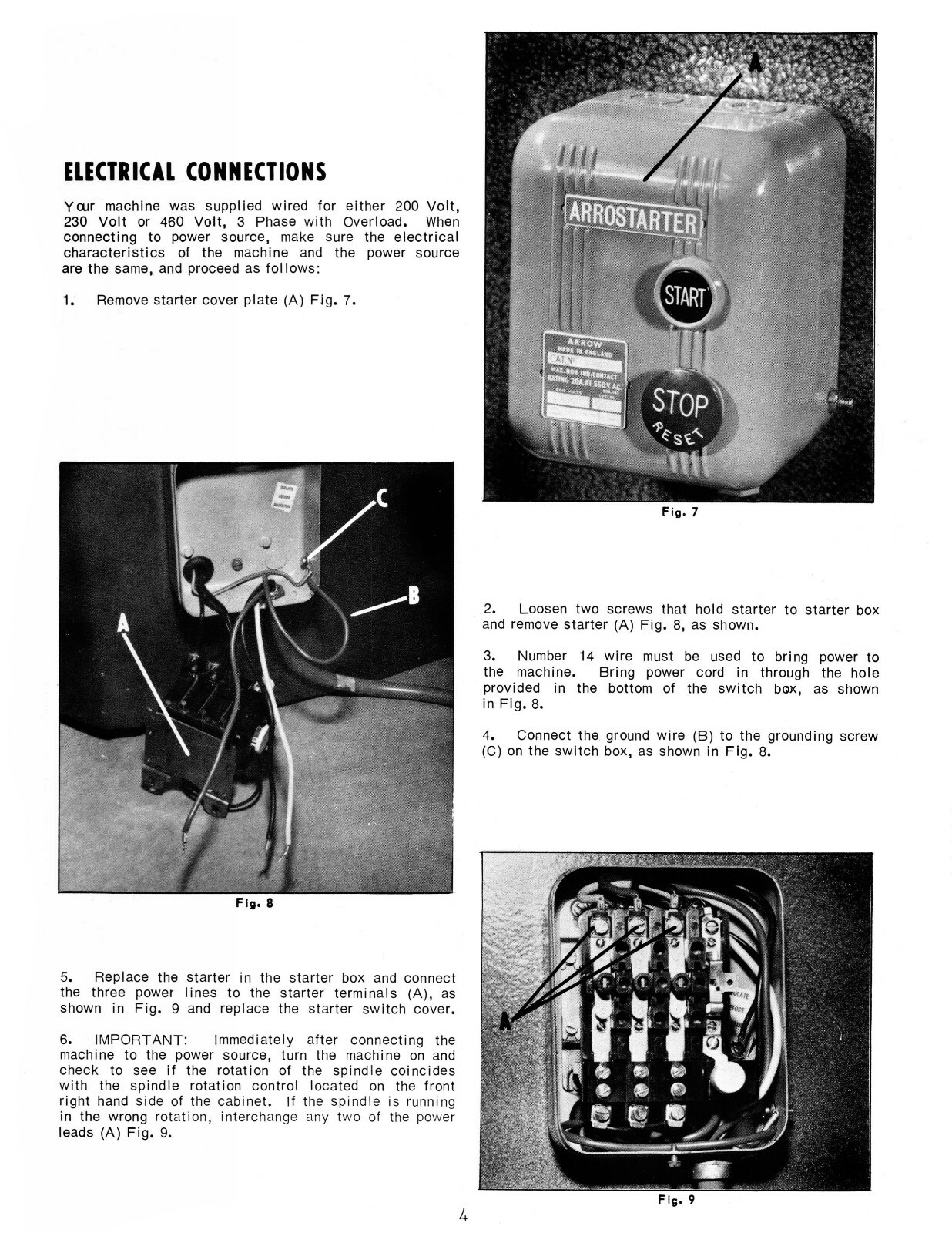

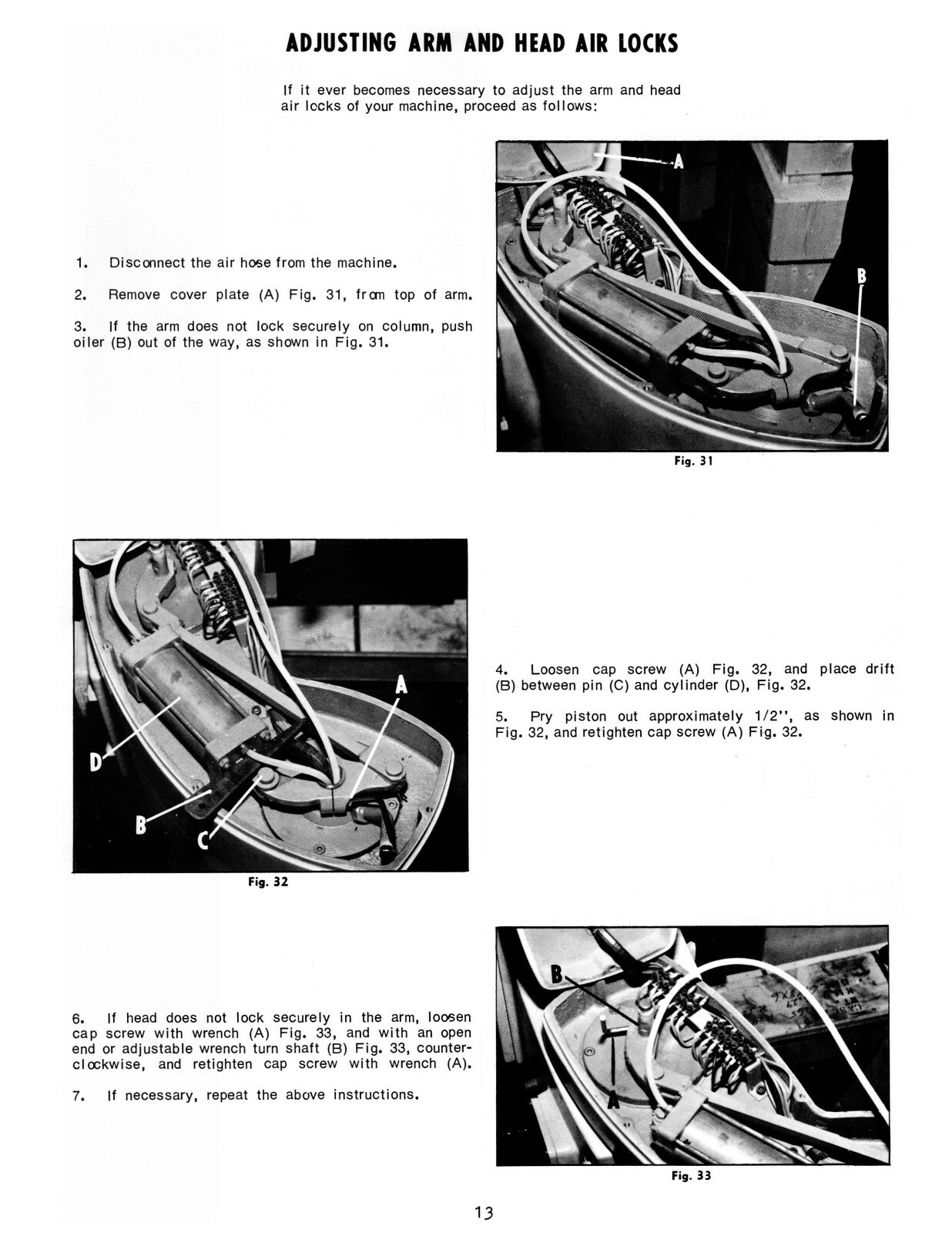

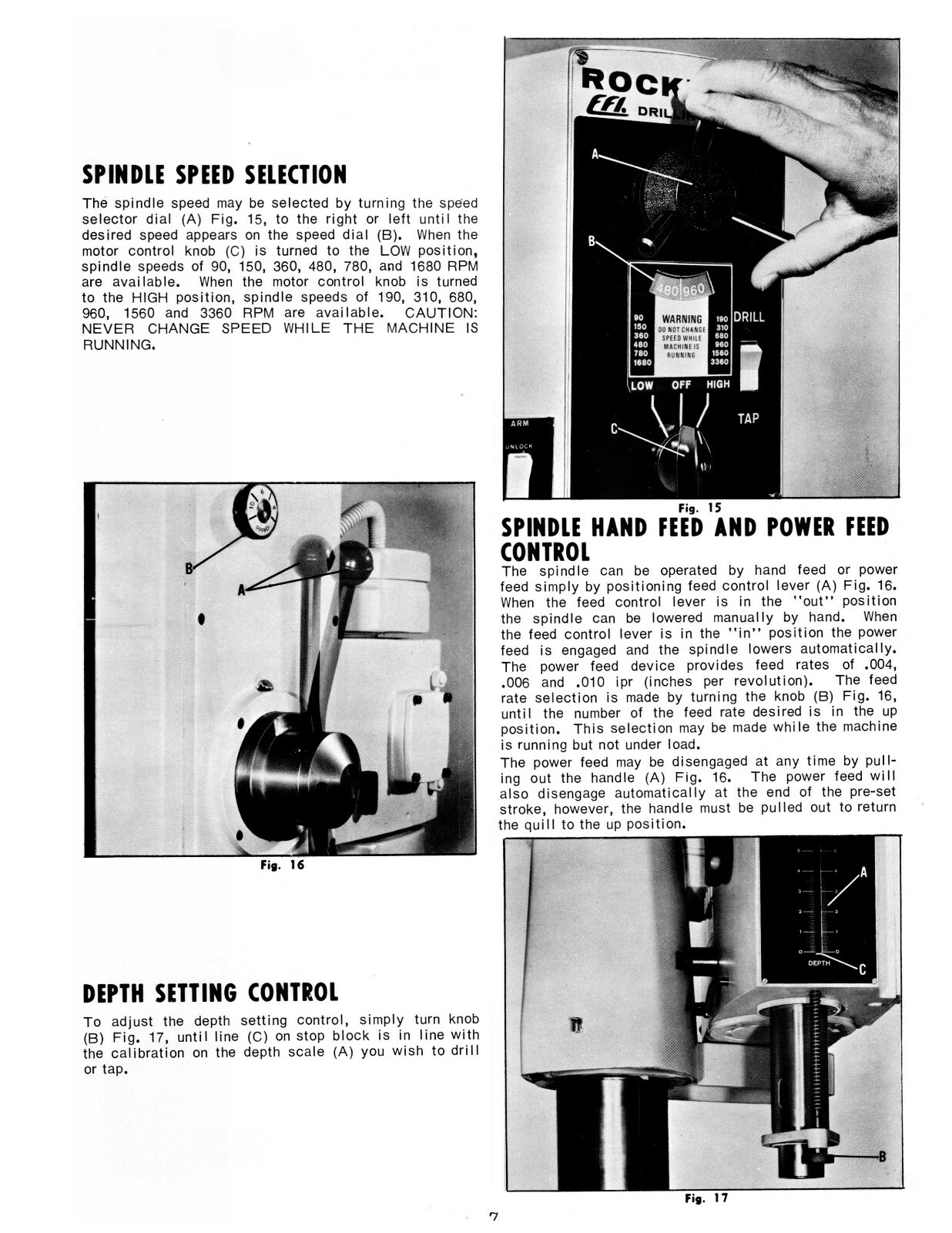

Rockwell Geared Head Drilling Machine Type of Manual: Operator & Parts List For Models: 70-150 Description: This manual covers the Rockwell Model 70-150 Geared Head Drilling Machine. It covers the Operation, Adjustments, Maintenance, Lubrication, Electrical WIring Diagram, and it has Cutaway Parts Views and Parts Lists. It also contains a supplement in the Disassembly and Reassembly of the Gear Train, which also is not in the original manual. The manual has about 36 pages. To inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on:OperationAdjustmentsMaintenanceLubricationSpindle SpeedsControlsDwell TImeCoolant SystemSpindle Bearing ClearanceReplacing Spindle Drive PinsElectrical Wiring DiagramCutaway Parts ViewsParts ListGear Train Disassembly and Reassembly Number of Pages: Approx. 36 Publication Date: Oct, 1972, Nov, 1978 Publication No.: PM-1200B72 & DP-15E Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
