Republic-Lagun FTV-4 Milling Machine Operation, Maintenance, Parts Manual #1542

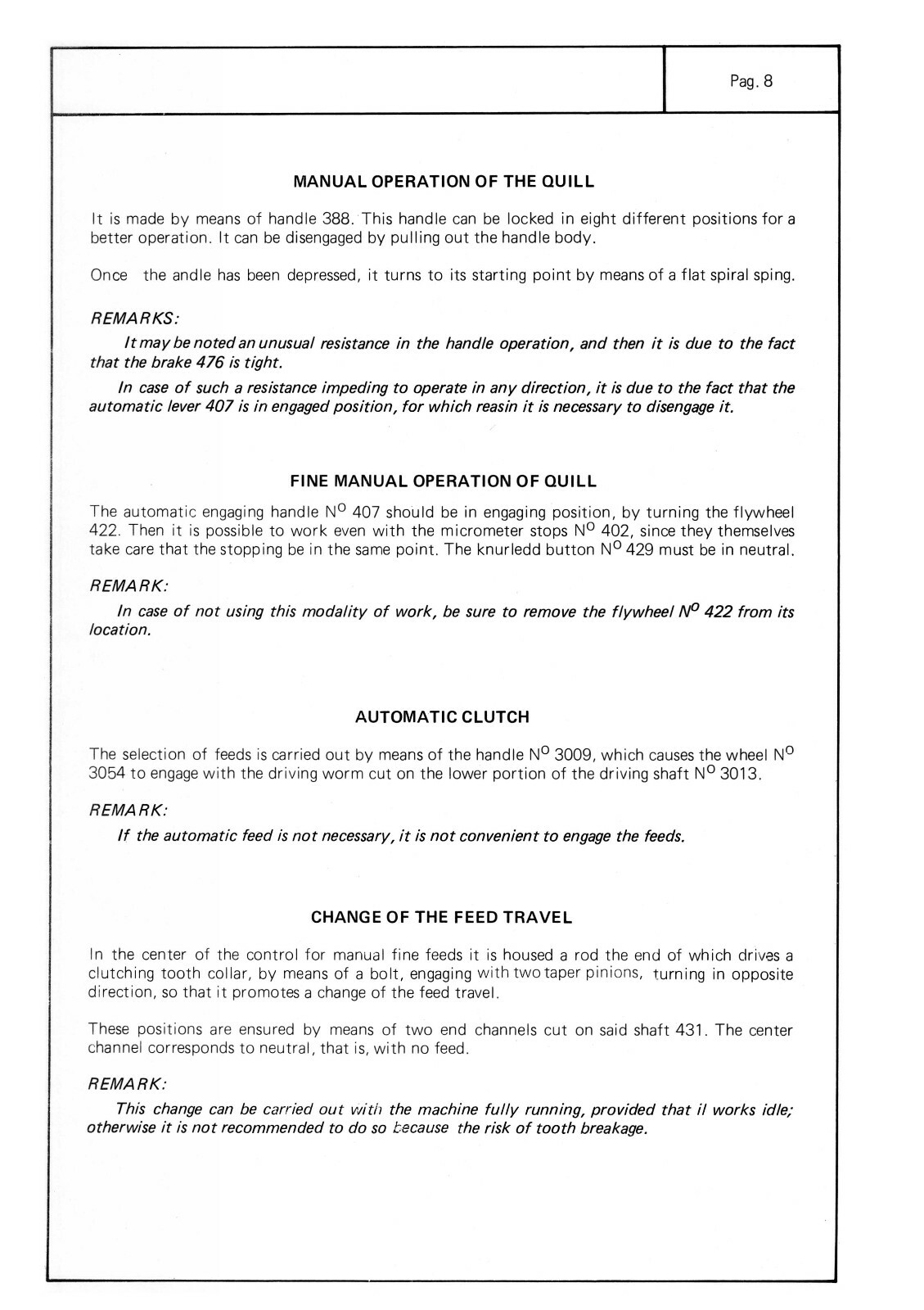

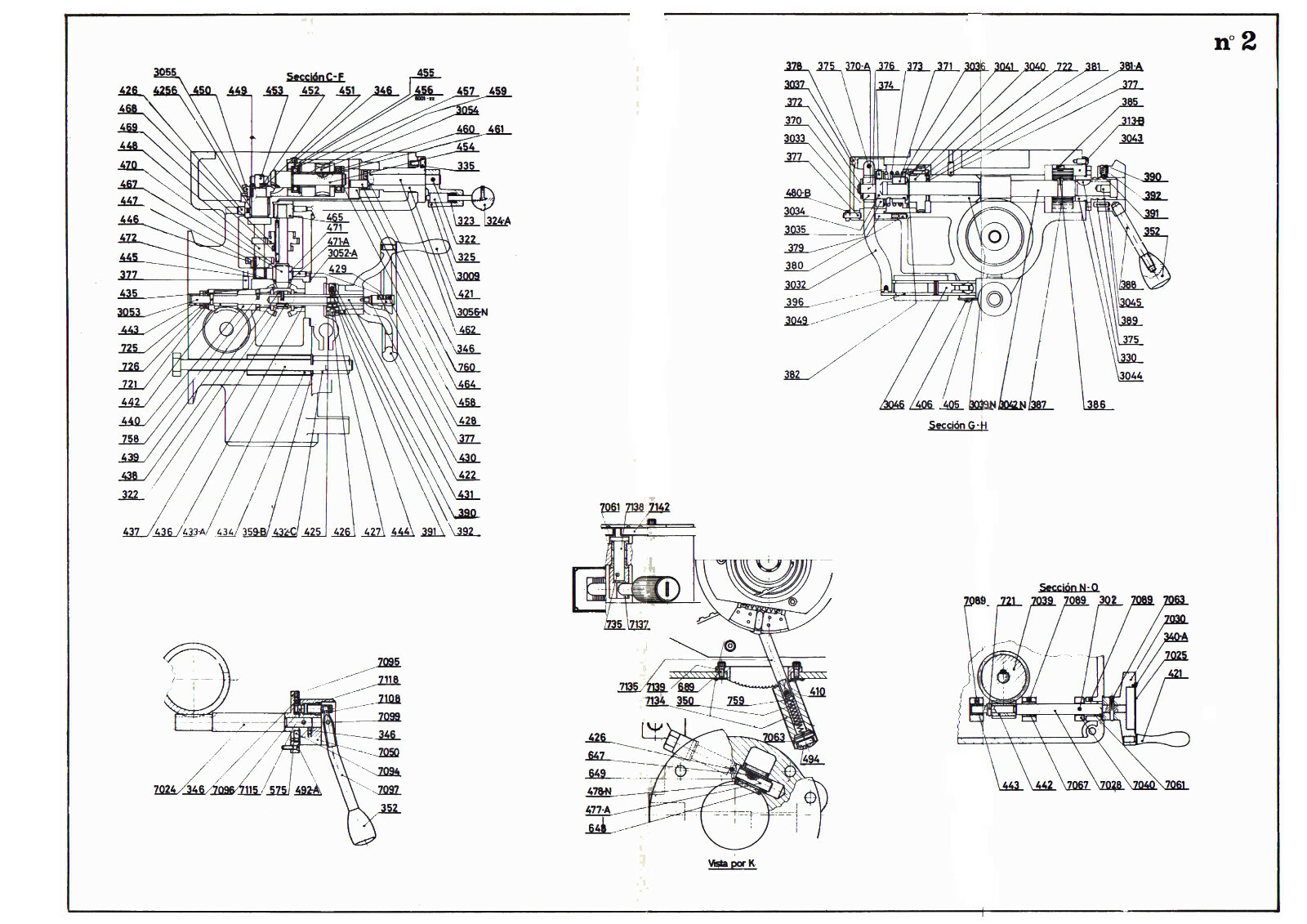

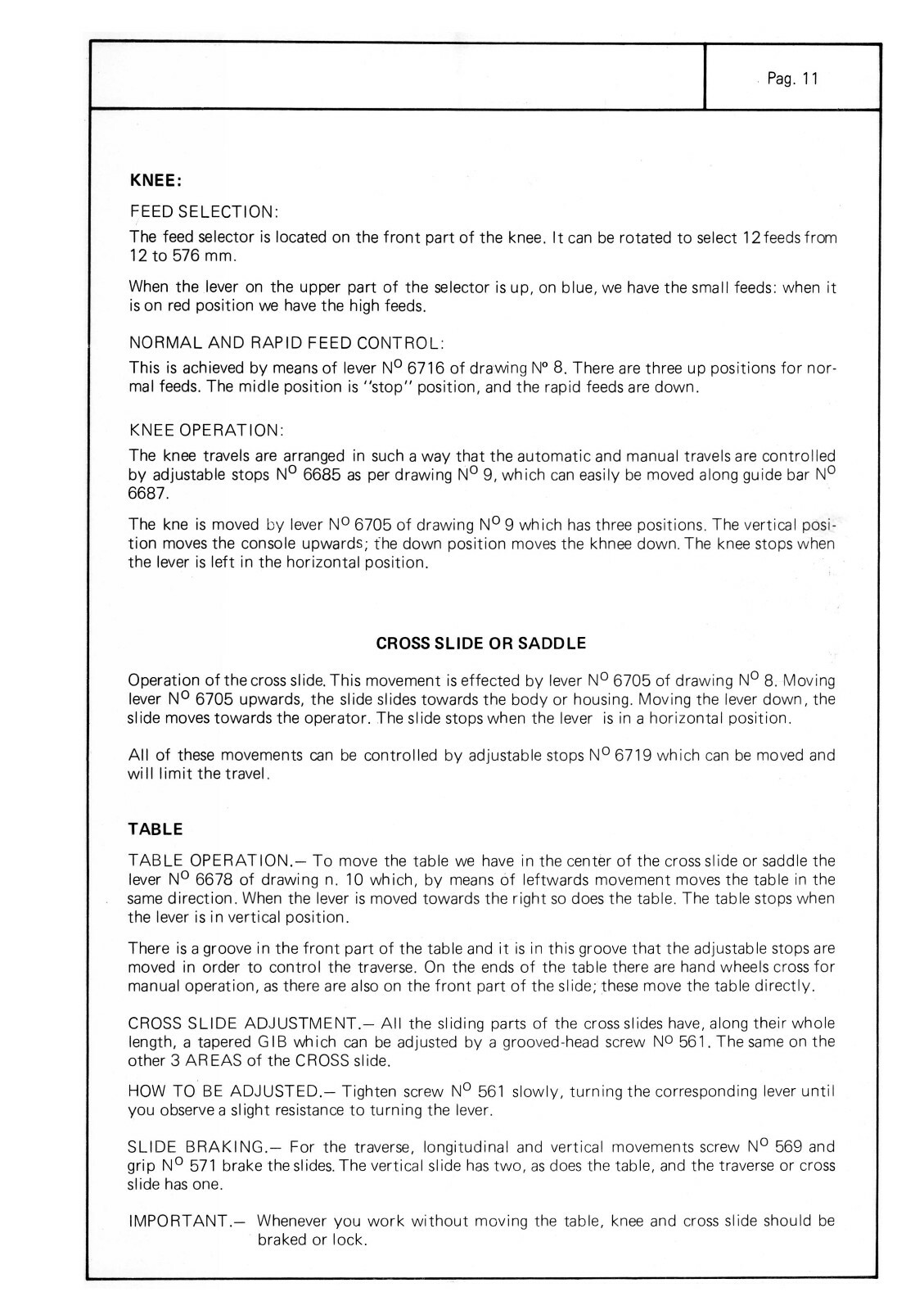

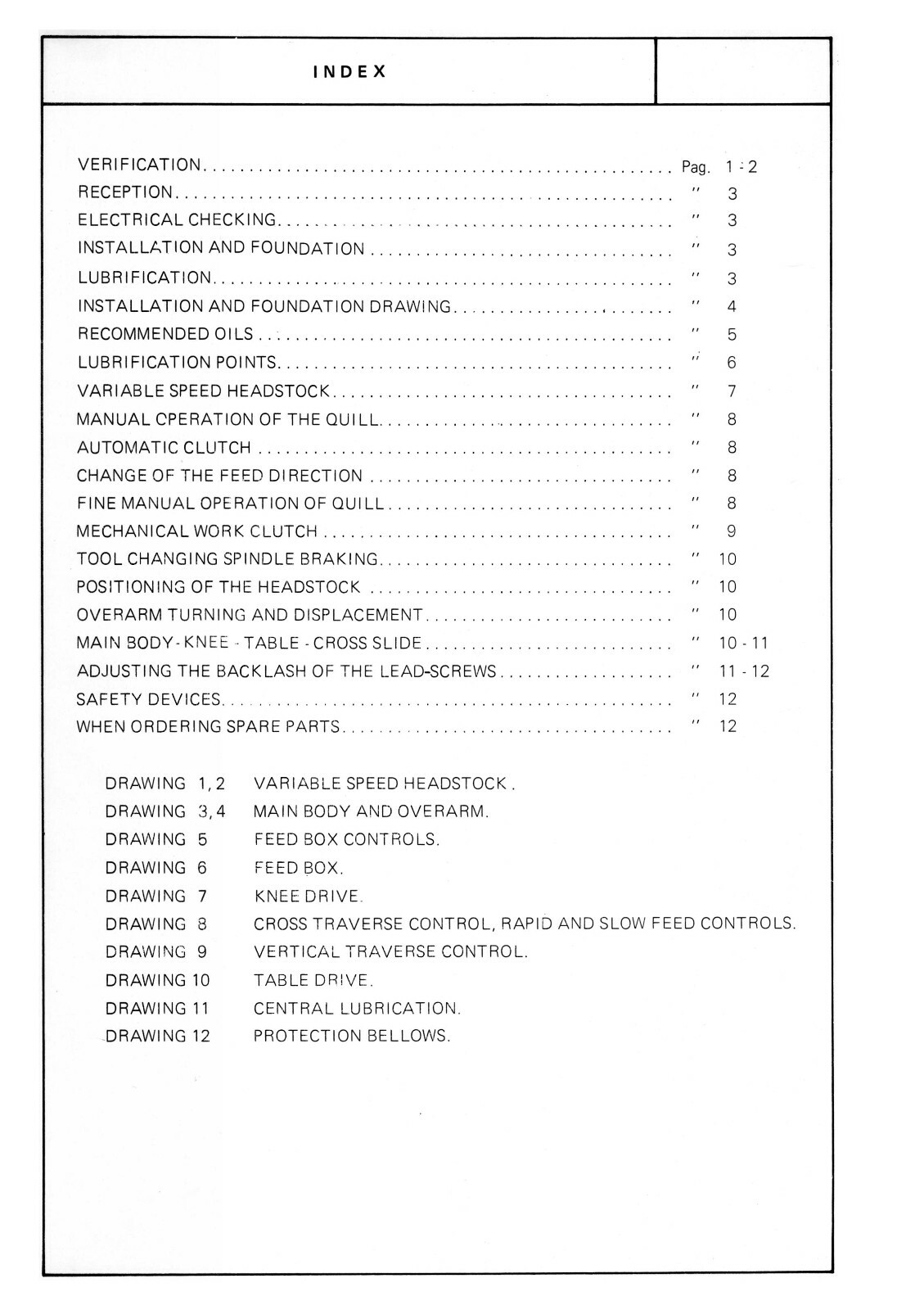

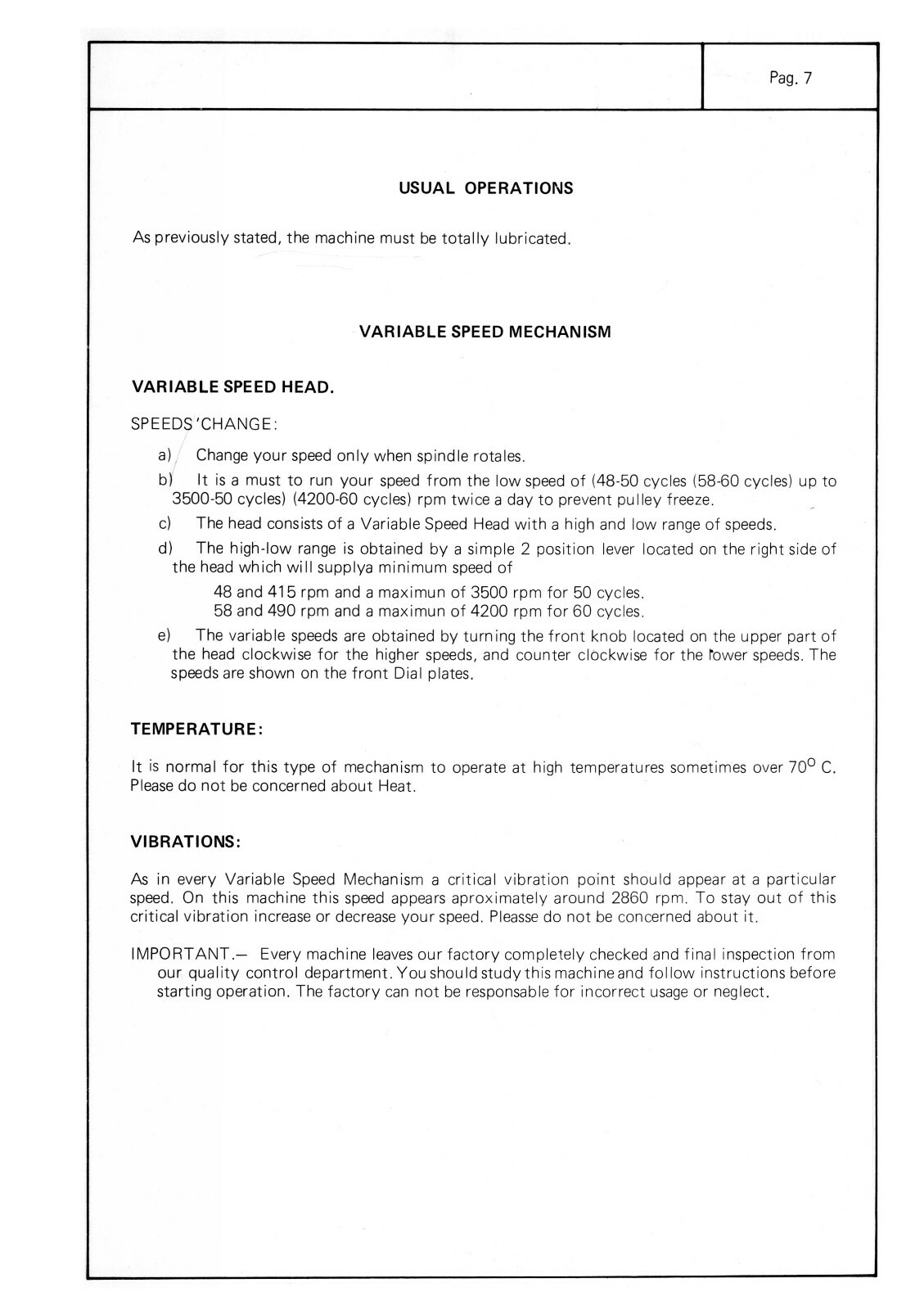

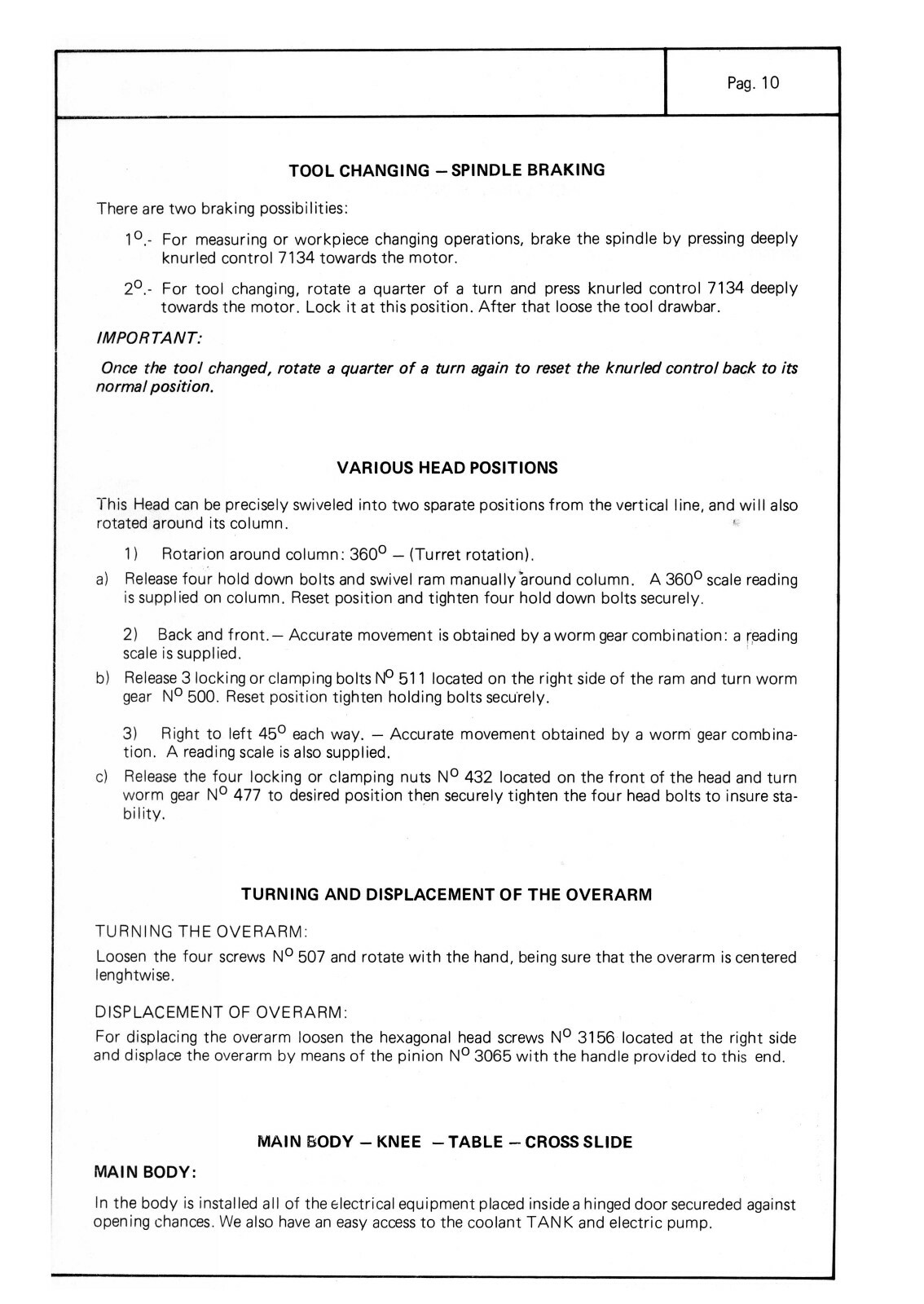

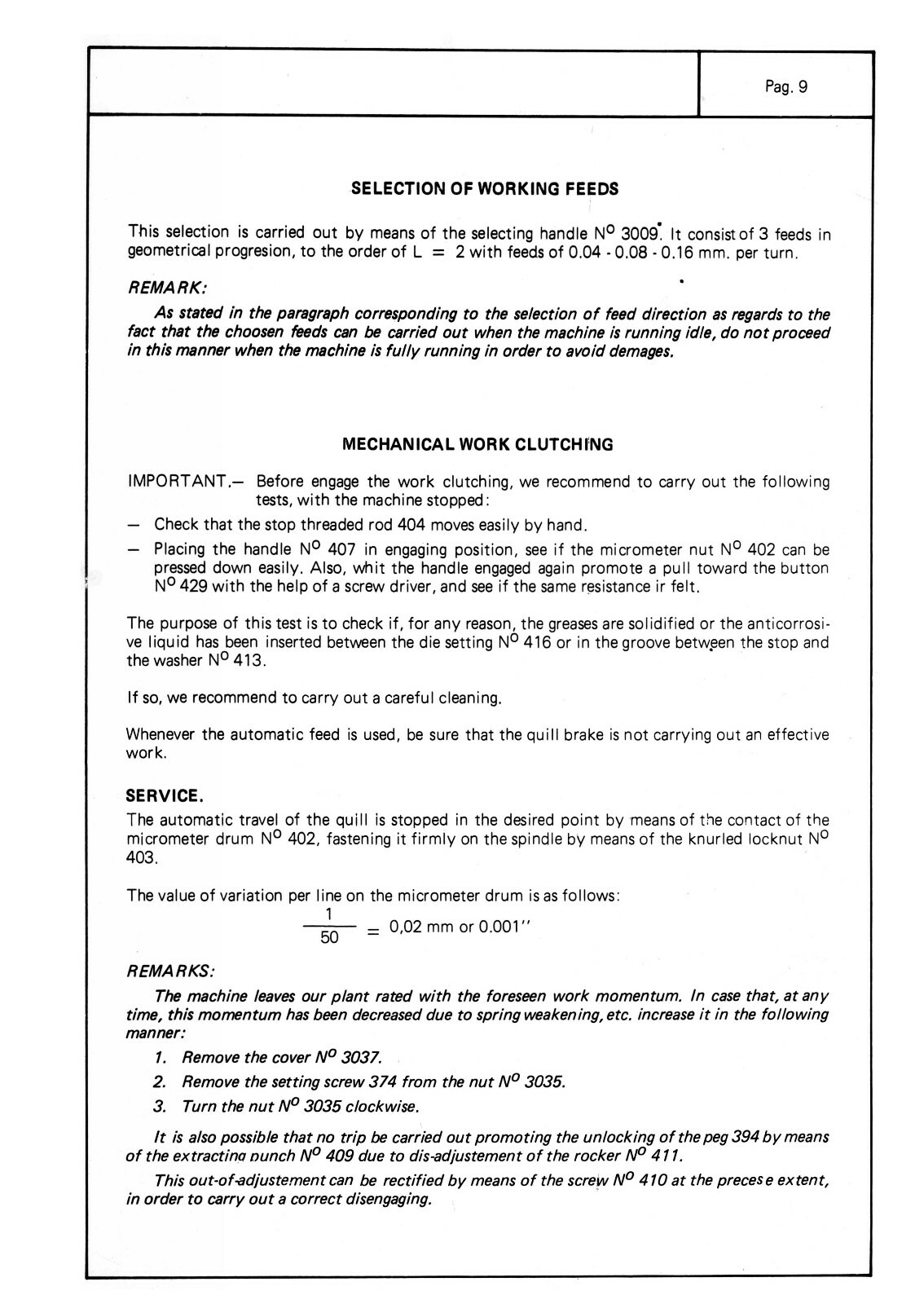

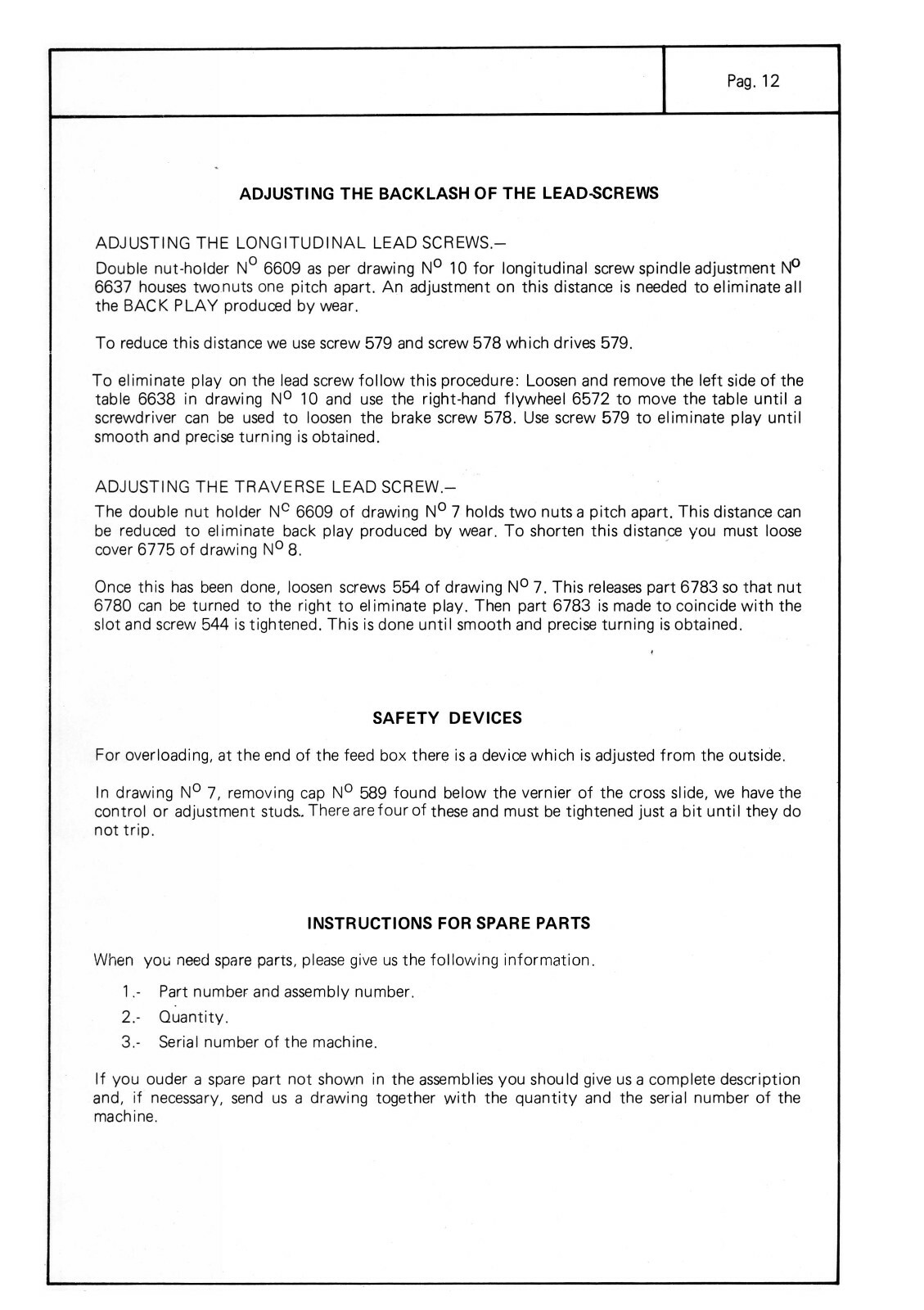

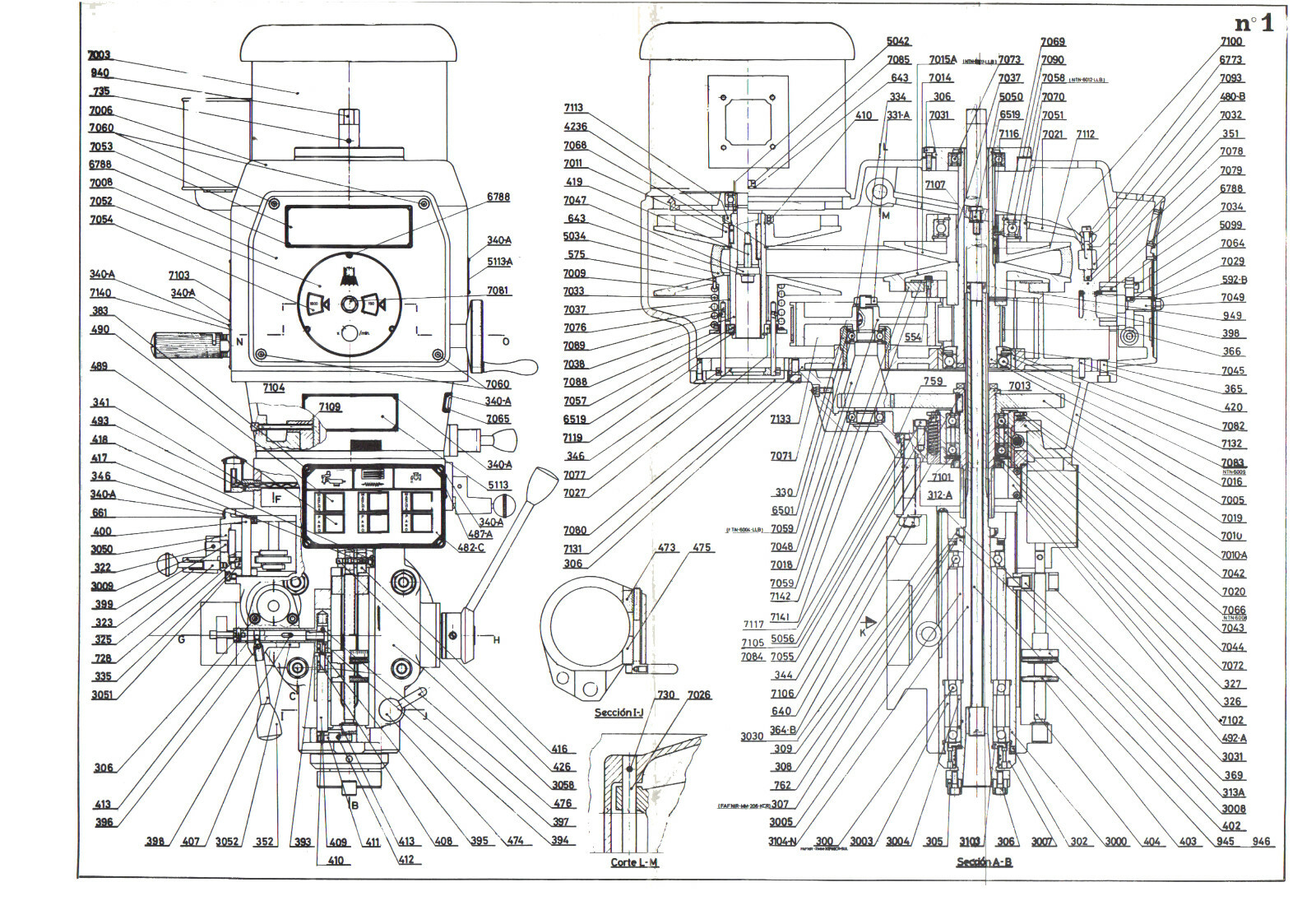

Republic-Lagun FTV-4 Milling Machine w/Variable Speed Head Manual Type of Manual: Operation, Maintenance, & Parts For Models: FTV-4 Description: This manual covers the Republic-Lagun Milling Machine Model FTV-4. It covers Installation, Operations, Lubrication, Maintenance, and it also includes Sectional Parts Views and Parts List. The manual has about 30 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on:Variable Speed MechanismAutomatic ClutchChange of the Feed TravelMechanical Work ClutchingCross Slide or SaddleAdjusting BacklashSectional Parts Assembly ViewsParts Lists Number of Pages: Approx. 30 Publication Date: N/A Publication No.: N/A Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
