NICHOLS Horizontal Milling Machine Owner Operator’s Handbook Manual 0489

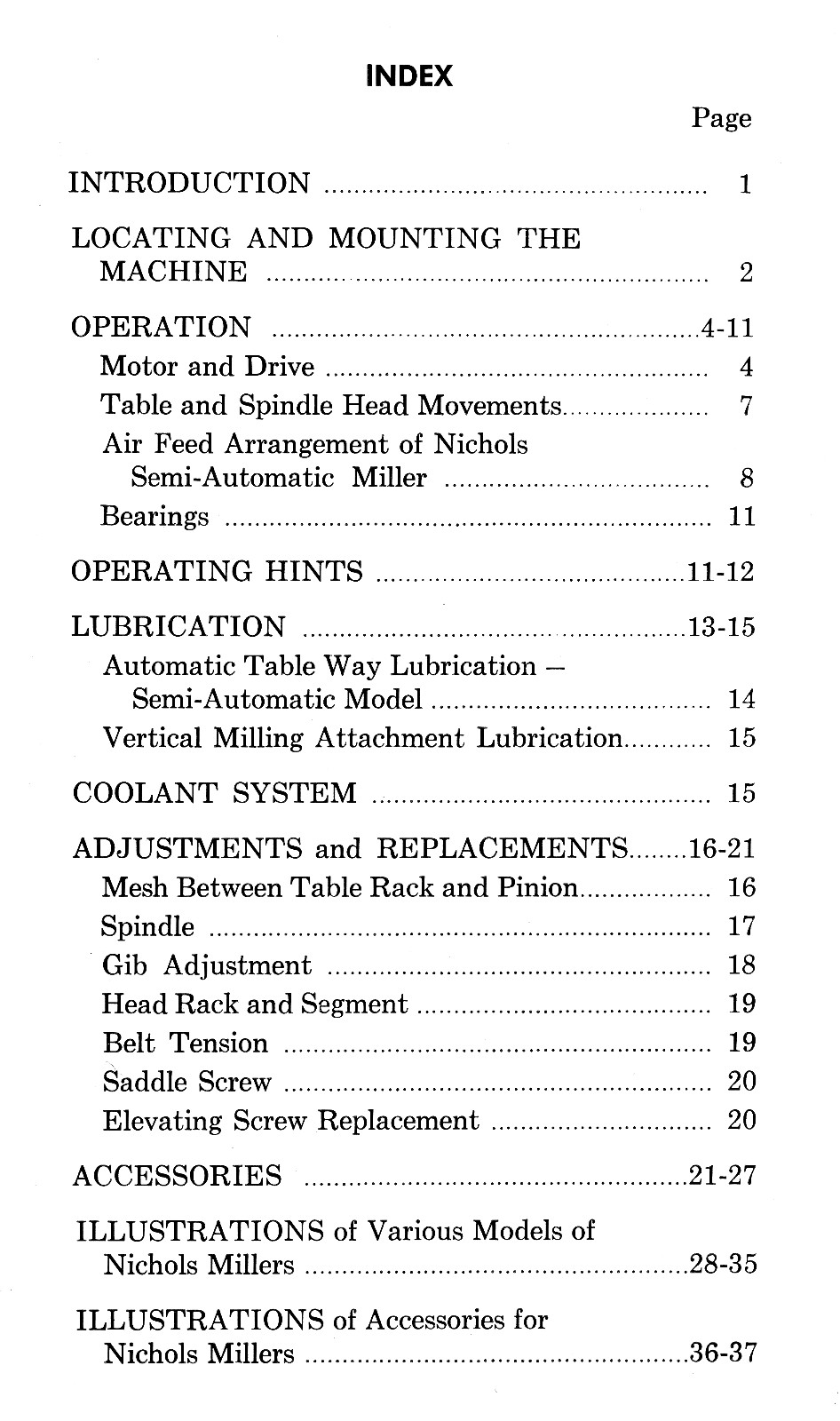

Manual Description: Number of Pages: 38 This is a reproduction, not a photocopy, of an original Handbook for the Nichols Miller. This manual covers a wide majority of the Nichols Millers. It contains information on set up, lubrication, maintenance, adjustments and operating controls. Contents: INTRODUCTION…………………………………………………………………. 1 LOCATING AND MOUNTING THE MACHINE…………………….. 2 OPERATION……………………………………………………………………….. 4-11 Motor and Drive…………………………………………………………………….. 4 Table and Spindle Head Movements………………………………………….. 7 Air Feed Arrangement of Nichols Semi-Automatic Miller……………………………………………………………..8 Bearings……………………………………………………………………………….. 11 OPERATING HINTS…………………………………………………………….. 11-12 LUBRICATION……………………………………………………………………. 13-15 Automatic Table Way Lubrication Semi-Automatic Model……………………………………………………………. 14 Vertical Milling Attachment Lubrication………………………………………. 15 COOLANT SYSTEM……………………………………………………………. 15 ADJUSTMENTS and REPLACEMENTS…………………………………. 16-21 Mesh Between Table Rack and Pinion……………………………………….. 16 Spindle…………………………………………………………………………………. 17 Gib Adjustment……………………………………………………………………….18 Head Rack and Segment………………………………………………………….. 19 Belt Tension…………………………………………………………………………… 19 Saddle Screw………………………………………………………………………… 20 Elevating Screw Replacement……………………………………………………. 20 ACCESSORIES……………………………………………………………………. 21-27 ILLUSTRATIONS of Various Models of Nichols Millers………………………………………………………………………………….. 28-35 ILLUSTRATIONS of Accessories for Nichols Millers………………………………………………………………………………….. 36-37 Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
