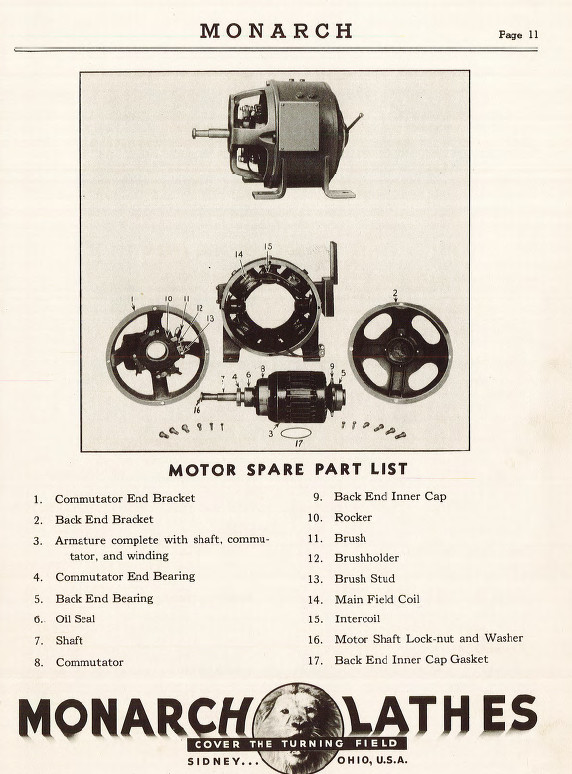

Monarch 10″ EE Lathe 1940’s Operator and Parts Manual
–> Description –> Monarch 10″ EE Lathe 1941 – 1949 Tube Lathe (No Schematic. I have had a lot of this version of the 10ee manual. None had a schematic ) 3HP motor Serial number EE-41007 Operator, Parts 36 pages The following information was provided by timeghost he does a MUCH better job explaining the tube portion of these machines……. “10EEs were being built during WW2. Material and component shortages caused the design of 10EEs to vary from month to month. In 1941, the massive hydraulic/hydrostatic variable-speed unit manufactured by Sundstand that provided the variable speed drive for 10EEs up to that time was replaced by a three-phase AC motor driving a 3 HP DC generator which provided power for an electronic variable-speed DC motor for the lathe. These are today referred to as, the “Motor-Generator” drive units. There are many of these still around for sale in the used machinery marketplace. The manual, EE – 41007, RI 01075, 127-126165, covers this type of drive system.” THIS MANUAL ” In 1949, the three-phase AC motor-DC generator drive system was replaced by a WiaD (Works in a Drawer) system that used electronic-tube controlled thyratrons to rectify AC current to a variable DC voltage to drive the lathe’s DC motor. Many vacuum tubes were used to control the rectifier tubes and other functions. This “works in a drawer” set-up is described by the vacuum tube schematic that you included in my purchase. Through the 1950s, the WiaD drive was redesign and improved.” Our Manual … https://www.ebay.com/itm/176379703255 “In 1960, the WiaD drive was replaced by fitting the 10EE with a more powerful 5 HP DC motor and a “module drive” that used an all-solid-state electronic module to control the electronic components, with the exception of the thyratrons. This is the motor control system that is covered in the EE-51891 manual that I purchased from you. This is the motor drive system I wanted an electronic schematic for, which is contained in the manual. There were around 3,000 10EE lathes sold with this drive system.” Our Manual. https://www.ebay.com/itm/175617101951 YOU GET A COPY AND A EMAILED PDF! You are getting one Brand New Clean copy of this manual. See below on how we reproduce. How We Reproduce our Manuals WATERMARKS! Sorry but do to thieves, some pages will be discreetly watermarked to deter this behavior. We stand behind our manuals and guarantee their quality. Every manual is carefully reproduced using Adobe software to make sure we get it right! The manuals are reprinted on high quality paper using both the front side and the back in FULL COLOR, then spiral wire bound together with a clear plastic cover and colored hard plastic back! Making sure you get the highest quality reproduction available! –> Email, Ship It or BOTH We here, at Rebuilt Machinery understand you need your manual, NOW! So, we offer different options. For the one price above you are entitled to printed copy and a COMPLEMENTARY PDF scanned copy. We can usually turn your scan PDF copy over to you within 24 hours of placing your order, provided you gave us email address at check out, so you can get right back to working on your machine while you wait on your quality reproduction to be received in the mail. You need your PDF ASAP and we understand it! Your order is our PRIORITY! Then we can mail you one of our quality reproductions. Also, however if you don’t need the reproduction or just don’t want to pay the shipping, let us know at checkout and we can reimburse you the shipping cost. Lastly, please note, that the COMPLIMENTARY PDF will have a watermark near the bottom portion of every page that cant be removed. The permanent manual, that is mailed to you does not have this. WORLDWIDE SHIPPING Yes, we only have shipping posted for the continental United States. However, we are more then happy to ship any where in the world, just ask us for a quote. COMBINDED SHIPPING Yes, we COMBINE shipping. However, in the checkout cart of eBay it does not always catch it when buying multiple items from our store. If you want to know exactly what the charge will be, please ask before checkout. Otherwise, we usually catch this and refund the difference. If not, please ask. PAYMENT We accept PayPal, Credit Cards and Wire Transfers. This means you can rest assured your order will be shipped to you ASAP after your purchase. For your security we only ship your order to the address you provide us via PayPal. CONTACT __Rebuilt_Machinery__ –> This template was built, designed and is the property of Rebuilt Industrial Machinery Copyright 2023 v1.6
