Miser Low Temp Stirling Cycle Engine Plans PDF

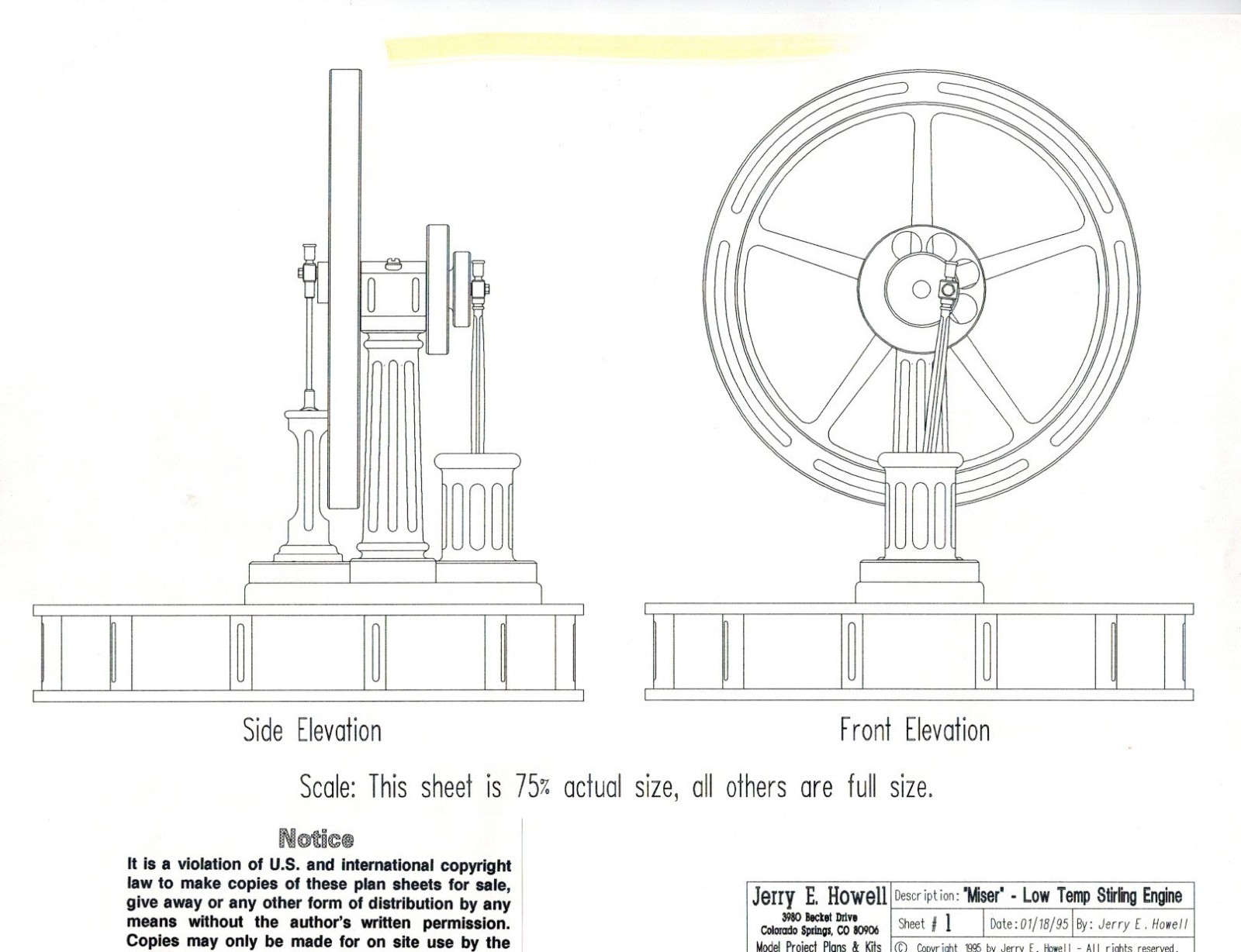

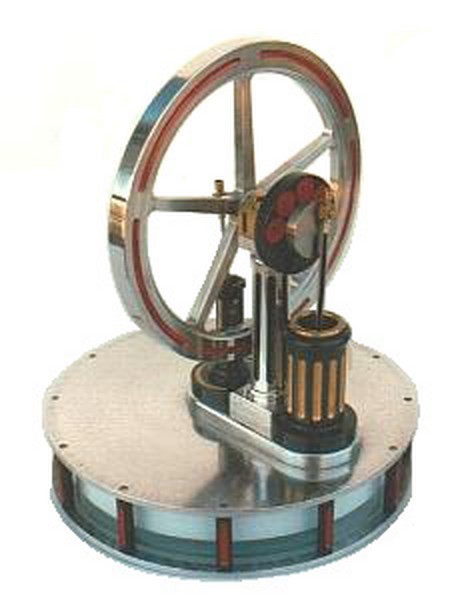

Plans to build a Miser Low Temp Stirling Cycle EngineThe Miser engine type is the best conversation piece ever invented. It will run on a cup of warm coffee, the warmth of your hand, or even an ice cream cone! Here is an engine that you can actually operate in bed with no danger of setting the sheets on fire!This modified Heinrici stirling cycle engine doesn’t need a fire to operate it. It has no valves, ignition system, carburetor, or exhaust. It will run on any heat source such as on top of a cup of warm water (coffee), from the heat of a light bulb if placed on top of a lamp shade, in full sunlight, on a TV, VCR, and a zillion other sources. It runs at about 90 RPM when held in the palm of a hand and much faster with the other heat sources. It will also operate in reverse from a cold source such as ice or snow. As can be seen, the possibilities are almost endless.Folks who are not ordinarily interested in engines of any kind are always curious about this one. Unlike other low temperature engines, I designed Miser to actually look like an engine! Isn’t that a novel idea! It is not as hard to build as it may look, but you can simplify the styling if you are in a hurry to get yours running.Miser is built mostly from aluminum alloy bar stock and plate, while most of the smaller parts are of brass or steel. A few parts that can’t be metal because they need to be good heat insulators are made from clear acrylic (so the works can be seen) or delrin. The HTF (Hard-To-Find) Materials Kit below contains the needed materials that may be difficult for most builders to obtain otherwise. They would also cost more when obtained from separate multiple sources even if the minimum order amount was not a problem. The plans are also available separately – see below. The plans set consists of 10 sheets of quality laser printed CAD drawings and 2 sheets of construction and assembly notes.Specifications: Flywheel Diameter: 5.2″, Cylinder Bore: .600″, Piston Stroke: .625″, Overall Height: 7.4″ All of our plans projects are machined from metal bar stock (supplied by you, the builder) and no castings are required. This is the lowest cost way for you to build as the metals can usually be purchased from metal salvage yards for around $2.00 or so per pound for aluminum, brass and stainless steel. But as can be seen, most of the model engines are designed to look like they were in fact made from castings instead of rectangular blocks and round bars of metal. High precision machining is required. Experience building other types of engines from scratch is suggested.You will need a lathe and a milling machine with the usual tooling items. You will need a horizontal/vertical rotary table for your mill if you want to duplicate the visual design aspects of some of the projects – spoked flywheels, fluted columns etc., but the engines will operate just as well without those features. Please note – we do not have any ready to run engines or bolt together engine kits for sale. The plans are for model engines – the engines can be scaled to any size, but no claims of suitability for practical power generation are made.The Plans Set drawings are high quality computer generated drawings using a professional CAD (Computer Aided Design) program and printed on 8-1/2″ x 11″ sheets with a laser printer. This permits you to insert them in plastic sheet protectors so they won’t get soiled as you use them in the shop. Dimensions are in U.S. inch decimals – no fractions – which makes it easy for you to change the scale of your model to suit your machine tool capacity or the materials you have on hand or have access to. Multiply dimensions by 25.4 to obtain millimeter dimensions. NOTE: If you want your plans right away, send us a message with your email address and we will email you a link to download a PDF of the plans. If you are successful in downloading, we will cancel mailing of the hard copy and refund 80% of the eBay shipping cost.We are the owners of this copyrighted material. Sale or giving away our plans is strictly prohibited!
