Logan 14″ Lathe Model 6560 Instruction Operators Manual #1520

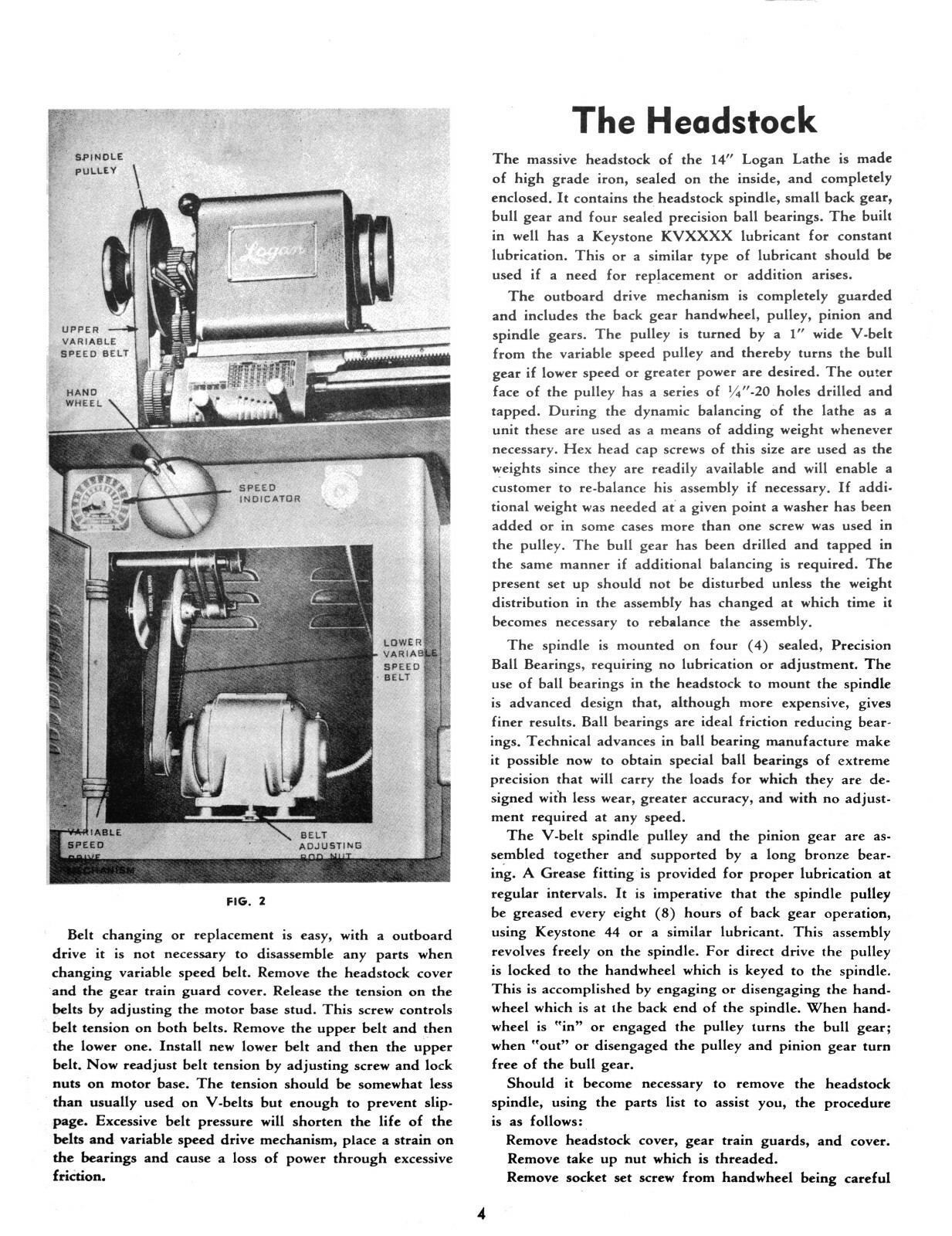

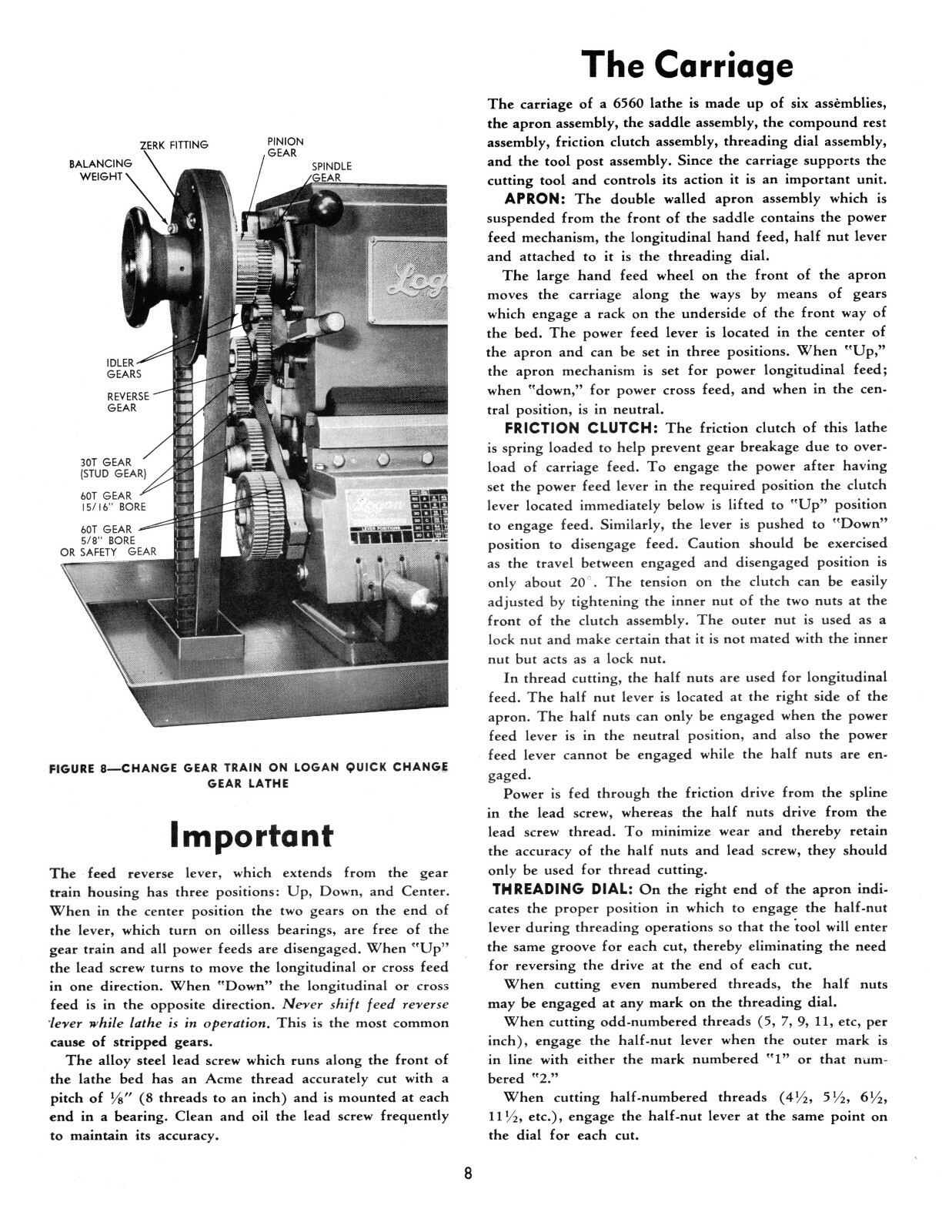

Logan 14″ Lathe Model 6560 Instruction Manual For Models: 6560 Description: This is an instruction and operators manual for the Logan 14″ Model 6560 Lathe. It contains information on Setting up the Lathe, Variable Speed Drive, The Headstock, The Back Gears, Thread Feed and Speed Chart, Power Feeds, The Carriage, and Lubrication Instructions. It has 12 pages. To view sample pages and to inspect the quality of the manual, click on the above gallery images to enlarge. Includes sections onSetting Up the LatheMounting the MotorVariable Speed DriveThe HeadstockThe Back GearsThe Lathe BedLathe CentersThread and Feed ChartPower FeedsThe CarriageLubrication InstructionsLubrication Chart Number of Pages: Approx. 12 Publication Date: n/a Publication No.: n/a Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales Reprinted from original manual using high quality 24 lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. See my for more manuals. Be sure to add me to your favorites list!
