LEBLOND REGAL 13″ 15″ 17″ 19″ Metal Lathes Owners Service Parts Manual 3903 0431

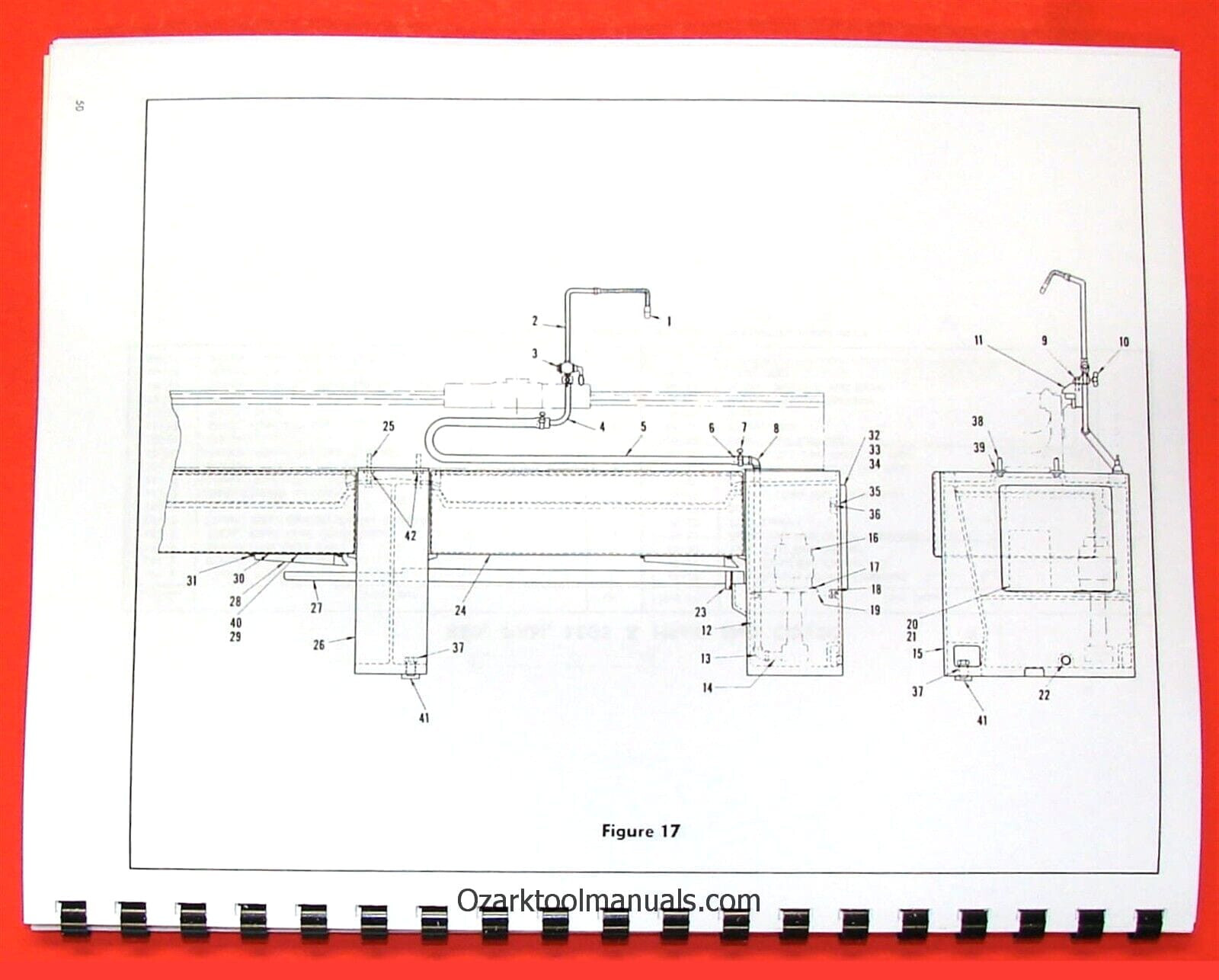

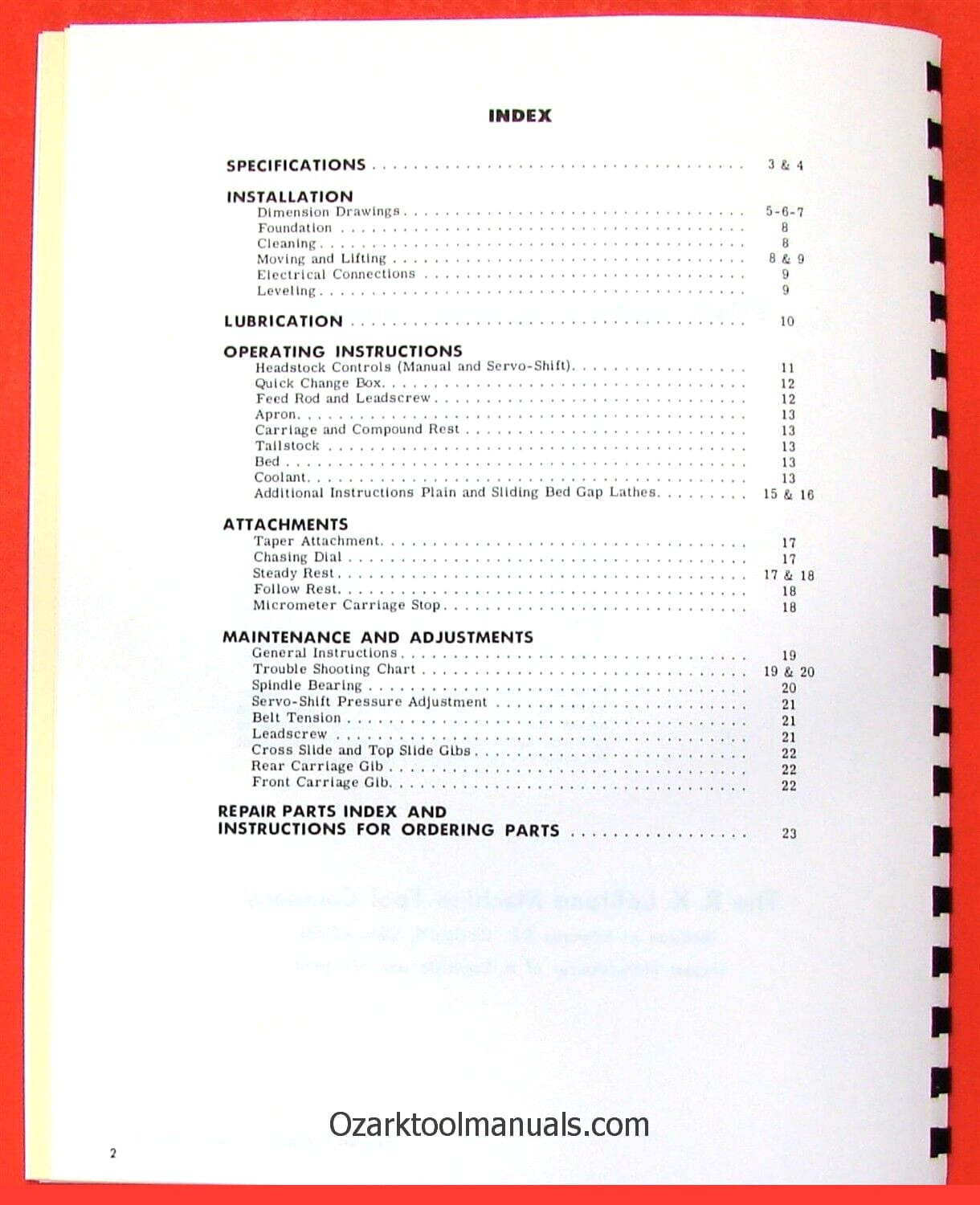

Manual Description: Number of Pages: 71 This is a reproduction, not a photocopy, of an original LeBlond Regal 13″, 15″, 17″, 19″ Lathe Instruction and Parts Manual No. 3903. Contents: SPECIFICATIONS3 INSTALLATION Dimension Drawings5 Foundation8 Cleaning8 Moving and Lifting8 Electrical Connections9 Leveling9 LUBRICATION10 OPERATING INSTRUCTIONS Headstock Controls (Manual and Servo-Shift)11 Quick Change Box12 FeedRod and Leadscrew12 Apron13 Carriage and Compound Rest13 Tailstock13 Bed13 Coolant13 Additional Instructions Plain and Sliding Bed Gap Lathes15 ATTACHMENTS Taper Attachment17 Chasing Dial17 Steady Rest17 Follow Rest18 Micrometer Carriage Stop18 MAINTENANCE AND ADJUSTMENTS General Instructions19 Trouble Shooting Chart20 Spindle Bearing20 Servo-Shift Pressure Adjustment21 Belt Tension21 Leadscrew21 Cross Slide and Top Slide Gibs22 Rear Carriage Gib22 Front Carriage Gib22 REPAIR PARTS INDEX23 Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
