Landis 16″ Type 4RH Crankpin Grinding Machine Operators Handbook Manual *1081

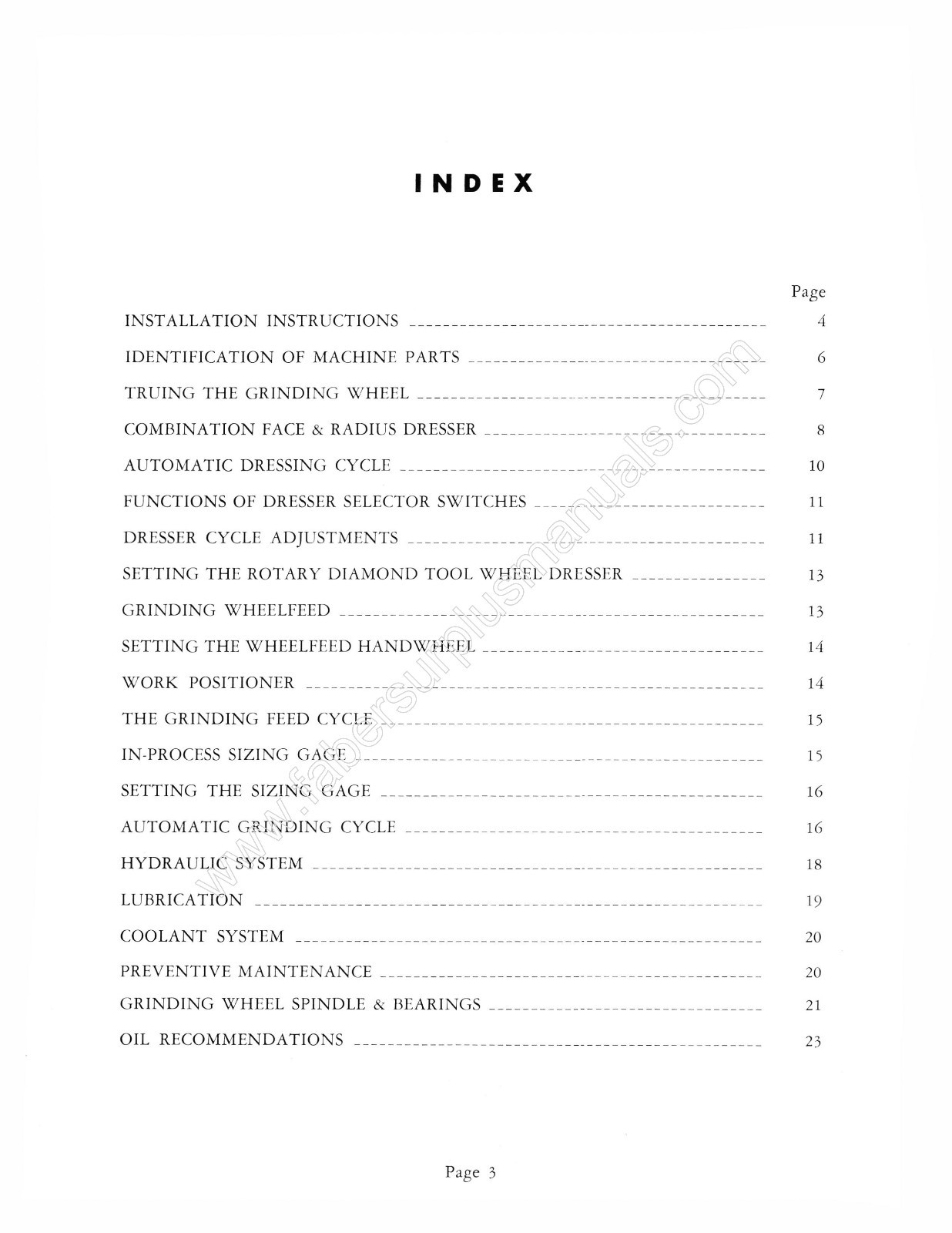

Landis 16″ Type 4RH Automatic Crankpin Grinding Machine Operator’s Handbook For models: 16″ Type 4RH Description: This is an Operators Manual for the 16″ Type Automatic Crankpin Grinder. It has sections on Operation, Installation, Grinding Operations, Lubrication, Hydraulic System, Maintenance, and more. The manual has 24 pages. To inspect the quality of the manual, to view the table of contents, and to view select pages, please click on the gallery images above to enlarge. Includes sections on: Installation Instructions Identification of Machine Parts Truing the Grinding Wheel Combination face & Radius Dresser Automatic Dressing Cycle Functions of Dresser Selector Switches Dresser Cycle Adjustments Setting the Rotary Diamond Tool Wheel Dresser Grinding Wheelfeed Setting the Wheelfeed Handwheel Work Positioner The Grinding Feed Cycle In-Process Sizing Gage Setting the Sizing Gage Automatic Grinding Cycle Hydraulic System Lubrication Coolant System Preventive Maintenance Grinding Whee Spindle & Bearings Oil ecommendations Number of pages: Approx 24 Condition: Very Good Publication date: N/A Publication No.: N/A Added Notes: Due to others making copies of these manuals for resale, select pages have been lightly watermarked to discourage this practice. About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop.Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Sales tax charged for Kansas sales. See my for more manuals
