LAGUN FTV-4 Vertical Milling Machine Operator Owner’s Service Parts Manual 1512

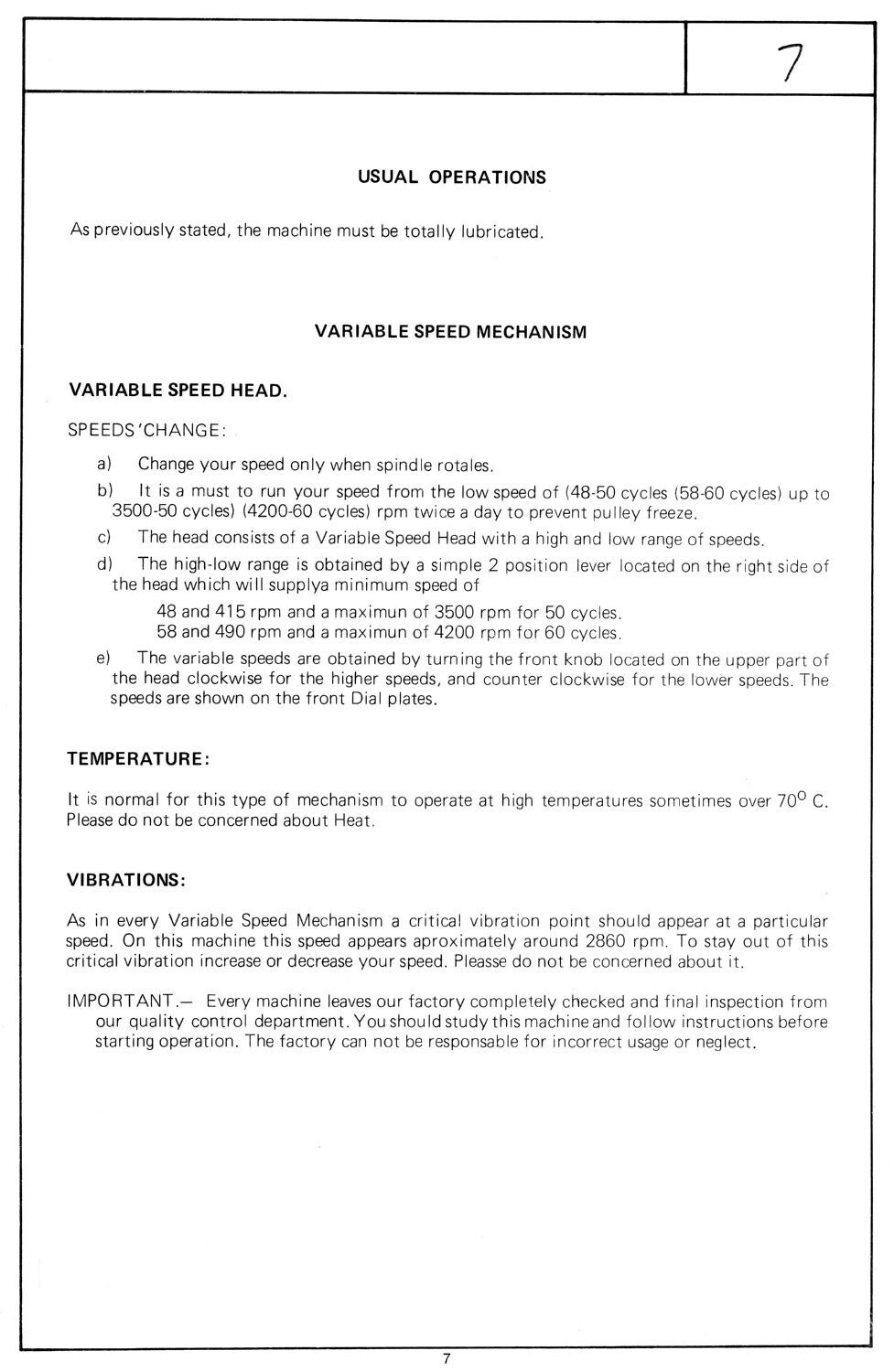

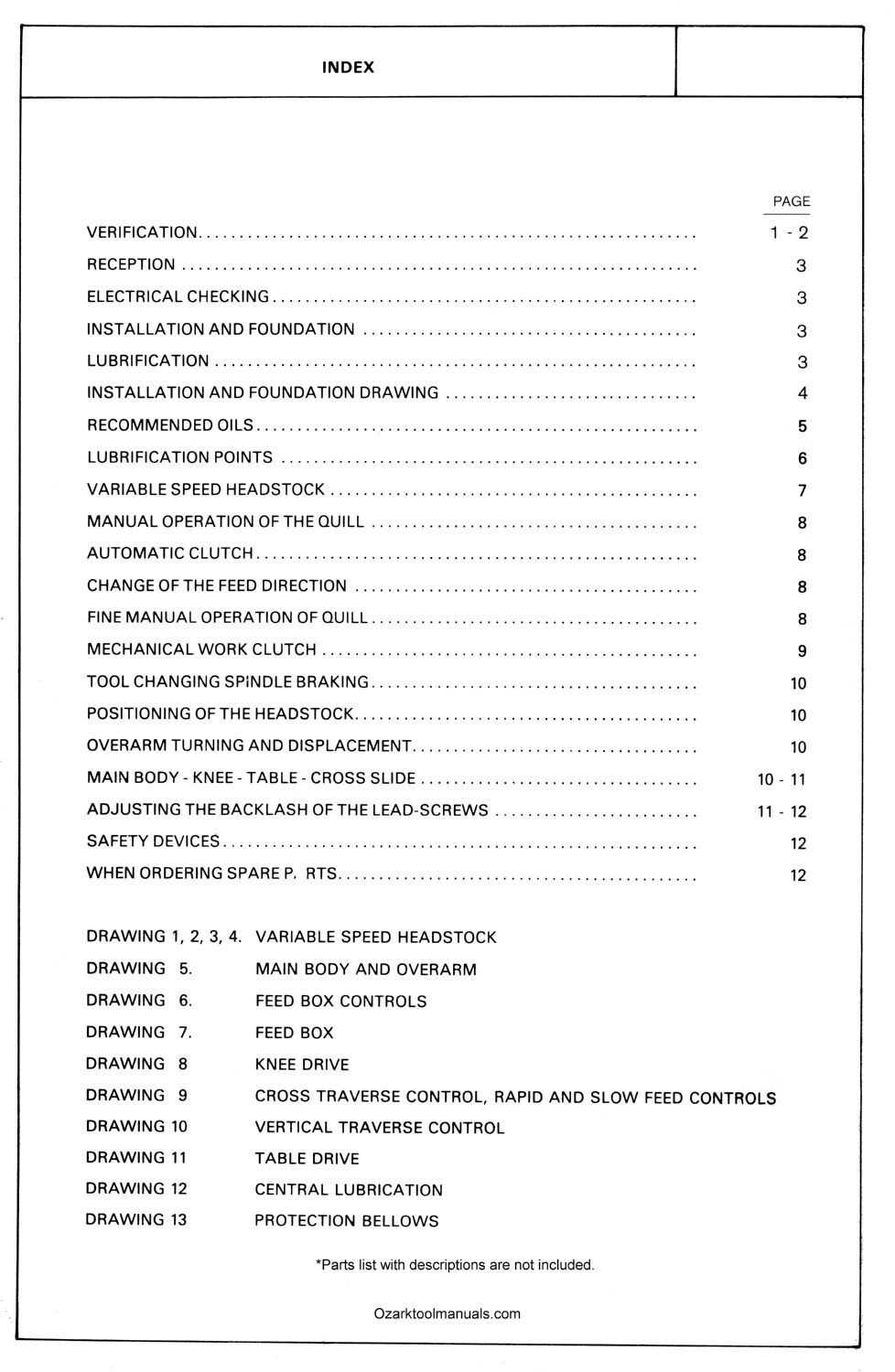

Manual Description: Number of Pages: 21+16 foldouts This is a reproduction, not a photocopy, of an original Republic-Lagun FTV-4 Turret Vertical Milling Machine Operating Instructions and Parts Manual. This manual contains information on how to adjust and true up every aspect of these mills. It has instructions on how to replace the different belts and the quill with diagrams as well as instructions on how to operate these mills safely. This manual has lubrication and maintenance instructions and a diagram on how to wire the main motor and coolant. Also there are clear cross-sectional view diagrams of all the parts with large 11″ x 17″ foldouts that include the right angle and multiangle attachments for this Lagun milling machine. Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. Visit our eBay Store! We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less? We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
