How to do Internal Grinding Handbook Manual Norton’s ABCs 0888

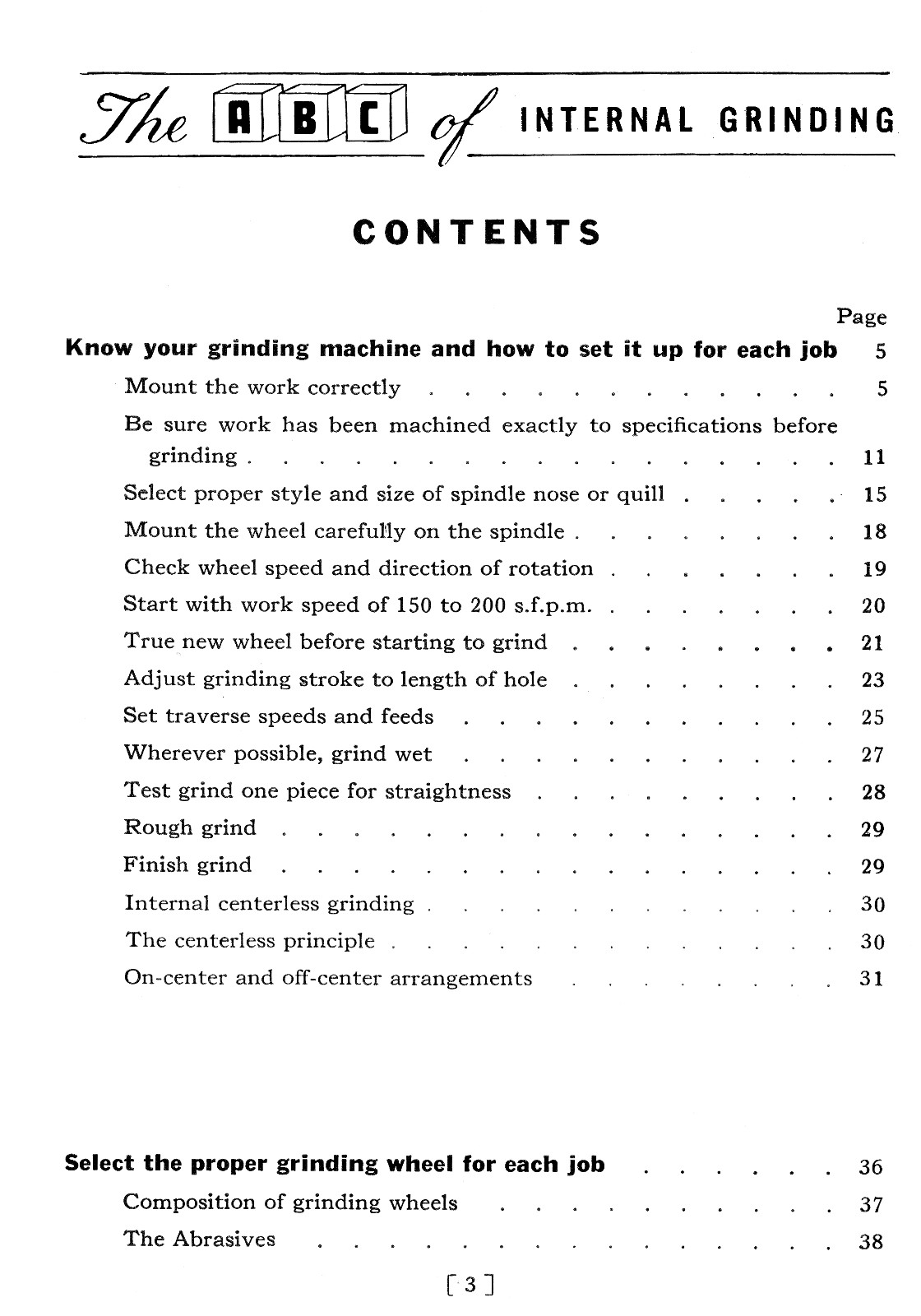

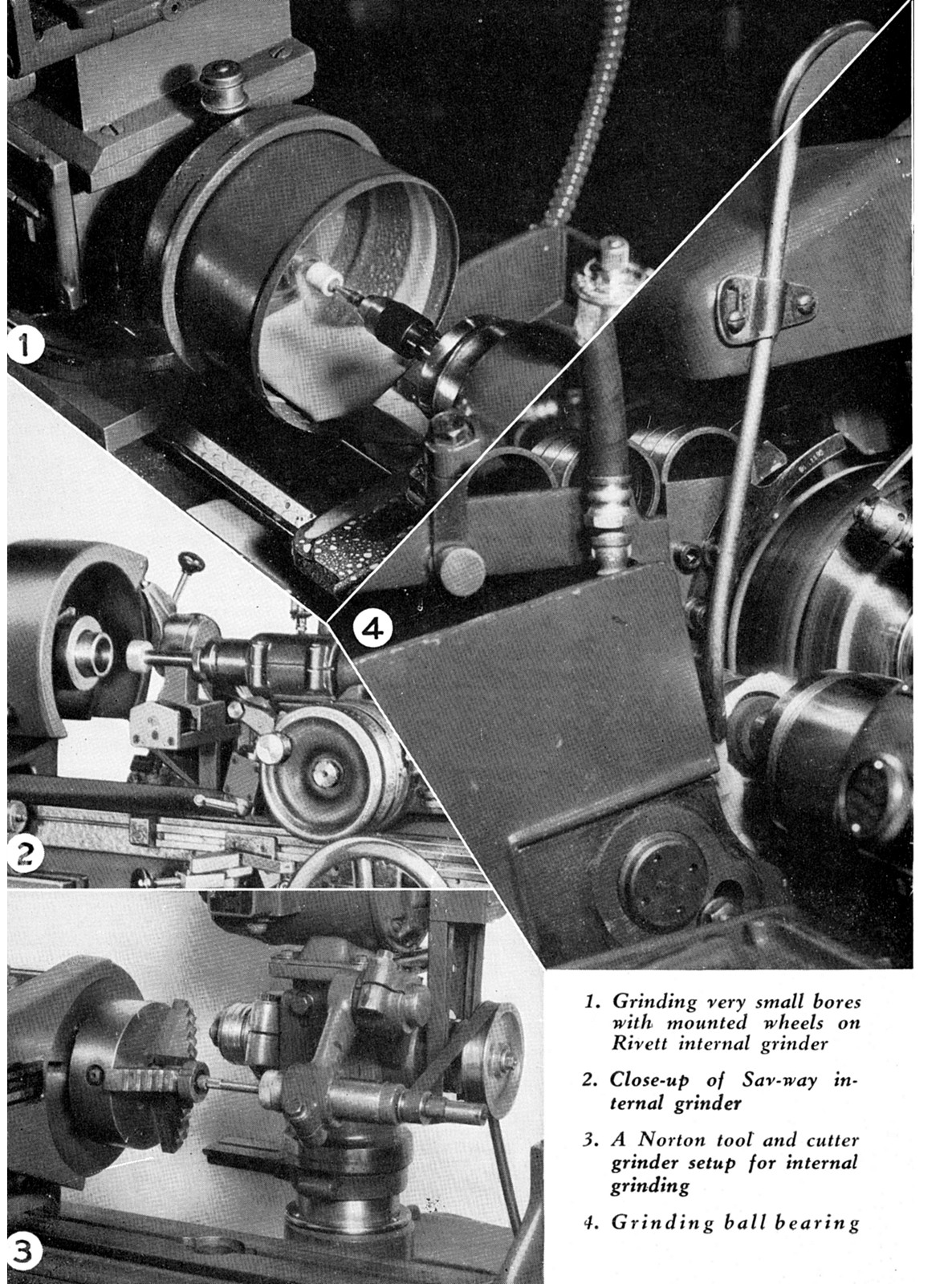

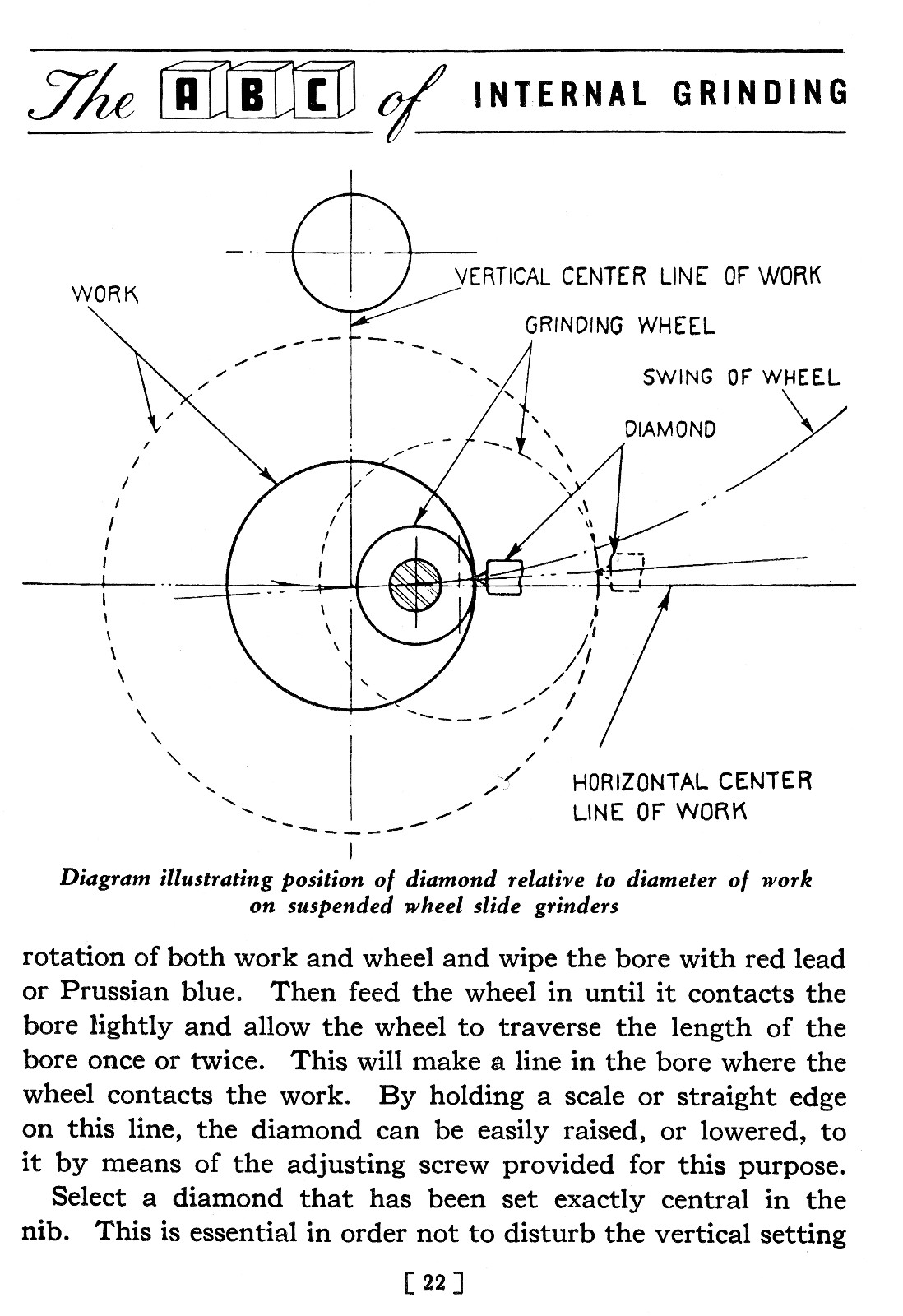

Manual Description:Number of Pages: 68, printed 5.5″ x 8.5″ This is a reproduction, not a photocopy, of an original The ABC’s of Internal Grinding Manual a handbook for Operators of Internal Grinding Machines. This handbook goes into a lot of the details of internal grinding as you can see in the contents listed below the pictures. This is a great book to learn how to do internal grinding properly Preface:This booklet is intended primarily for operators of Internal Grinding Machines. It endeavors to answer some of the very practical questions which you and your fellow grinder hands have been asking, such as, how to select the proper wheel for different internal grinding jobs and how to correct common grinding faultsa knowledge of which will help you to become a more valuable operator. Contents:Know your grinding machine and How to set it up for each job……5Mount the work correctly……………………………………5Be sure work has been machined to specifications……………..11Select proper style and size of spindle nose or quill…………15Mount the wheel carefully on the spindle…………………….18Check wheel speed and direction of rotation………………….19Start with work speed of 150 to 200 s.f.p.m………………….20True new wheel before starting to grind……………………..21Adjust grinding stroke to length of hole…………………….23Set traverse speeds and feeds………………………………25Wherever possible, grind wet……………………………….27Test grind one piece for straightness……………………….28Rough grind ……………………………………………..29Finish grind……………………………………………..29Internal centerless grinding……………………………….30The centerless principle ………………………………….30On-center and off-center arrangements……………………….31Select the proper grinding wheel for each job………………..36Composition of grinding wheels……………………………..37The Abrasives…………………………………………….38The Bonds ……………………………………………….38Structure (grain spacing)………………………………….39Norton method of marking grinding wheels…………………….41How a grinding wheel cuts………………………………….42Factors affecting the selection of wheels……………………43Material to be ground……………………………………..44Amount of stock to be removed, accuracy and finish required……45Area of contact between wheel and work………………………45Relation between wheel and work speeds………………………46Rigidity of wheel spindle and condition of grinding machine……47Wheel recommendations for specific jobs……………………..47Be able to recognize common grinding troubles and correct them…49Plug Gages-Their Care and Use………………………………60Recommended sizes of wheels for internal grinding…………….64Suggested stock to be left for internal grinding……………..66Table of Grinding Wheel Speeds……………………………..68 Overview I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench. Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
