Hendey Lathe Attachments and Accessories Manual *1034

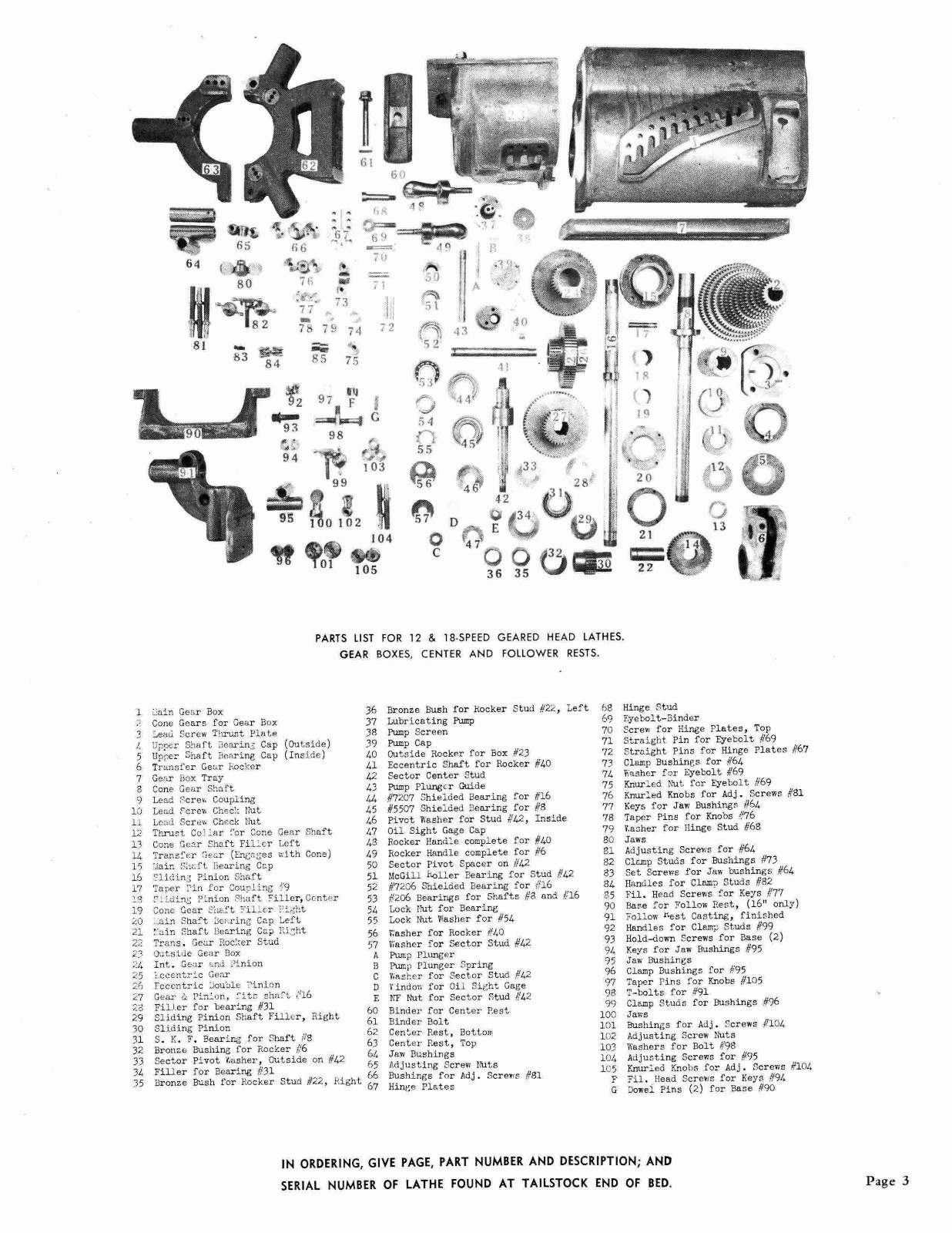

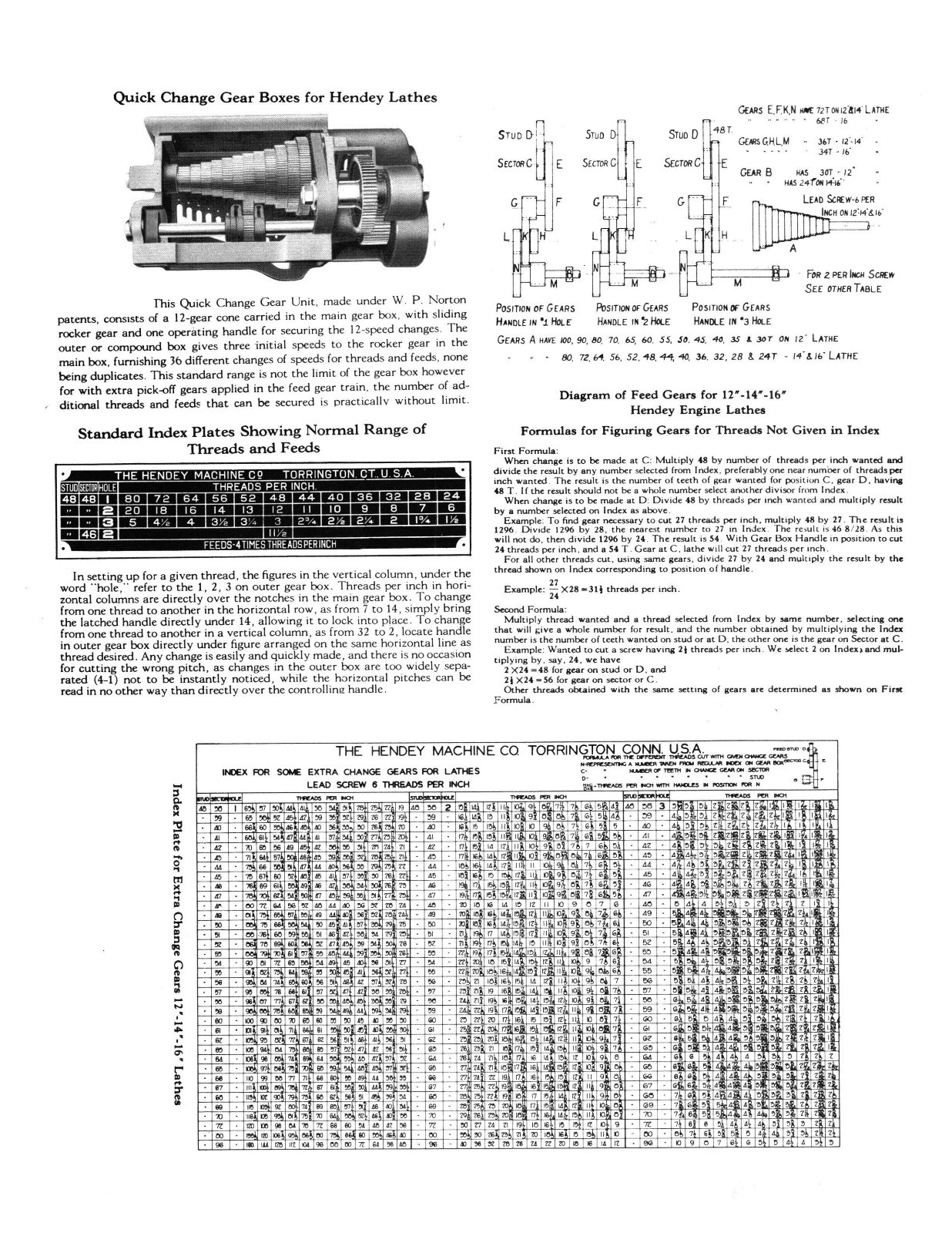

Hendey Lathe Attachments & Accessories Accessory & Thread Cutting Manual For models: All Hendey Lathes Description: This manual covers some of the attachments and accessories available for the Hendey Lathe. It also goes into detail on Thread Cutting with the Sub Headstock. It has a Diagram of Feed Gears For 12″, 14″, 16″, 18″, & 20″ Lathe. Diagram of Feed Gears For 18″, 20″, & 24″ Hendy Geared Head Lathes with 2 per Inch Lead Screw. It has information on the Hendy Sub Headstock, Taper Attachment, Carriage Spacing Attachment, Thread Chasing Dial, Tubular Type Steady Rest, Ball Turning Rest, Spiral Relieving Attachment – Type C as attached to the Hendy Cone Head Lathe, and Index Plates for Type C Relieving Attachment. It also has information on Chucks and Collets for the Hendey Lathes. It consists of 16 pages. To inspect the quality, and to view select pages, please click on the gallery images above to enlarge. Includes sections on: Sub-Headstock Taper Attachment Carriage Spacing Attachment Thread Chasing Dial Steady Rest Ball Turning Attachment Relieving Attachment Collets and Chucks Thread Cutting Gear Formulas Thread Cutting Charts Parts List Parts Breakdown Number of pages: Approx 16 Condition of original: Good, with parts pictures somewhat faint Publication No.: Bulletin 1232 Publication date: N/A Added Notes: About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. Sales tax charged for Kansas sales. See my for more manuals
