Heald Grinding Machines 72A3 & 72A5 Operation, Service, & Parts #398

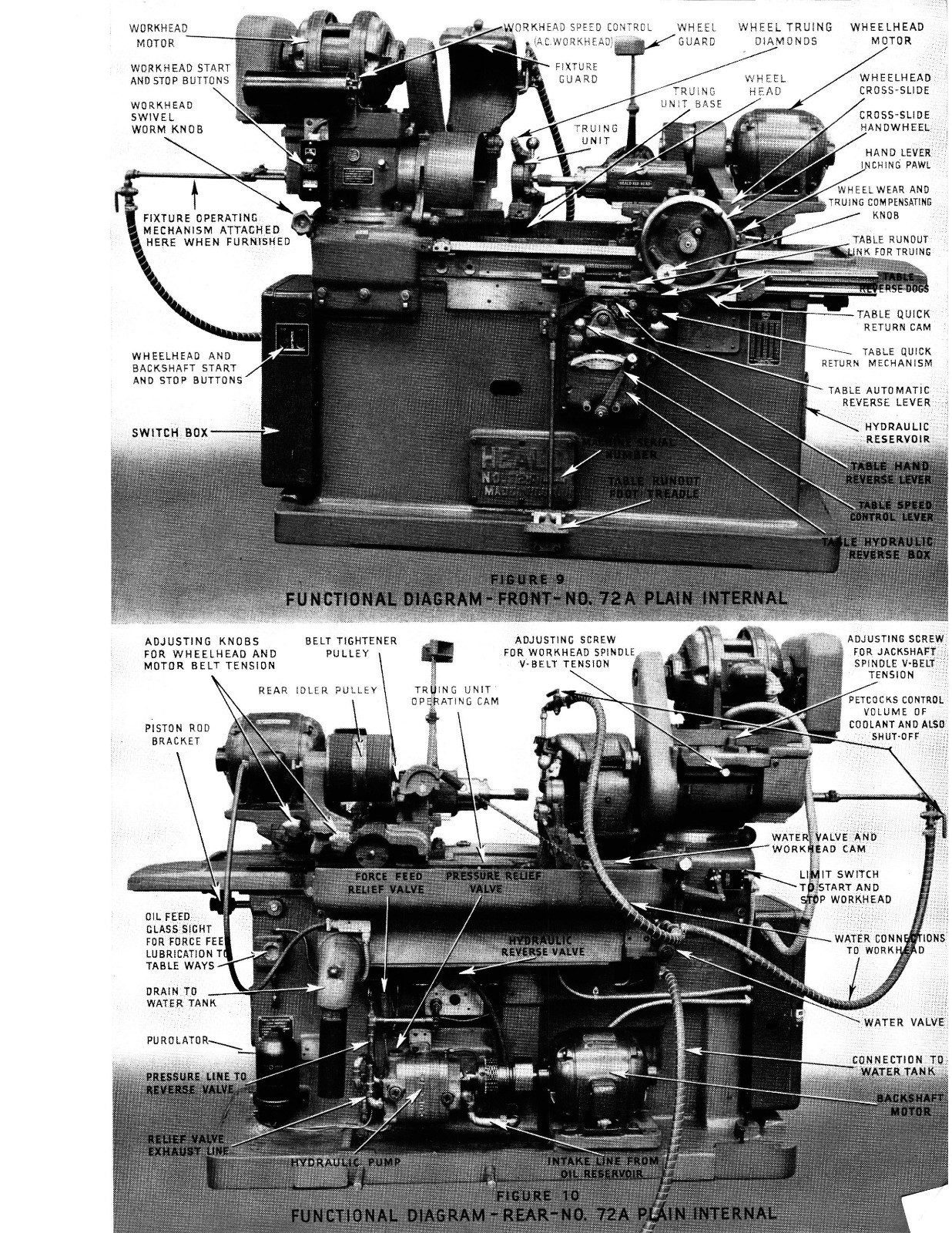

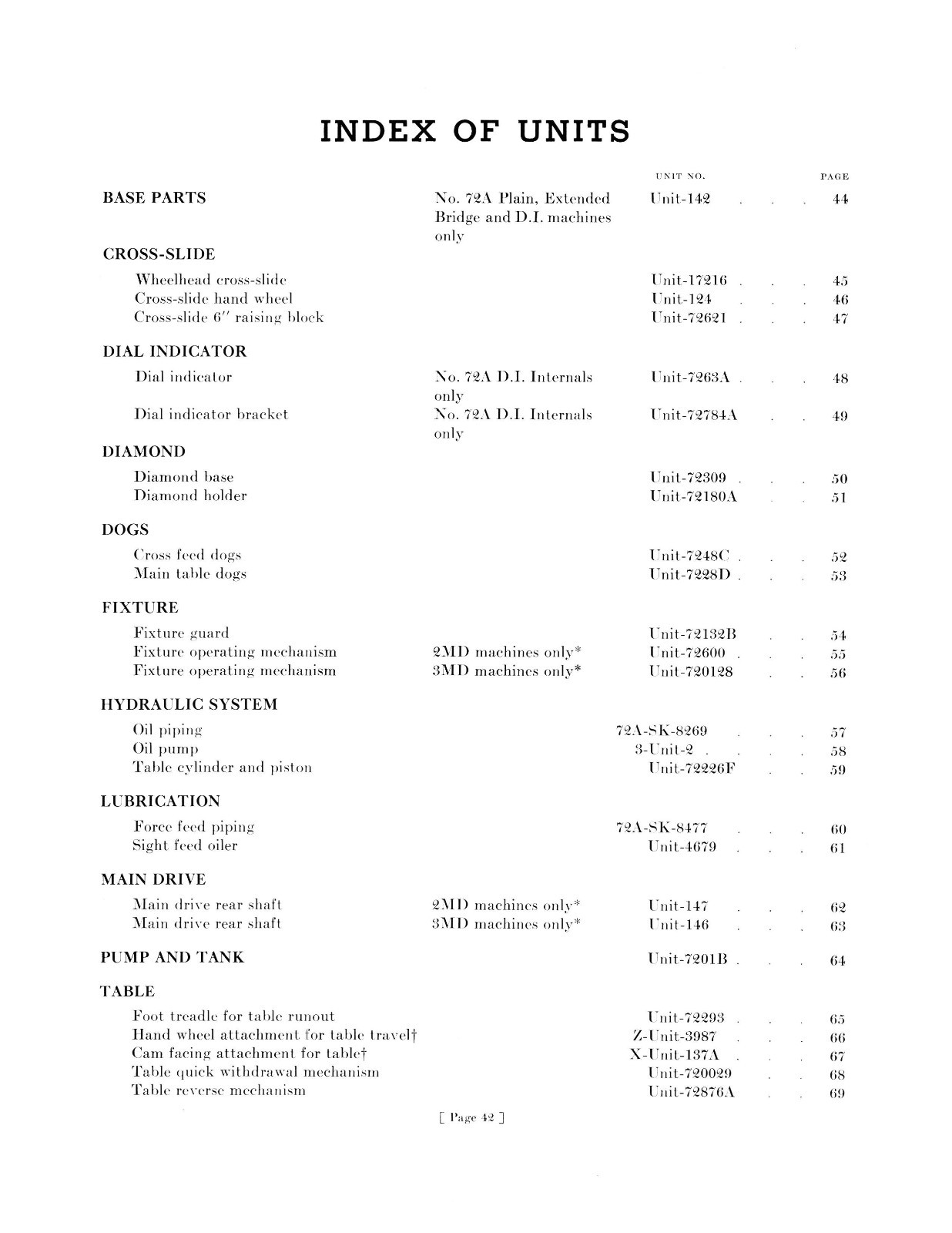

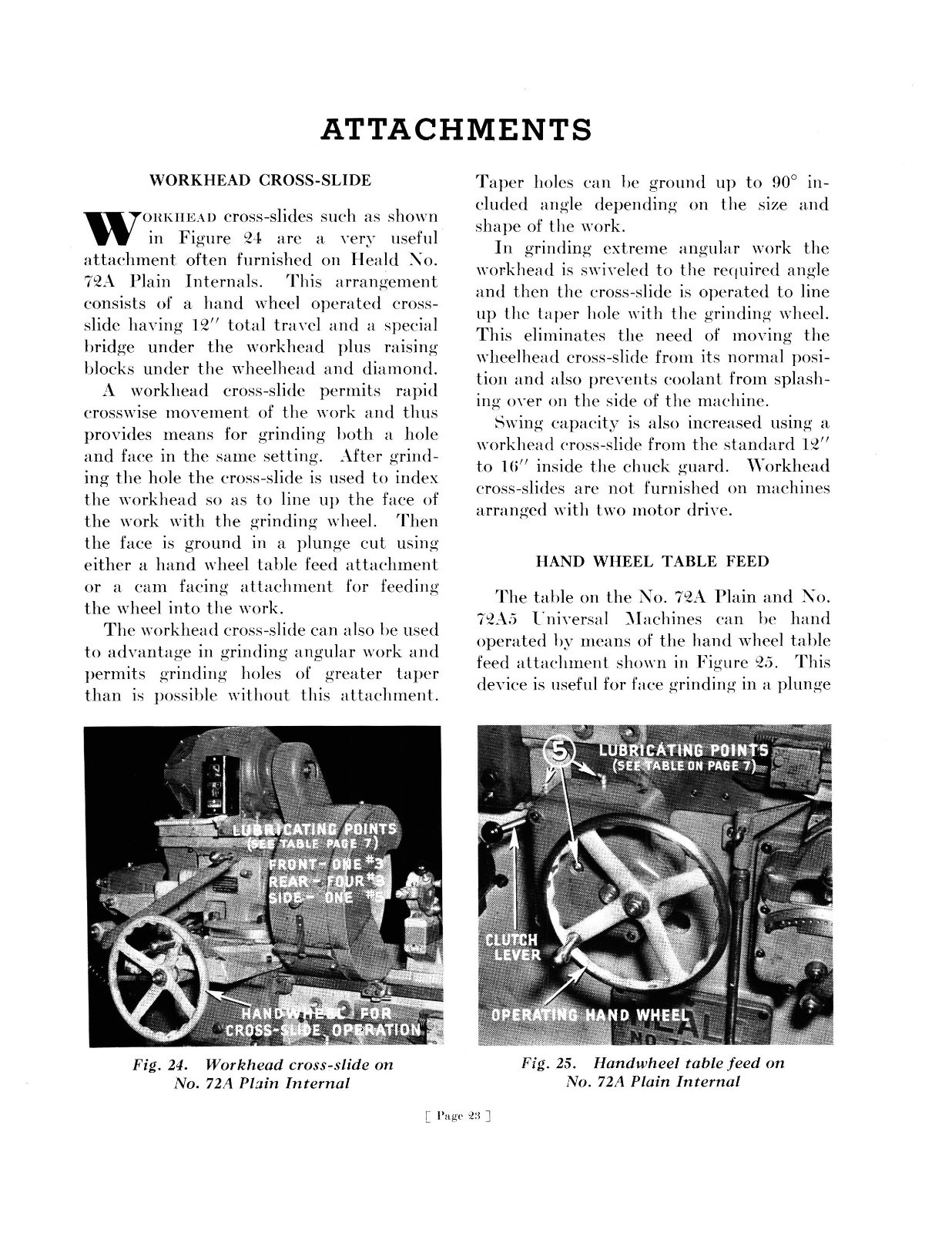

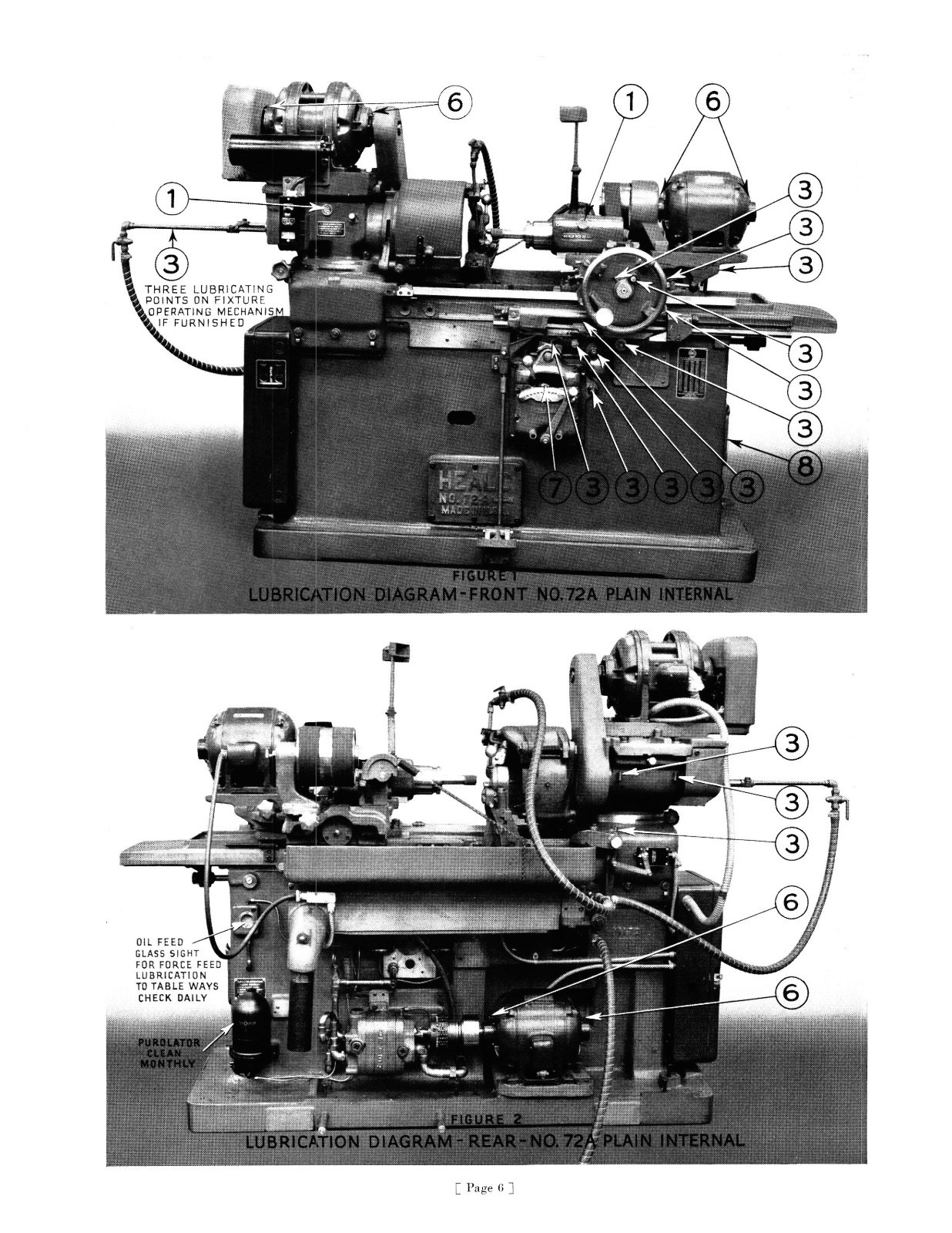

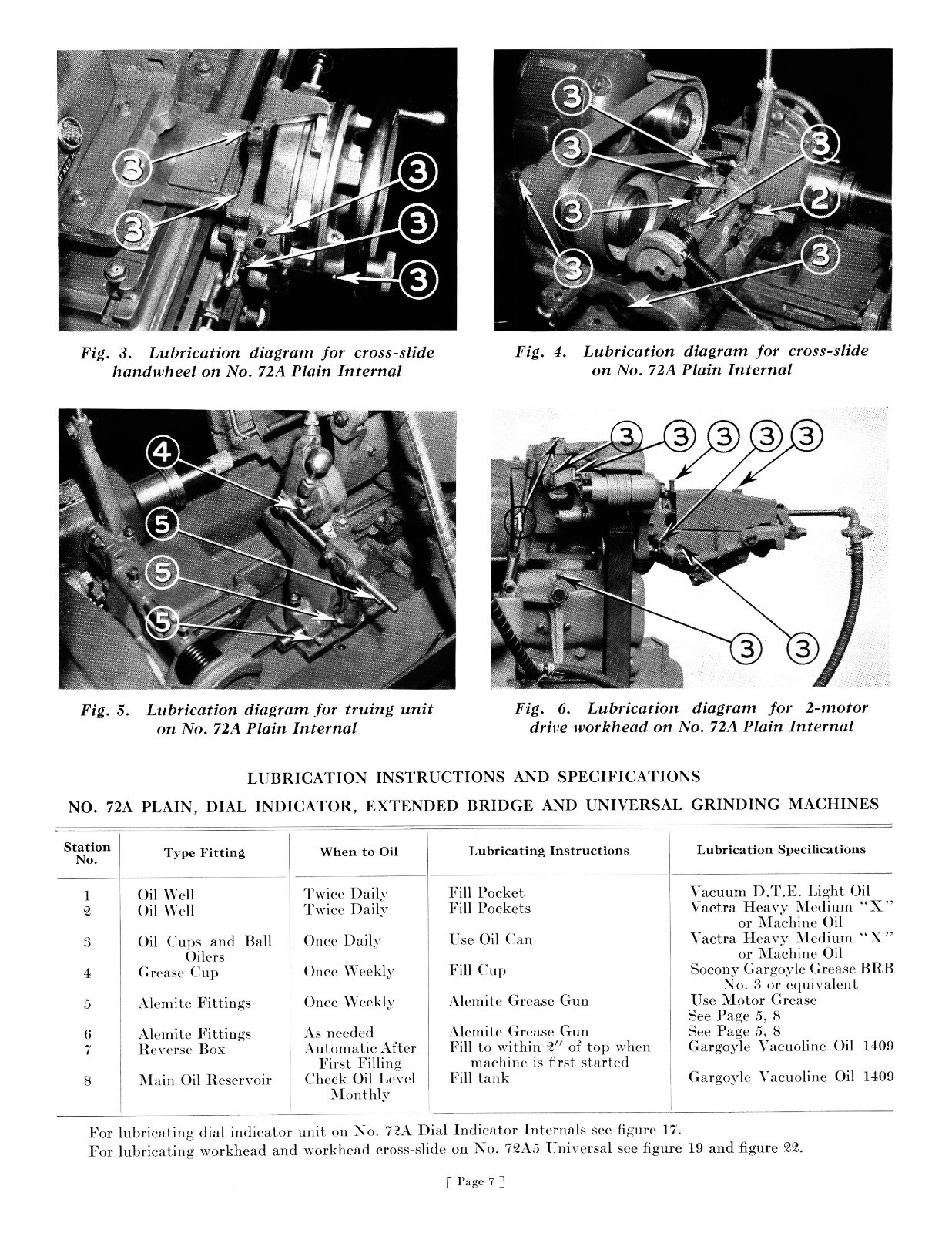

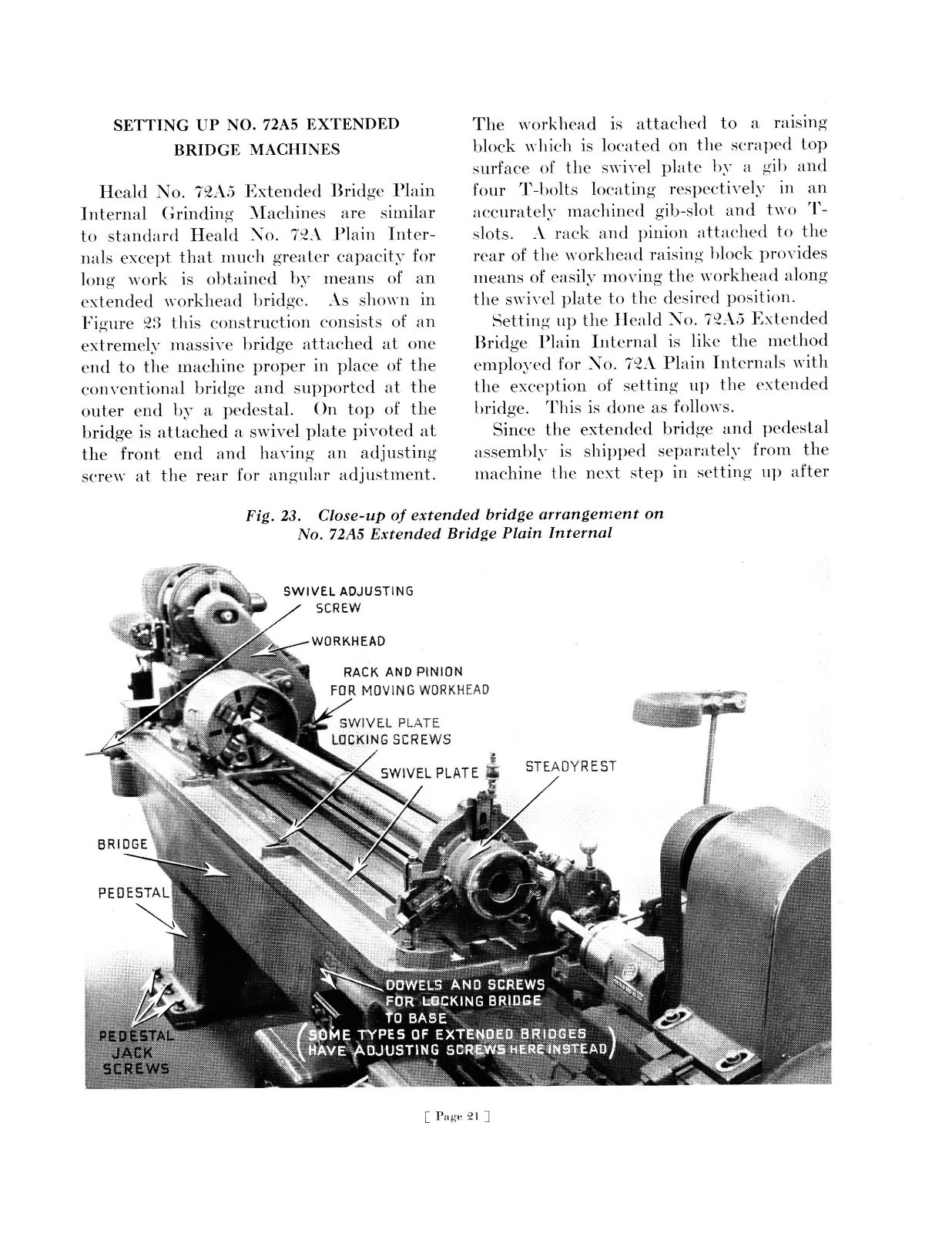

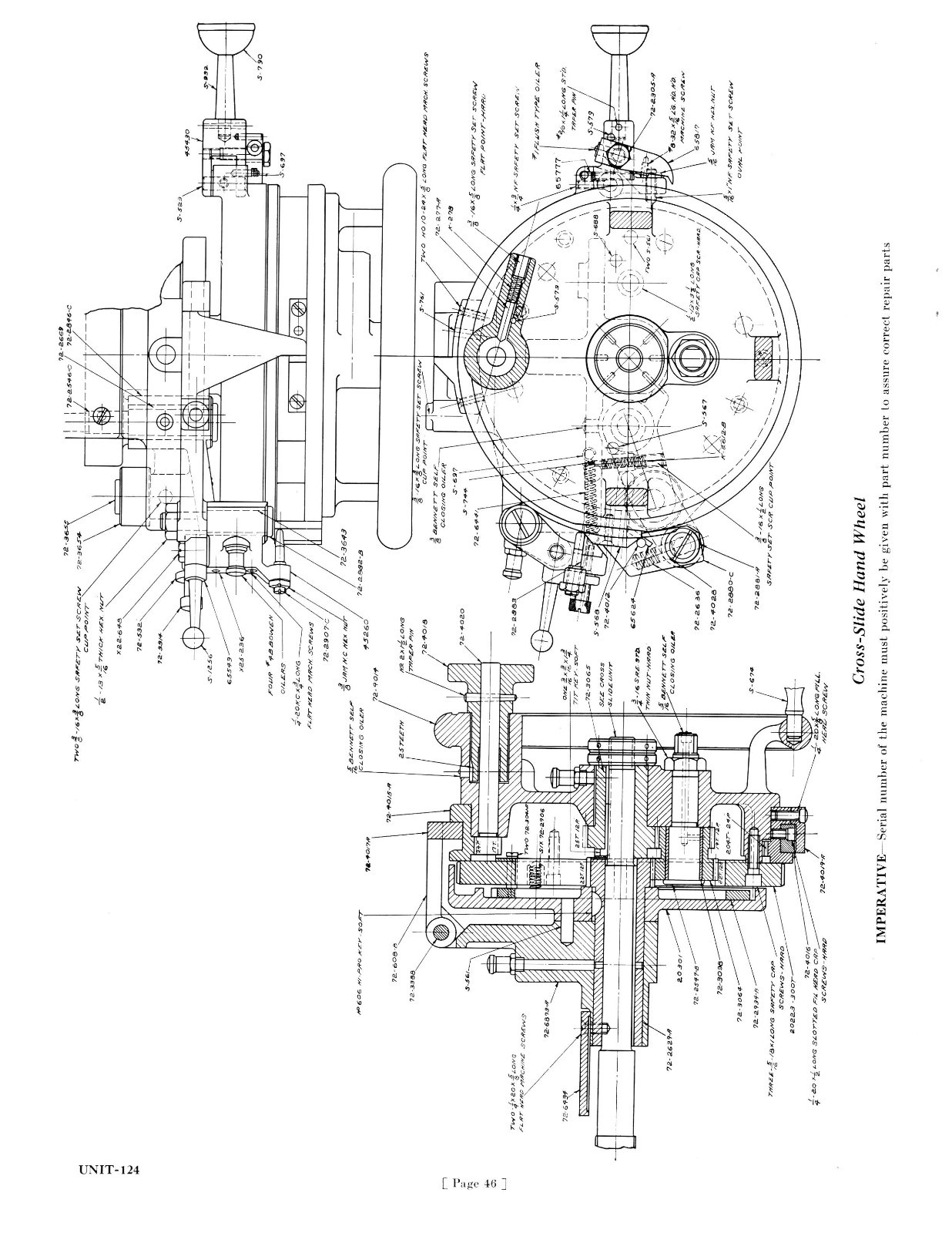

Heald 72A3 & 72A5 Internal Grinding Machine Instruction, Service, & Repair Parts Manual For Models: 72A, 72A3-72A5 Plain, Dial Indicator & Extended Bridge 72A5 Universal Grinding Machines Description: This manual covers the Operation, Servicing, and Parts for the Heald 72A, 72A3, 72A5 Grinding Machines It covers Setting up the Machine, Lubrication, Attachments, Maintenance & Adjustments, Grinding Wheels, and Section Drawings of Parts with Part Numbers. It contains 92 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on Installation Lubrication Setting up the Machine Set Grinding Stroke Set Truing Stroke Set Quick Return Test Grind for Straightness Grind to Finish Size Make Cross Slide Adjustments Set Speeds and Feeds Attachments Maintenance Adjustments Grinding Wheels Wheelheads Service Repair Parts Number of Pages: Approx. 92 Publication Date: N/A Publication No.: 7089-3017 Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lbpaper and comb binding.Covers are printed from 65lb cardstock for extra durability. See my Ebay Store for more manuals. Be sure to add me to your favorites list!
