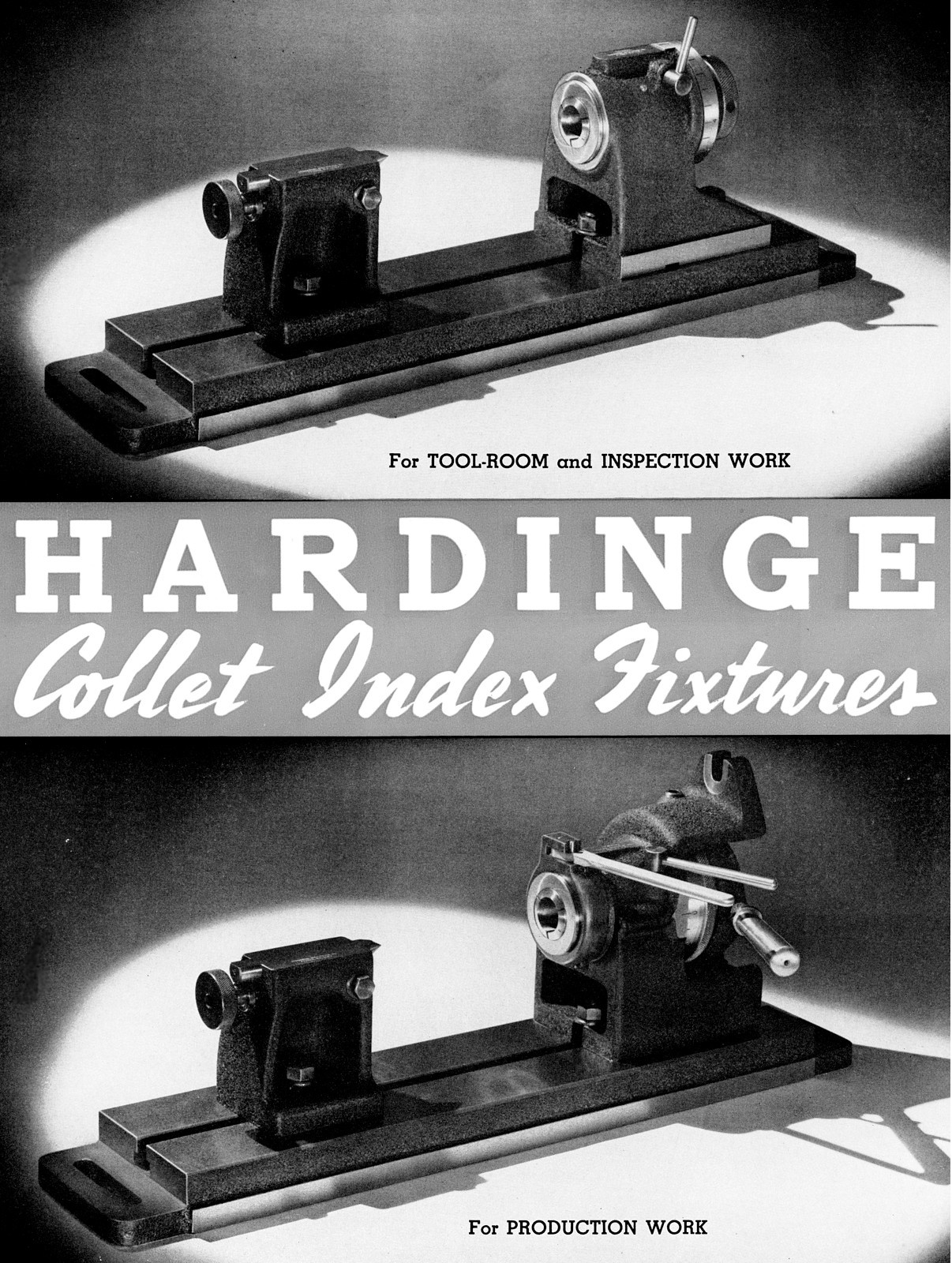

Hardinge Collet Index Fixtures Parts Manual & Bulletin Covers H-4, HV-4 5C 1130
Manual Description: Number of Pages: 9 This is a reproduction, not a photocopy, of an original Hardinge Collet Fixtures Parts Manual, and sales bulletin. This Hardinge manual contains cross sectional view parts diagrams of the collet index fixtures with H-O with 20 hole plate and H-4 with 24 hole plate, the T-4 and L-4 Tailstock, and the SB-4 Sub-base. It also has diagrams for the HV-O, HV-ON, HV-ONX, and the HV-4, HV-4N, HV-4NX collet fixtures. There are diagrams for the HV-H, HV-HN, HV-HNX, and the HVS-4 Collet stop. We’ve also included the sales bulletin for these fixtures, because it list the specifications of these fixtures, and it shows their use and applications on mills and surface grinders. Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
