Haas VF Series CNC Milling Machine Service-Troubleshooting Manual Jan 1998 *114

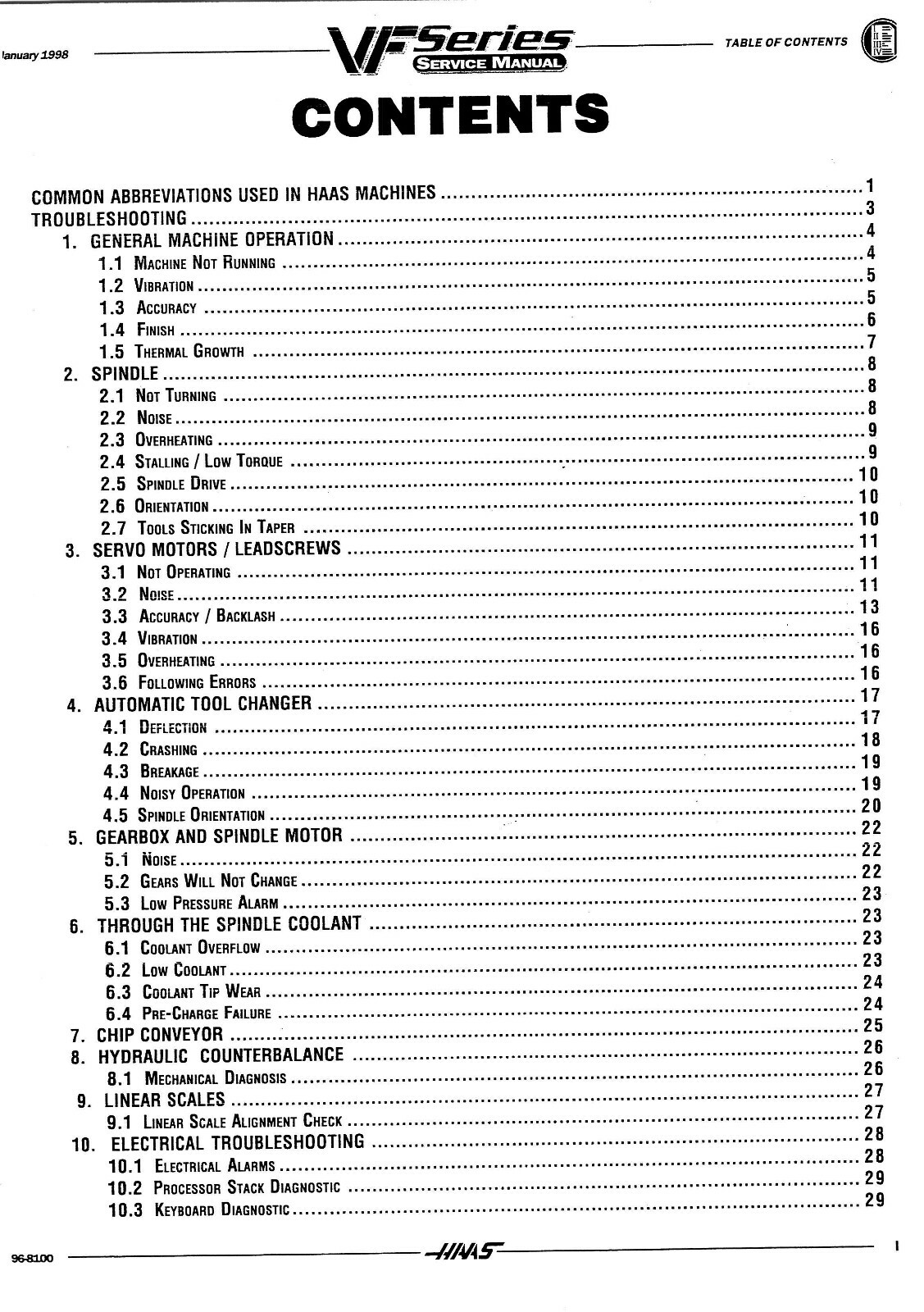

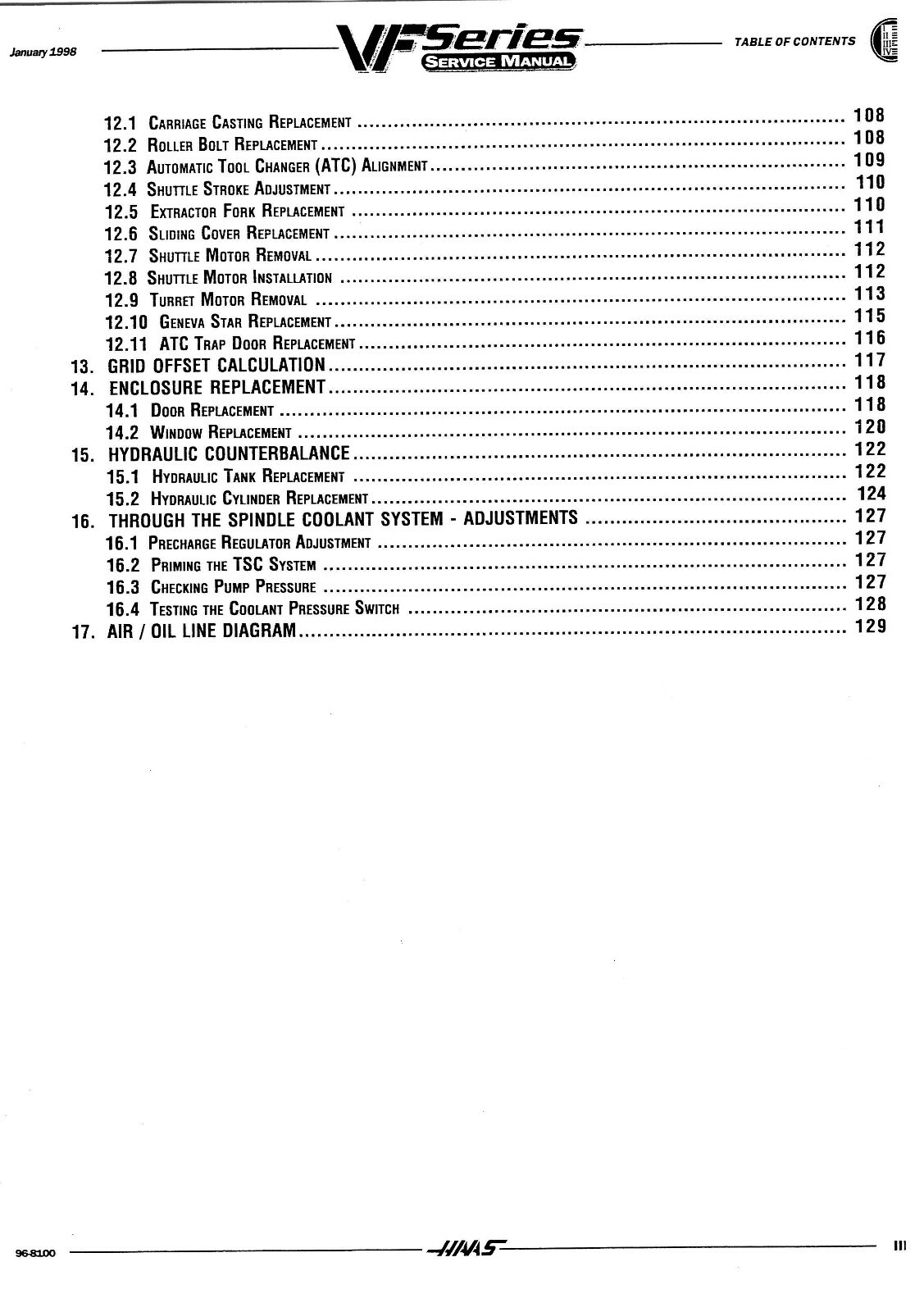

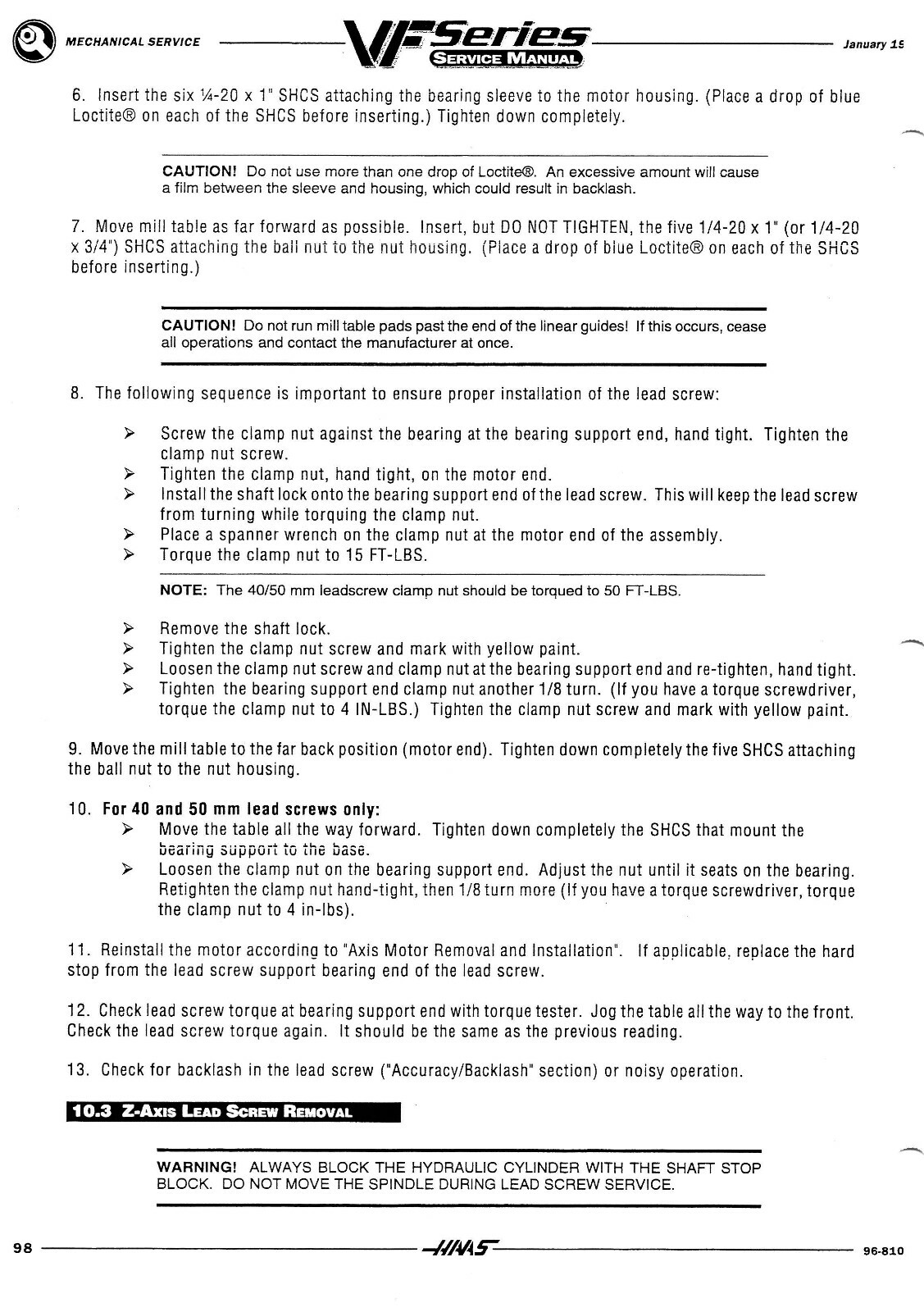

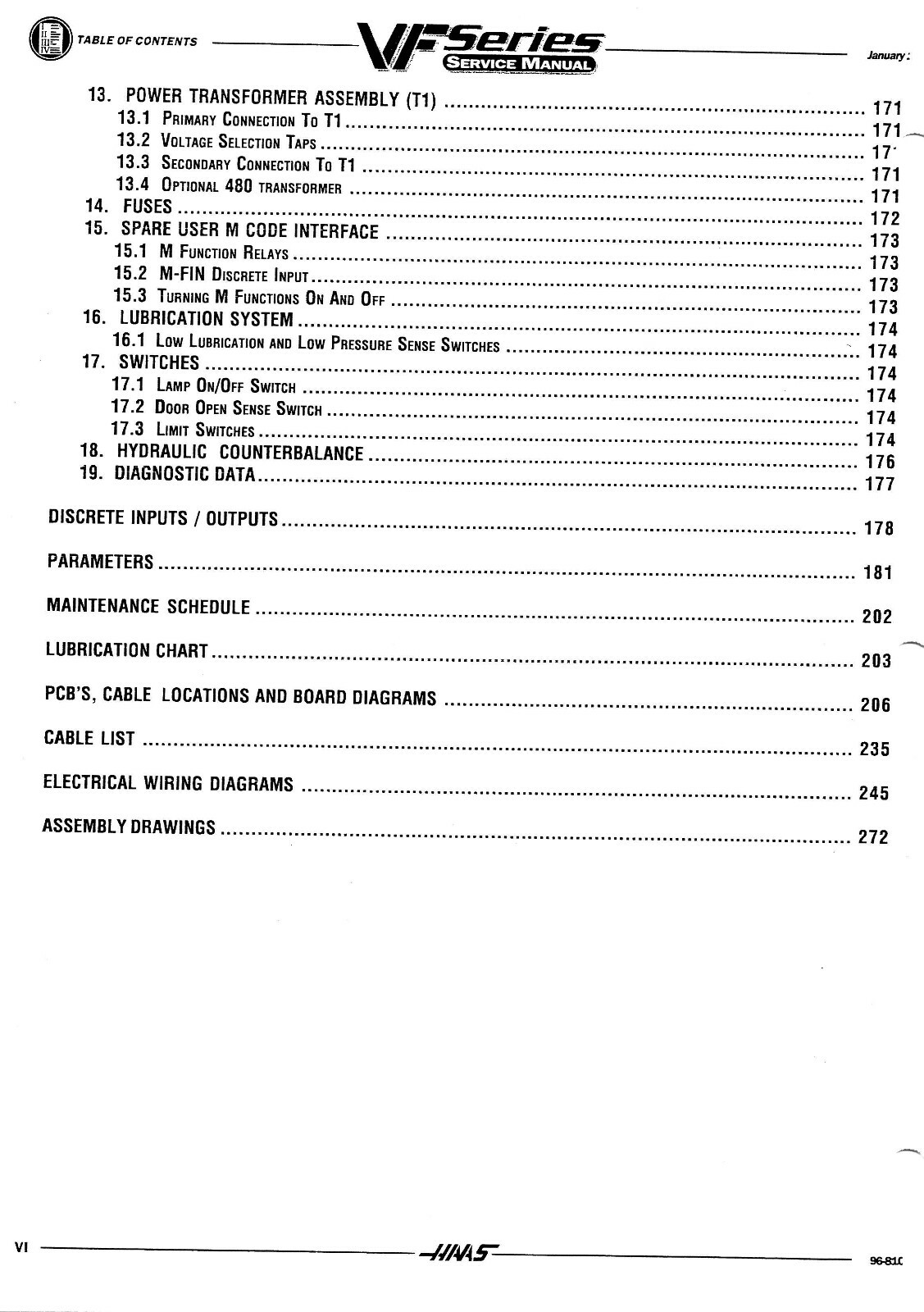

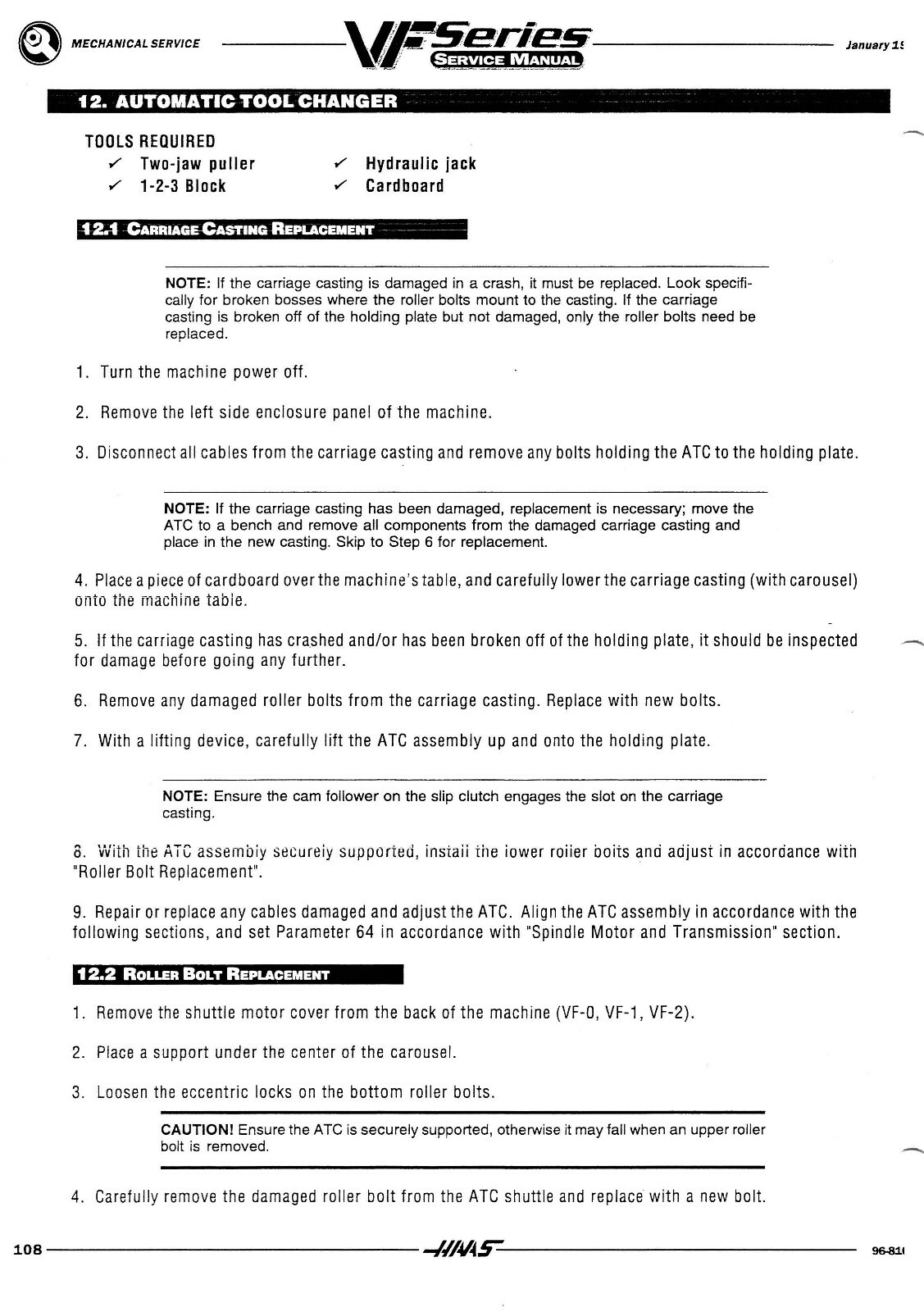

Haas VF Series CNC Vertical Machining Centers Service Manual Type of Manual: Service For Models: All VF Series Description: This manual covers the Haas VF Series Vertical Machining Center. It covers General Machine Operation, Troubleshooting the Electrical, Hydraulics, Servo Motors, Tool Changer, Gearbox, Coolant Problems, Mechanical, Belts, Spindles, Axis Motors, Adjustments, and Much More. The manual has about 314 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on:General Machine OperationSpindle TroubleshootingServo Motors/ LeadscrewsAutomatic Tool ChangerGearbox & Spindle MotorThrough the Spindle CoolantChip ConveyorHydraulic CounterbalanceLinear ScalesElectrical TroubleshootingMechanical Servicing:Tool Reverse PistonBelt AssemblySpindle AssemblyTool Clamp/Unclamp Switch AdjustmentSpindle OrientationSetting Parameter 64Spindle Motor & TransmissionAxis Motor Removal/ InstallationLead Screw Removal & InstallationBearing Sleeve Removal & InstallationAutomatic Tool ChangerGrid Offset CalculationHydraulic CounterbalanceThrough the Spindle Coolant System-AdjustmentsAir/Oil Line Diagram Number of Pages: Approx. 314 Publication Date: Jan, 1998 Publication No.: 96-8100 Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
