Haas CNC Mill & Lathe Service Manual Mechanical Jan 2010 #1743

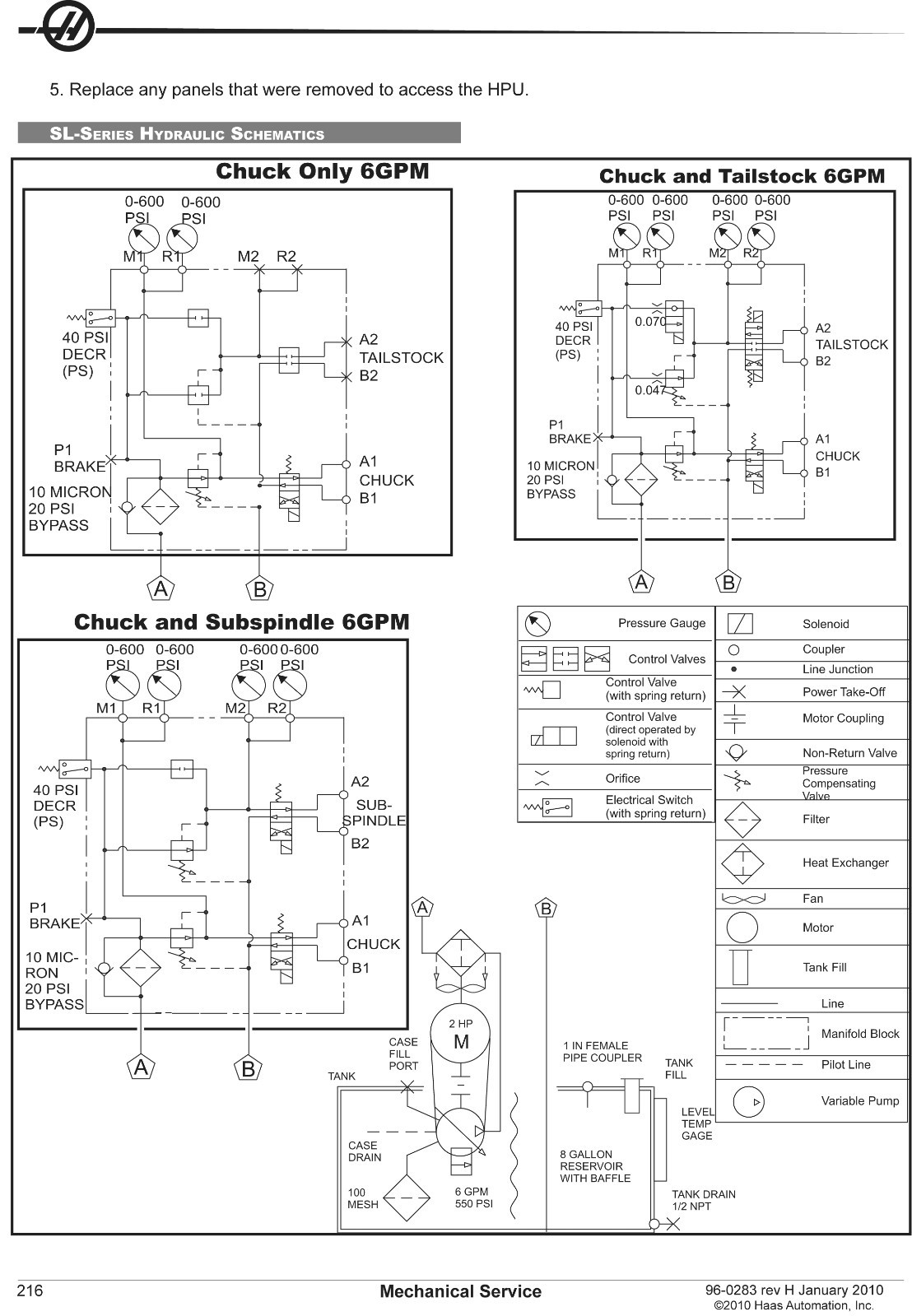

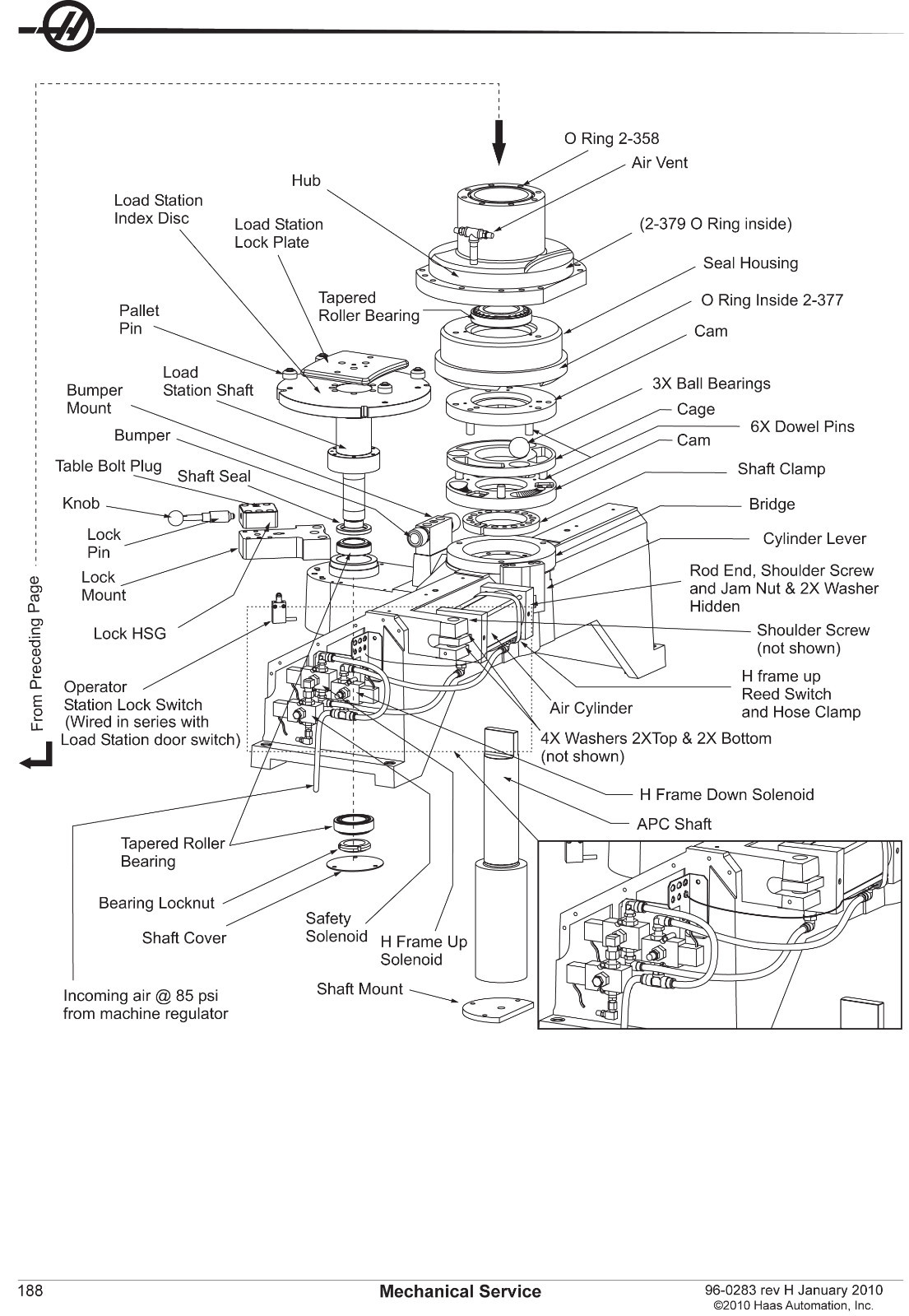

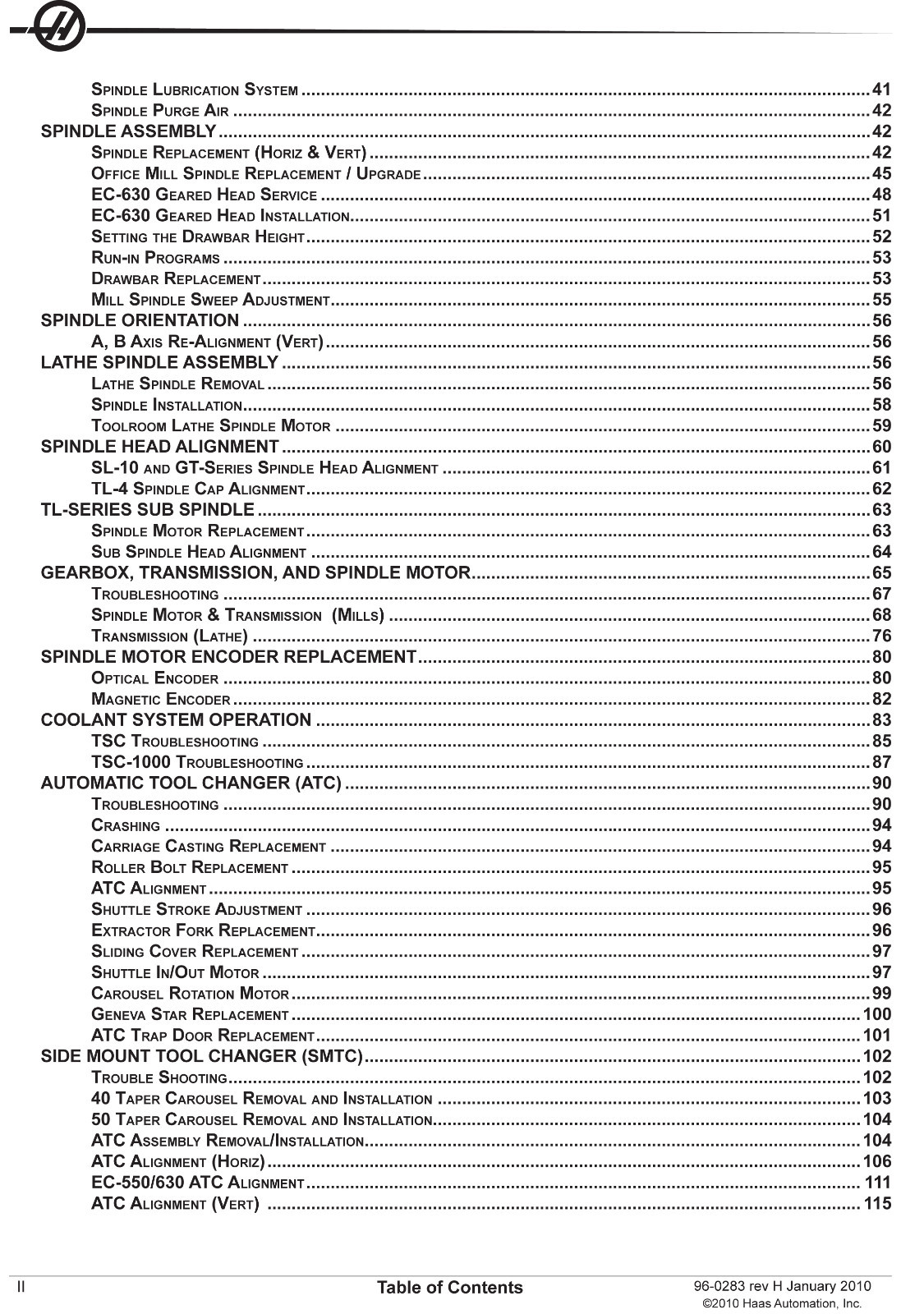

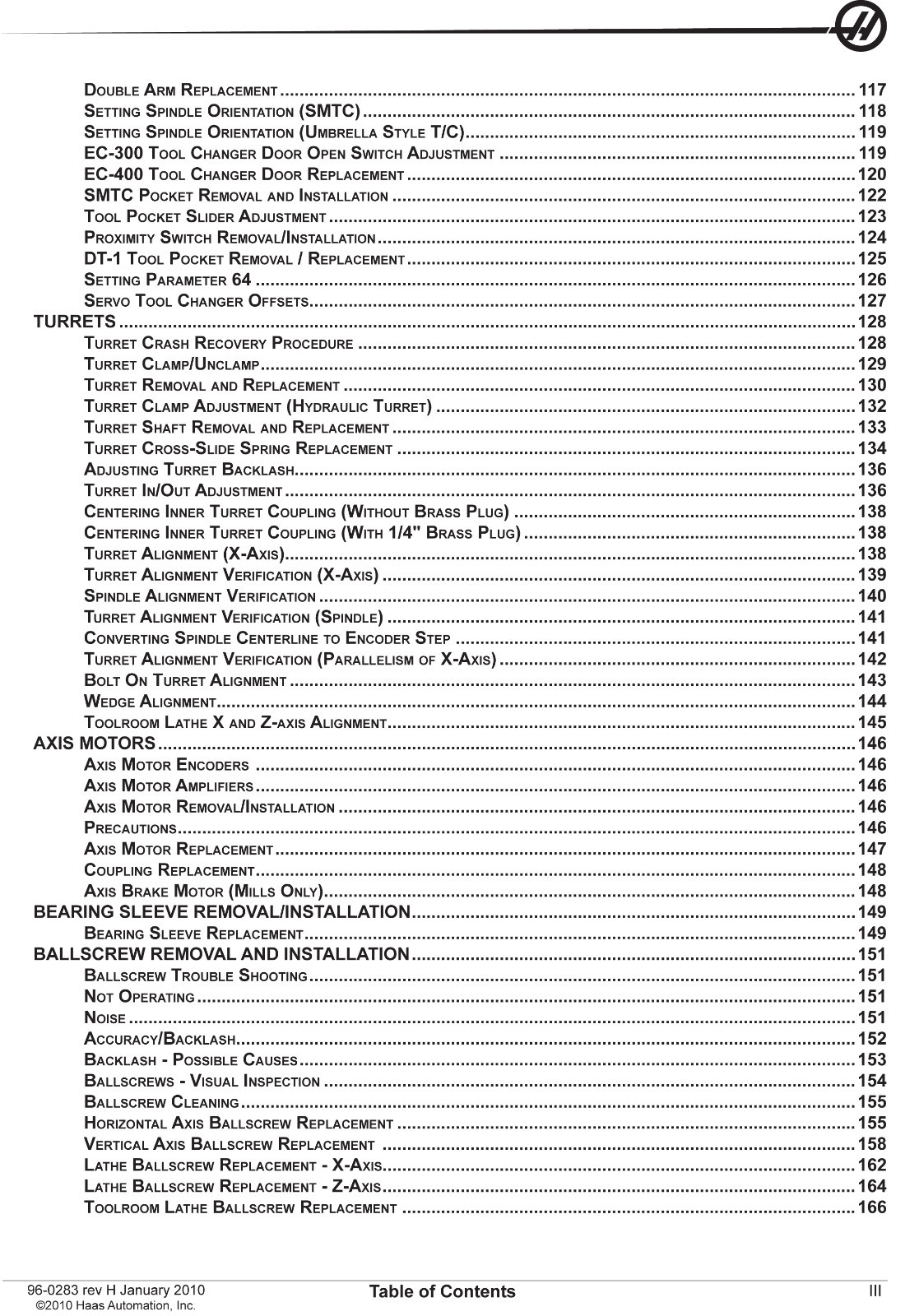

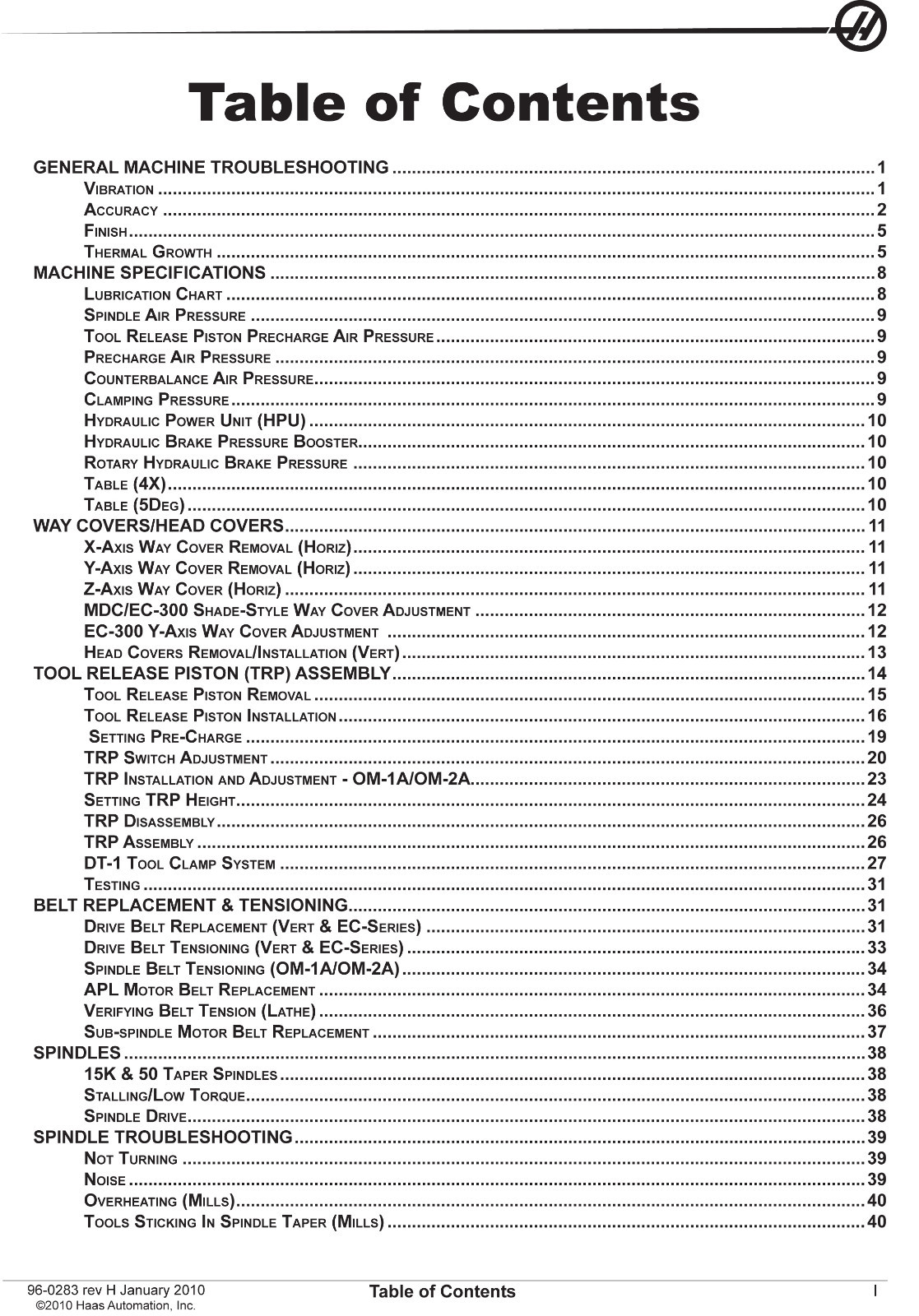

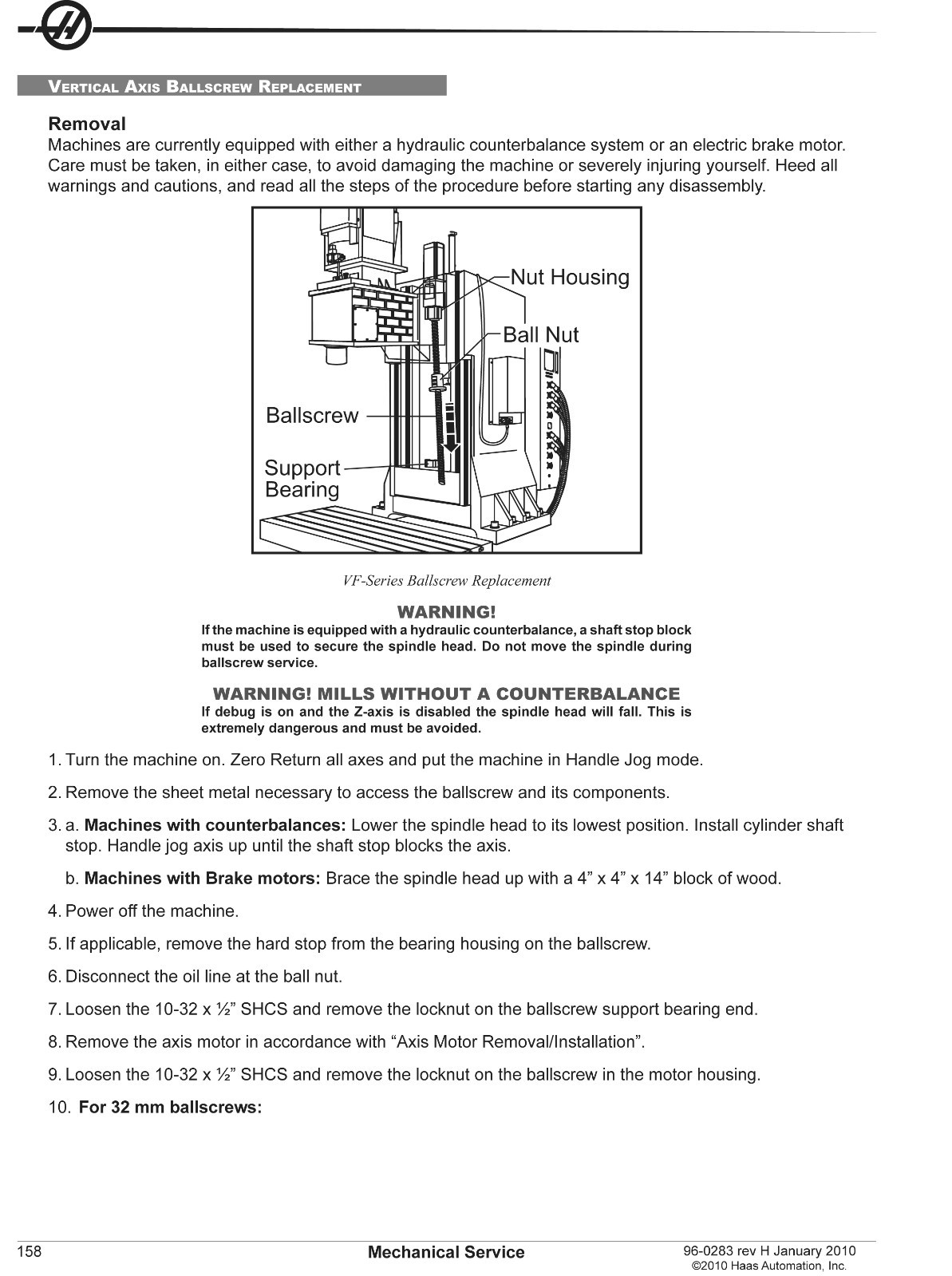

Haas CNC Lathe & Mill Mechanical Service Manual Service Manual for Mechanical Components For Models: Haas CNC Lathes & Milling Machines Description: This manual covers the Servicing for the Mechanical Components of the Haas CNC Lathes and Milling Machines. It covers xxx It contains 547 pages To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on Operation Parts Breakdown Diagrams Parts List Number of Pages: Approx. 547 Publication Date: January 2010 Publication No.: 96-0283 Rev H Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS Media Mail Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. See my Ebay Store for more manuals. Be sure to add me to your favorites list!
