Fellows Type Series 6A Gear Shaper Operators Manual #683

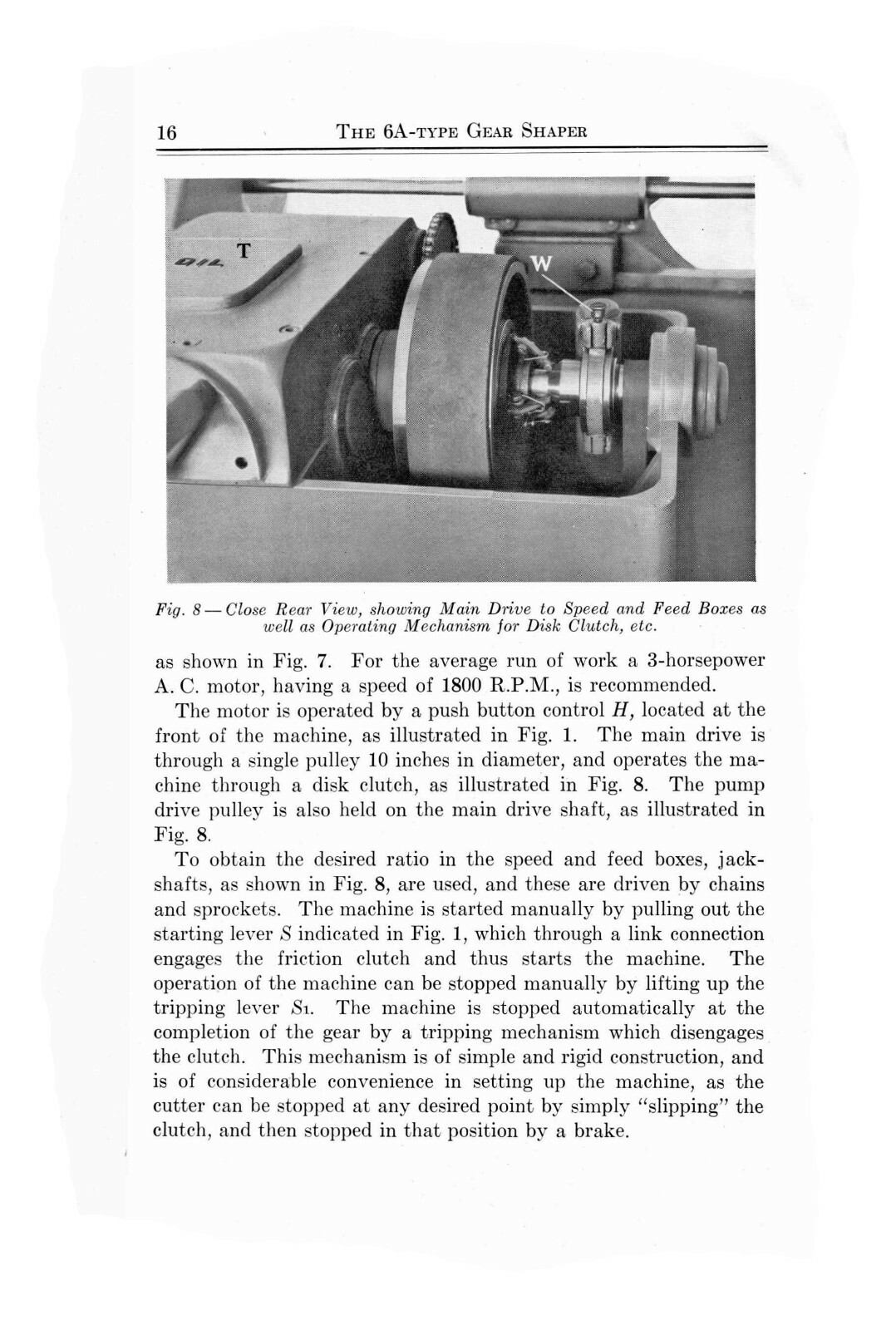

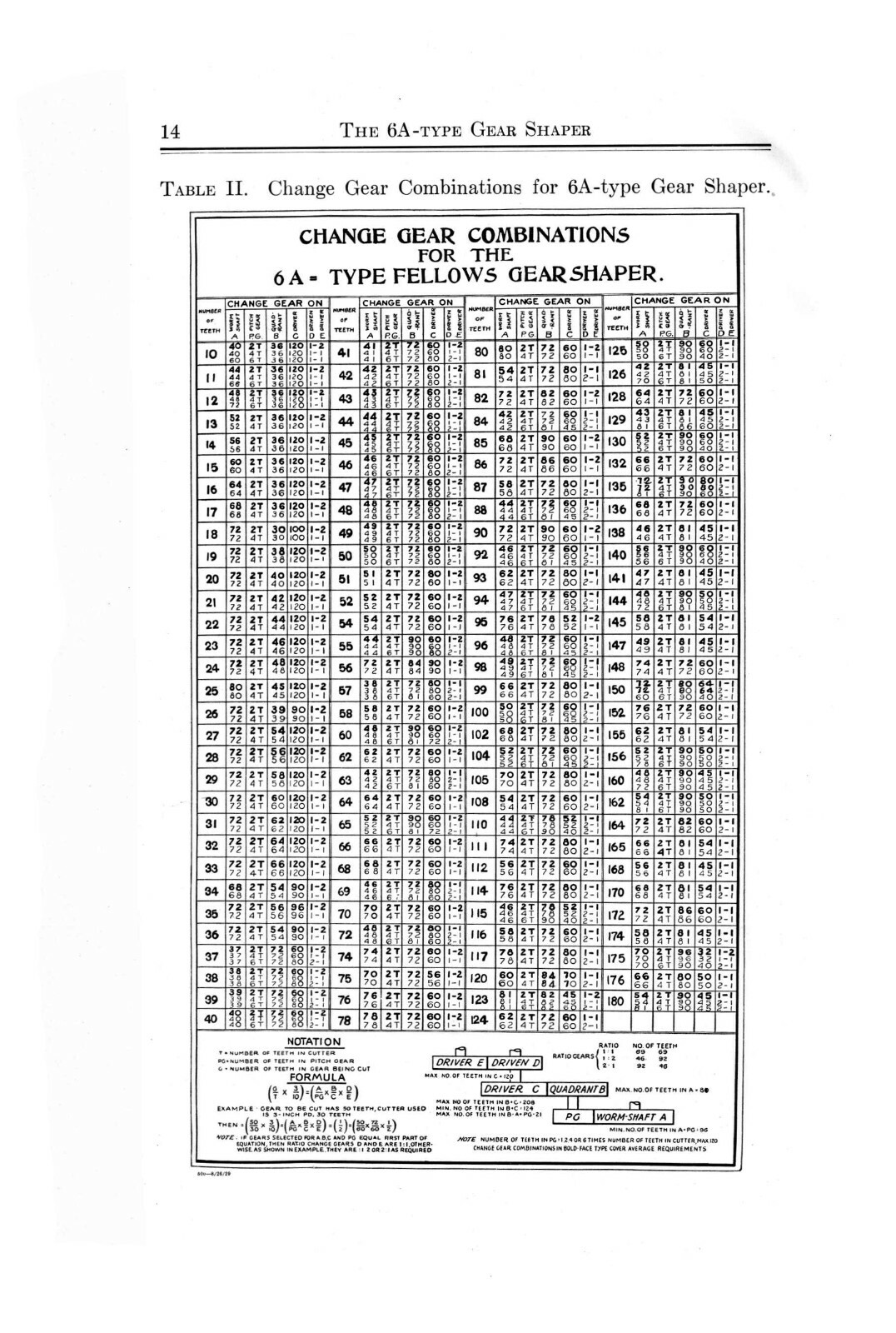

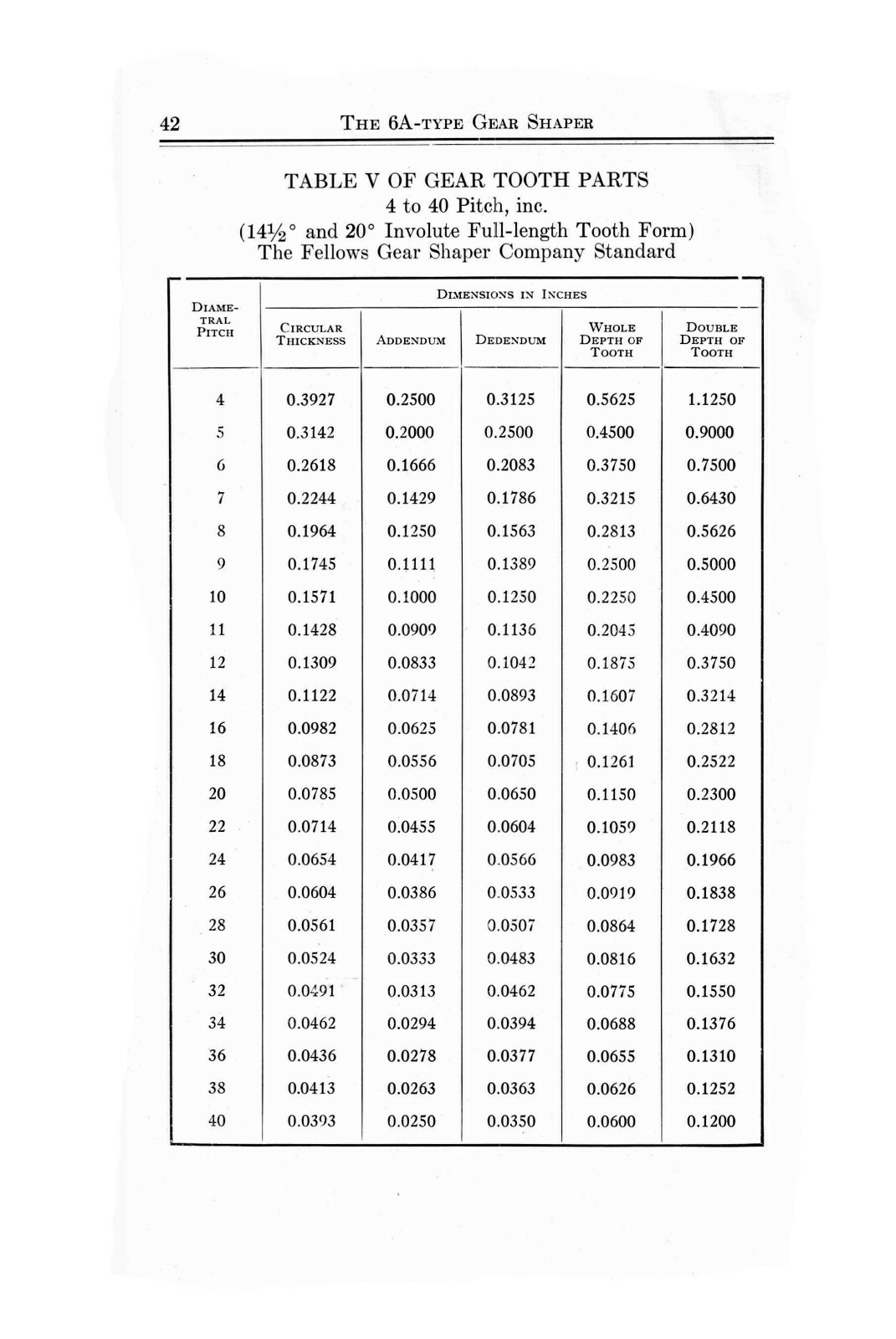

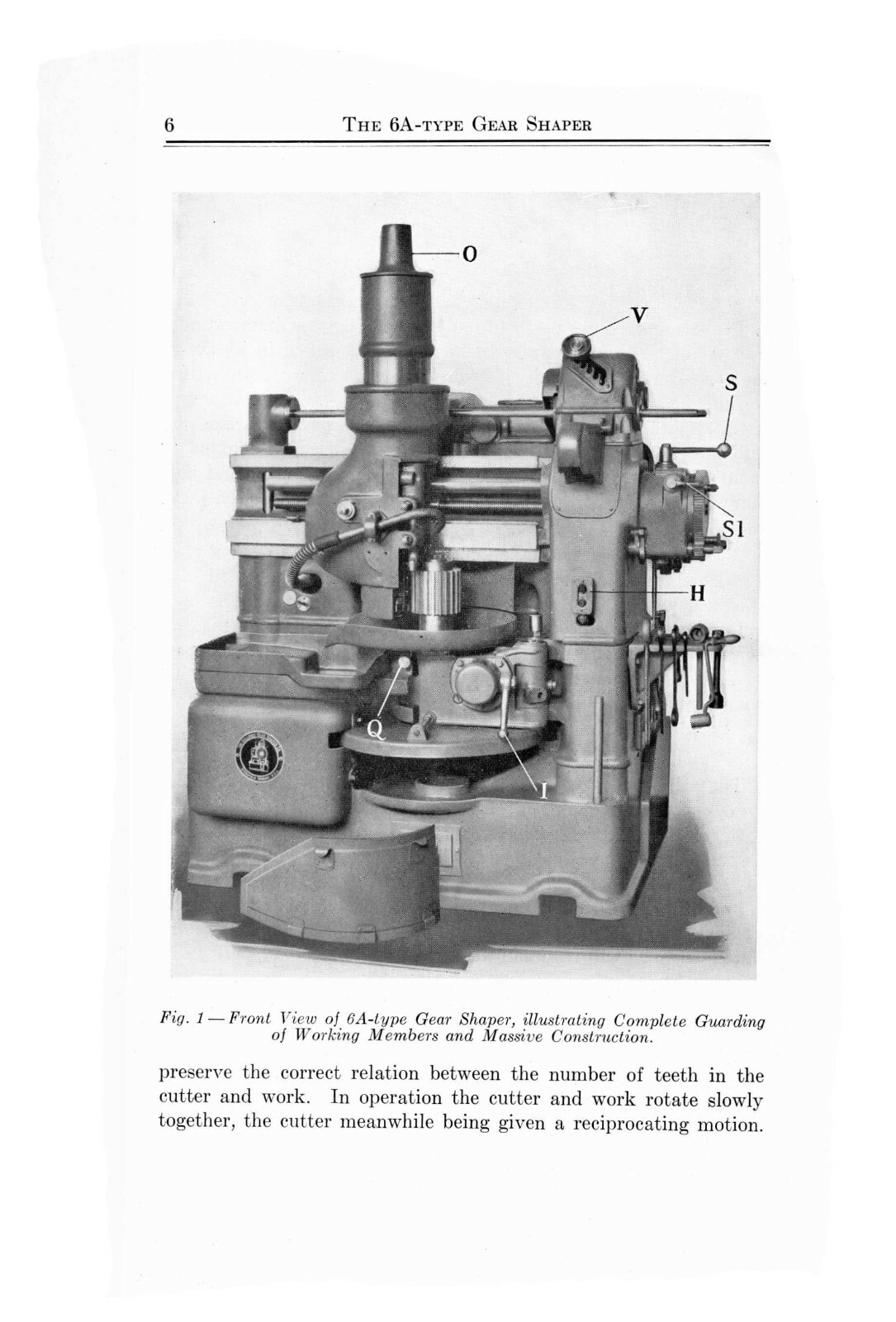

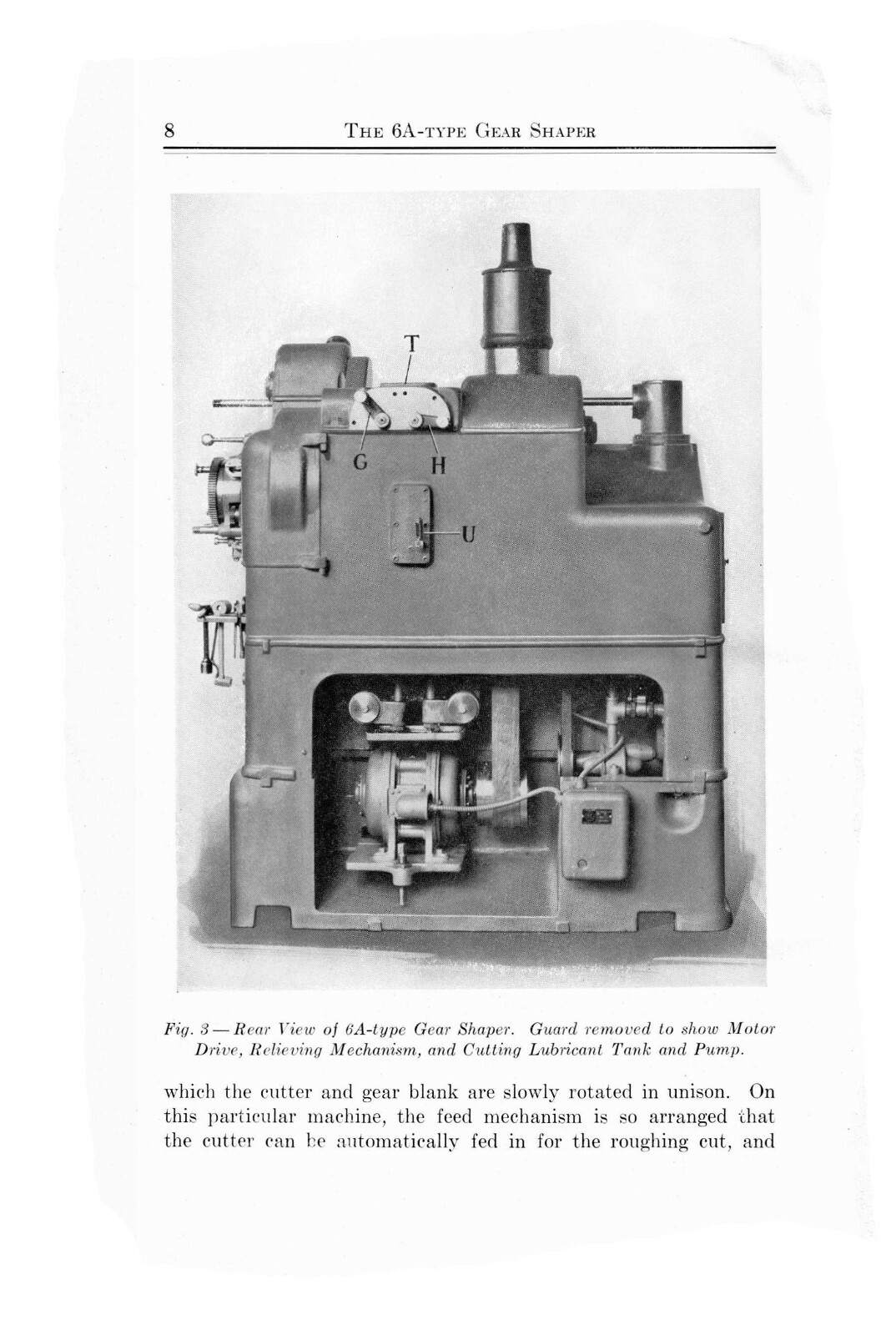

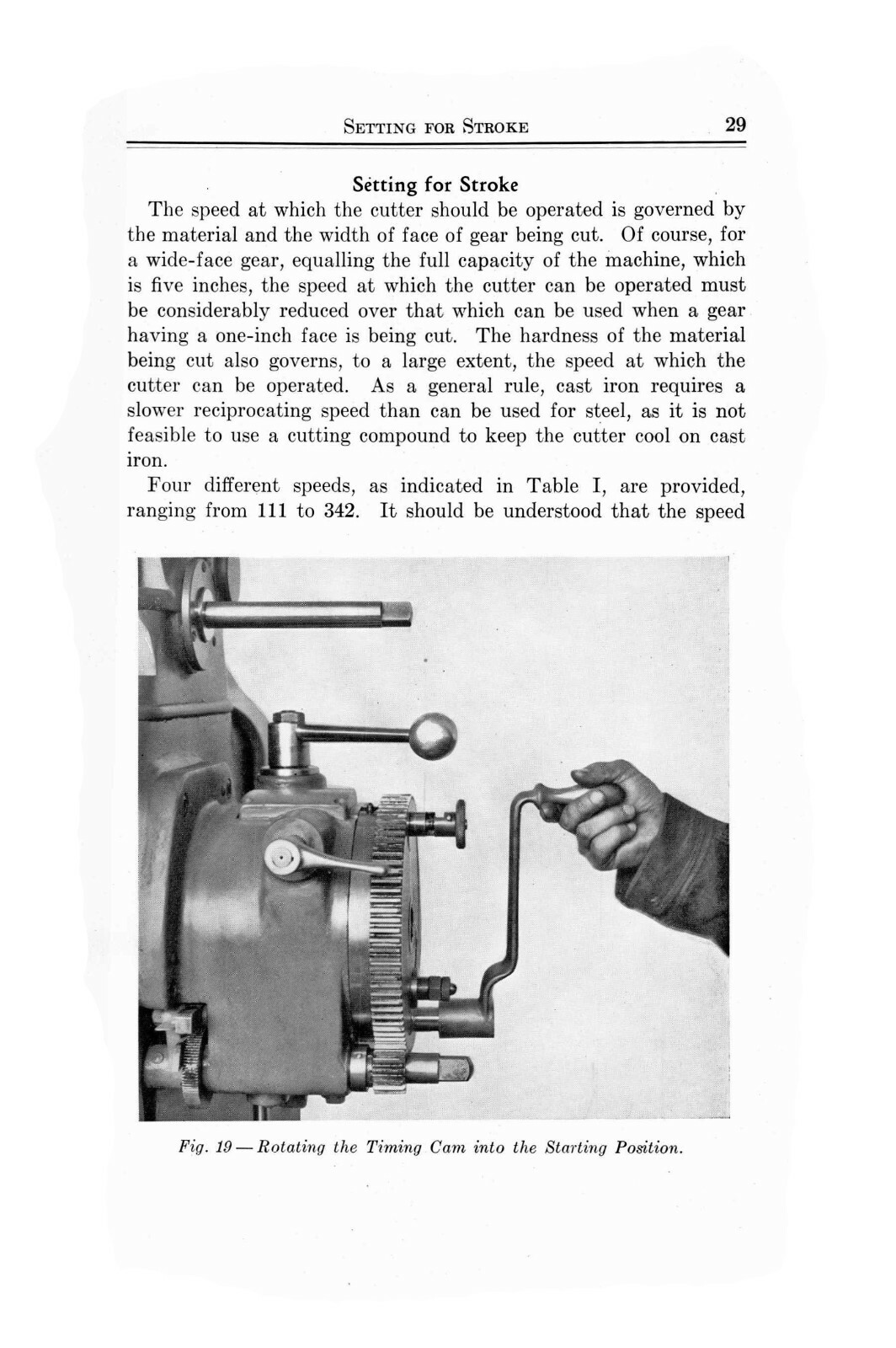

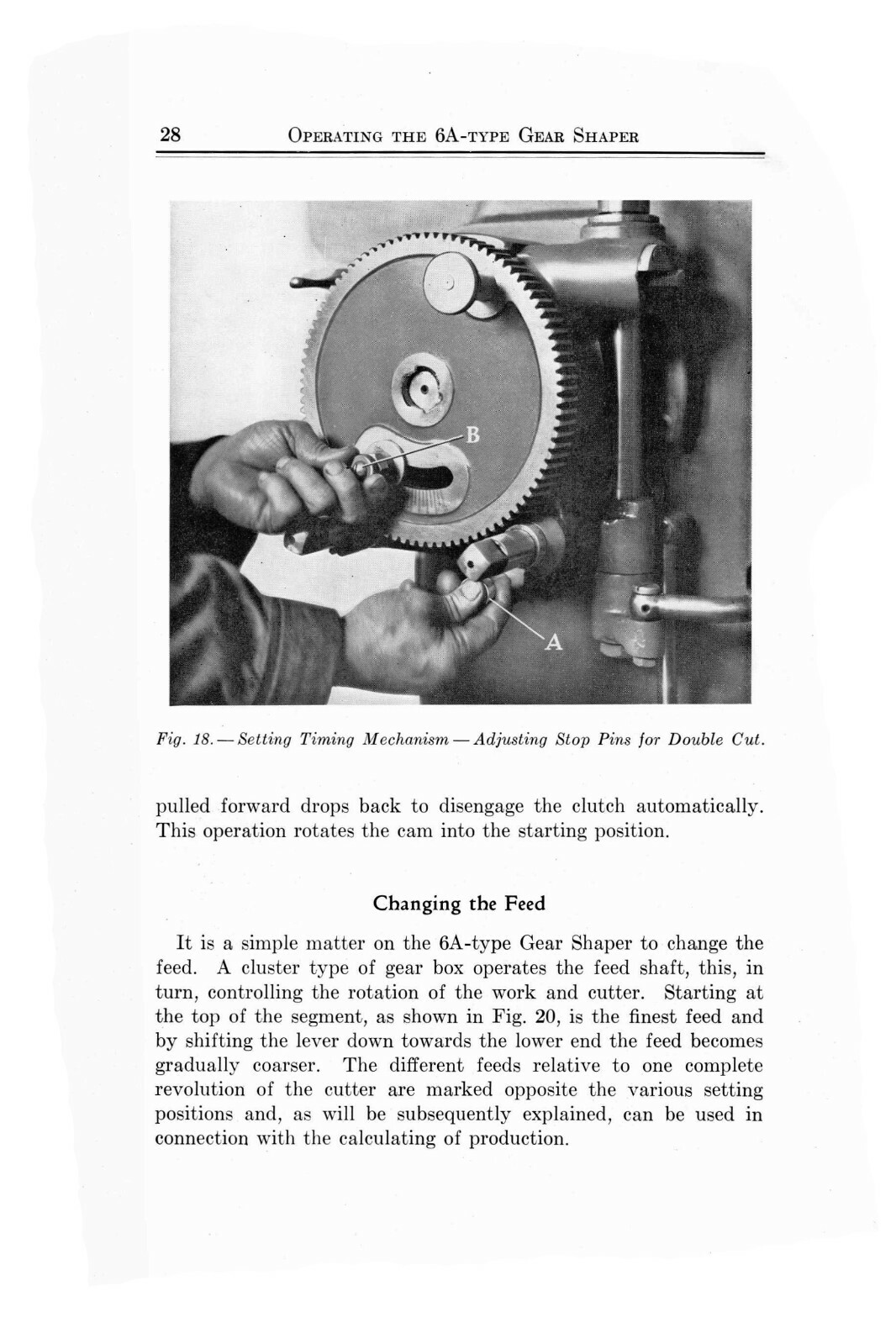

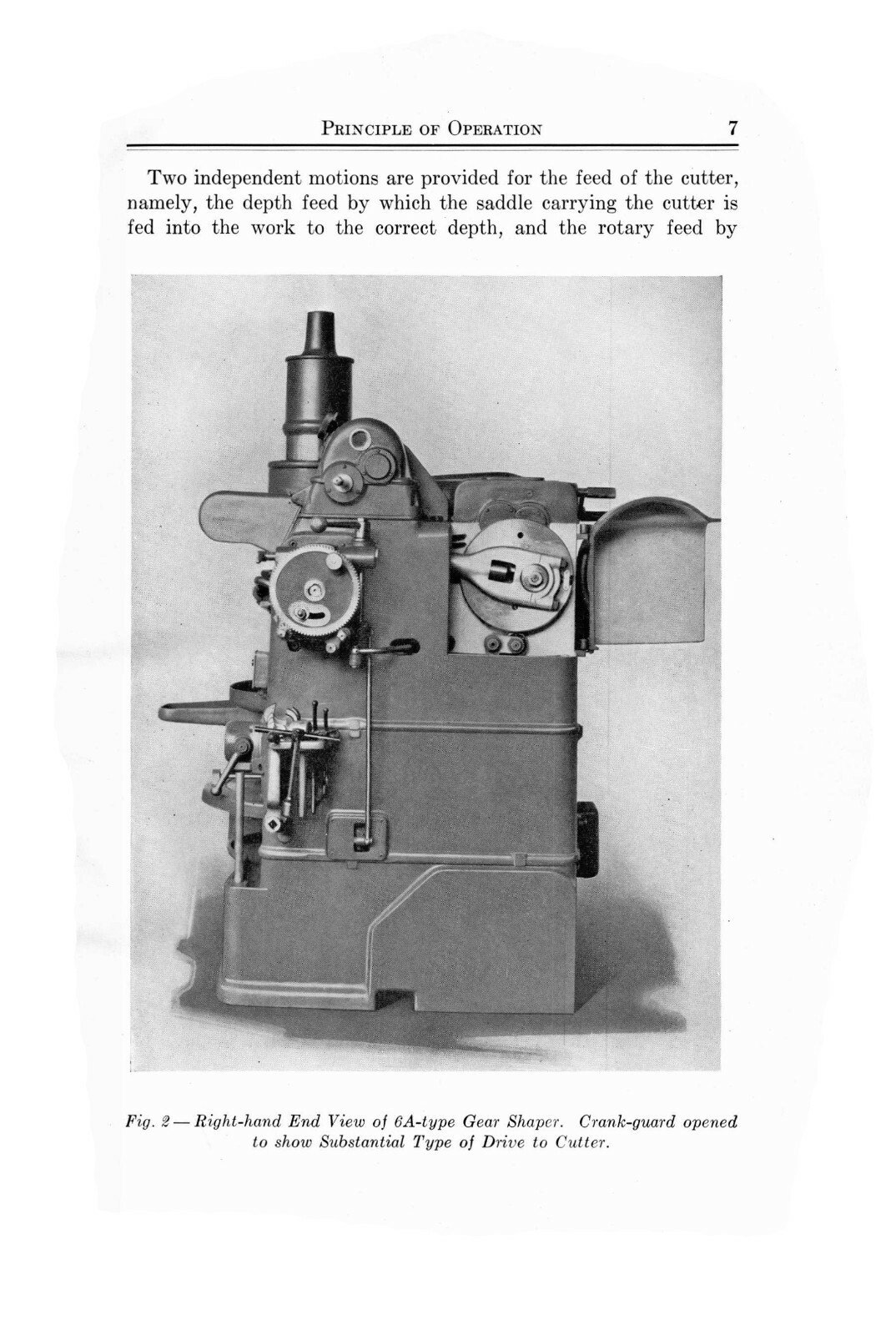

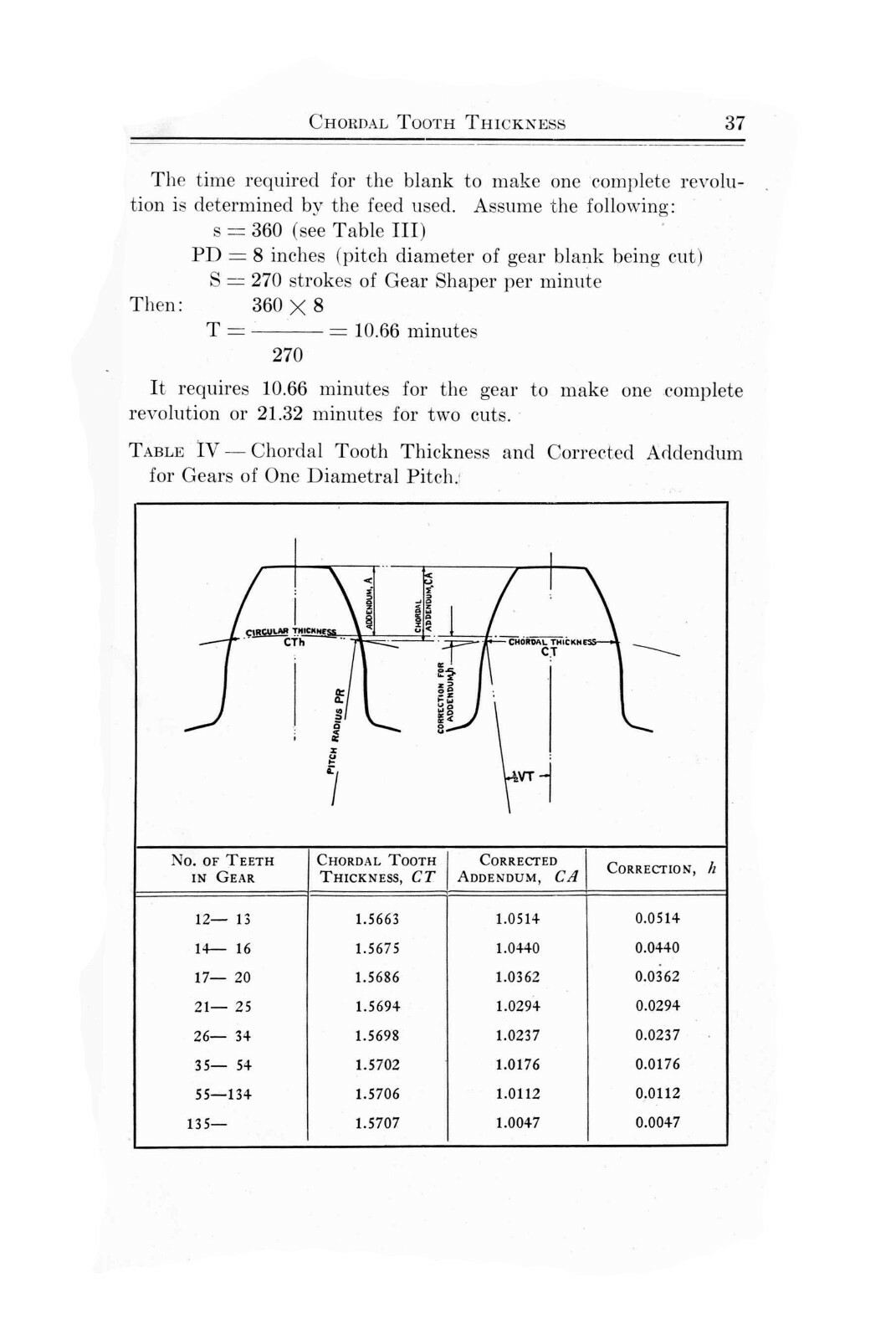

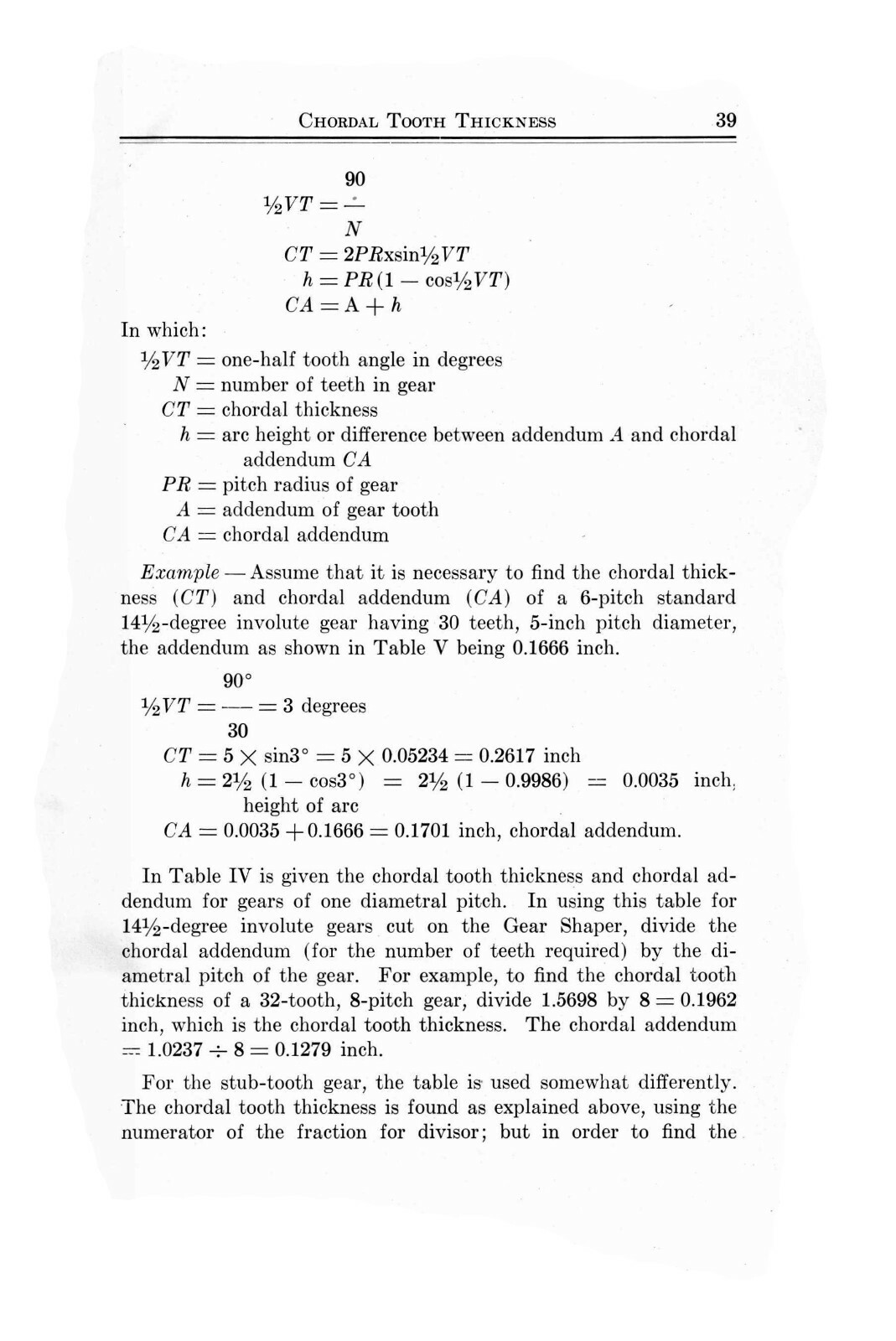

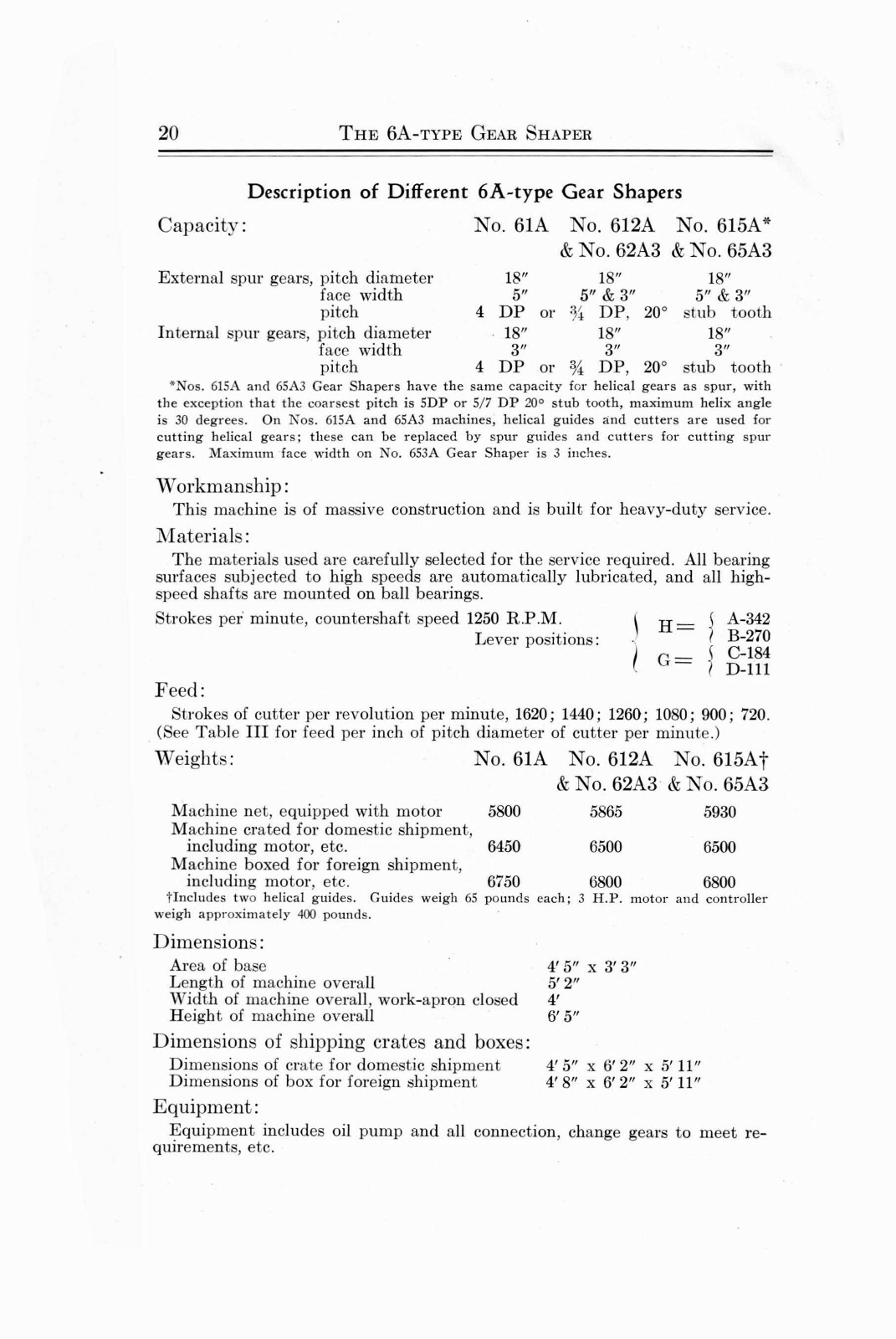

Fellows Type 6A Gear Shaper Operators Manual Type of Manual: Operator For Models: Series 6A. 61A, 612A, 615A, 62A3, 65A3 Description: This manual covers the Fellows Type 6A Gear Shaper. It starts out with a fairly long description of the machine, then gives the operating instructions for the machine. The manual has about 46 pages. To inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on:Principles of OperationRelieving MechanismMotor DriveChange Gear Combinatons TableOperationSelecting the Change GearsSetting The StrokeSetting the Timing MechanismChanging the FeedStarting the MachineCutting Helical GearsGear Tooth Parts TablesNumber of Pages: Approx. 46 Publication Date: 1930 Publication No.: N/A Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
