EX-CELL-O 602 Vertical Milling Machine Operator & Parts Manual XLO 0306

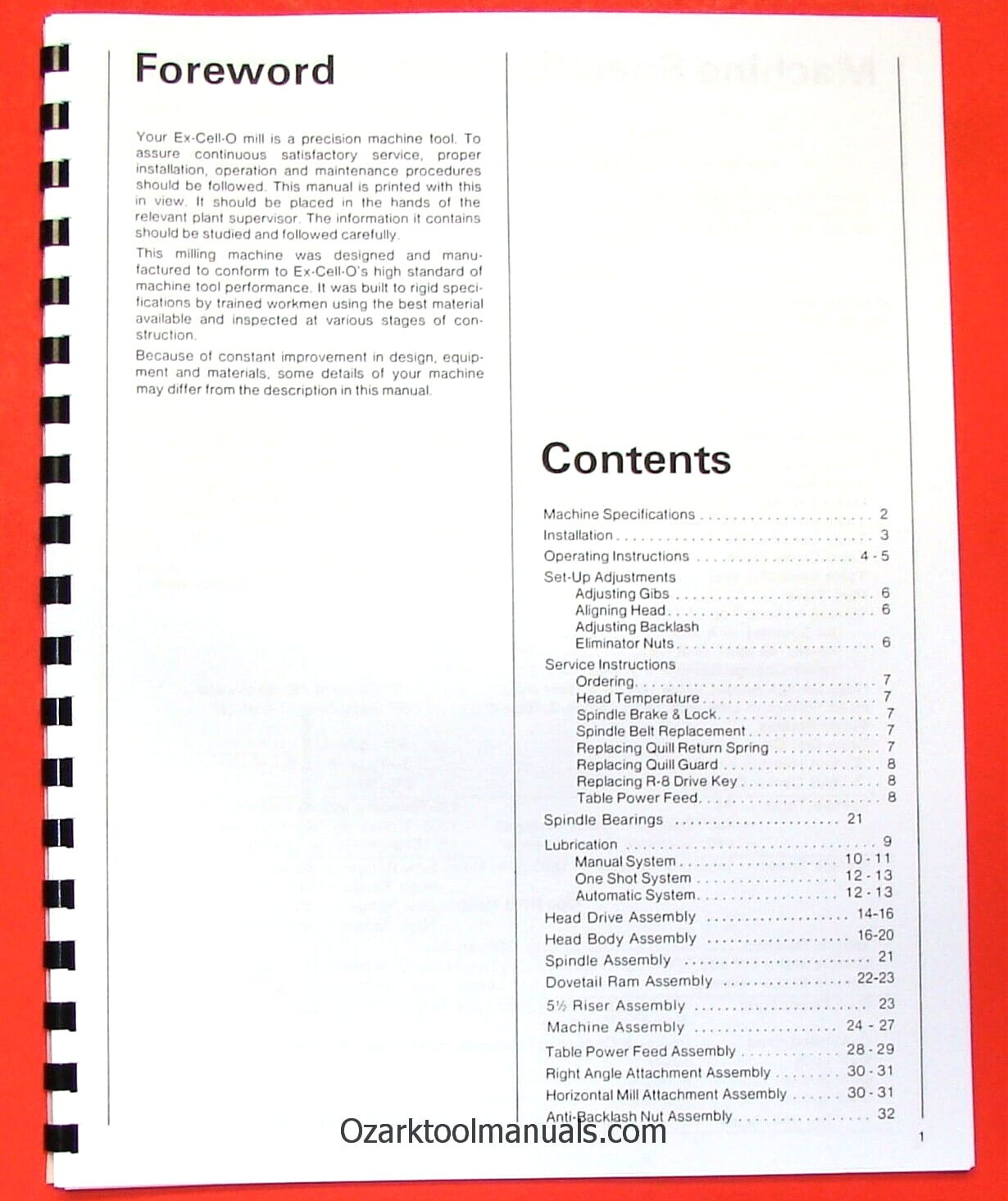

Manual Description:Number of Pages: 32 This is a reproduction, not a photocopy, of an original Ex-Cell-O Ram Turret Milling Machine Style “602” Operation and Instruction Manual. This manual contains information on lubrication, adjustments, maintenance, and controls as well as a complete parts list with exploded view diagrams for this XLO mill. Contents: Machine Specifications………………………….2 Installation…………………………………..3 Operating Instructions………………………..4-5 Set-Up Adjustments Adjusting Gibs…………………………………6 Aligning Head………………………………….6 Adjusting Backlash Eliminator Nuts………………6 Service Instructions Ordering………………………………………7 Head Temperature……………………………….7 Spindle Brake & Lock……………………………7 Spindle Belt Replacement………………………..7 Replacing Quill Return Spring……………………7 Replacing Quill Guard…………………………..8 Replacing R-8 Drive Key…………………………8 Table Power Feed……………………………….8 Spindle Bearings……………………………….8 Lubrication……………………………………9 Manual System………………………………10-11 One Shot System…………………………….12-13 Automatic System……………………………12-13 Head Drive…………………………………14-16 Head Body Assembly………………………….16-20 Spindle Assembly………………………………21 Dovetail Ram Assembly……………………….22-23 51/2 Riser Assembly……………………………23 Machine Assembly……………………………24-27 Table Power Feed Assembly……………………28-29 Right Angle Attachment Assembly………………30-31 Horizontal Mill Attachment Assembly…………..30-31 Anti-Backlash Nut Assembly……………………..32 Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. This manual is clearer and easier to read than a .pdf download.Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
