Emco F1 CNC Milling Machine Instruction Manual #1527

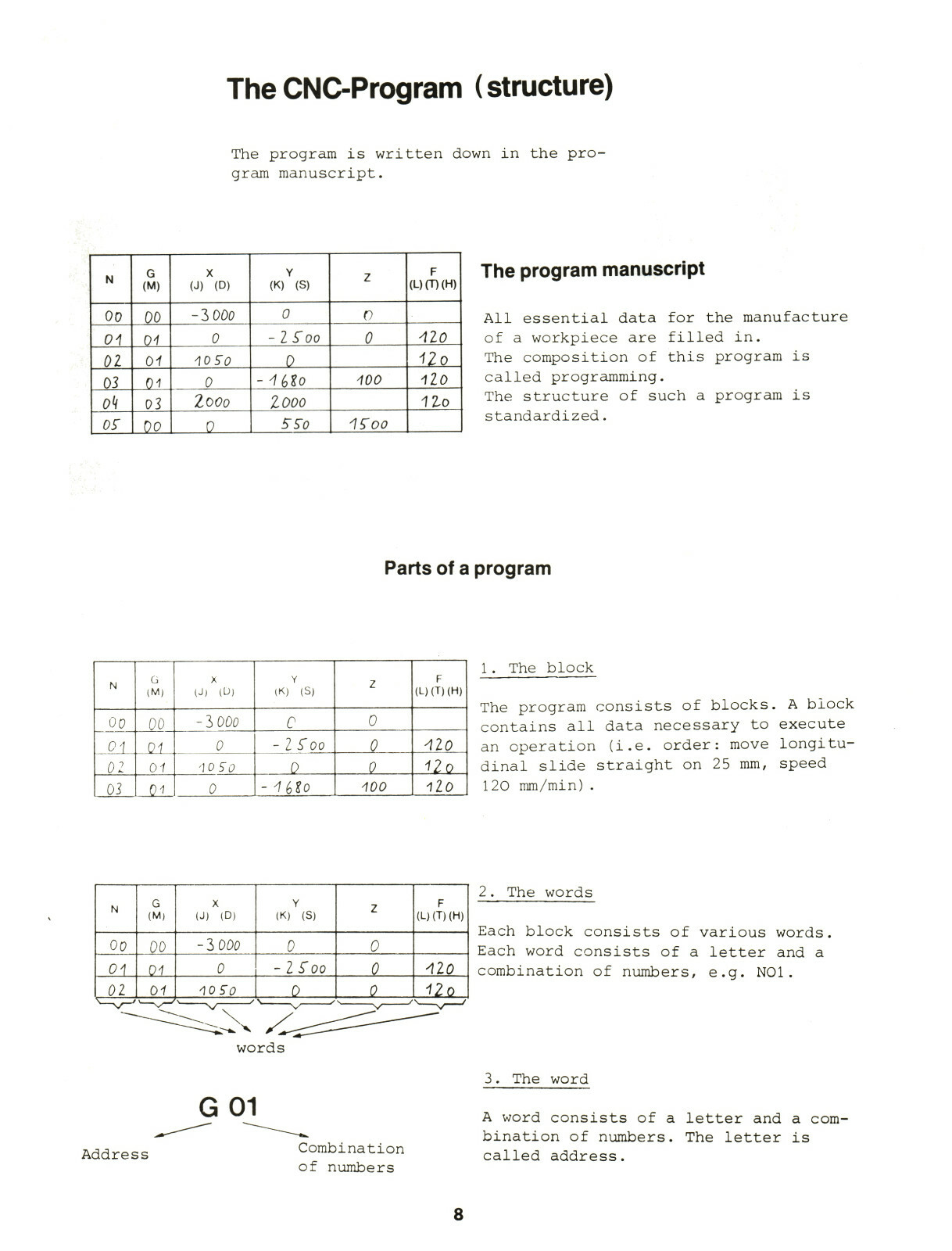

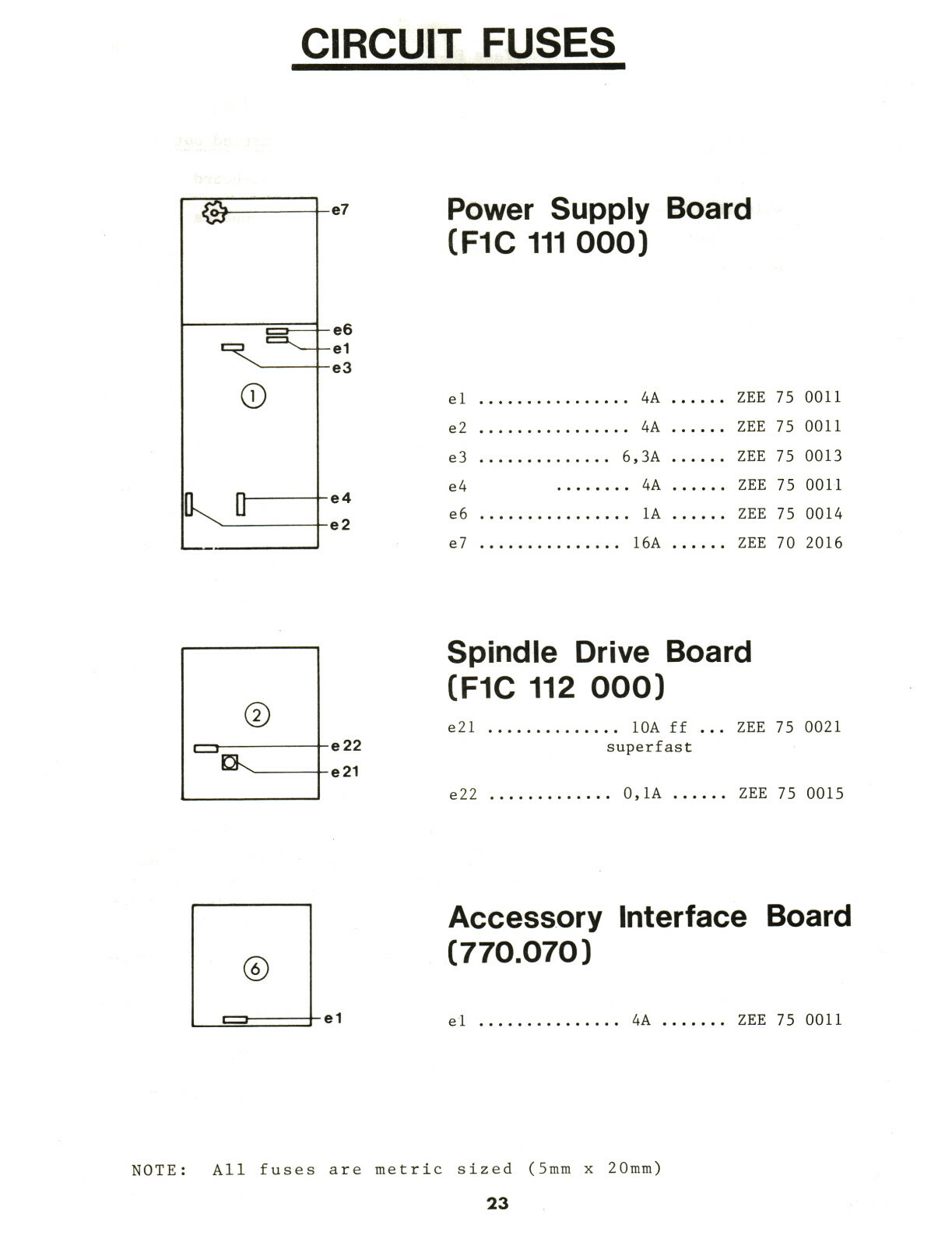

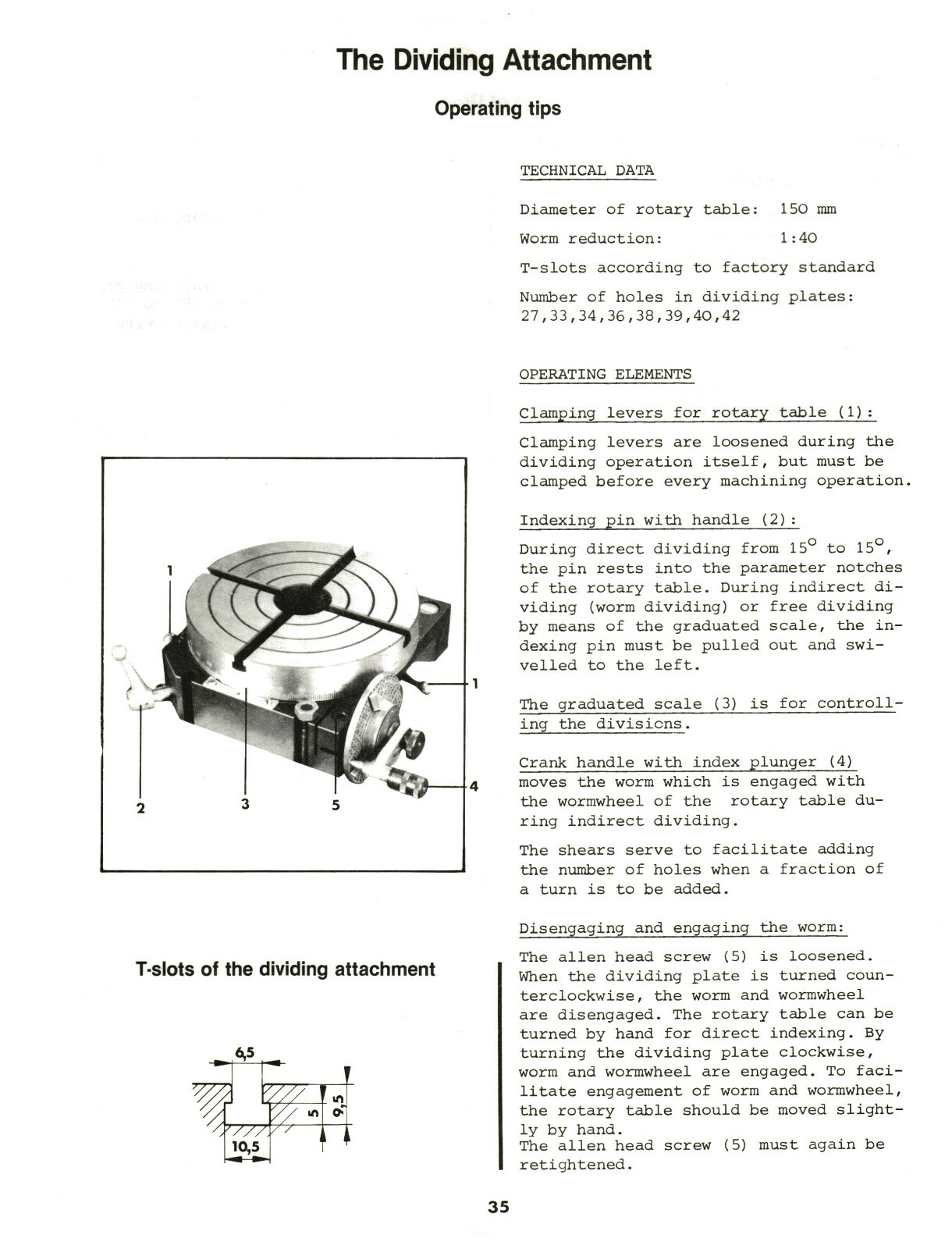

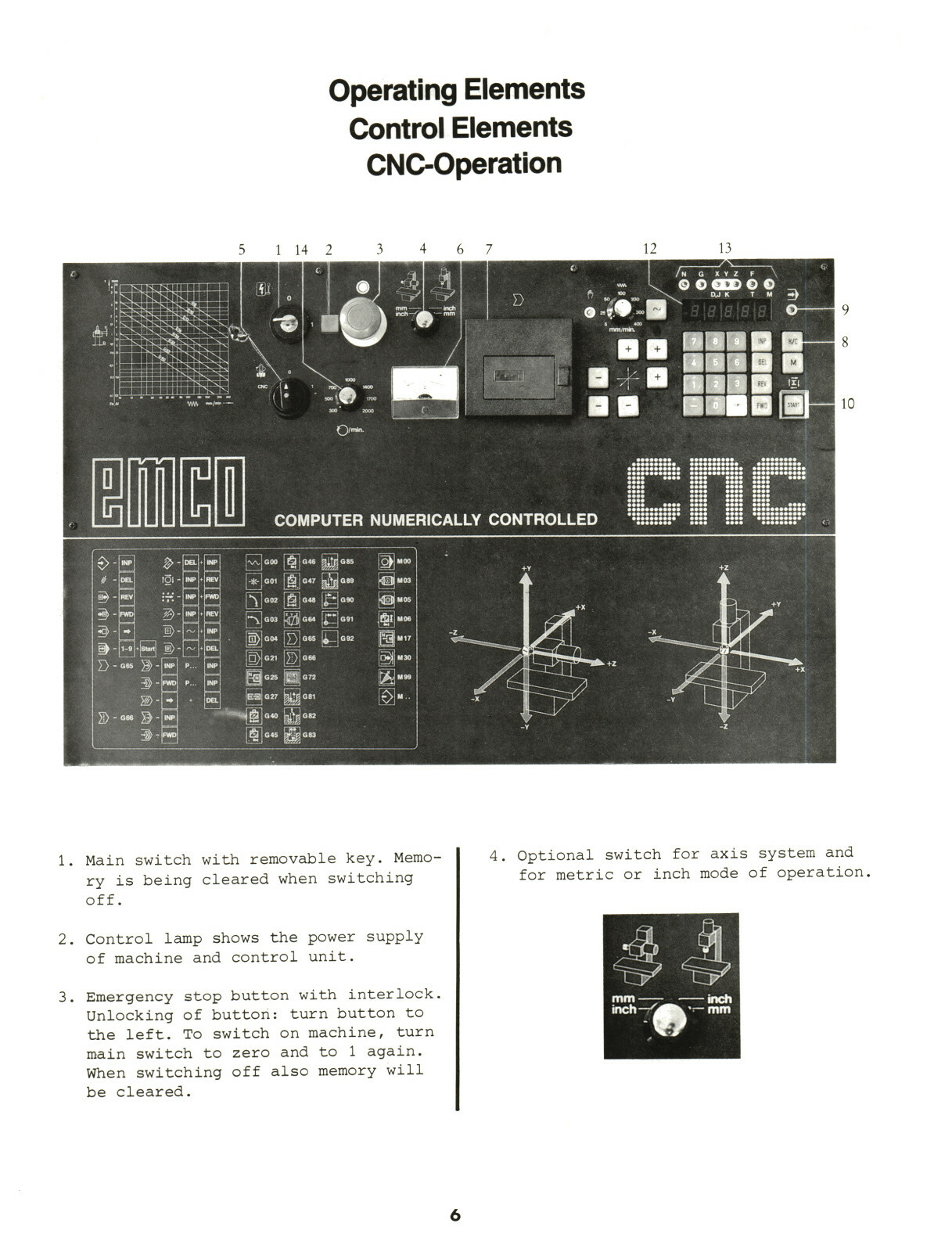

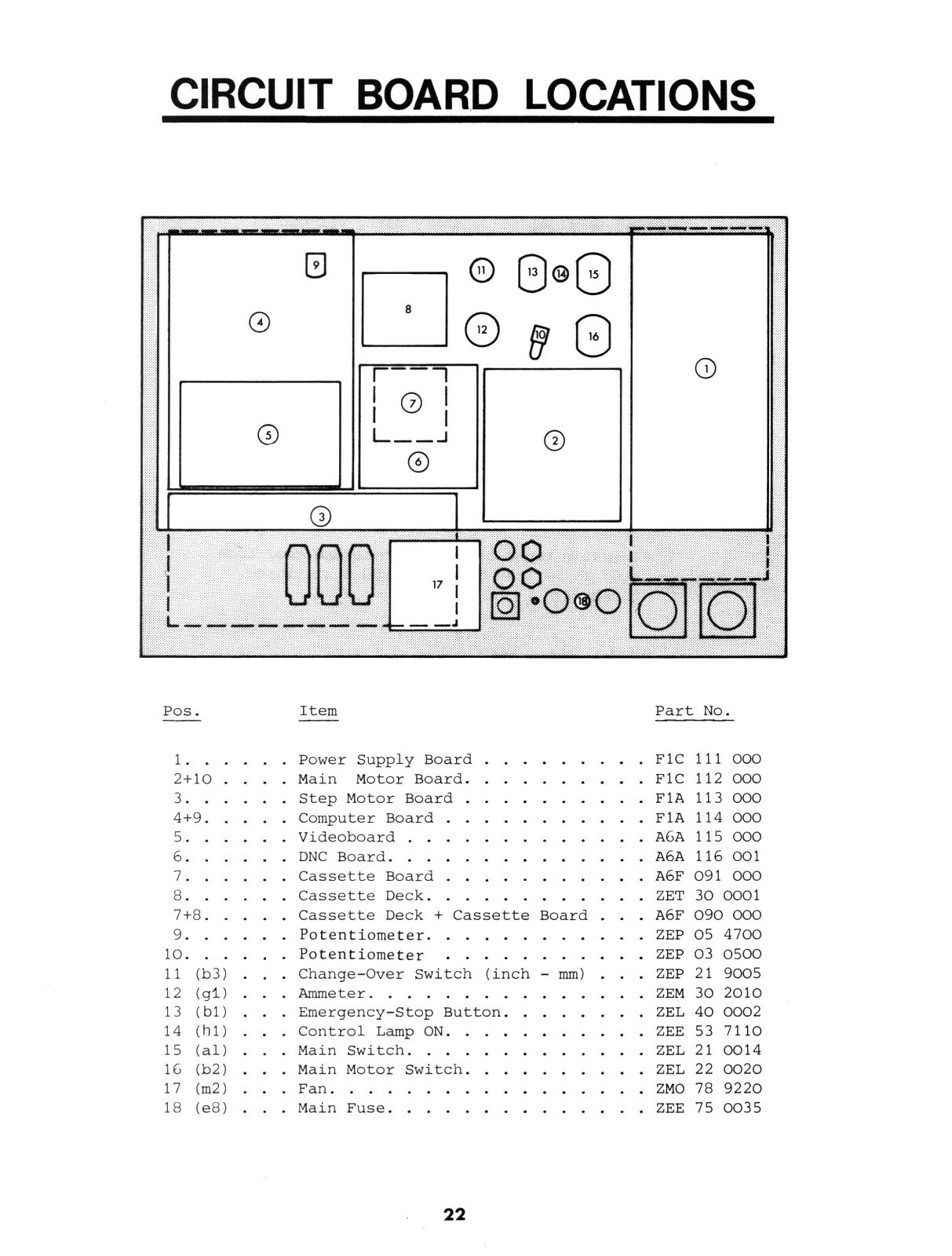

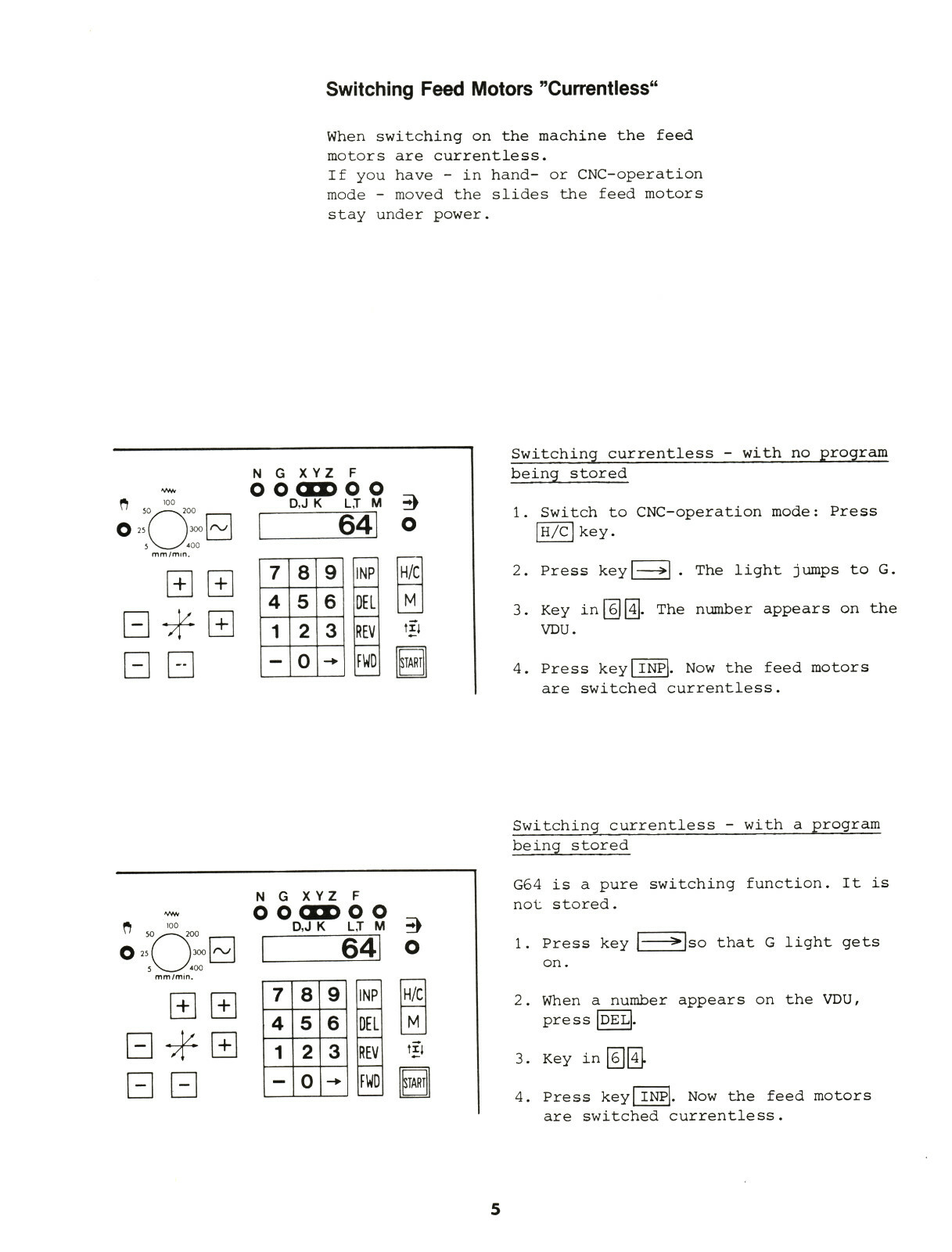

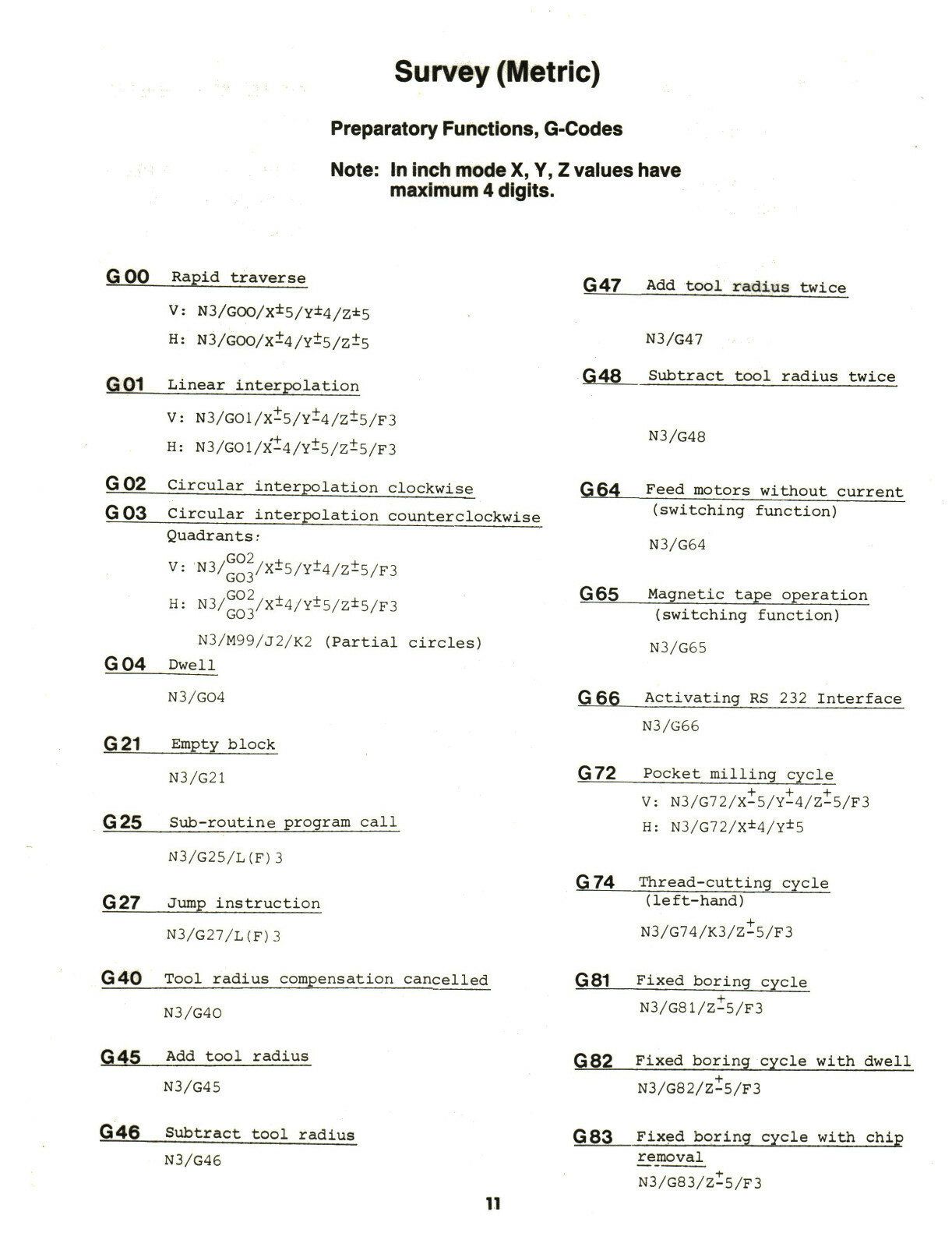

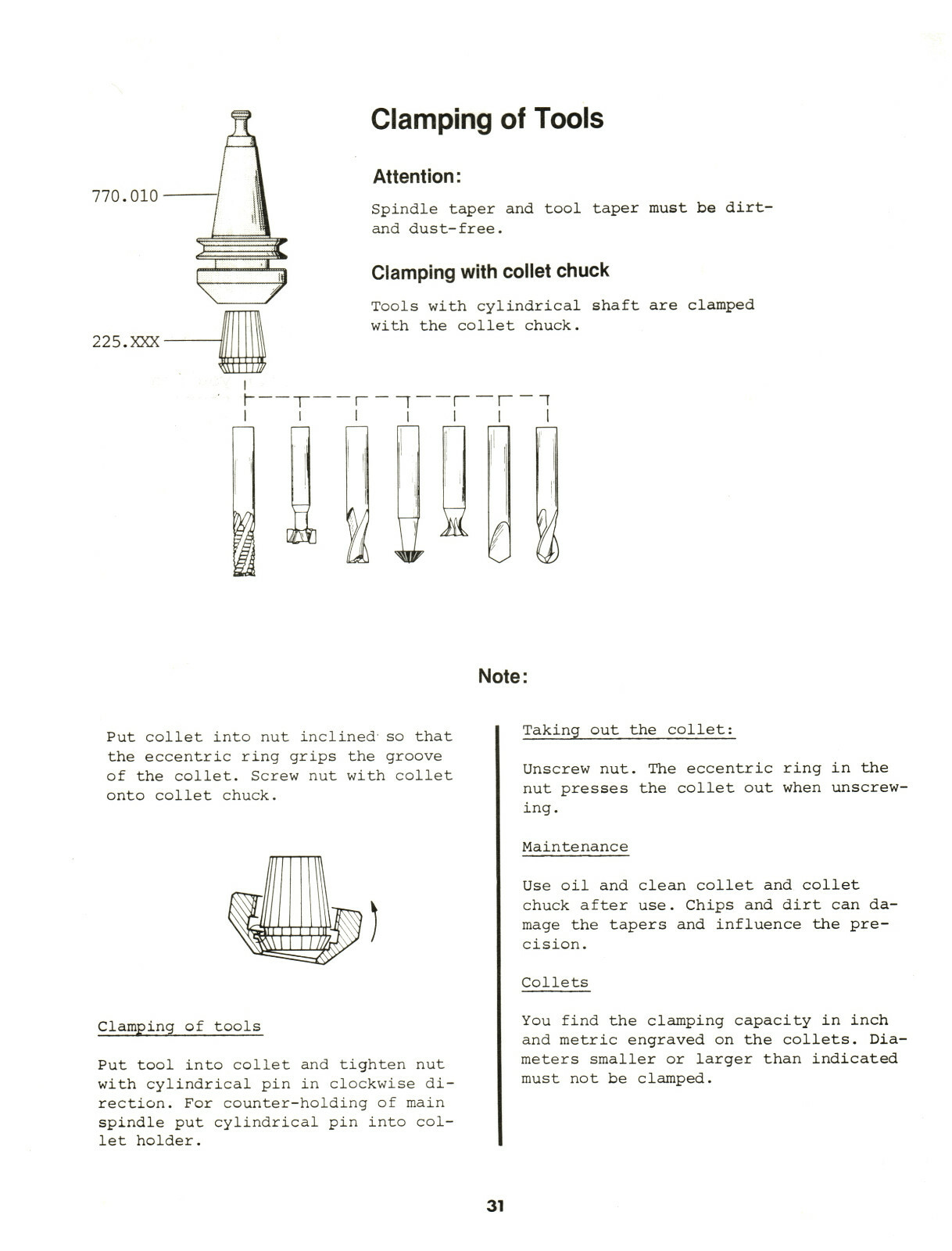

Emco F1 CNC Milling Machine Operation & Instruction Manual For Models: F1-CNC Description: This manual covers the programming of the Emco F1-CNC Milling Machine. It covers the CNC Program Structure, Address Words, G-Codes. Switching Functions, Alarms, Paper Tape operations, Workpiece Clamping, The Dividing Attachment, Index Table, and others. It goes over Circuit Board Locations, Circuit Fuses, and it has some information on the Video Interface and the RS232 Interface. It has 40 pages. To view sample pages, and to inspect the quality of the manual, click on the gallery images above to enlarge. Includes sections on Operating ElementsControl ElementsHand Operation of ControlsThe CNC Program StructureAddress WordsPreparatory FunctionsG-CodesSwitching FunctionsAlarmsMagnetic Tape OperationCircuit Board LocationsCircuit Fuse LocationsVideo InterfaceRS232C InterfaceWorkpiece ClampingThe Dividing AttachmentIndex Table for Maximat Number of Pages: Approx. 40 Publication Date: n/a Publication No.: n/a Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales Reprinted from original manual using high quality 24 lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. See my for more manuals. Be sure to add me to your favorites list!
