DUMORE Care and Operation of Portable Precision Lathe Grinders Manual 0286

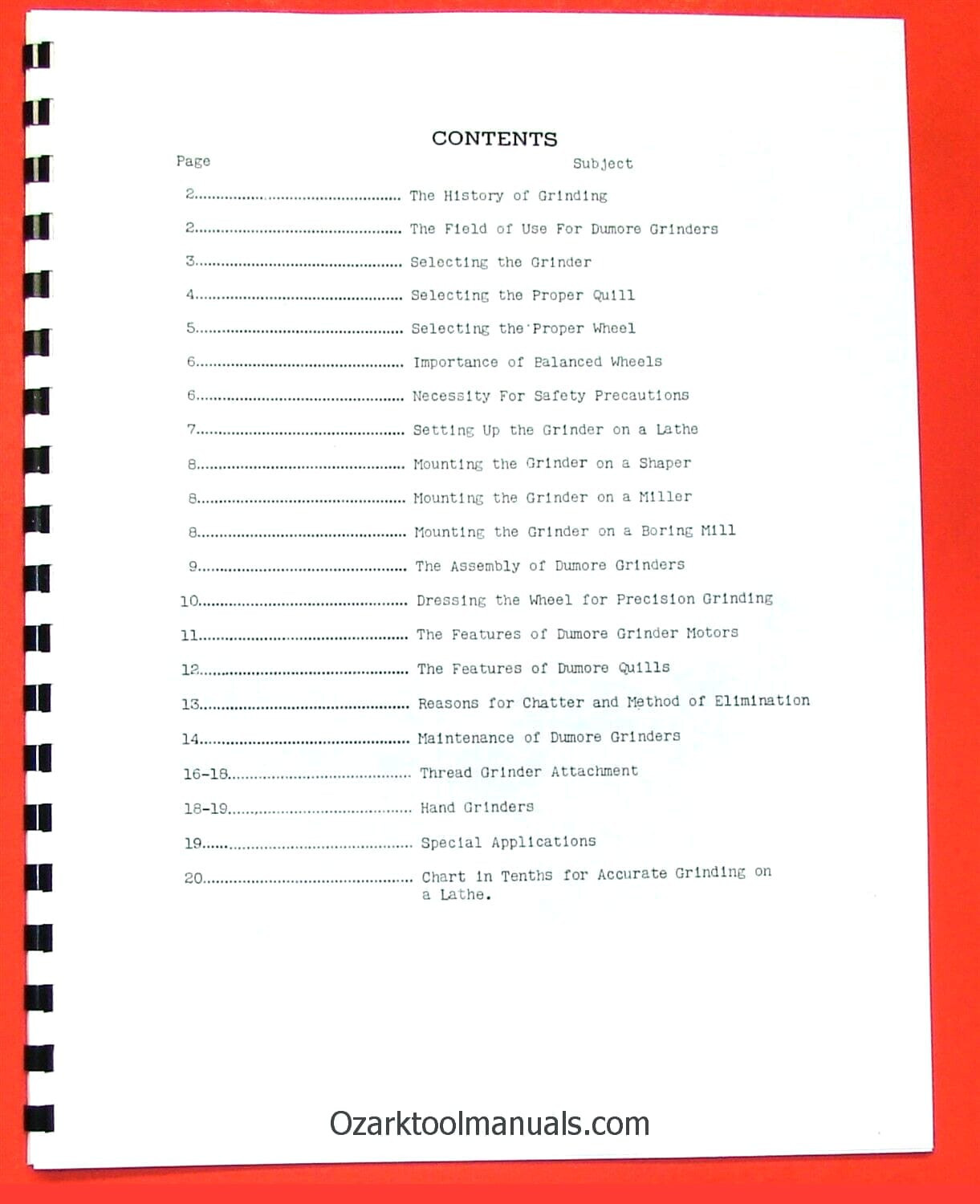

Manual Description: Number of Pages: 20 This is a reproduction, not a photocopy, of an original Dumore Care and Operation of Portable Precision Lathe Grinders, 4th Ed. Learn to use your lathe grinder for more than just grinding on your lathe. Learn the possibilities and capabilities from the experts. This manual shows set up for numerous operations. It also discusses maintenance, operation, and trouble shooting. Check out the contents below. It’s amazing what this little attachment can do. Contents: The History of Grinding………………………………………………. 2 The Field of Use For Dumore Grinders…………………………. 2 Selecting the Grinder…………………………………………………..3 Selecting the Proper Quill……………………………………………. 4 Selecting the Proper Wheel………………………………………….5 Importance of Balanced Wheels……………………………………5 Necessity For Safety Precautions………………………………….6 Setting Up the Grinder on a Lathe…………………………………6 Mounting the Grinder on a Shaper…………………………………7 Mounting the Grinder on a Miller…………………………………..8 Mounting the Grinder on a Boring Mill……………………………8 The Assembly of Dumore Grinders……………………………….8 Dressing the Wheel for Precision Grinding………………………9 The Features of Dumore Grinder Motors………………………. 10 The Features of Dumore Quills…………………………………….. 11 Reasons for Chatter and Method of Elimination………………. 12 Maintenance of Dumore Grinders…………………………………. 13 Thread Grinder Attachment…………………………………………. 14 Hand Grinders………………………………………………………….. 16-18 Special Applications………………………………………………….. 18-19 Chart in Tenths for Accurate Grinding on a Lathe……………..20 Overview:I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
