Delta Rockwell 20″ Drill Press Operating and Parts List Manual *846

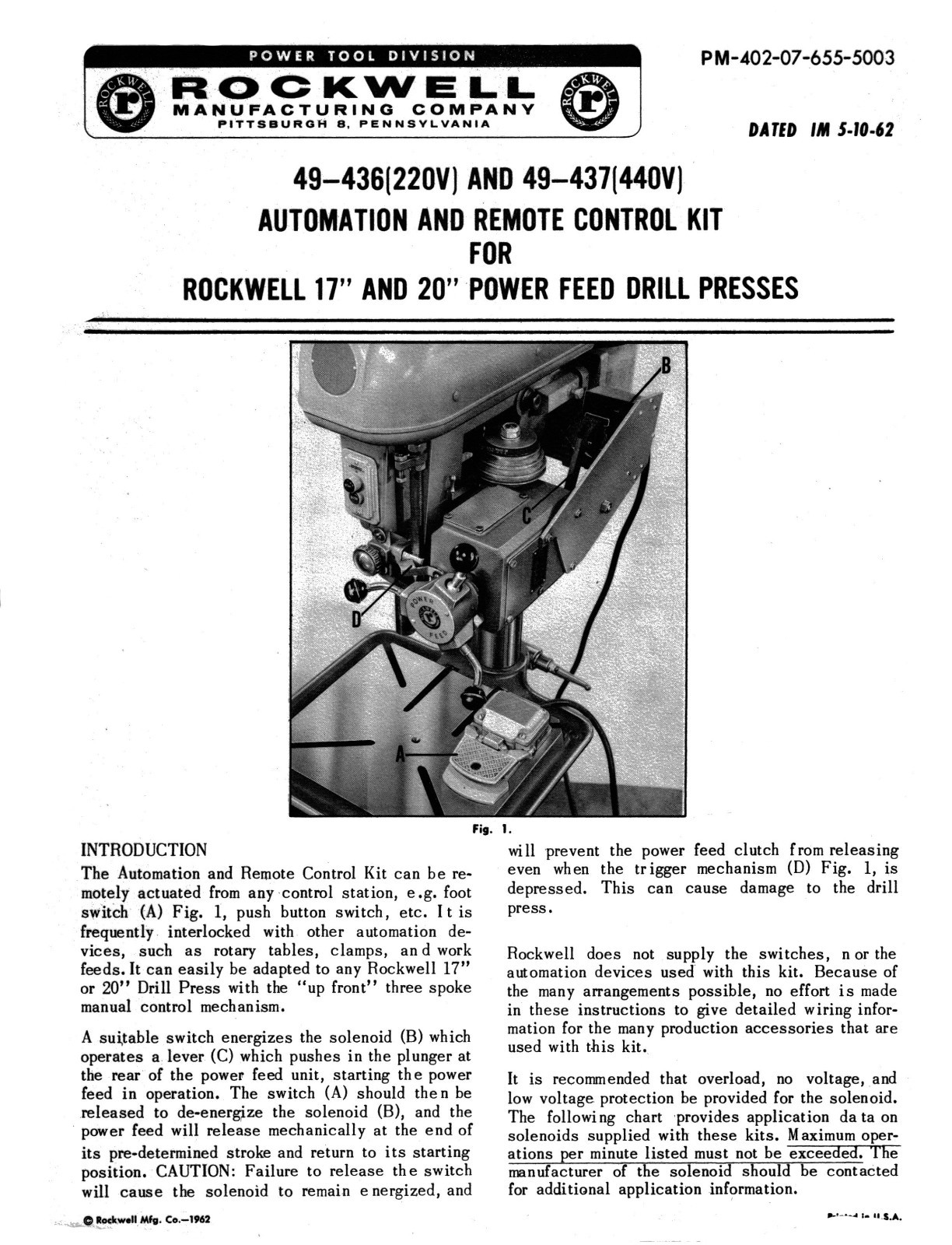

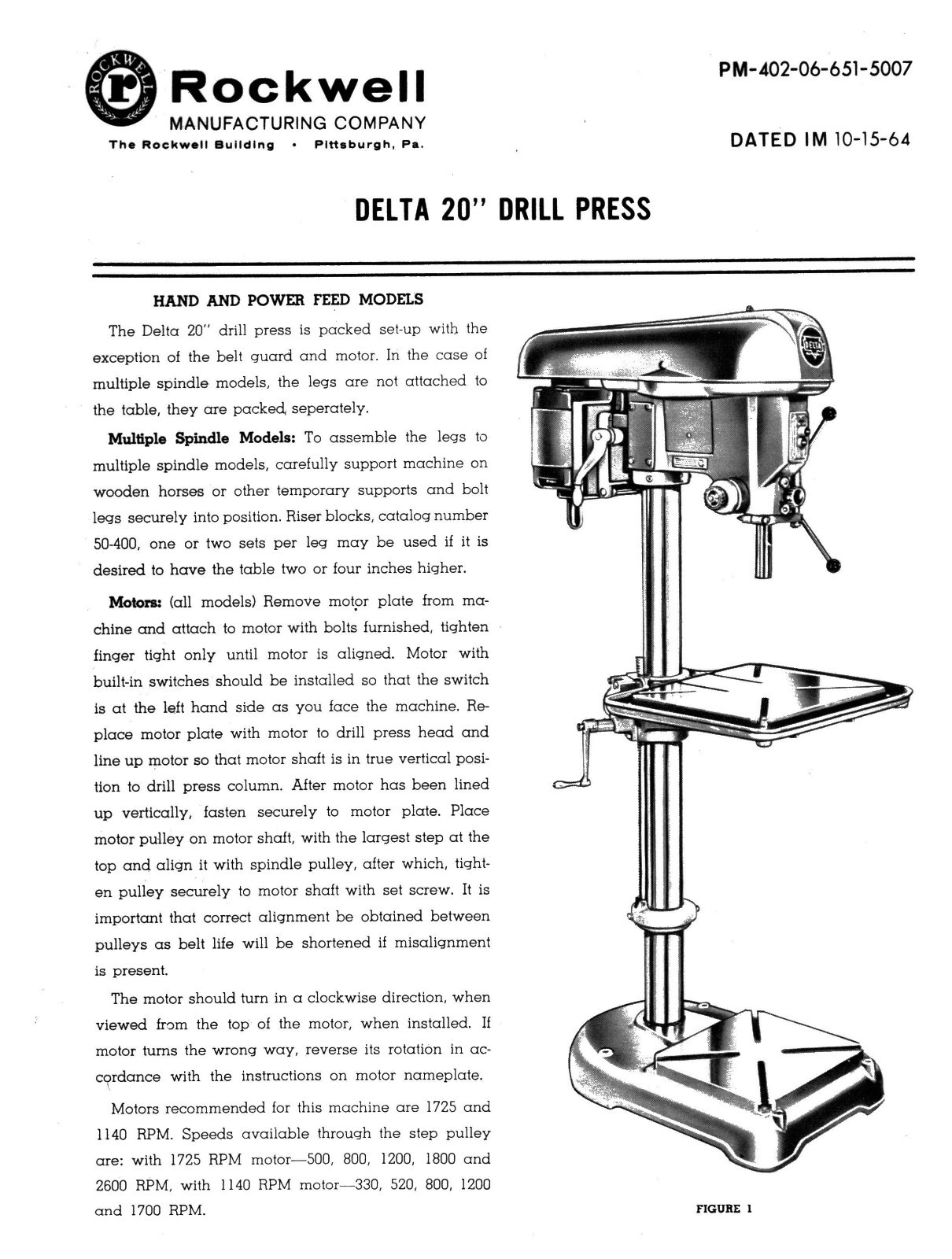

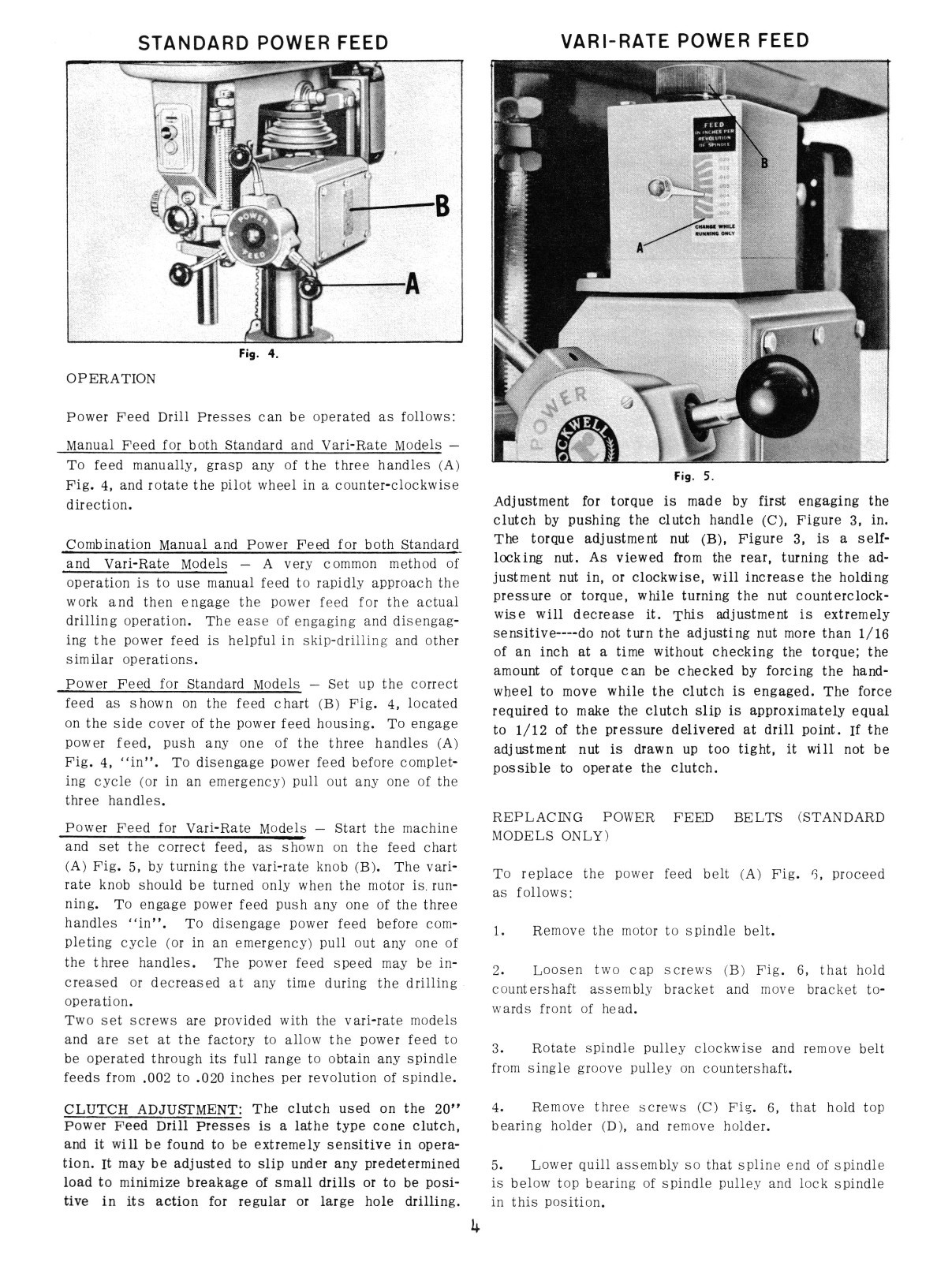

Delta Rockwell 20″ Drill Press Operating & Parts List Manual For models: 20″ Models: 20-421, 20-425, 20-428, 20-431, 20-435 20-438, 20-521, 20-525, 20-528, 20-531, 20-535, 20-538 Old Style Description: This is a Operators and Parts List manual for the Delta Rockwell 20″ Drill Press. It covers both the hand and powerfeed models. It has sections on: Operation, changing belts, Adjustments, Maintenance, Exploded Parts Diagrams, & Parts List. It has a parts list supplement No DP-12 dated April 1985 and the Power Feed Parts list supplement. It also contains the supplement for the Automation and Remote Control Kit It has 18 pages. To inspect the quality of the manual, and to view select pages, please click on the gallery images above to enlarge. Includes sections on: Motor Recommendations Belt Replacement Adjusting Spindle Return Spring Changing Spindles Quill Wear Adjustment Power Feed Models Clutch Adjustment Lubrication Exploded Parts Views Parts Lists Extra Parts List DP-12 Extra Power Feed Parts List Automation & Remote Control Kit Supplement Number of pages: Approx 18 Publication date: Oct. 10, 1964 Publication No.: PM 402-06-451-5007 Added Notes: Due to others making copies of these manuals for resale, I have lightly watermarked select pages to discourage this practice. About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. Sales tax charged for Kansas sales. See my for more manuals. Be sure to add me to your favorites list!
