Delta 20″ W-T Drill Press 70-400, 70-401, & Many Others Op & Parts Manual #1908

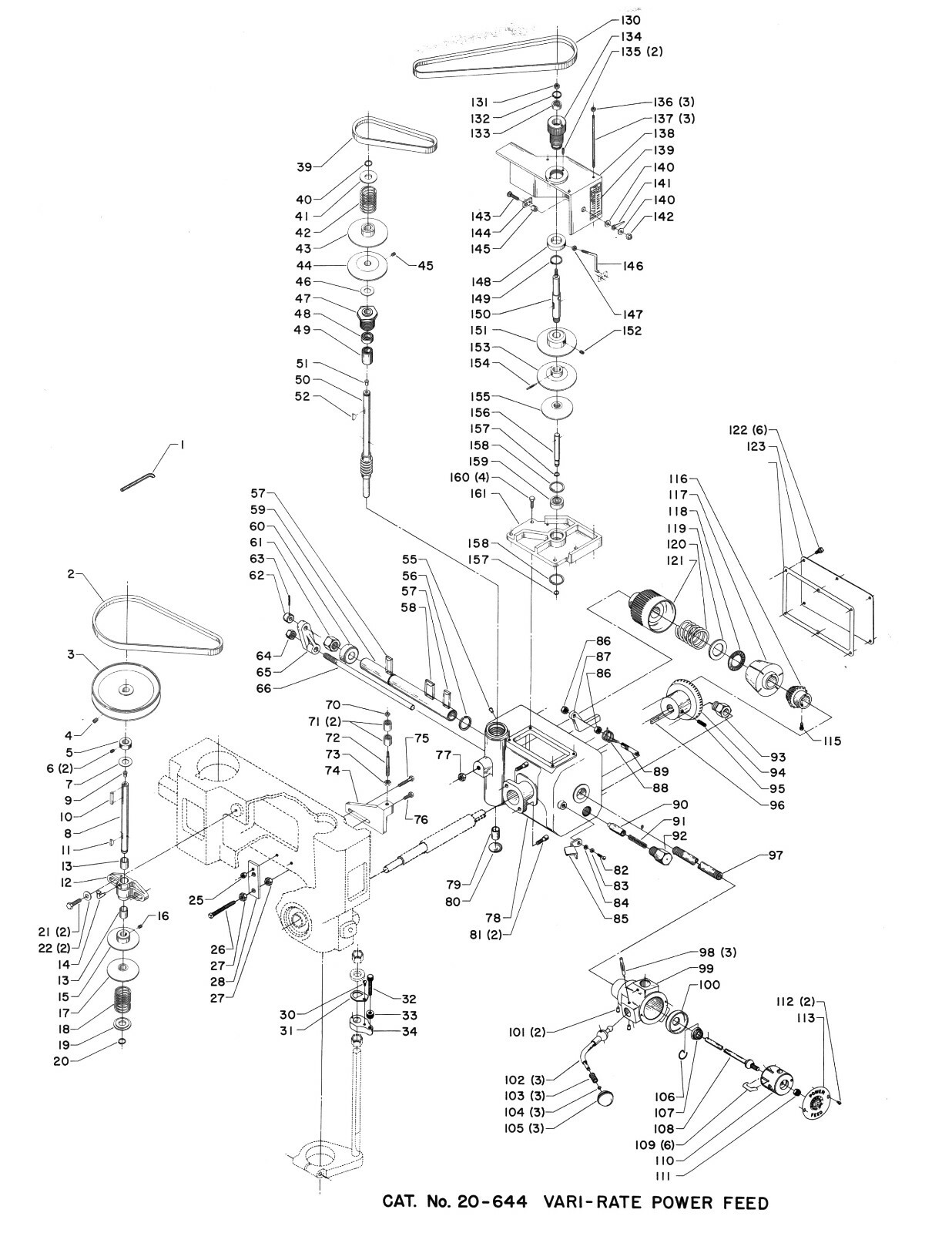

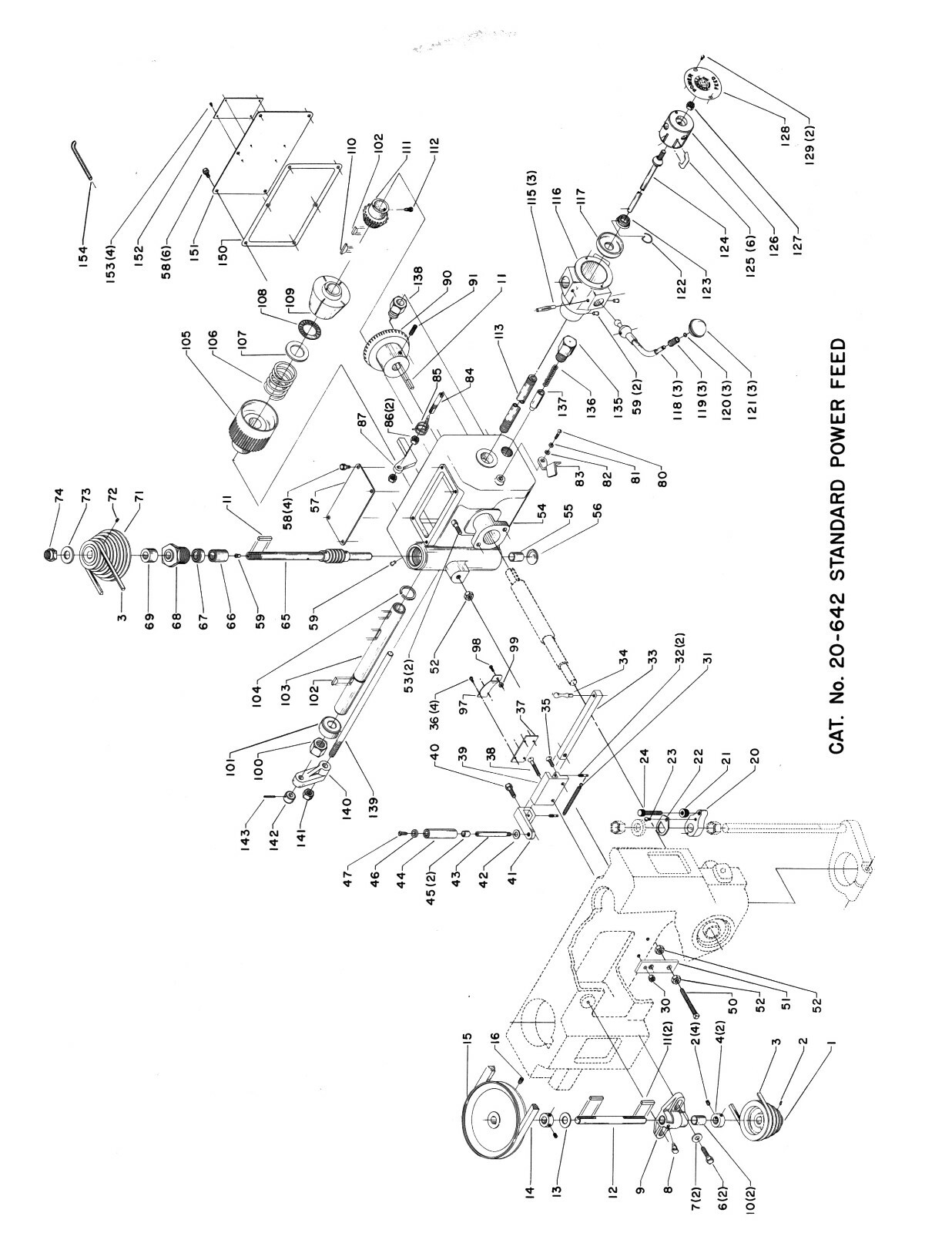

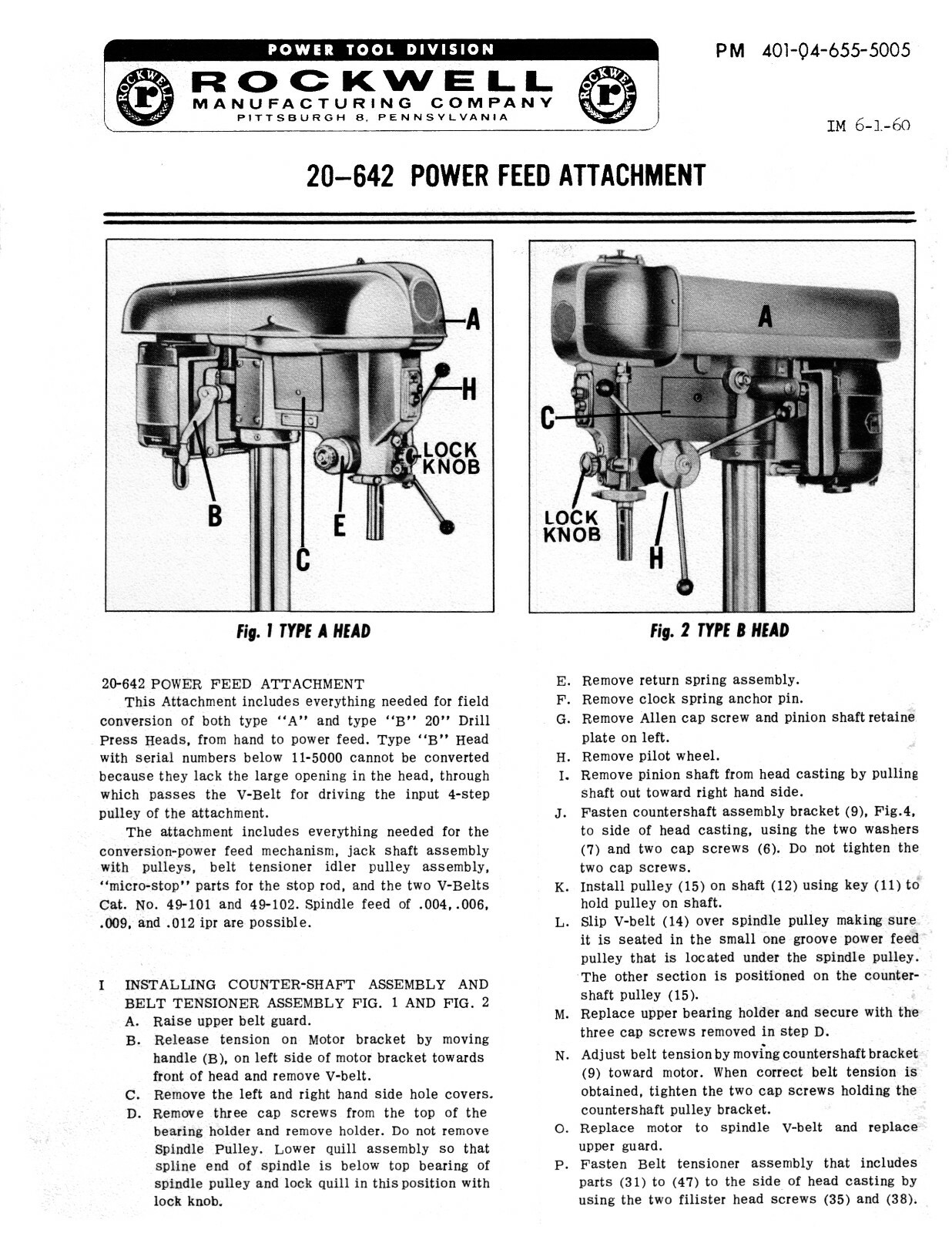

Delta Rockwell Walker-Turner Type 20″ Drill Press Type of Manual: Operation and Parts Manual For Models: All 20″ W-T types: 70-400, 70-401, 70-402, 70-403, 70-404, 70-406, 70-407, 70-408, 70-410, 70-411, 70-412, 70-413, 70-414, 70-416, 70-417, 70-418, 70-425, 70-426-70-428, 70-440, 70-441, 70-442, 70-443, 70-444, 70-446, 70-447, 70-448, 70-450, 70-451, 70-452, 70-453, 70-454, 70-456, 70-458, 70-475, 70-520, 70-521, 70-522, 70-523, 70-524, 70-526, 70-527, 70-528, 70-530, 70-531, 70-532, 70-533, 70-534, 70-536, 70-537, 70-538, 70-540, 70-541, 70-542, 70-543, 70-544, 70-546, 70-547, 70-548, 70-550, 70-551, 70-552, 70-553, 70-554, 70-556, 70-557, 70-558 Description: This manual covers the Delta/Rockwell W-T type 20″ Drill Press. It covers Motors, Adjustments, Power Feeds, Lubrication, and it also includes the Updated DP-12A Exploded Parts View and Parts List, the 20-642 Power Feed Attachment Bulletin, & the Vari-Rate Power Feed Attachment Bulletin which do not come with the original factory manual. The manual has about 21 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on:OperationMotorsBelt ReplacementAdjustmentsChanging SpindlesLubricationClutch AdjustmentsStandard Power FeedVari-Rate Power Feed20-642 Power Feed Attachment BulletinVari-Rate Power Feed Attachment Supplement Number of Pages: Approx. 21 Publication Date: Oct 1964 Publication No.: PM-402-06-651-5006, DP-12A, 401-04-655-5005, & PM-402-06-655-5015 Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
