Clausing Colchester 21″ Lathe Instruction & Parts Manual sn: 06025 & up *1223

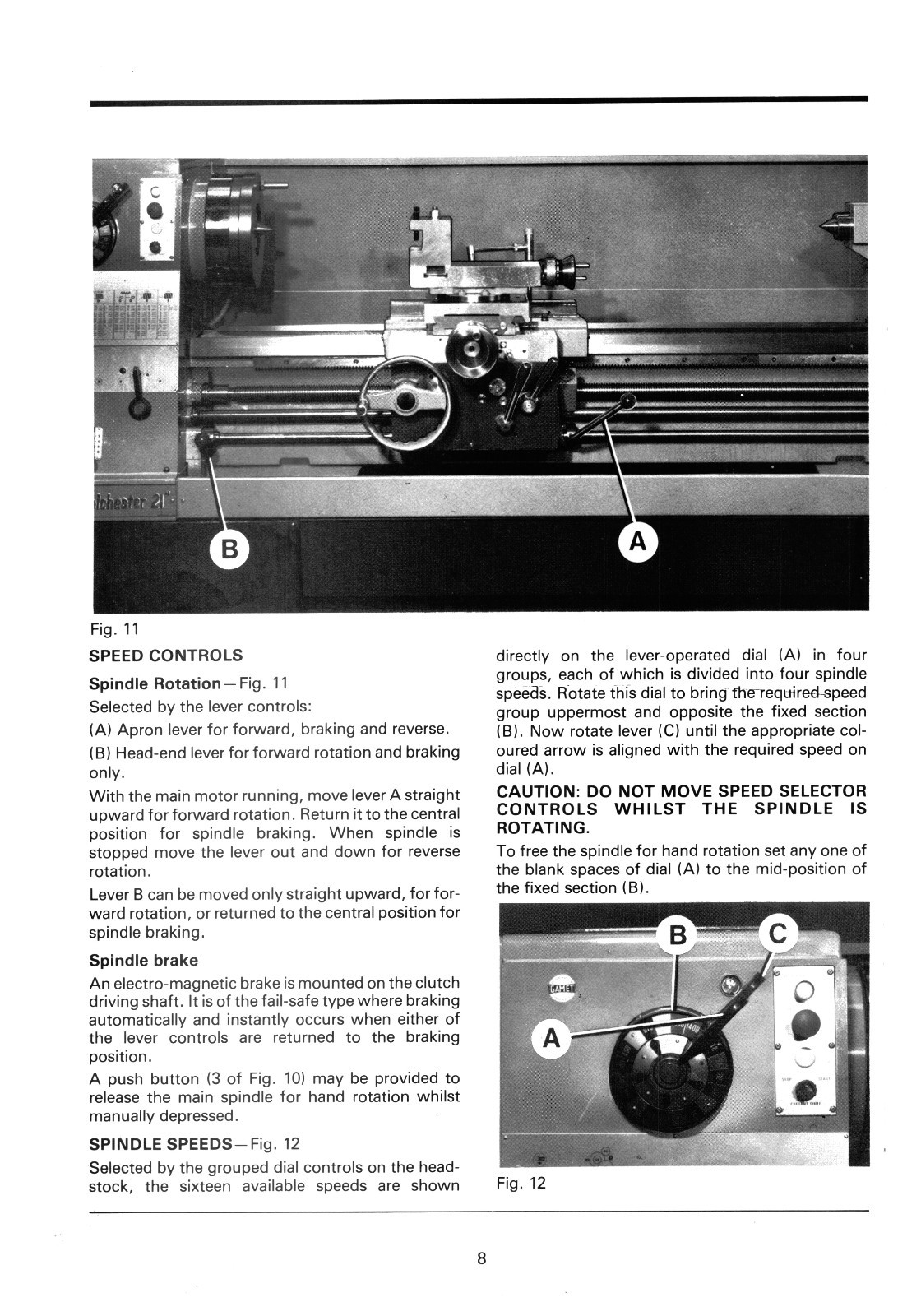

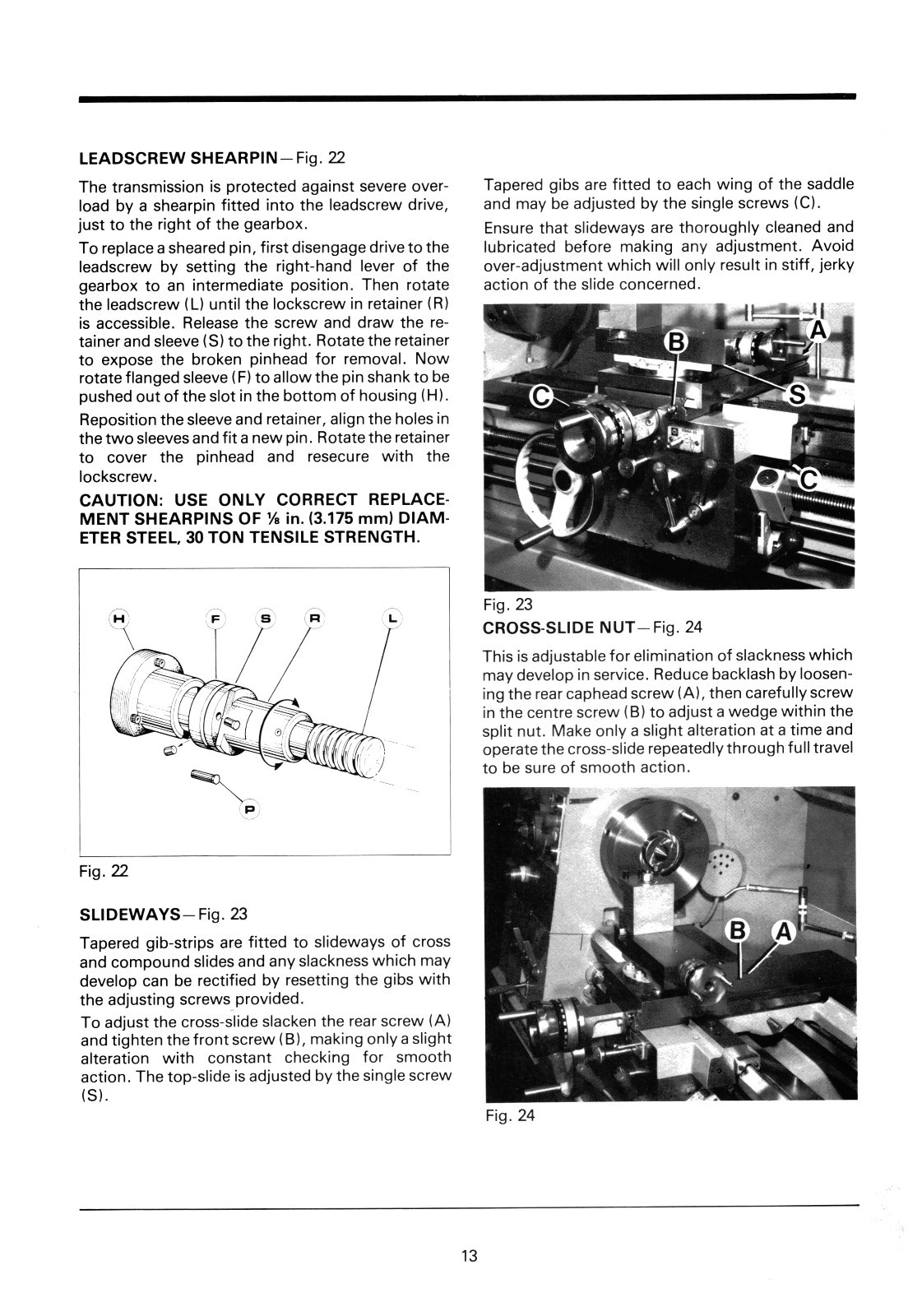

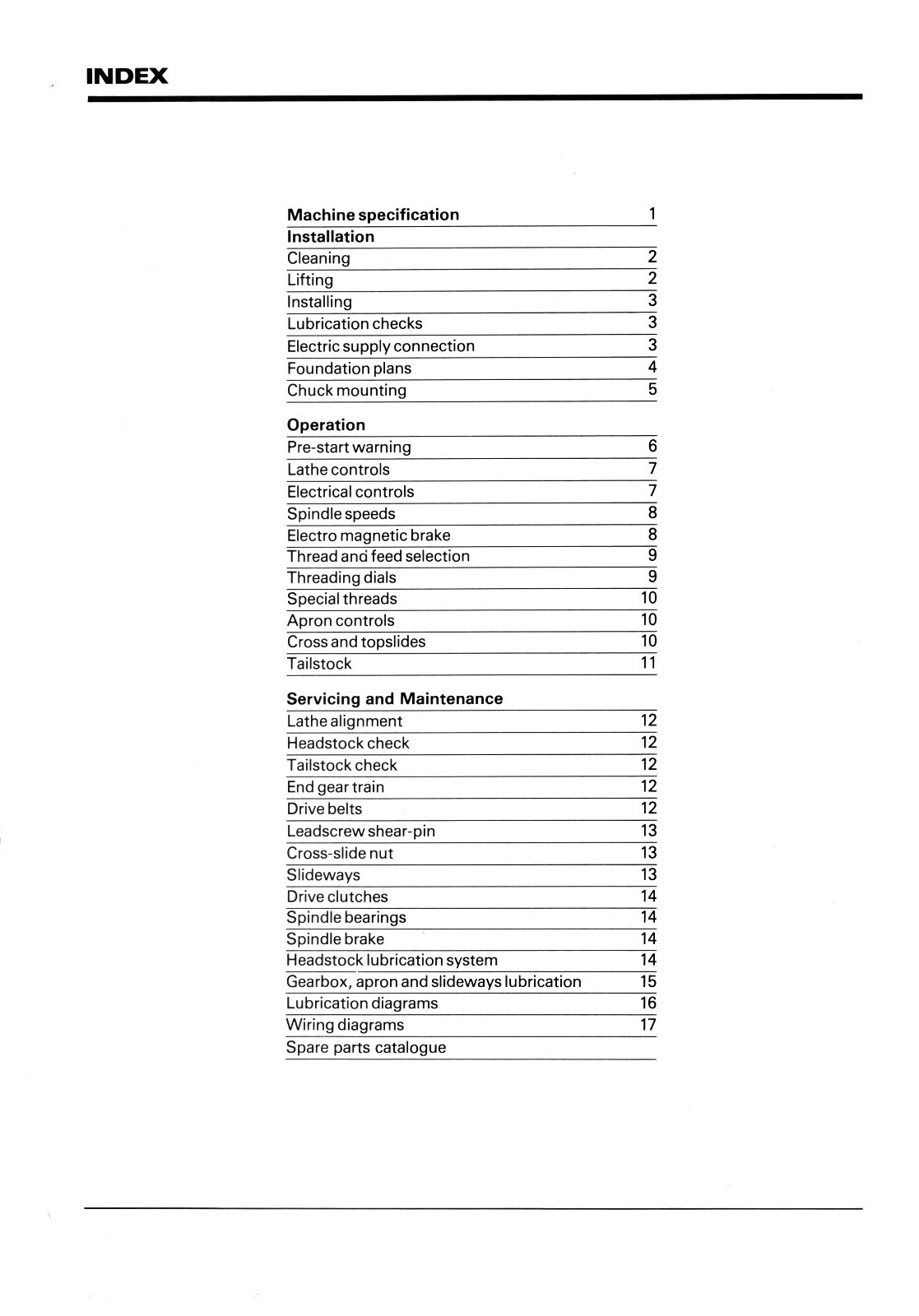

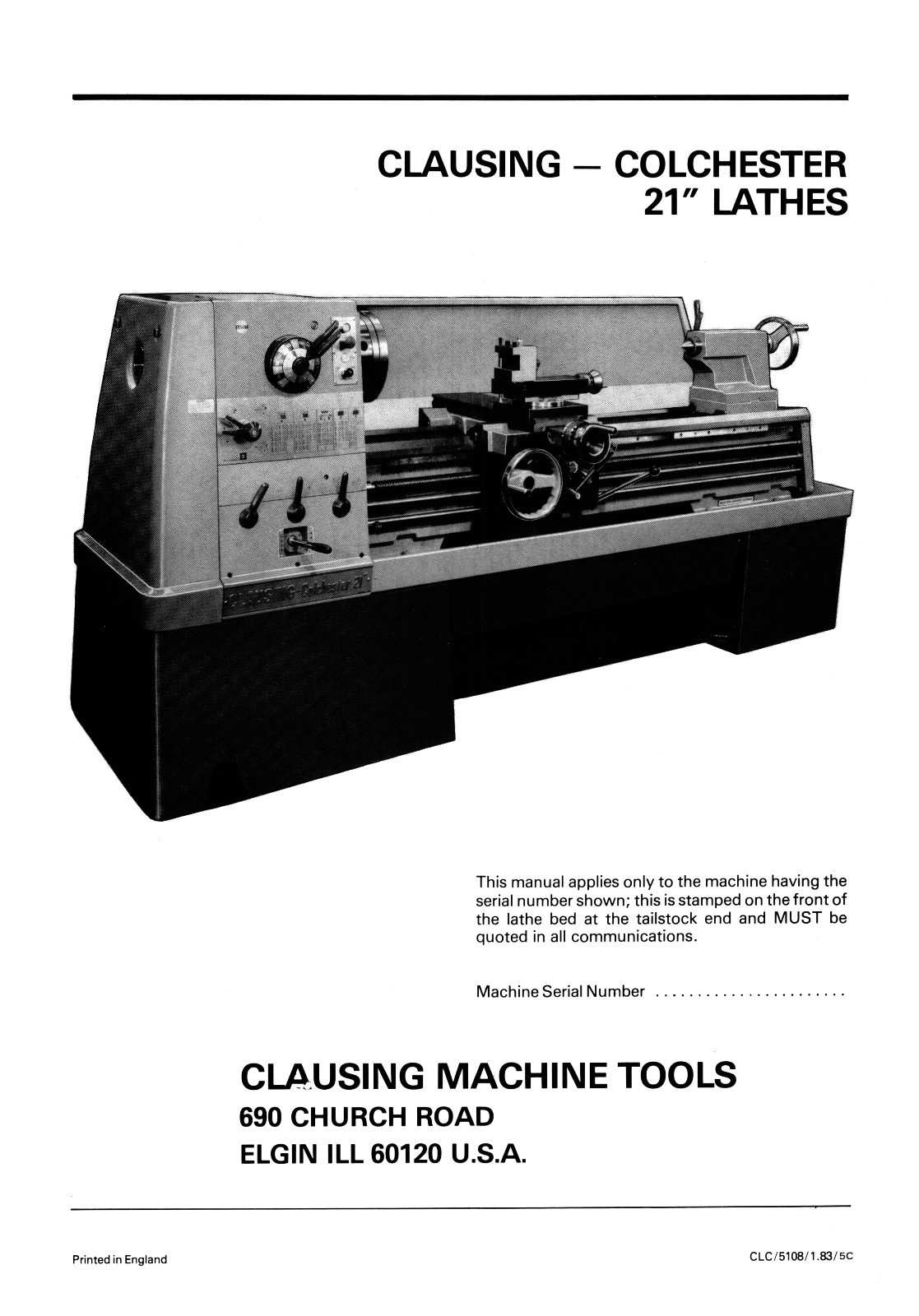

Clausing Colchester 21″ Geared Head Engine Lathe Instruction and Parts Manual For s/n’s: 06025 to 08791 & up For models: 21″ Note: Starting at S/N: 06025 to 08791 Description: This is an Instruction & Parts List Manual for the 21″ Clausing Colchester Lathe beginning with serial number 06025 and up. It has instructions on Operation, Controls, Installation, Lubrication, Adjustments, Alignment, Wiring Diagram, complete Exploded Parts Views including the Parts List, Rapid Threader, Taper Turner, & Tool Posts. The manual has 68 pages. To inspect the quality of the manual, to view the Table of Contents, and to view select pages, please click on the gallery images above to enlarge. Includes sections on: Operation Controls Parts List Exploded Parts Views Machine Specifications Lubrication Chart Spindle Brake Adjustments Alignment Checks Installation Lubrication Wiring Diagram Number of pages: Approx 68 Condition: Very Good Publication date: n/a Publication No.: n/a Added Notes: Due to competitors making copies of these manuals for resale, select pages have been lightly watermarked to discourage this practice. About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop.Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Sales tax charged for Kansas sales. See my for more manuals
