Clausing Colchester 15″ Lathe Instruction & Parts Manual sn: 48761-48896 *1137

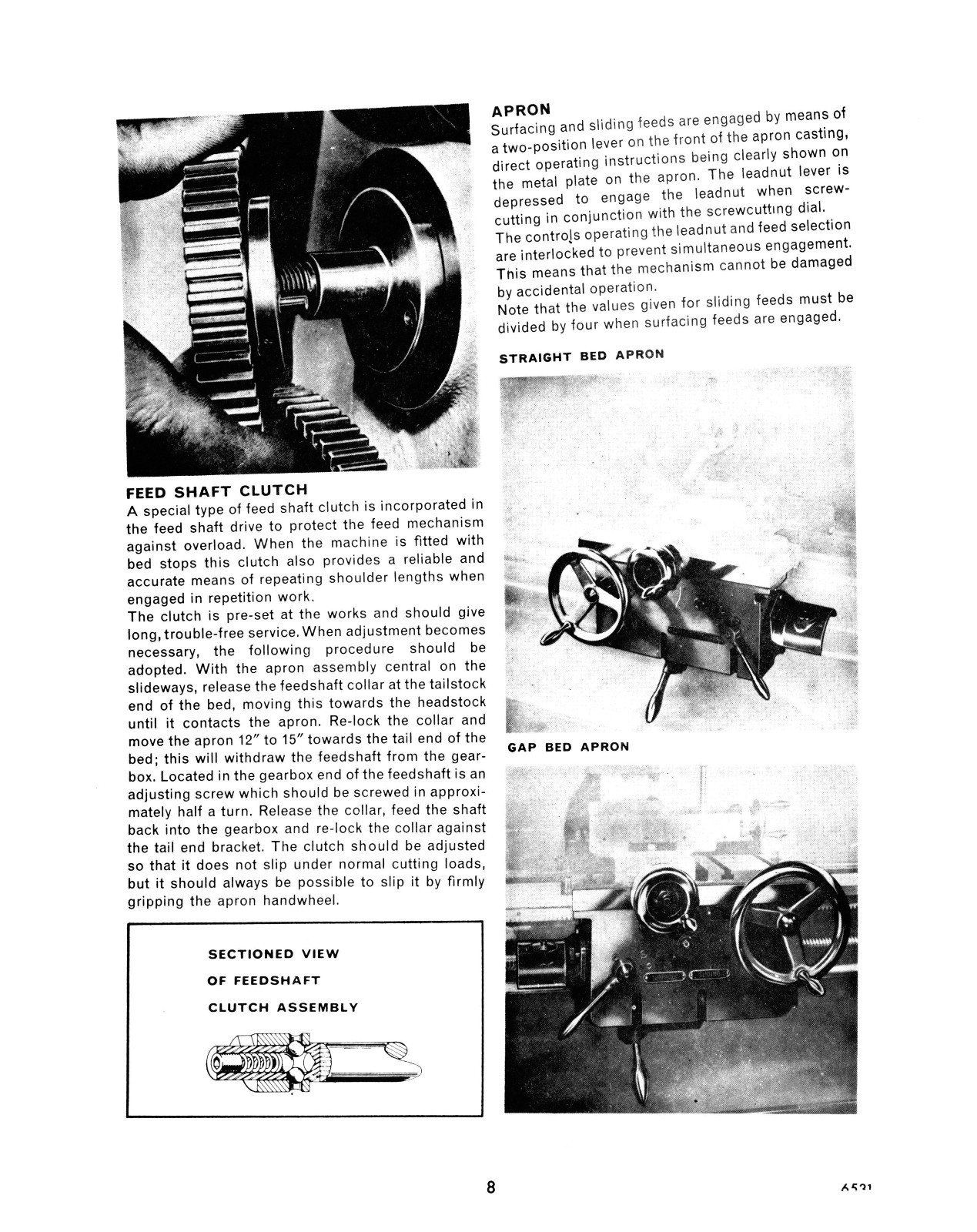

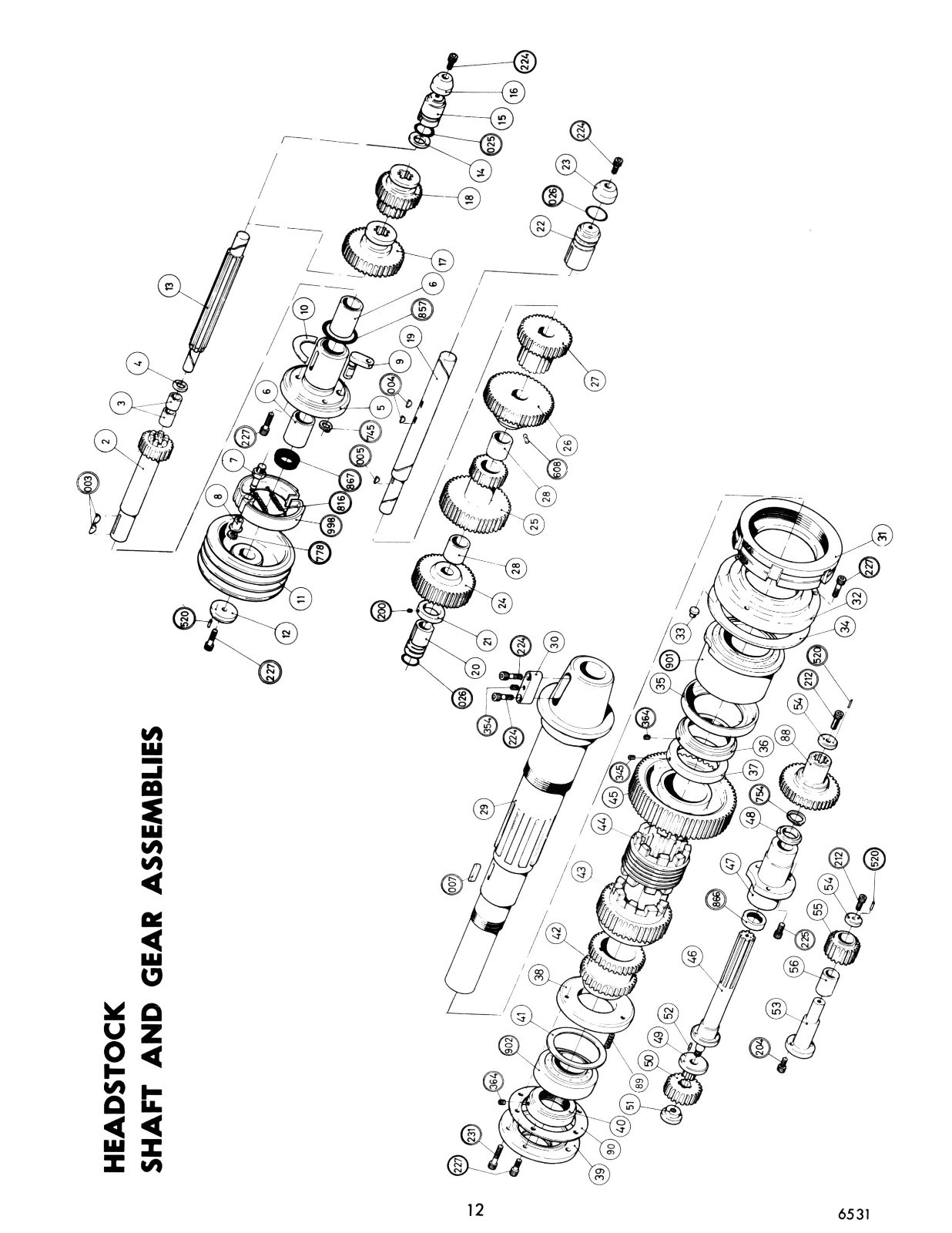

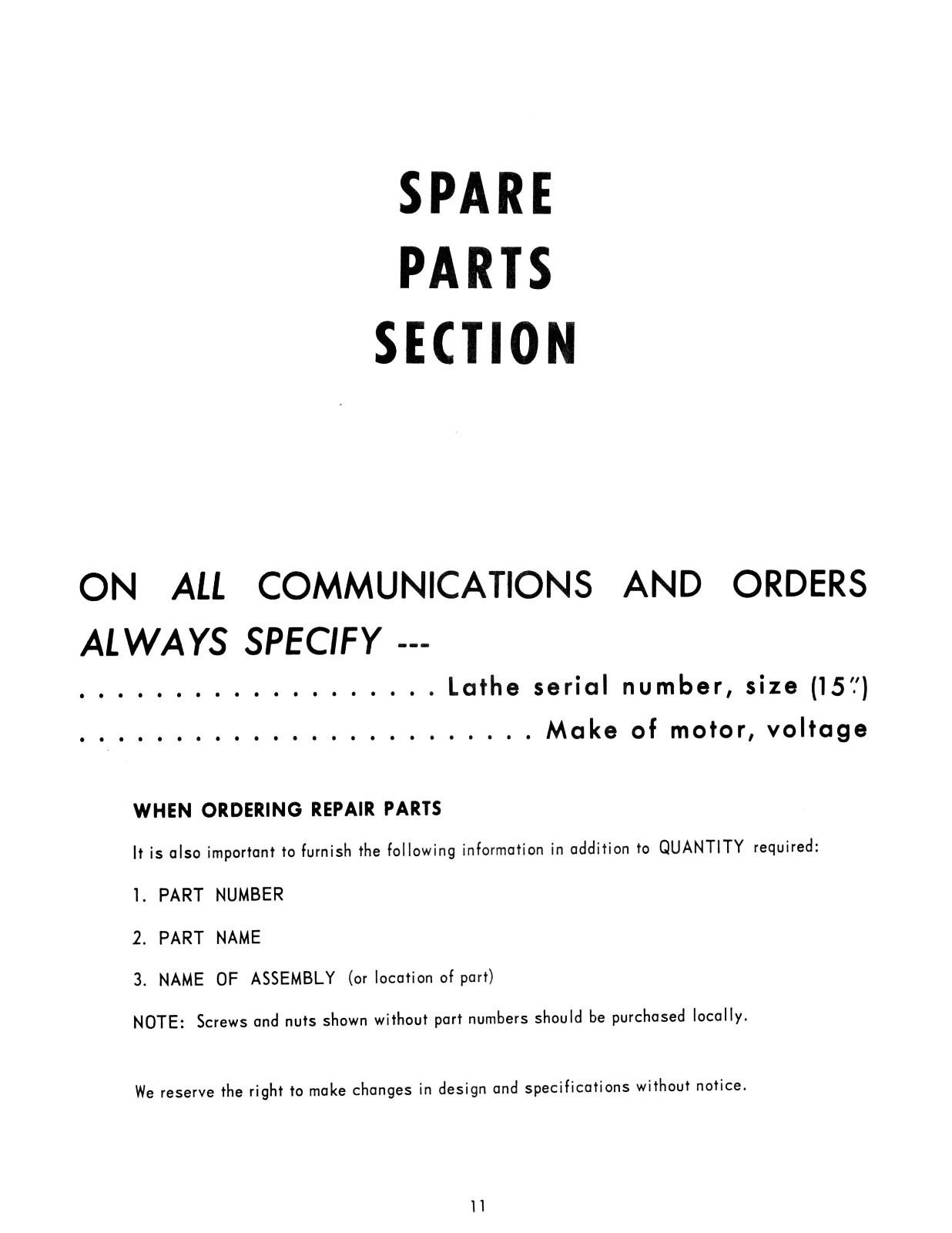

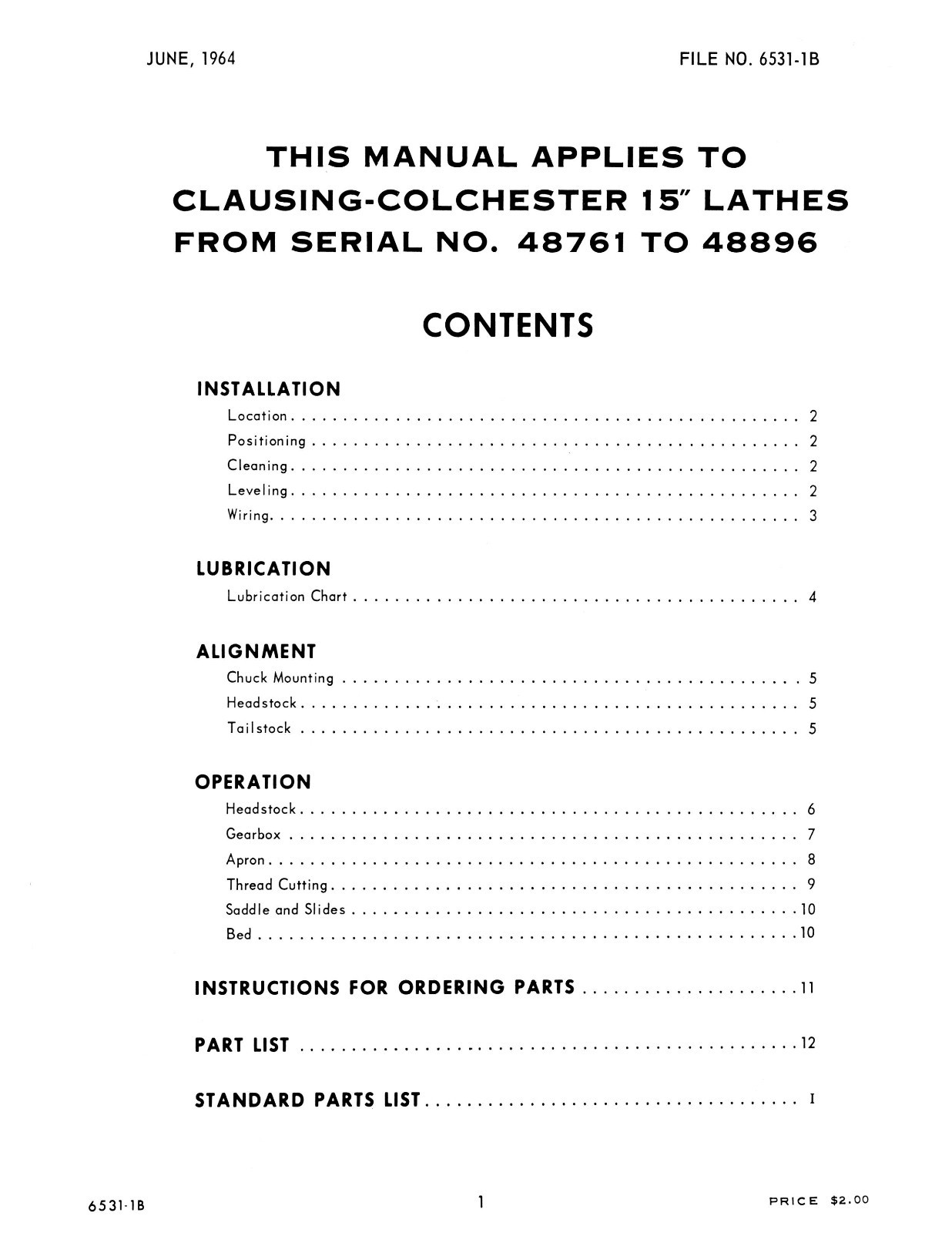

Clausing Colchester 15″ Geared Head Engine Lathe Instruction and Parts Manual For s/n’s: 48761 to 48896 For models: 15″ Note: Starting at S/N: 48761 to 48896 Description: This is an Instruction & Parts List Manual for the 15″ Clausing Colchester Lathe beginning with serial number 48761 to 48896. It has instructions on Operation, Installation, Lubrication, Adjustments, Alignment, Thread and Speed Charts, Wiring Diagram, complete Exploded Parts Views including the Telescopic Taper Attachment, and a Numerical Parts List. The manual has 38 pages. To inspect the quality of the manual, to view the table of contents, and to view select pages, please click on the gallery images above to enlarge. Includes sections on: Operation Parts List Exploded Parts Views Lubrication Chart Alignment Checks Thread Chart Speed Chart Thread Cutting Installation Lubrication Number of pages: Approx 38 Condition: Very Good Publication date: June 1964 Publication No.: 6531-1B Added Notes: Due to competitors making copies of these manuals for resale, select pages have been lightly watermarked to discourage this practice. About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Sales tax charged for Kansas sales. See my for more manuals
