Clausing Colchester 15″ Lathe 15×30 15×48 Gap Bed Instruct & Parts Manual #1362

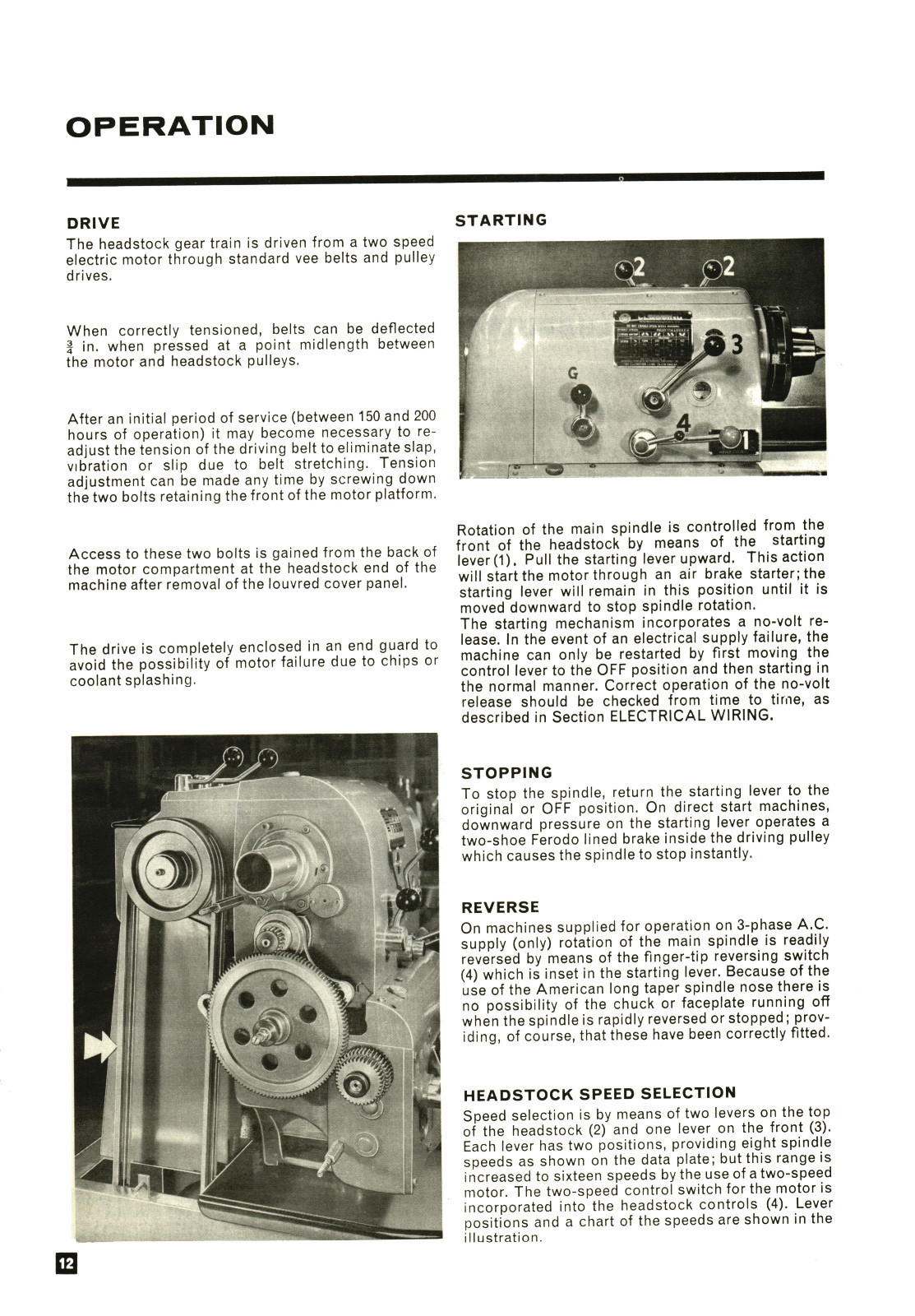

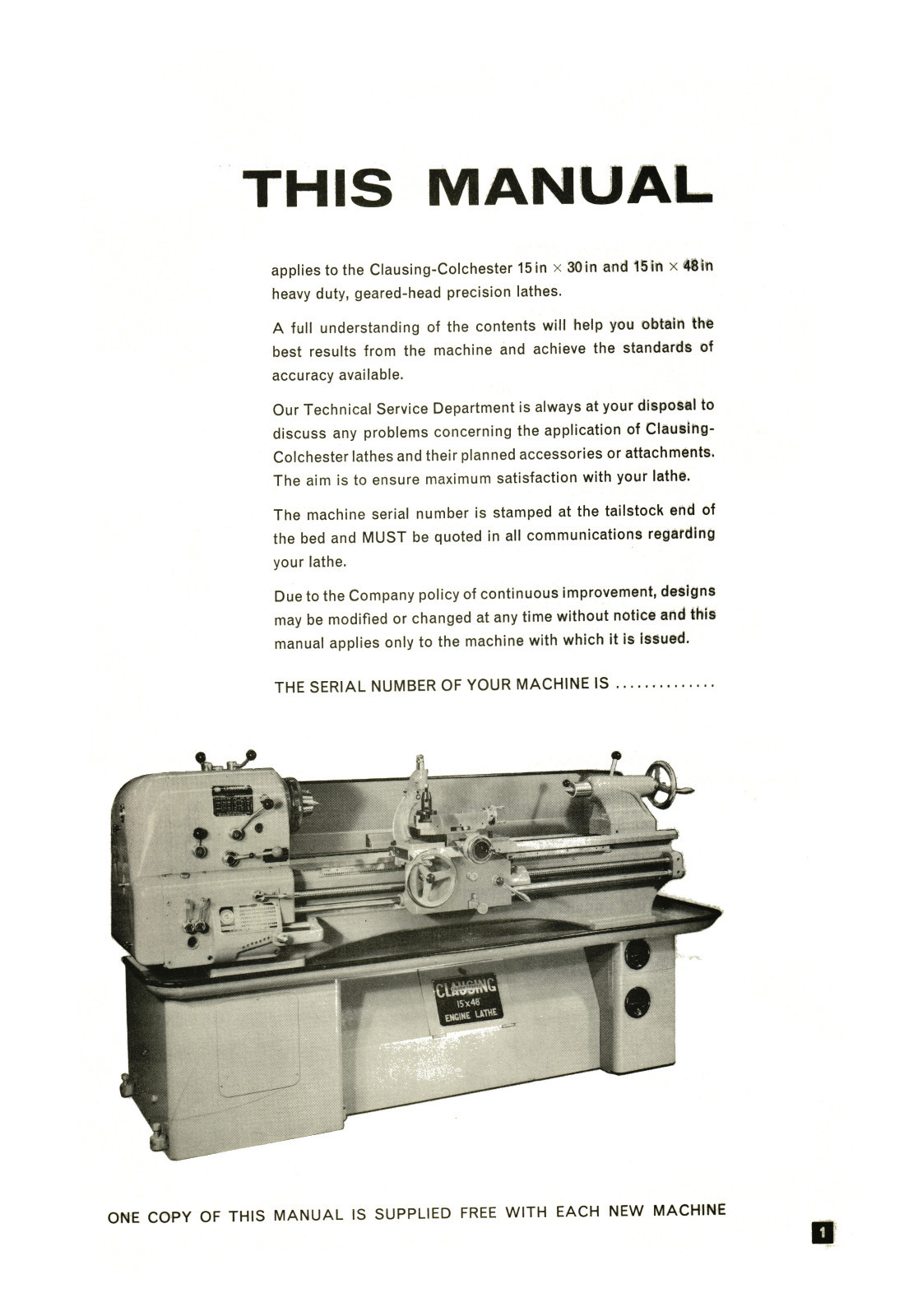

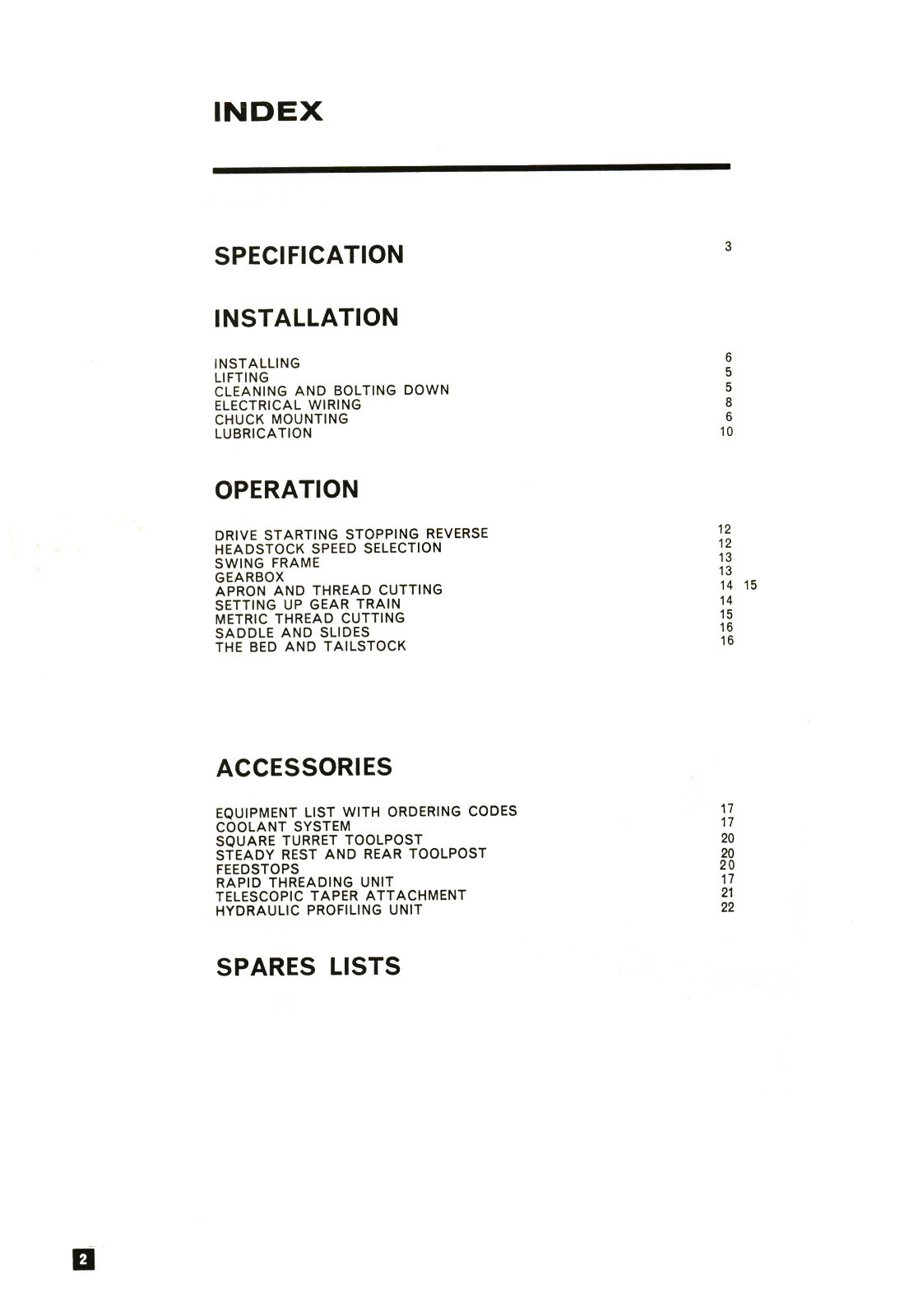

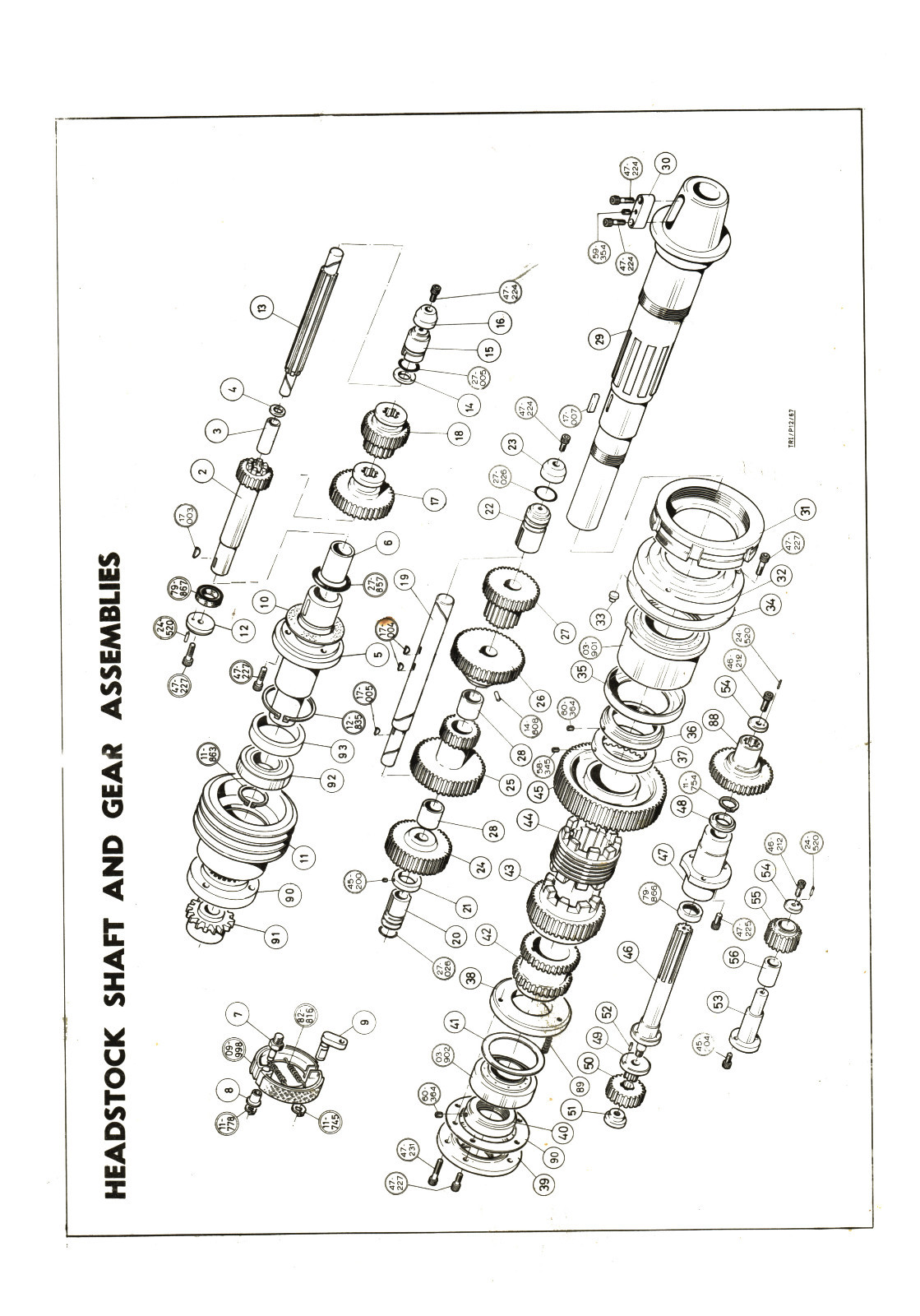

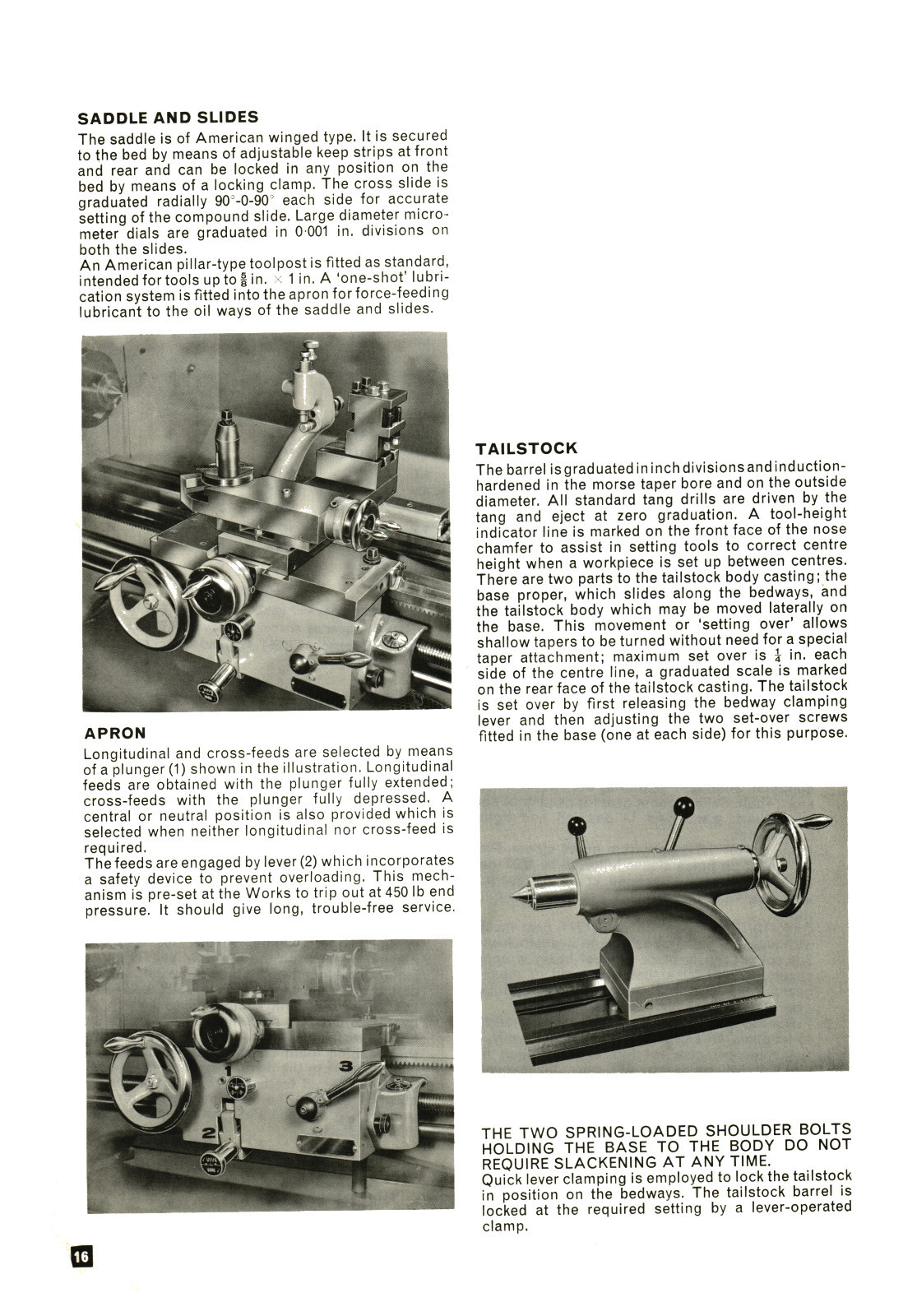

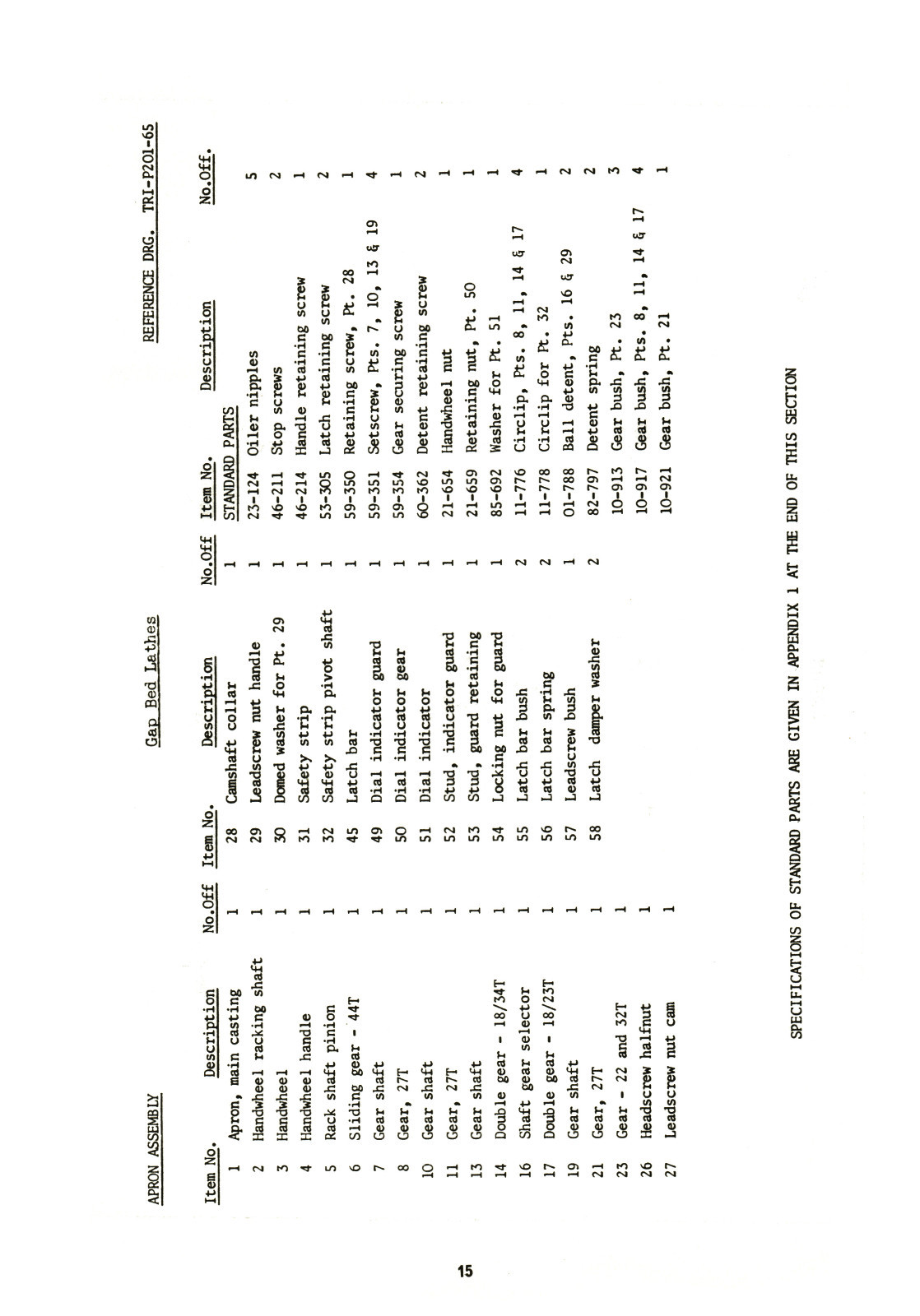

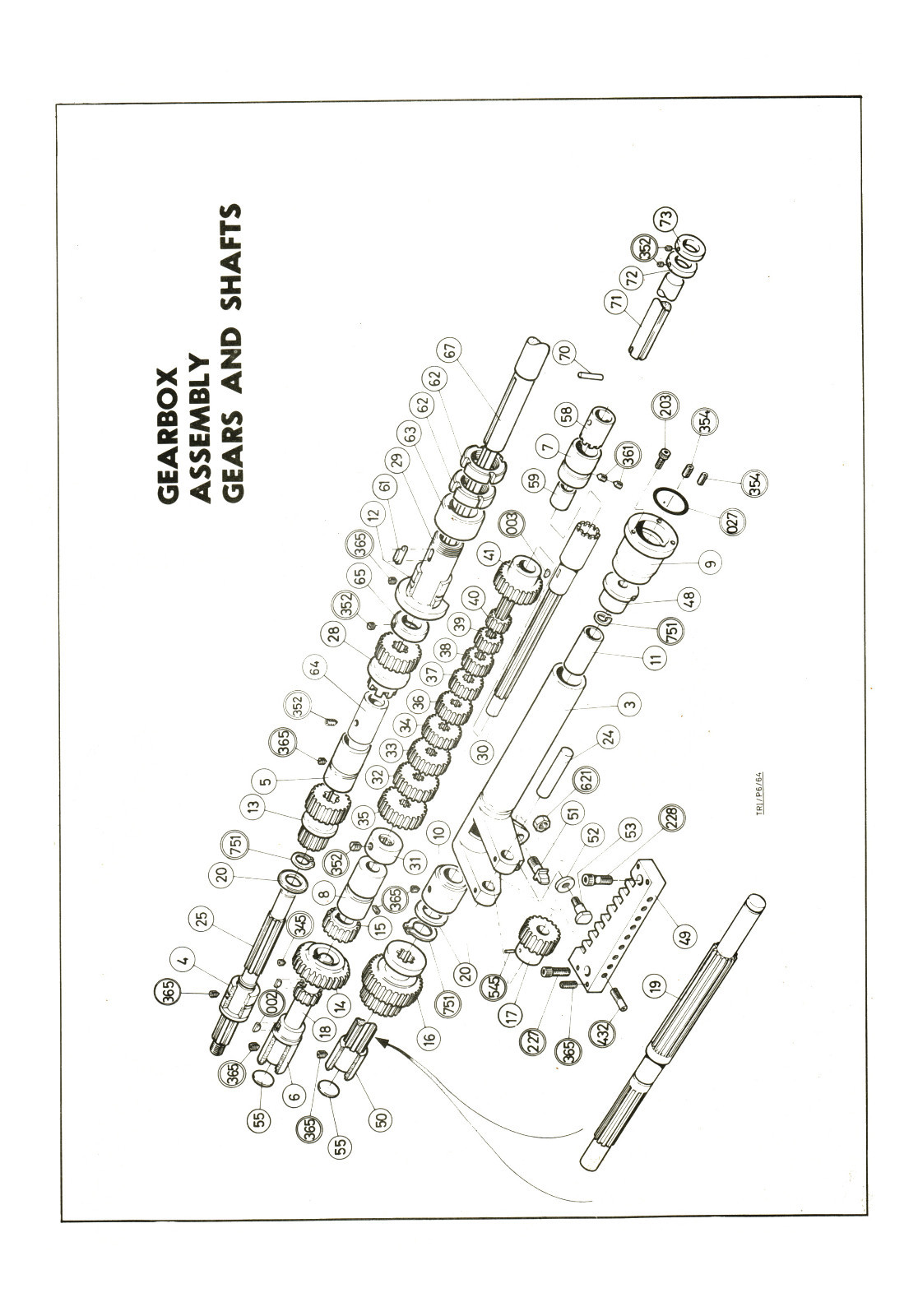

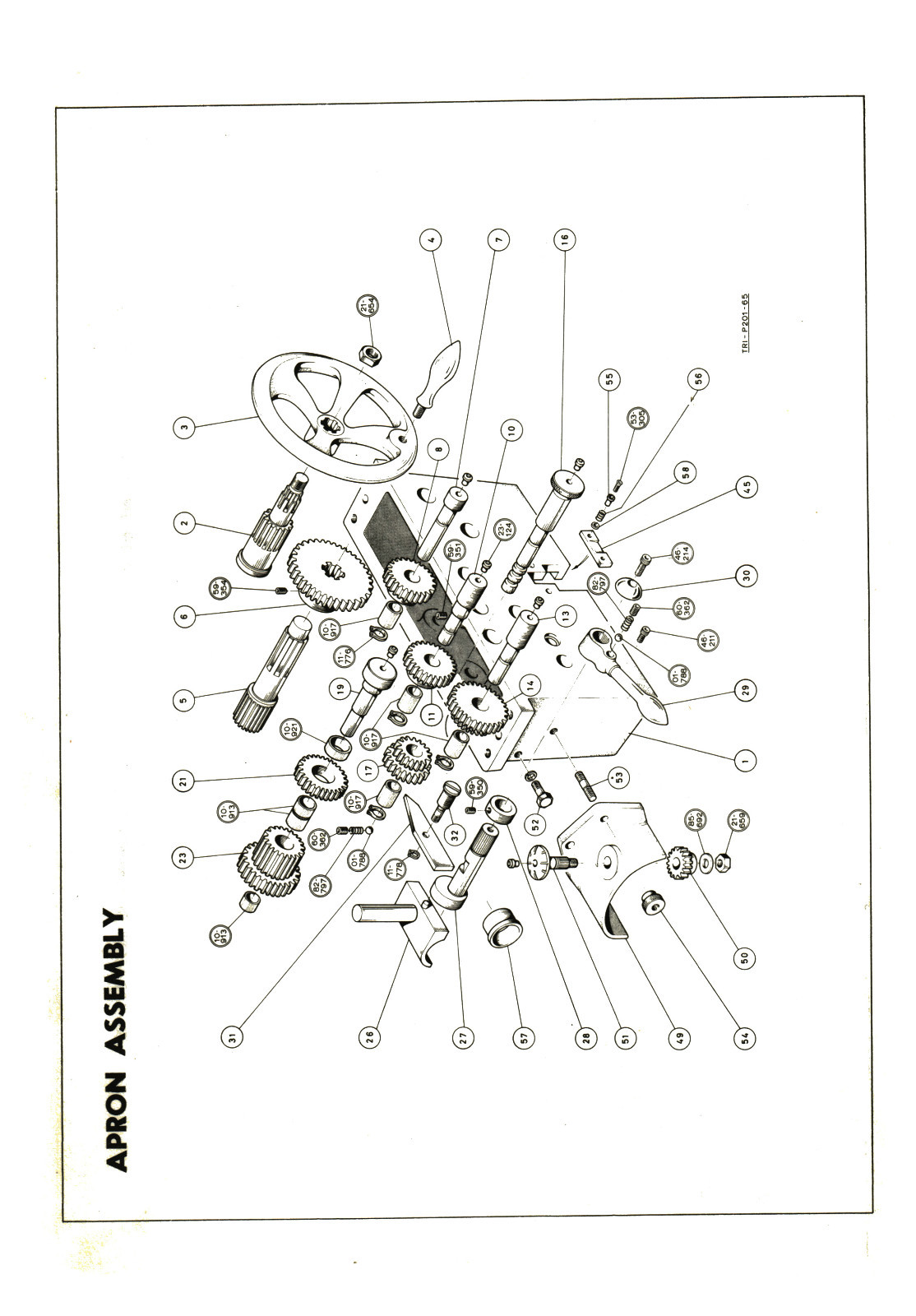

Clausing Colchester 15″ Lathes 15×30 & 15×48 Gap Bed Operating Instruction & Parts Manual For models: 15″ 6534, 6535, 6536, & 6537 Description: This is a Operation & Parts List Manual for the 15″ Geared Head Clausing Colchester Gap Bed Lathe. It has instructions on operation, complete parts breakdown, Maintenance, Lubrication, & Adjustments. The manual has 67 pages. To inspect the quality of the manual, to view the table of contents, and to view select pages, please click on the gallery images above to enlarge. Includes sections on: Operating Instructions Control Operation Lubrication Headstock Speed Selection Gearbox Apron and Thread Cutting Setting Up Gear Train Metric Thread Cutting Saddle and Slides Coolant System Square Turret Toolpost Feedstops Rapid Threading Unit Telescopic Taper Attachment Hydraulic Profiling Unit Assembly Breakdown Drawings Wiring Diagram Parts List Number of pages: Approx 67 Publication date: 1967 Publication No.: N/A Added Notes: About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. Sales tax charged for Kansas sales.
