CLAUSING 100 – Atlas 4800 Series 12″ Metal Lathe Operating & Parts Manual 0133

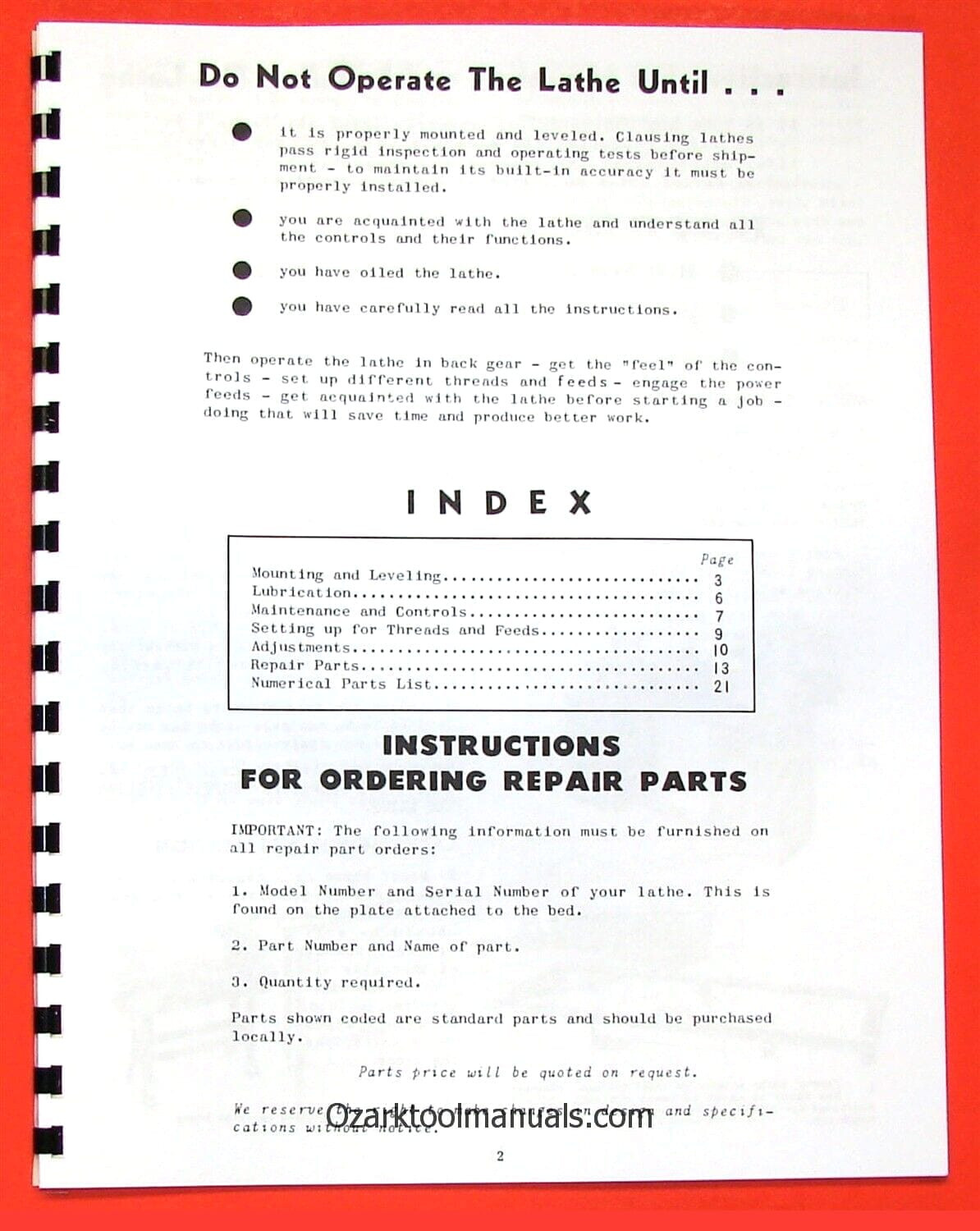

Manual Description:Number of Pages: 24 This is a reproduction, not a photocopy, of an original Atlas 4800 series and a Clausing 100 Mk. 3a 12 Inch Lathe Manual. This manual contains information on setup, lubrication, maintenance, and controls as well as a complete parts list and exploded views and adjustments This particular lathe manual can become confusing to many people, because the model number was changed a couple of times during production of the same lathe. The reason for the changes comes from the fact that Atlas bought Clausing in 1950 and changed the Clausing 100 Series to and to an Atlas branded 4800 series. Lots of customers of the Clausing 100’s didn’t want their lathes branded Atlas, and it confused them when they asked for service. So after a few months Atlas re-branded them Atlas/Clausing 100 series lathes until they stopped producing them in 1965. This manual also includes the Atlas/Clausing 111 One other thing is that Clausing made significant changes to the 100 series during it’s production run. Below is the gear box and headstock covered in this manual. If you have the V shaped gearbox, this manual should cover your lathe. The gearbox looked significantly different, if it was there at all, on older models. Contents Mounting and Leveling………………………….3 Lubrication…………………………………..6 Maintenance and Controls……………………….7 Setting up for Threads and Feeds………………..9 Adjustments………………………………….10 Repair Parts…………………………………13 Numerical Parts List………………………….21 Overview I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page,and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
