Clausing 10″ Lathe 4900 Series S/N: 403934-405509 Op and Parts List Manual #1462

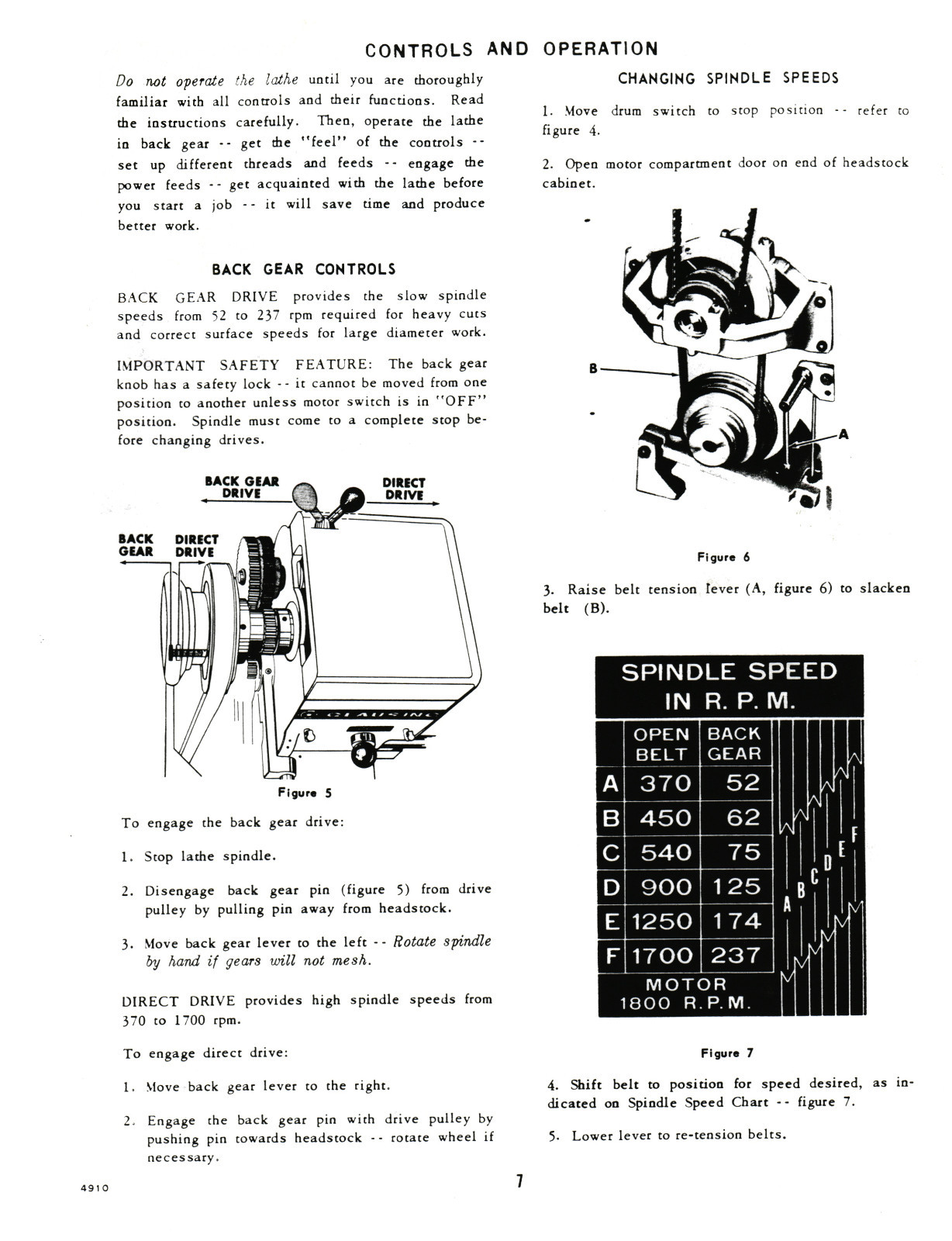

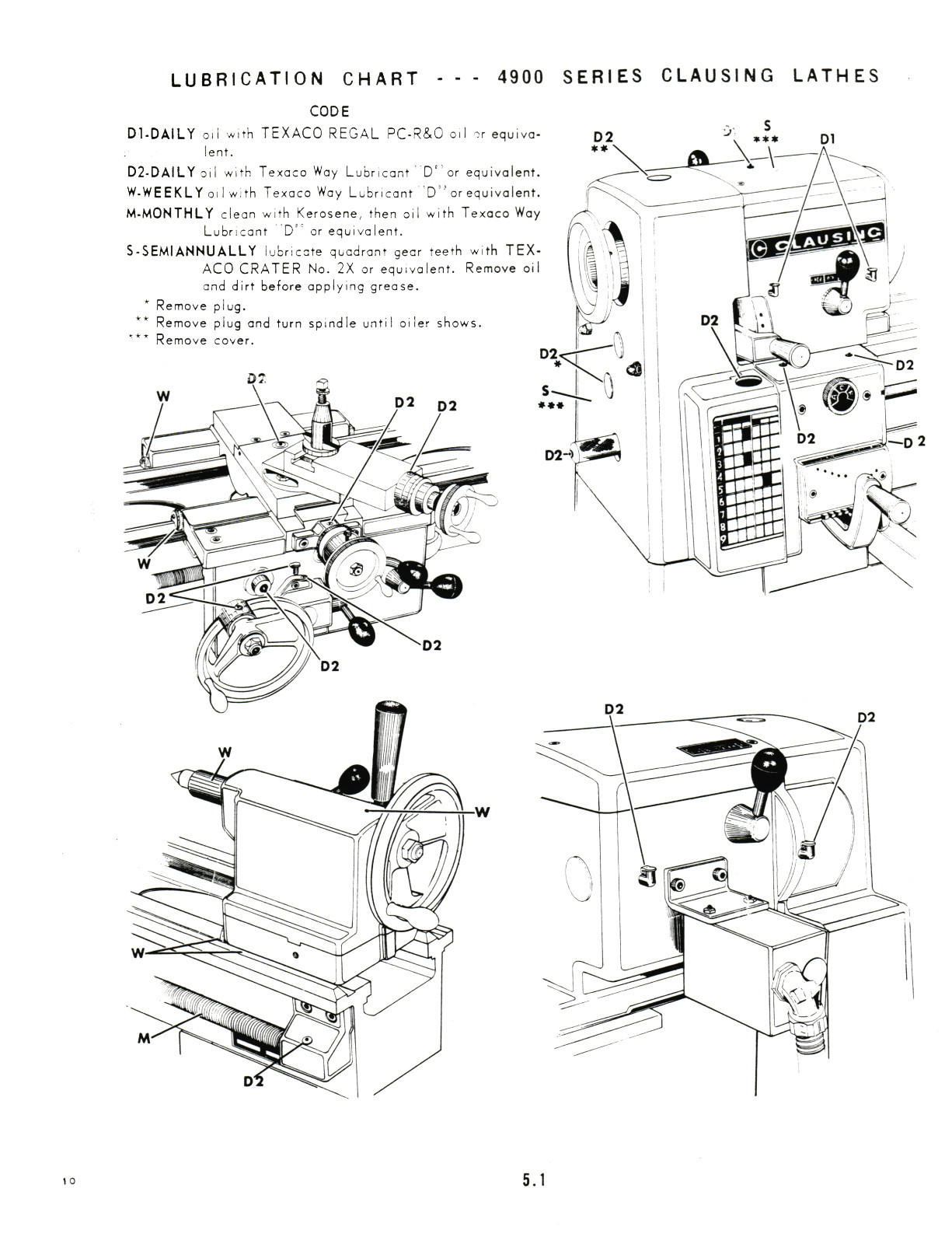

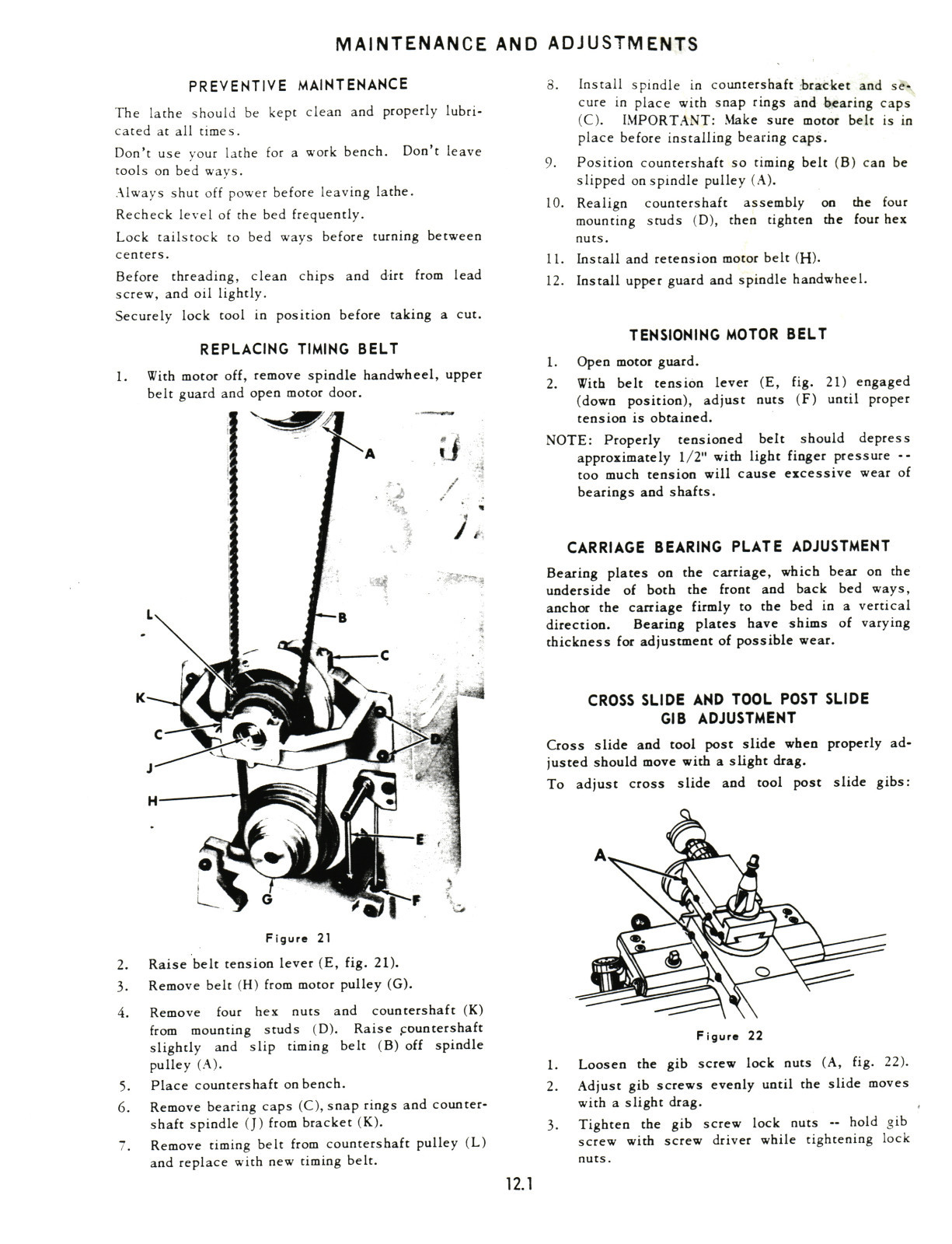

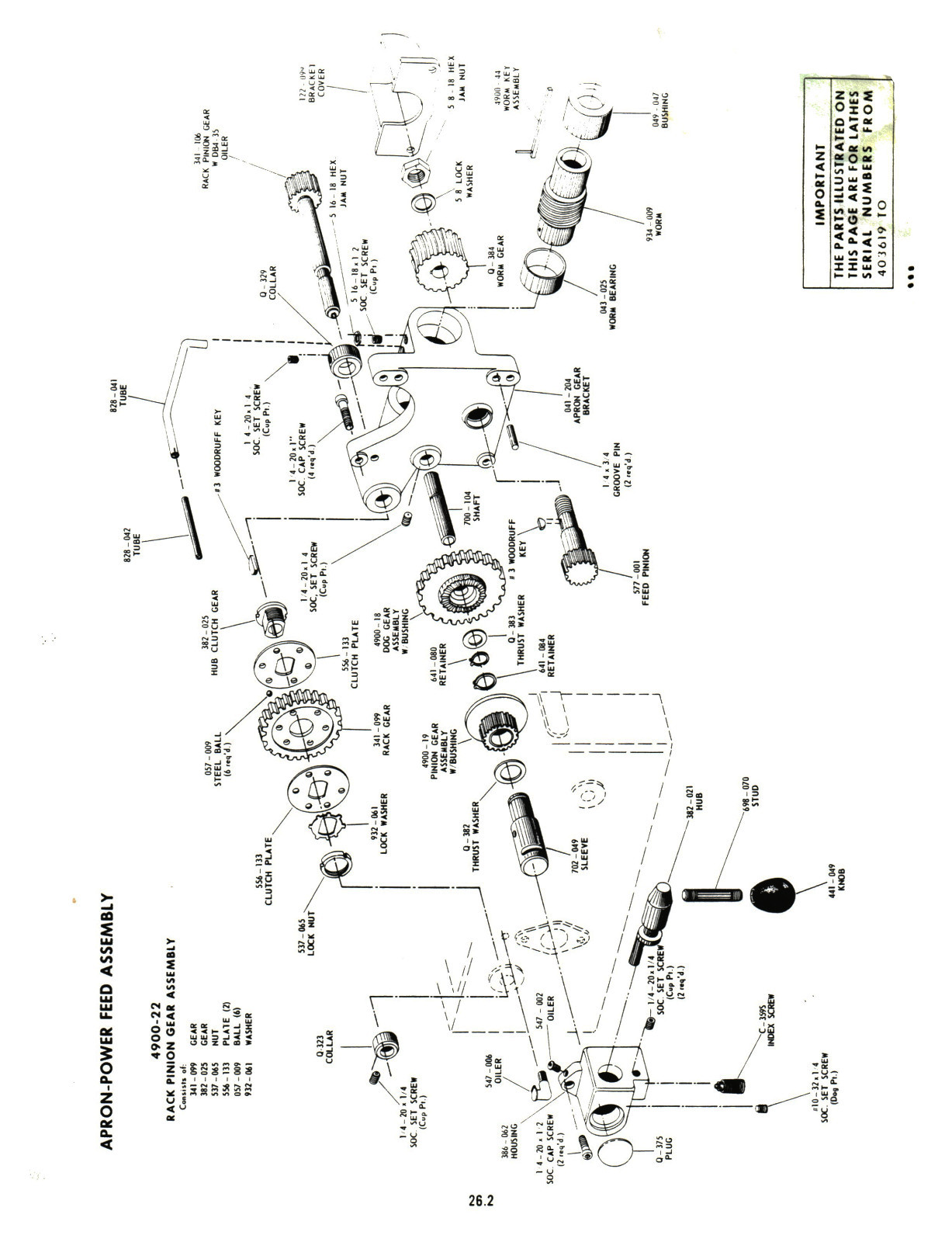

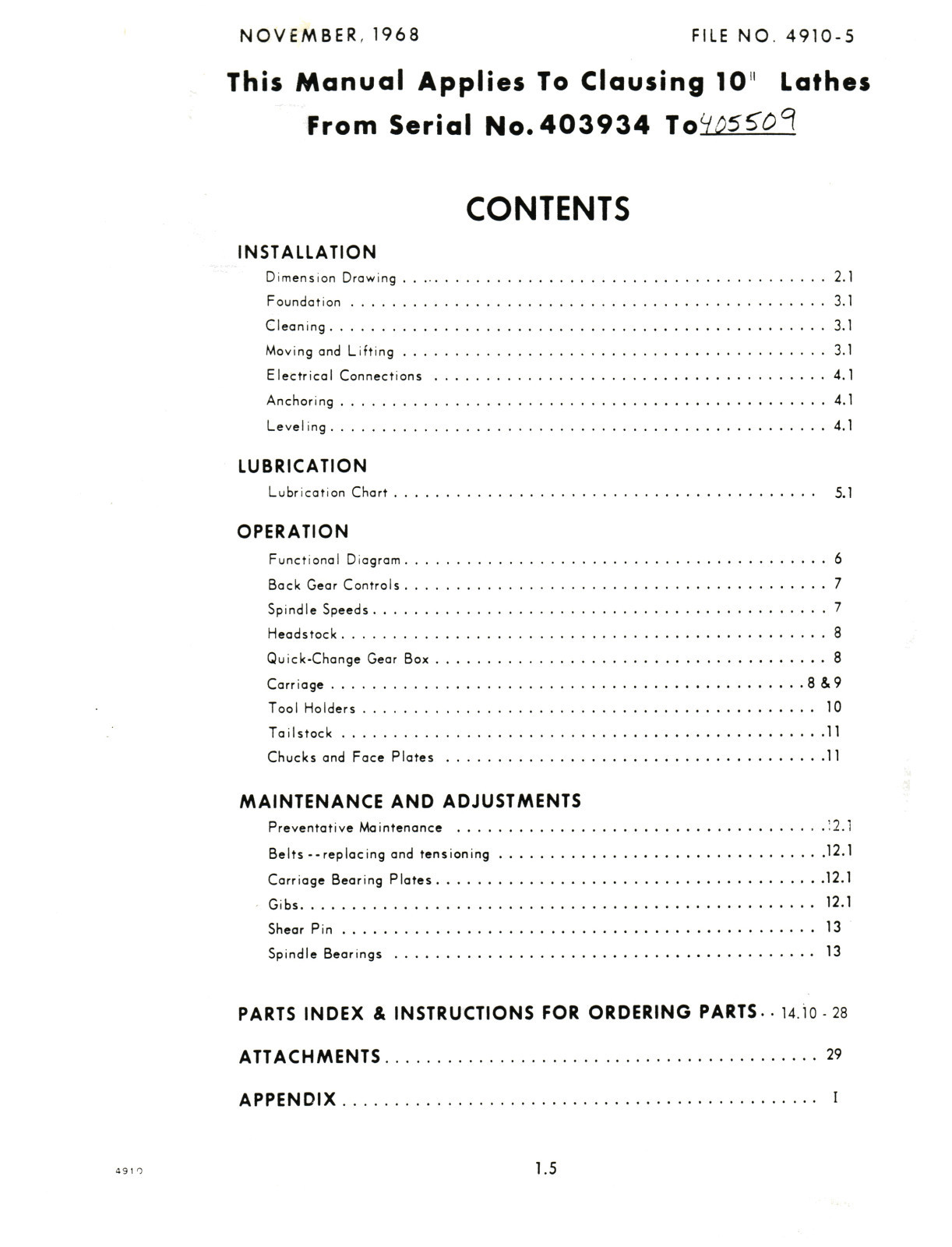

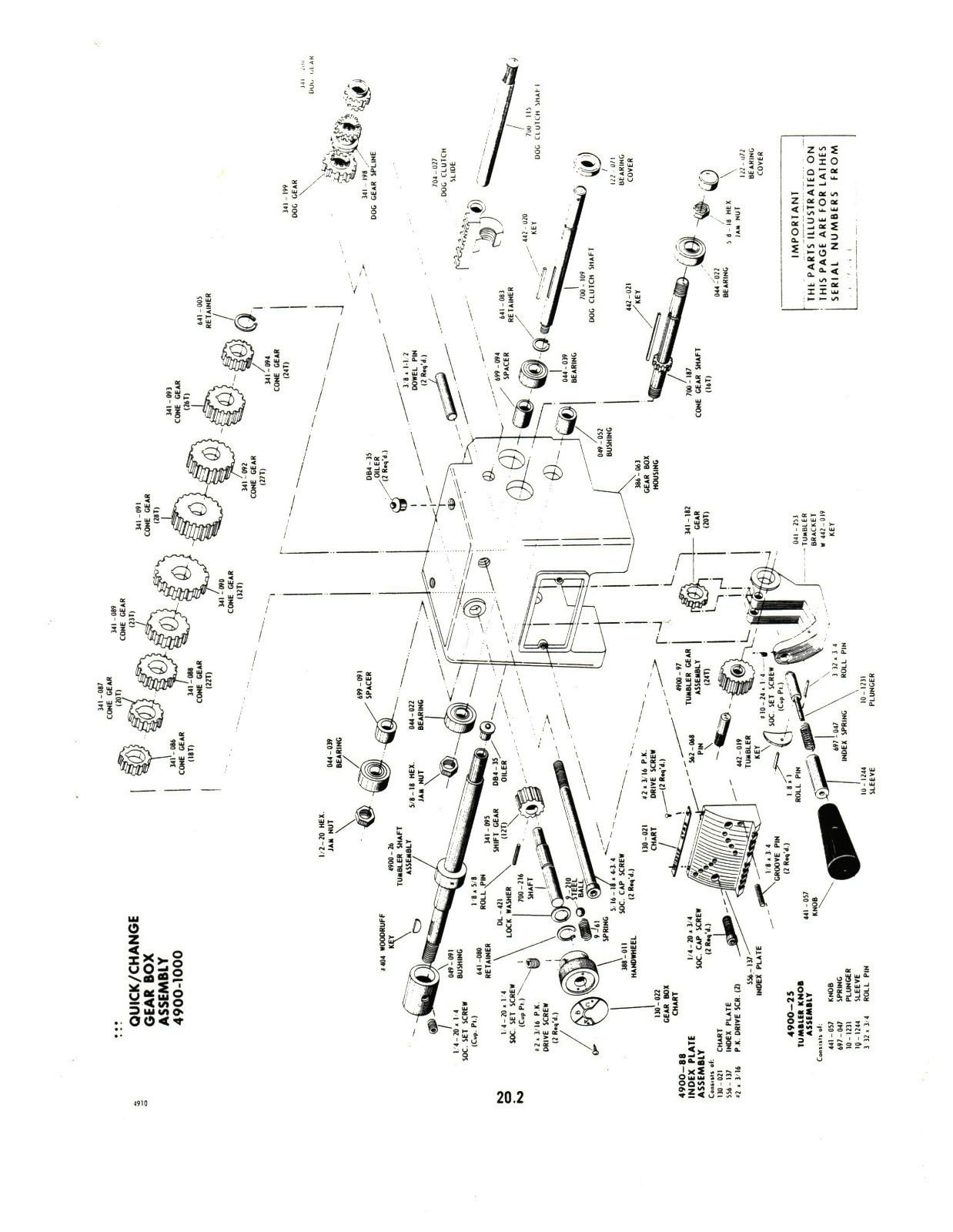

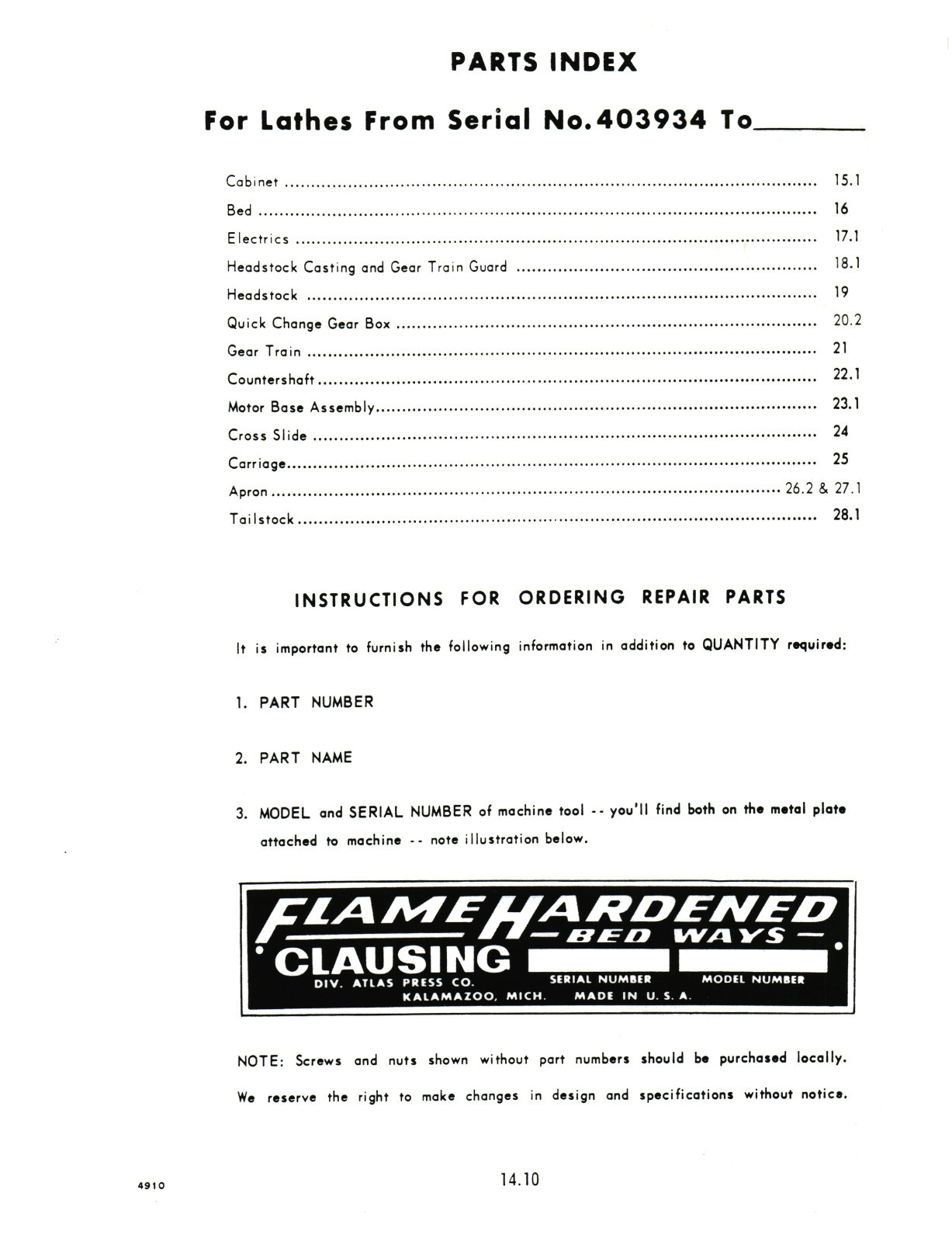

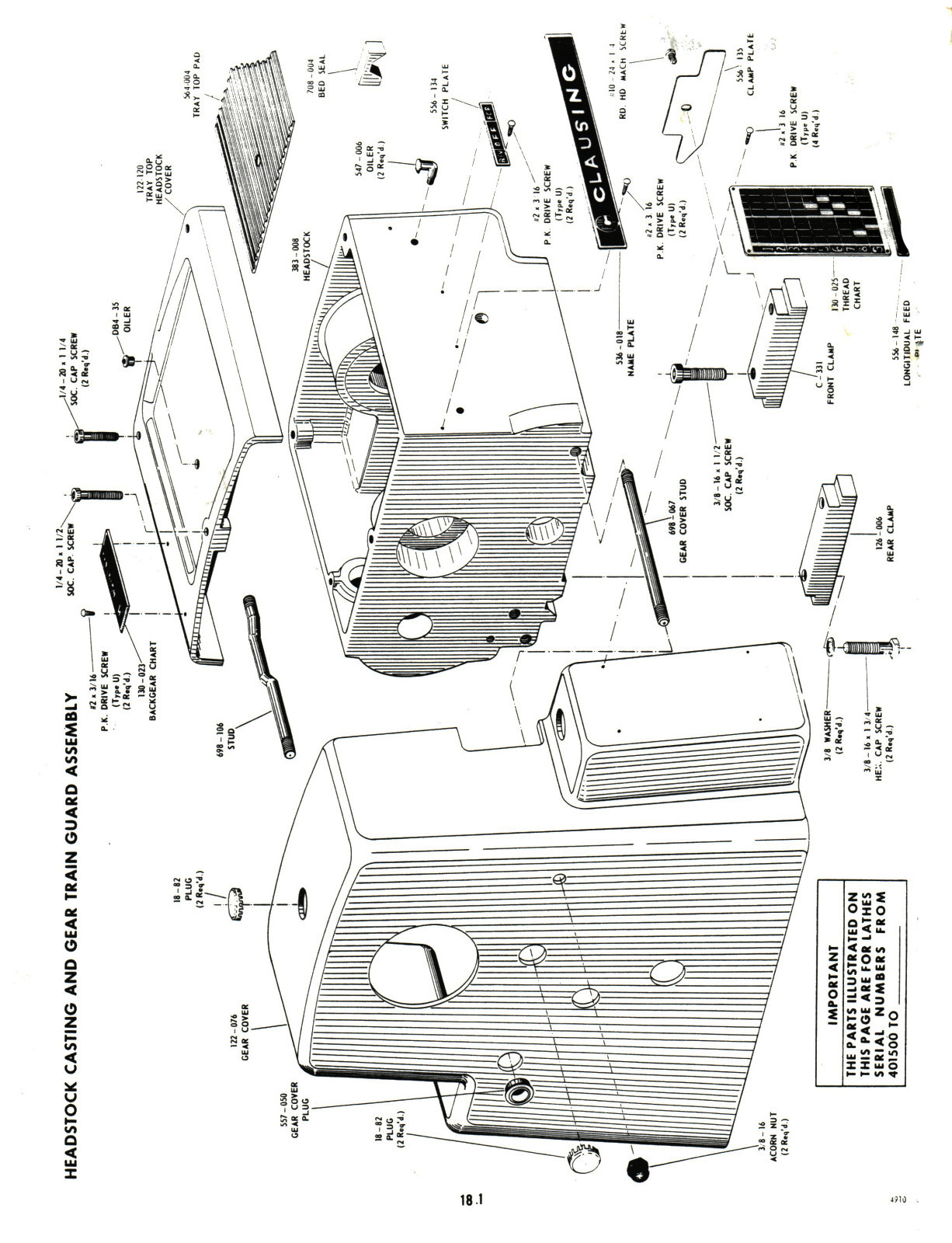

Clausing 10″ Lathe 4900 Series Operating Instruction & Parts Manual For models: 10″ 4900 Series For Serial Numbers: 403934 to 405509 Description: This is an Operation & Parts List Manual for the 10″ Series 4900 Clausing Lathe. It has instructions on Operation, Lubrication, Maintenance, Drive belts, & Adjustments & Complete Parts Breakdown. The manual has 32 pages. To inspect the quality of the manual, to view the table of contents, and to view select pages, please click on the gallery images above to enlarge. Includes sections on: Operating Instructions Control Operation Back Gear Controls Quick Change Gear Box Tool Holders Chucks and Face Plates Lubrication Lubrication Chart Preventative Maintenance Carriage Bearing Plates Shear Pin Spindle Bearing Service and Belt Adjustments Gibs Assembly Breakdown Drawings Parts List Number of pages: Approx 32 Publication date: November, 1968 Publication No.: 4910-5 Added Notes: About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop.Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. Sales tax charged for Kansas sales.
