Cincinnati No. 2 Centerless Grinding Machine Operators Manual #674

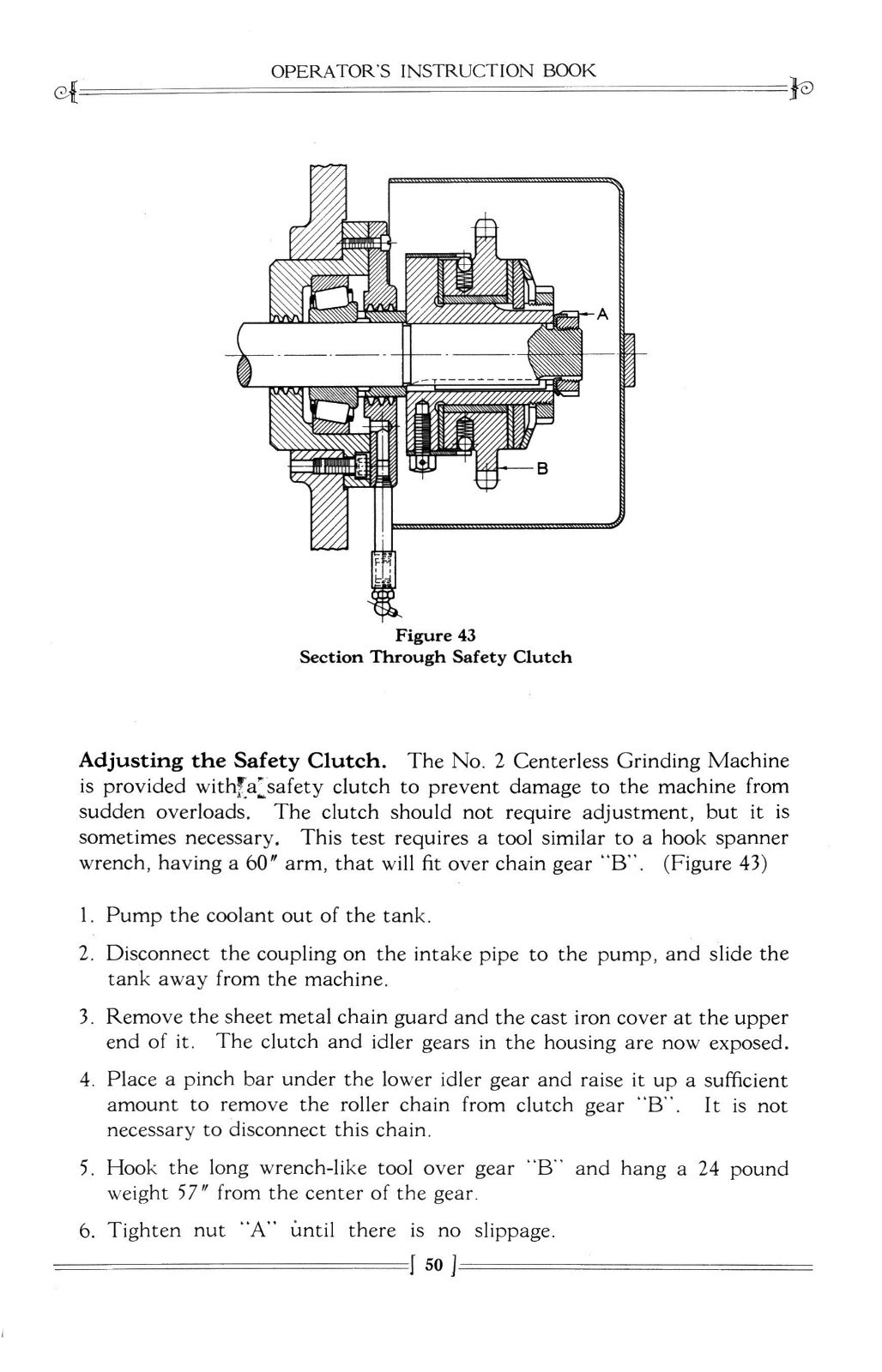

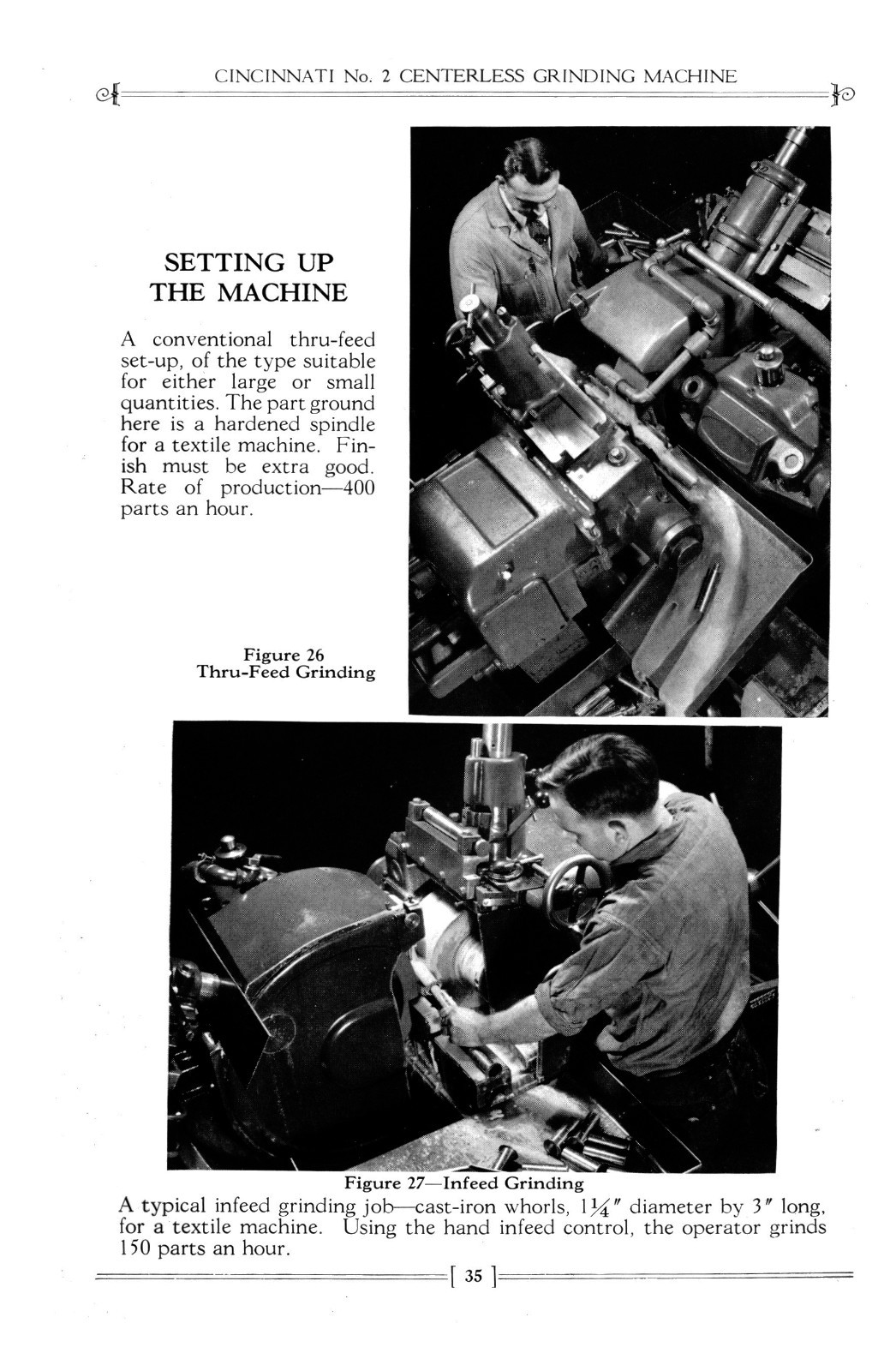

Cincinnati No. 2 Centerless Grinder Operators & Instruction Manual For models: No. 2 Centerless Grinder Description: This is an Operators and Instruction Manual for the Cincinnati No. 2 Centerless Grinding Machine. It has sections on Lubrication Instructions & Specifications, Installation, Centerless Grinding Principles, Setting up the Machine, Wheel Balancing and Truing, Adjustments, Grinding Coolants, Attachments, and much more. The manual has 72 pages. To inspect the quality of the manual, to view the table of contents, and to view select pages, please click on the gallery images above to enlarge. Includes sections on: Machine Specifications Functional Diagrams Lubricating Specifications Installation Principles of Centerless Grinding Methods & Advantages of Centerless Grinding Selection and Setting of Work Blade Mounting & Balancing of the Wheels Truing the Wheels Setting up the Machine Adjustments Recommendations on Grinding Coolant Regrinding Work Support Blades Rescraping the Regulating Wheel Spindle Bearings Attachments and Accessories Table of Thru-Feed Work Traverse Rates Number of pages: Approx 72 Publication date: 1940 Publication No.: G-433 Added Notes: Due to others making copies of this manual for resale, I have added a light watermark on select pages to discourage this practice. About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop.Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Sales tax charged for Kansas sales. See my for more manuals
