Cincinnati No. 2 Centerless Grinder Operators & Service Manuals #674 & #370

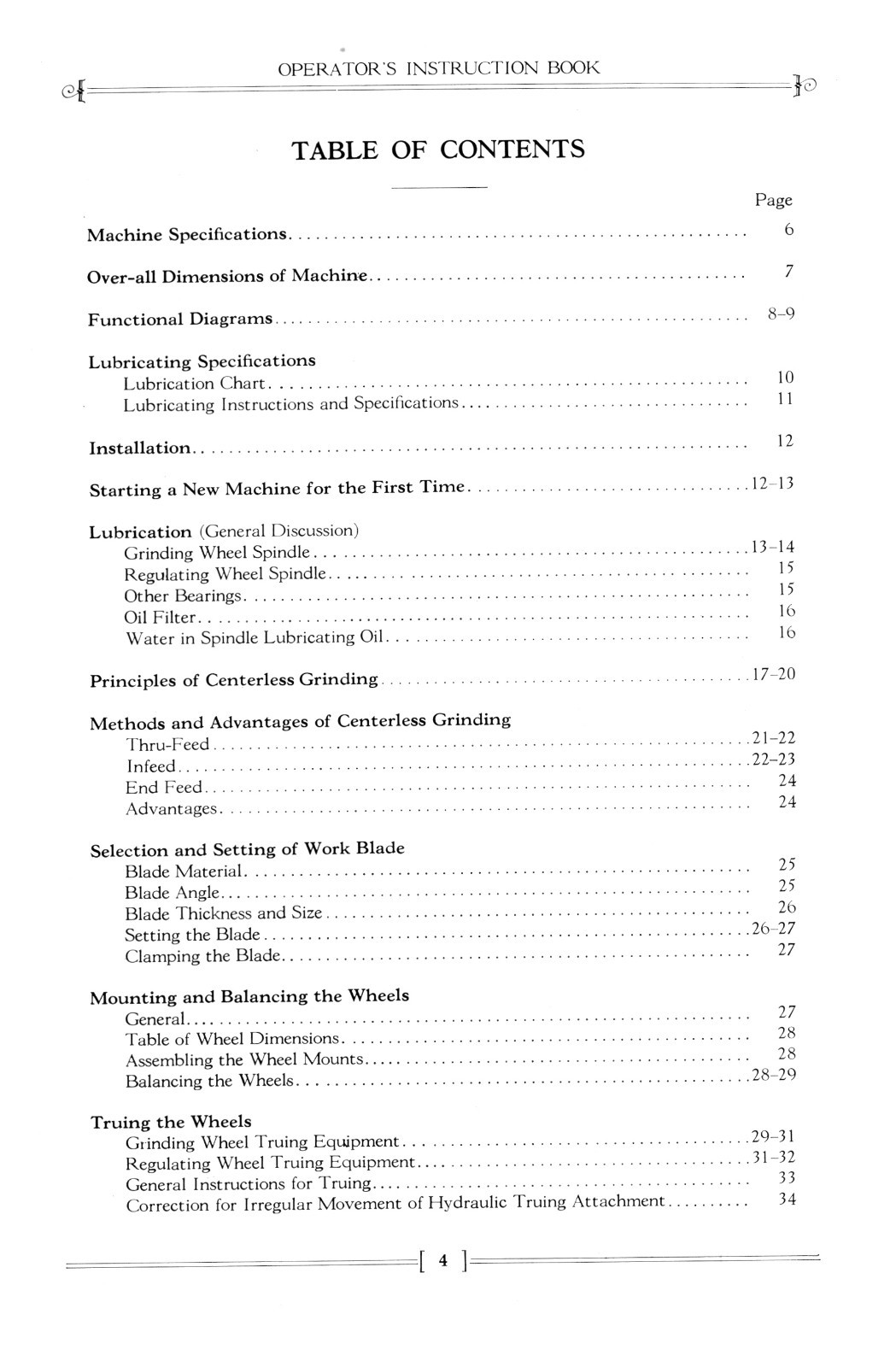

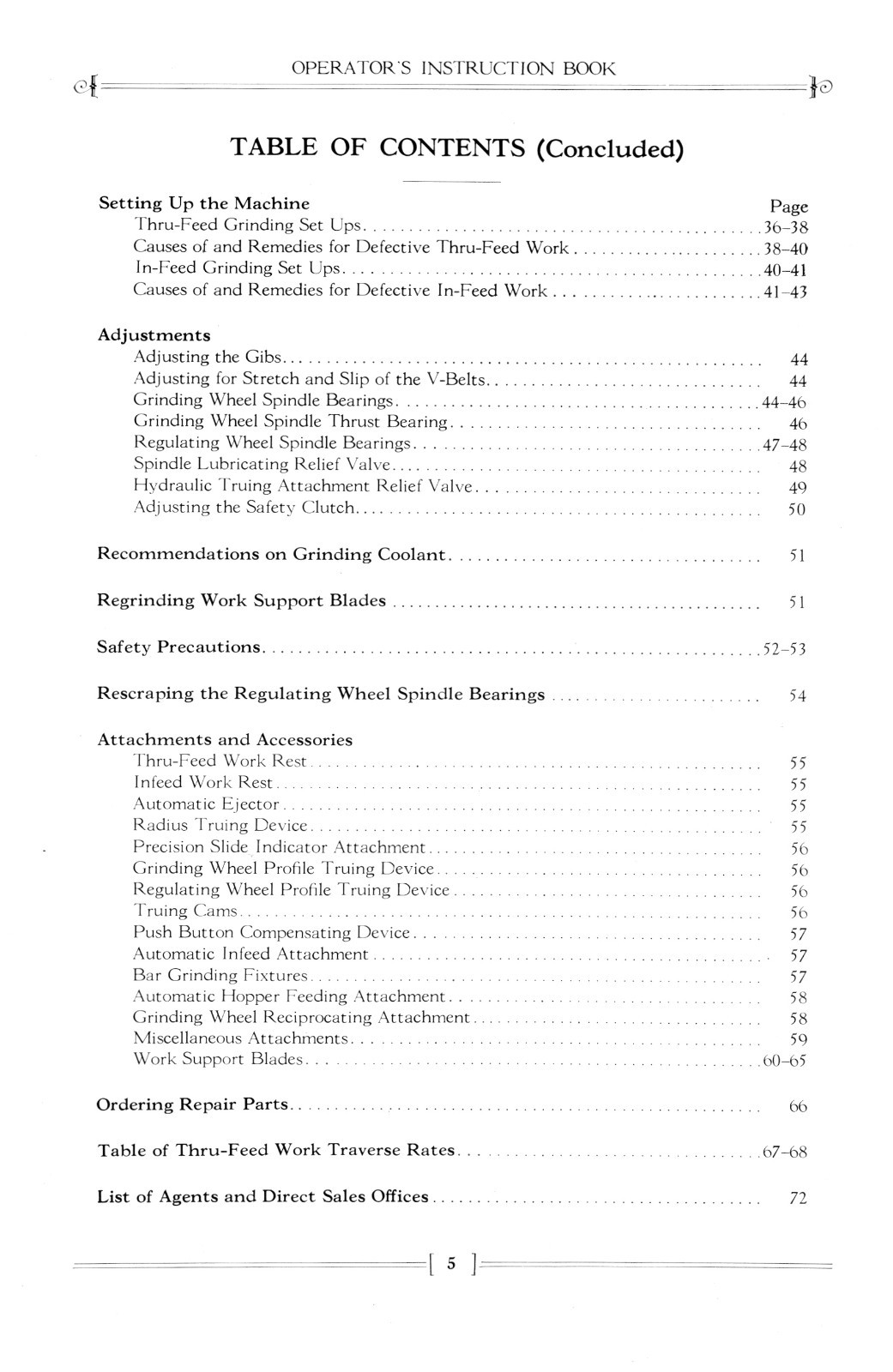

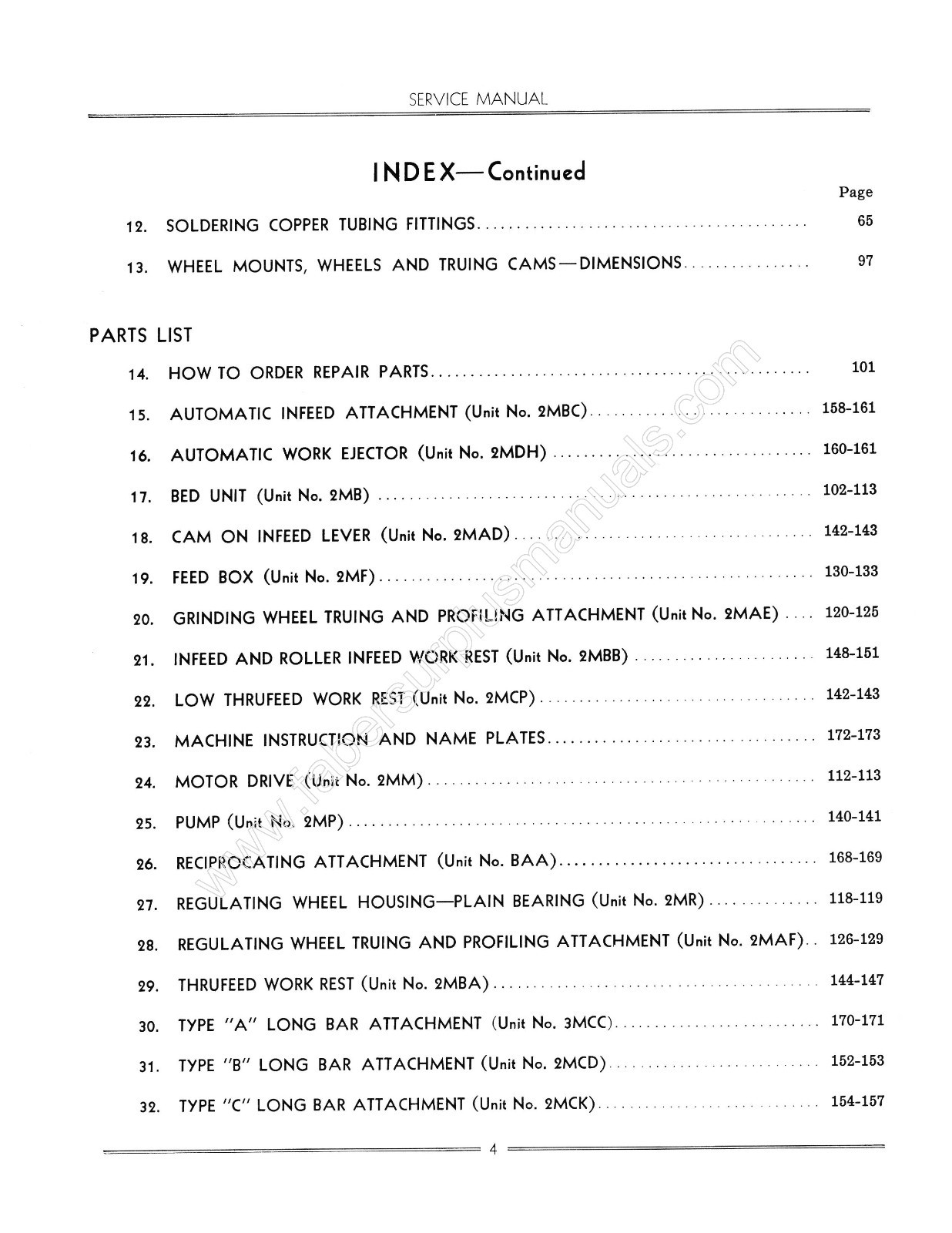

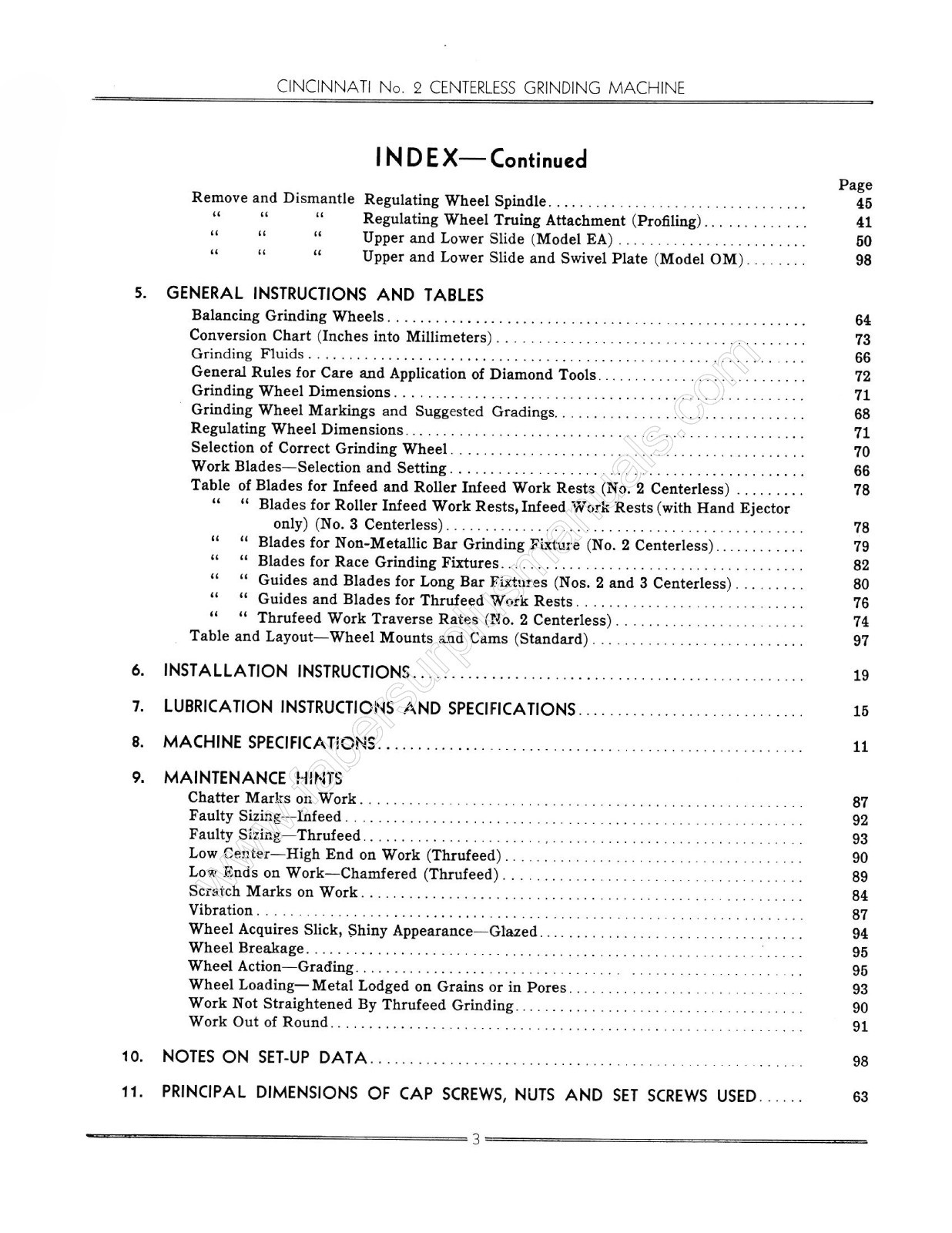

Cincinnati No. 2 Centerless Grinder Models EA & OM Operators & Instruction Manual and Service & Parts Manual 2 Manual Combination For models: No. 2 Centerless Grinder Models EA & OM NOTE: For machines with serial numbers beginning with “2M” Description: This offer is for both the Operators and Instruction Manual and a Service and Parts Manual for the Cincinnati No. 2 Centerless Grinding Machine. The Operators manual has 72 pages and the Service and Parts Manual has 174 pages. These manuals are quite complete and detail and will provide all of the instructions you will need to operate or service and repair your Cincinnati machine. Separately the manuals are priced $45 and $75 respectively. You can buy both together for $100, a savings of $20. To inspect the quality of the manual, to view the table of contents, and to view select pages, please click on the gallery images above to enlarge. The Operators Manual Includes sections on: Machine Specifications Functional Diagrams Lubricating Specifications Installation Principles of Centerless Grinding Methods & Advantages of Centerless Grinding Selection and Setting of Work Blade Mounting & Balancing of the Wheels Truing the Wheels Setting up the Machine Adjustments Recommendations on Grinding Coolant Regrinding Work Support Blades Rescraping the Regulating Wheel Spindle Bearings Attachments and Accessories Table of Thru-Feed Work Traverse Rates The Service and Parts Manual Includes sections on: Adjustments Attachments Lubrication Instructions & Specifications Dismantling Instructions General Instructions & Tables Specifications Maintenance Hints Grinding Wheels & Fluids Parts Lists and DiagramsNumber of pages: Approx 72, Operator manual, & 174 for the Service and Parts manual Publication date: 1940, and 1944 Publication No.: G-433 & G-522-3 Added Notes: Due to others making copies of this manual for resale, I have added a light watermark on select pages to discourage this practice. About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop.Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Sales tax charged for Kansas sales. See my for more manuals
